AC Wireless doorbells
New

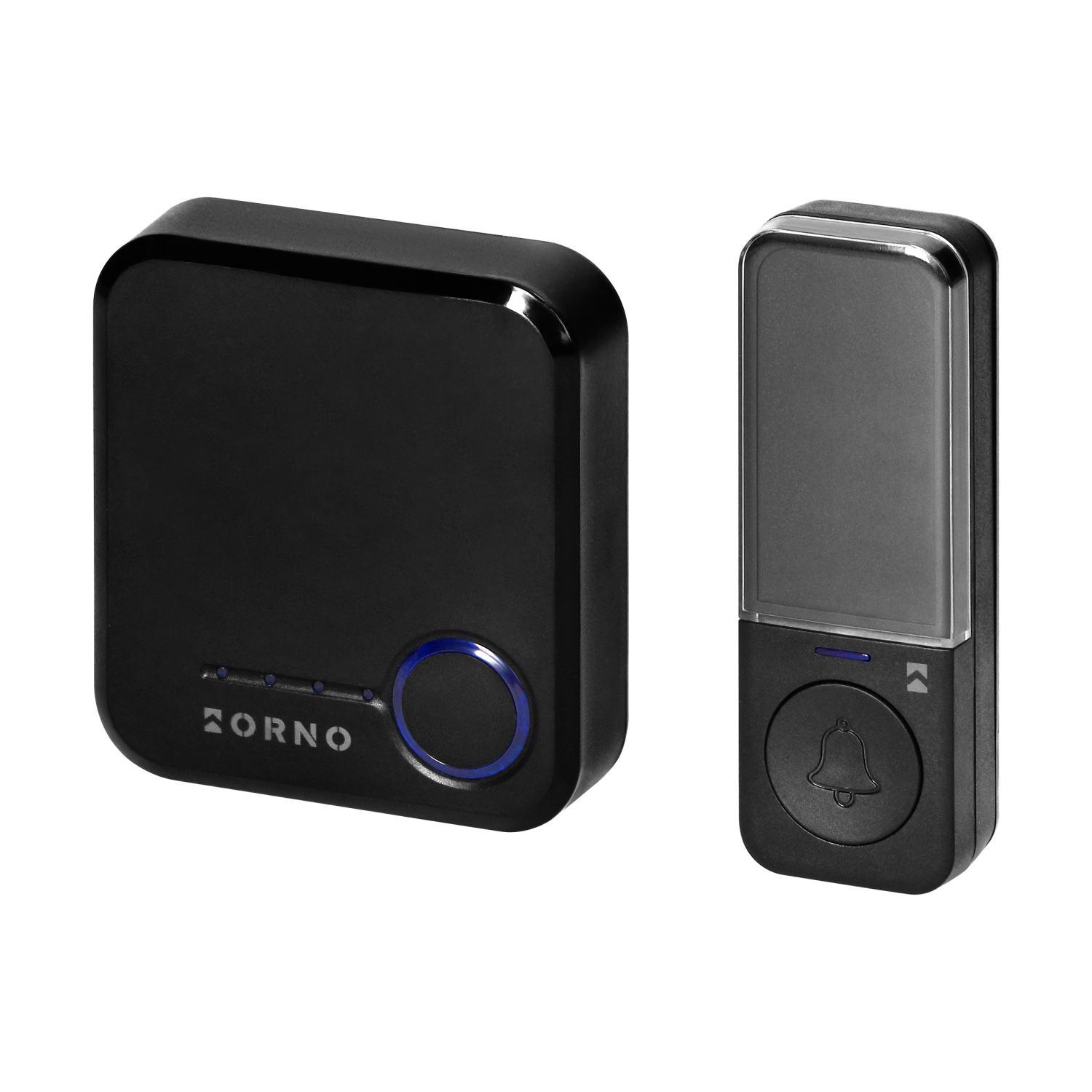

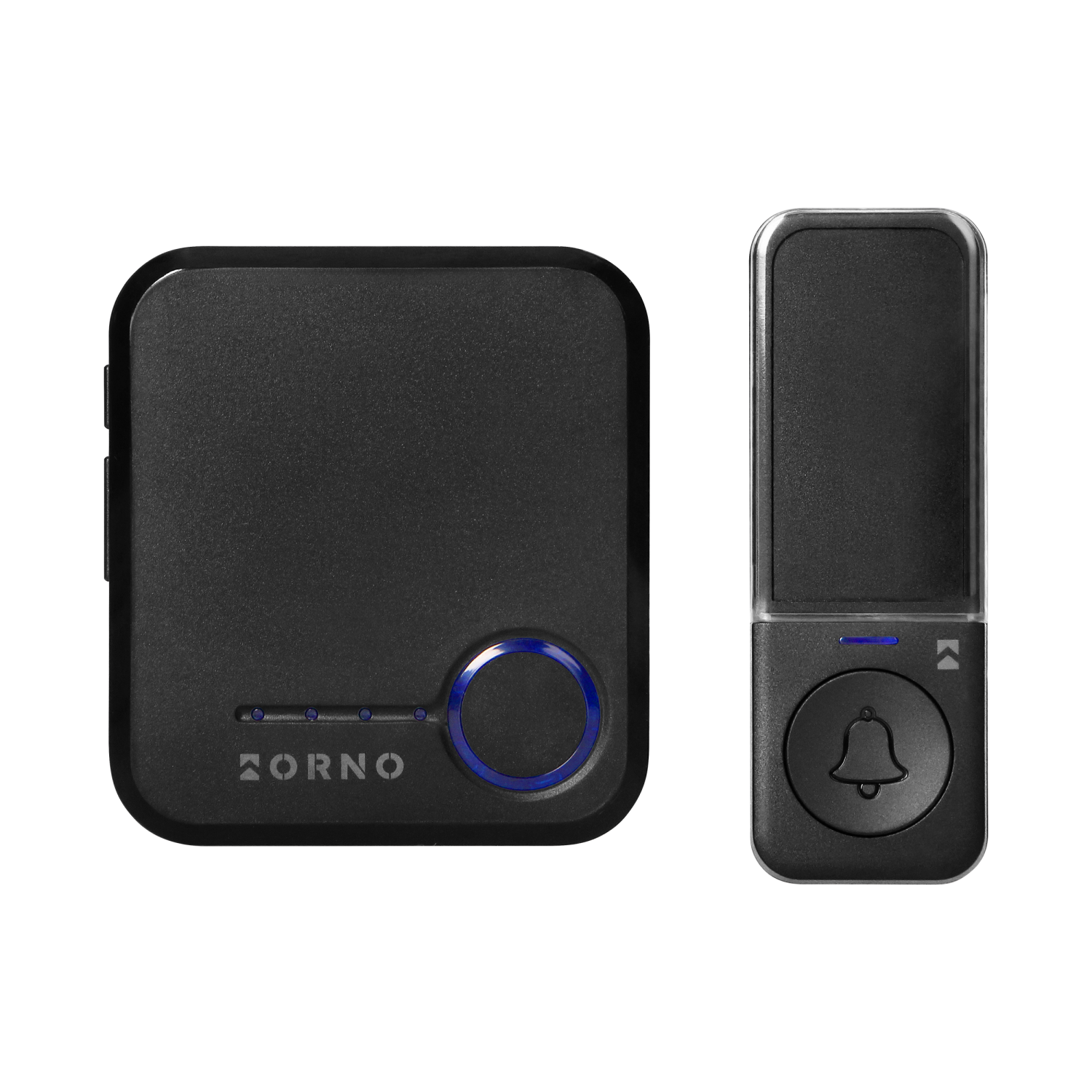

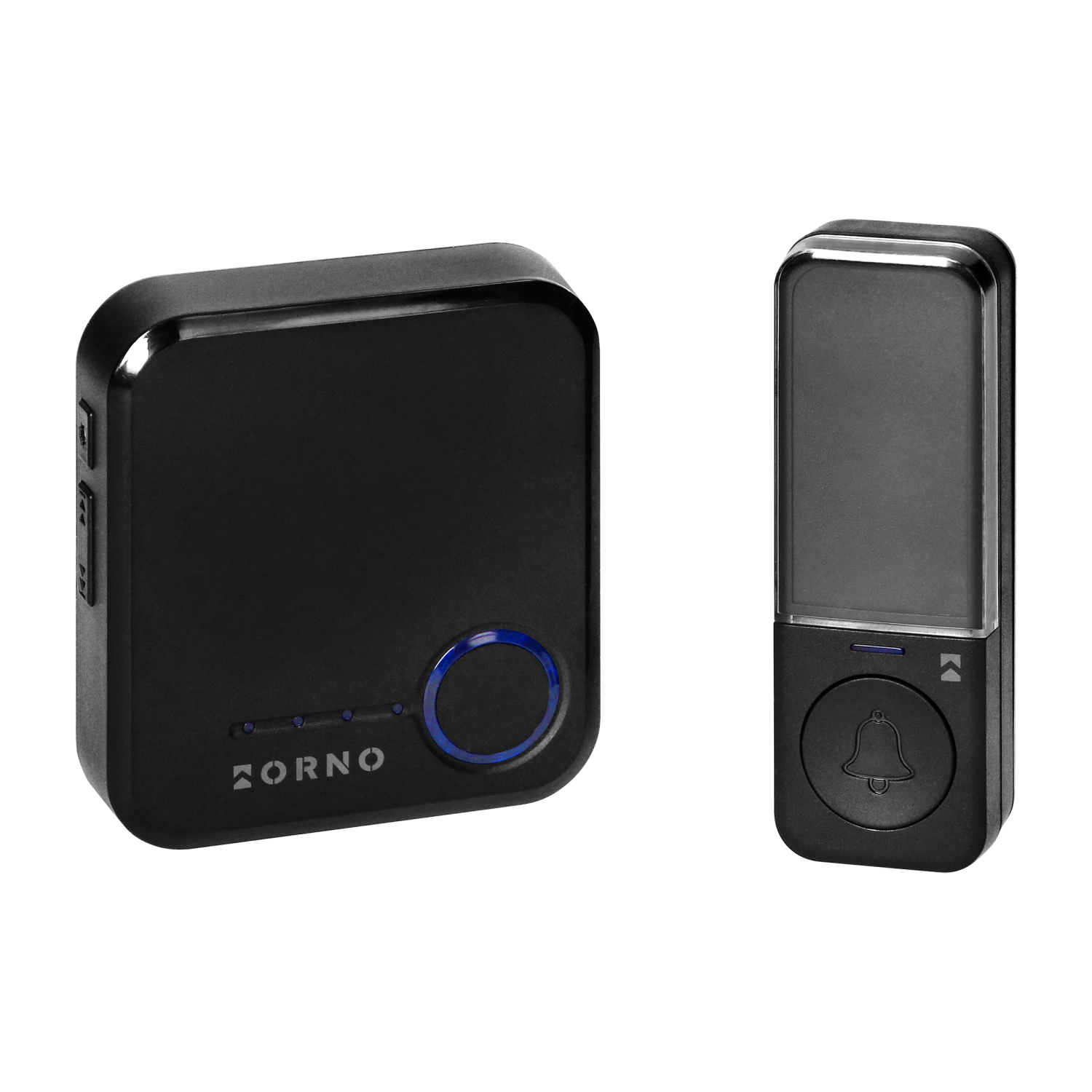

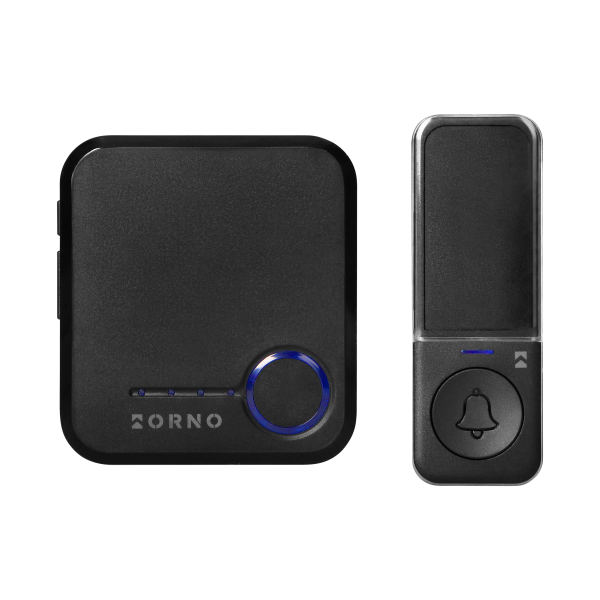

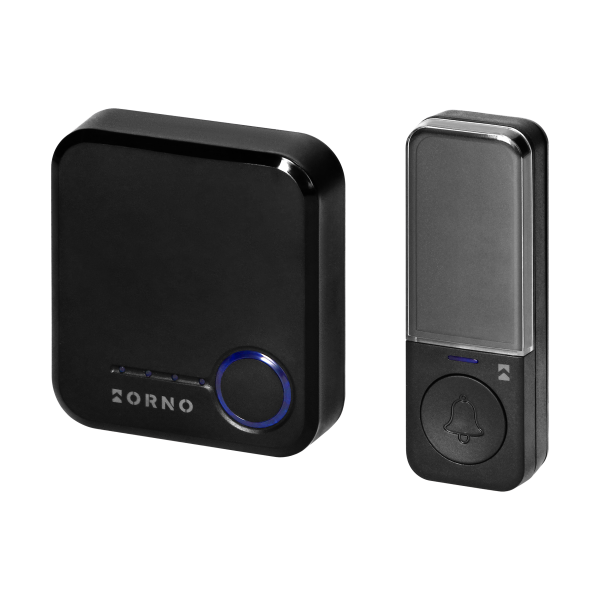

SIGO AC is an innovative wireless mains-powered doorbell based on advanced smart technologies. The device not only provides the basic acoustic feature but also perfectly combines with modern smart home solutions.

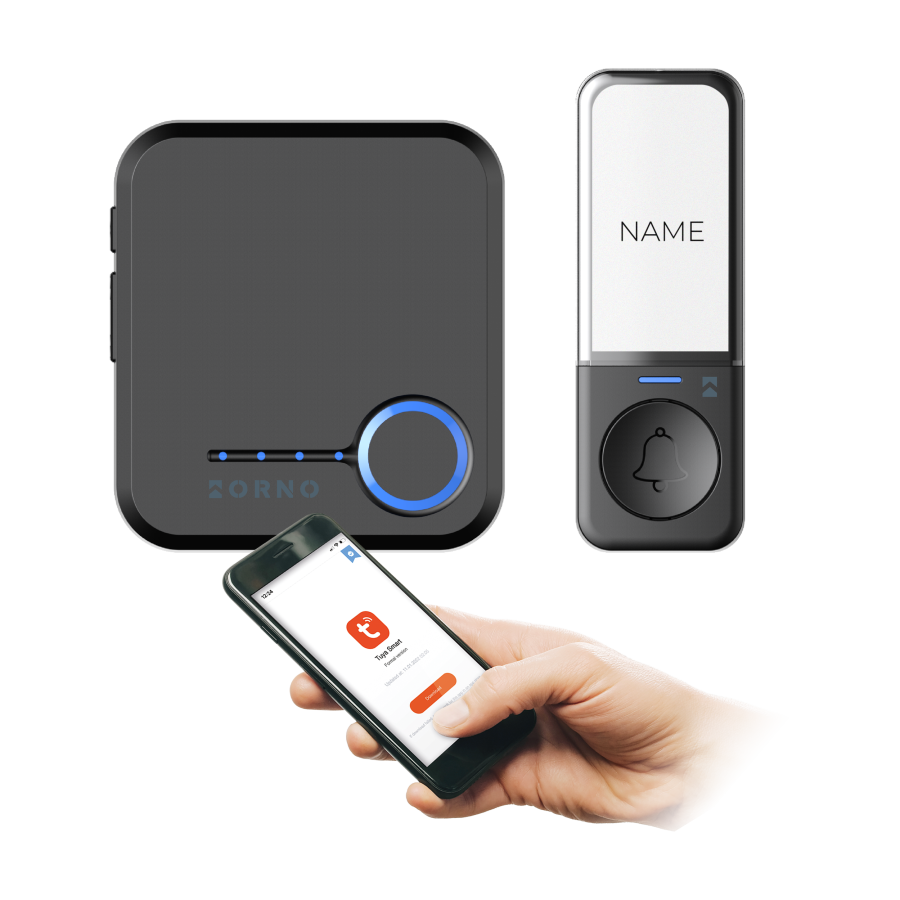

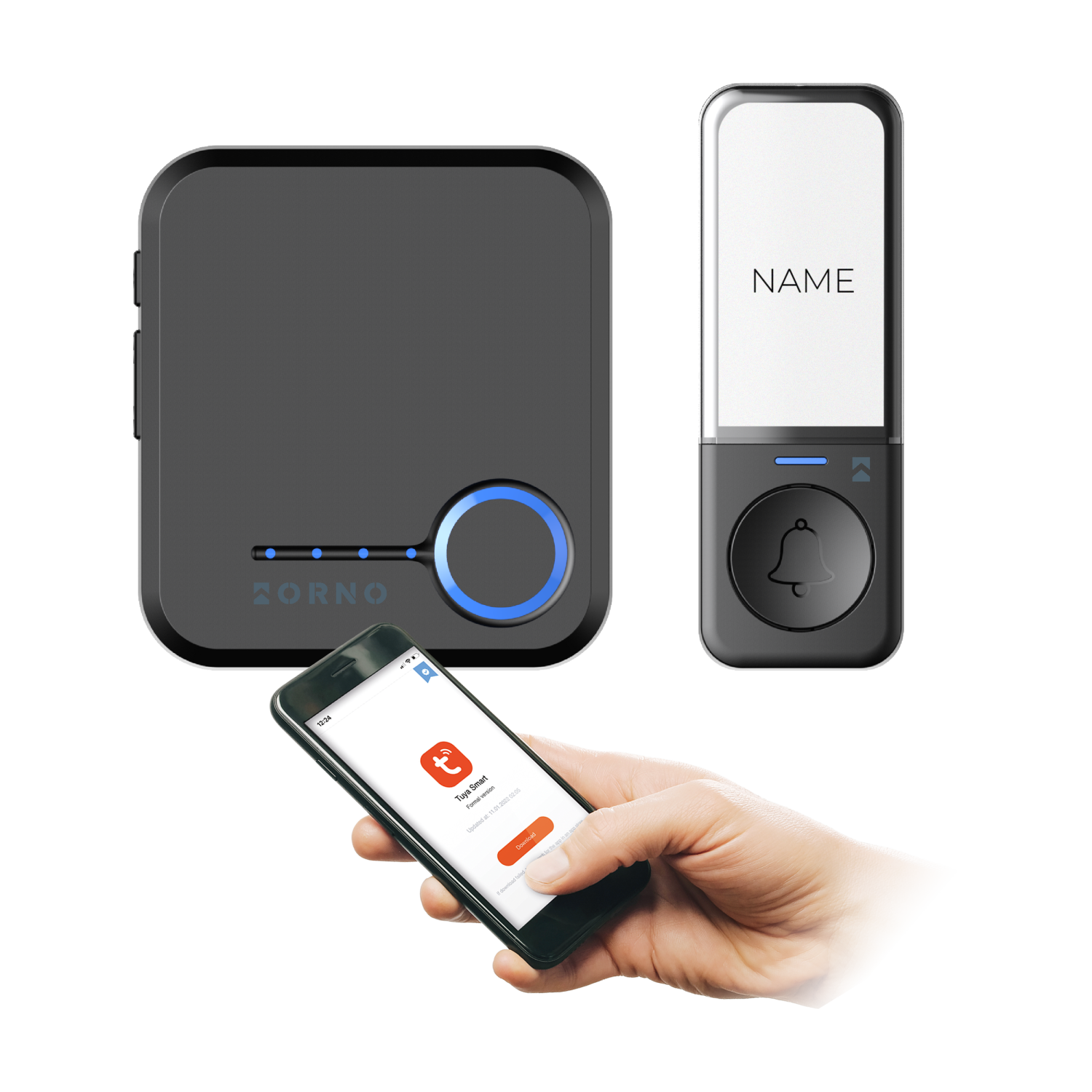

Thanks to Wi-Fi integrated with Tuya platform, the device sends a notification of a guest ringing the doorbell even while the household members are away. One needs simply to install the Tuya Smart app on the phone (supports Android and iOS systems) and pair it with SIGO AC. After connecting additional doorbell buttons and after configuring each of them, the app immediately recognizes which transmitter gave a signal and sends a notification to the phone.
The doorbell has a battery-free button, which eliminates the need of replacing traditional batteries. The installation is extremely easy, and you do not need to drill the wall. Simply place the transmitter near the door or a wicket, and the receiver in any place in the house plugging it to any socket. As the range in the open field is 200m, the transmitter may be placed in a great distance from the house.

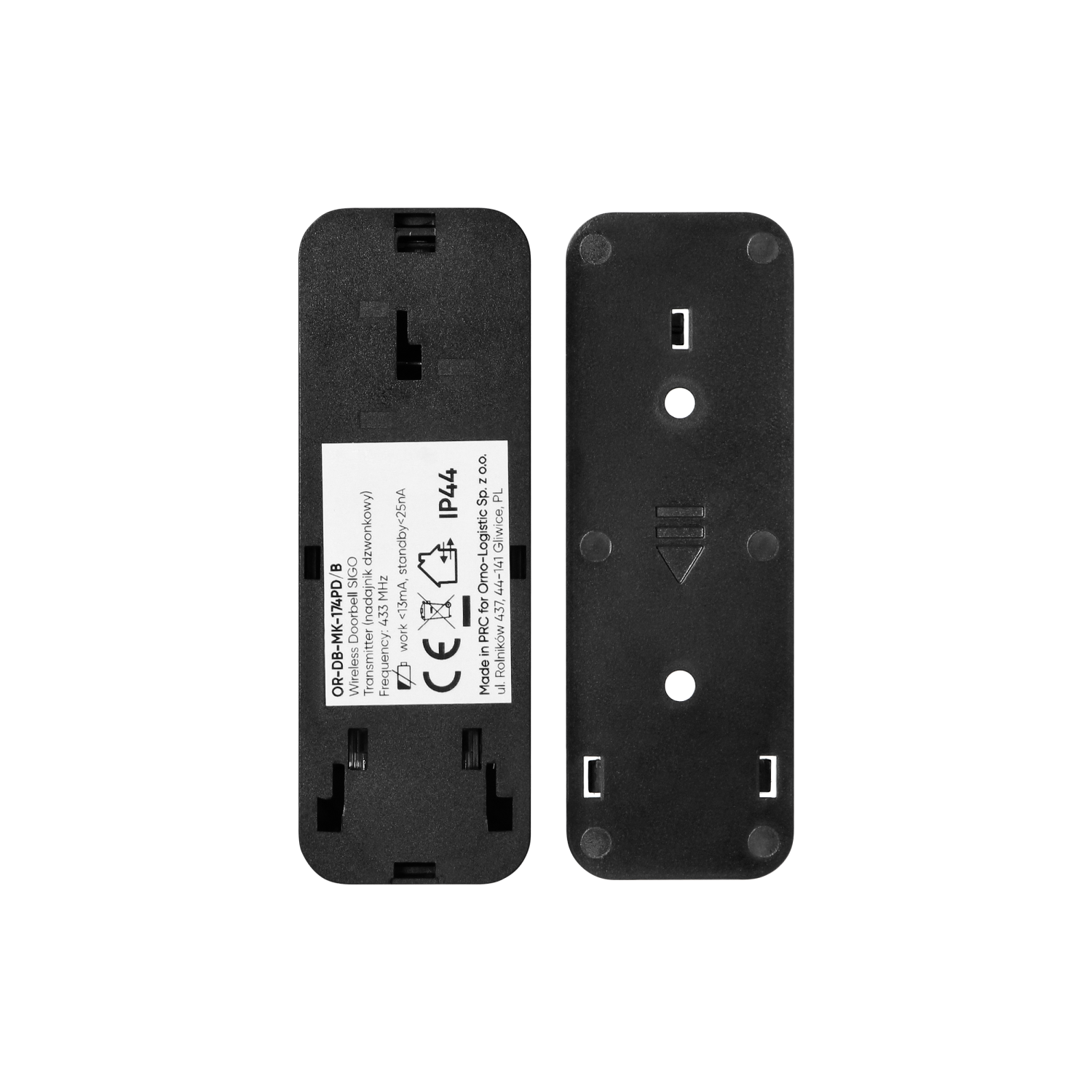

The transmitter, IP44 rated, is rain and dust resistant and may be placed near the door or a wicket regardless of harsh weather conditions. It is made of durable plastic in black. Intended for surface-mounting. The dimensions measure 31x88 mm.
The 32 ringtones and 5-stage volume regulation including complete mute, which are built in the receiver, allow to adjust the sound to one’s own preferences and any circumstances. Three signalling modes (visual-acoustic, visual and acoustic) allow to modify the modes according to one’s expectations and the times of day. One may mute the sound and leave only noticeable visual notification or turn the visual notification off and leave only the sound or use both options.

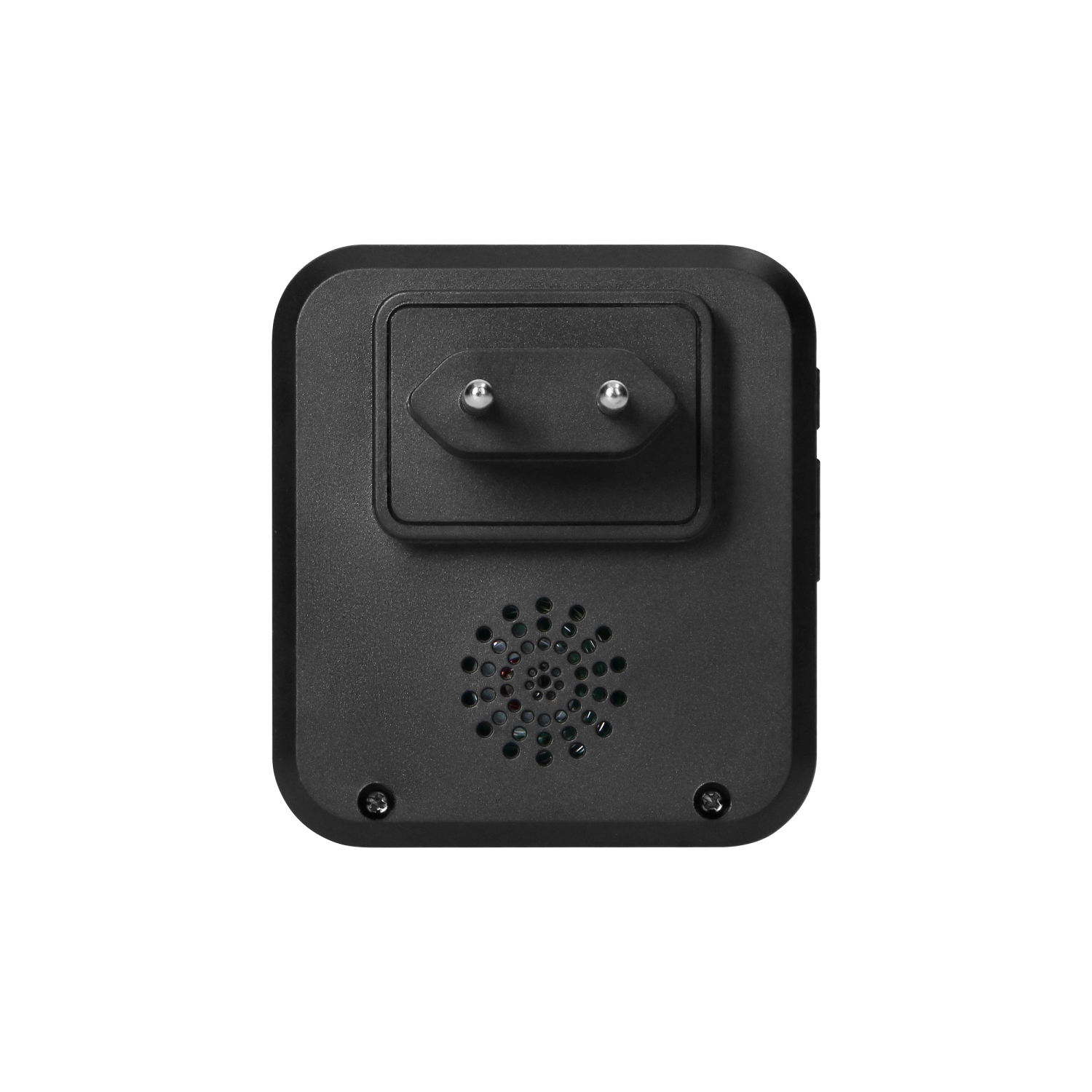

The receiver is made of plastic in black. Intended for installation in places not exposed to moisture. The dimensions measure 72x66 mm.
| General information: | |
|---|---|
| Wireless: | tak |
| Max. transmission range [m]: | 200 |
| Frequency [MHz]: | 433.92 |
| Possibility of extension by an additional transmitters: | tak |
| Other features: | Tuya Smart; learning system |
| Receiver: | |
|---|---|
| Type of current (receiver): | AC |
| Nominal voltage [V]: | 230 |
| Electricity consumption: | <0.4W |
| Number of ringtones: | 32 |
| Loudness [dB]: | 90 |
| Volume adjustment [dB]: | tak |
| Volume adjustment range [dB]: | 0-90 |
| Optical indication: | tak |
| Mounting method: | Montaż natynkowy |
| Degree of protection (IP): | IP20 |
| Housing material (receiver): | Tworzywo sztuczne |
| Colour housing: | Czarny |
| Width (receiver) [mm]: | 72 |
| Height (receiver) [mm]: | 79 |
| Depth (receiver) [mm]: | 65 |
| Transmitter: | |
|---|---|
| Type of current (transmitter): | Bezbateryjny |
| Transmitter max. power [mW]: | 20 |
| Degree of protection (IP) (transmitter): | IP44 |
| With lighting: | tak |
| With name plate: | tak |
| Housing material (transmitter): | Tworzywo sztuczne |
| Colour (transmitter): | Czarny |
| Width (transmitter) [mm]: | 31 |
| Height (transmitter) [mm]: | 88 |
| Depth (transmitter) [mm]: | 19 |
