OR-WL-3200/100/S

Description

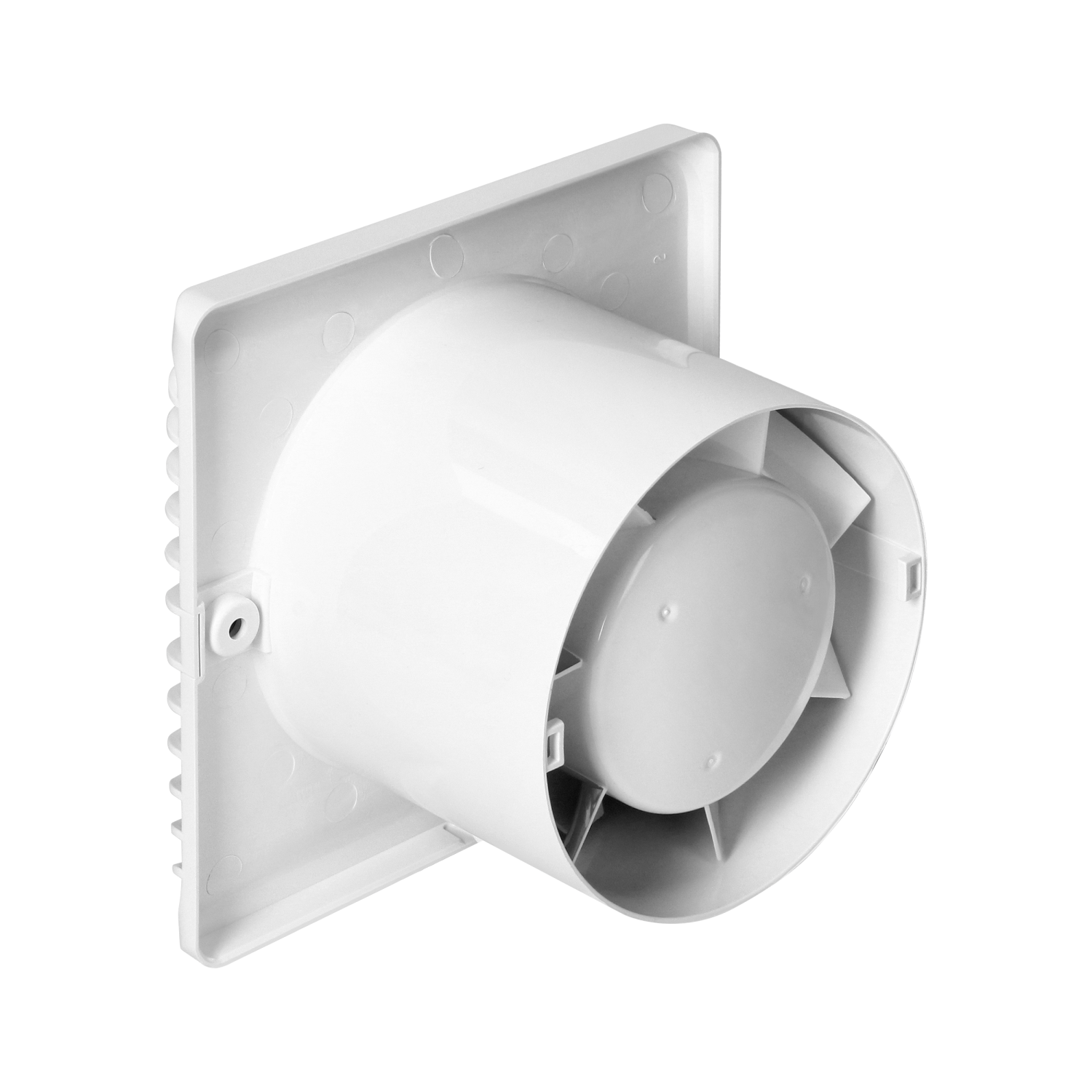

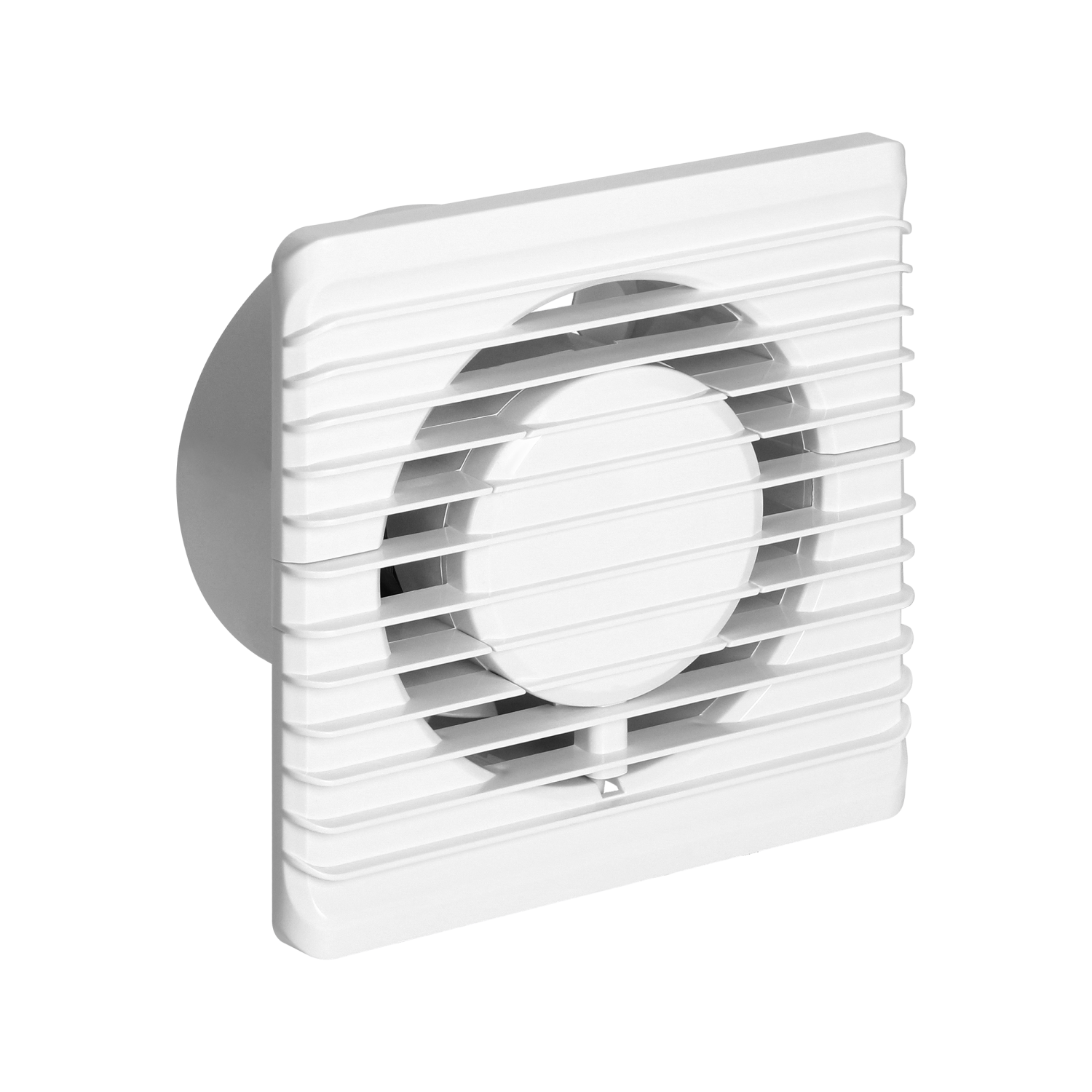

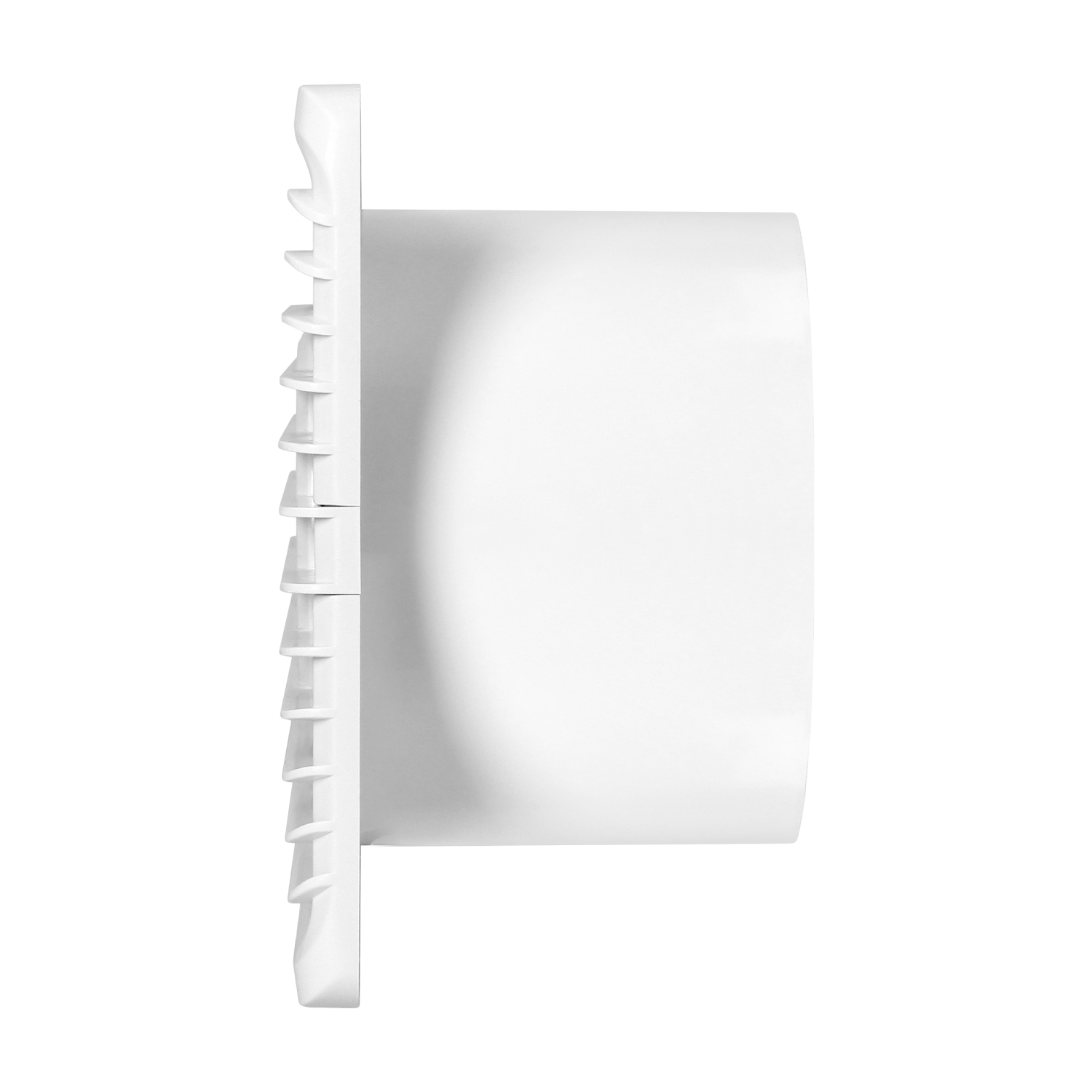

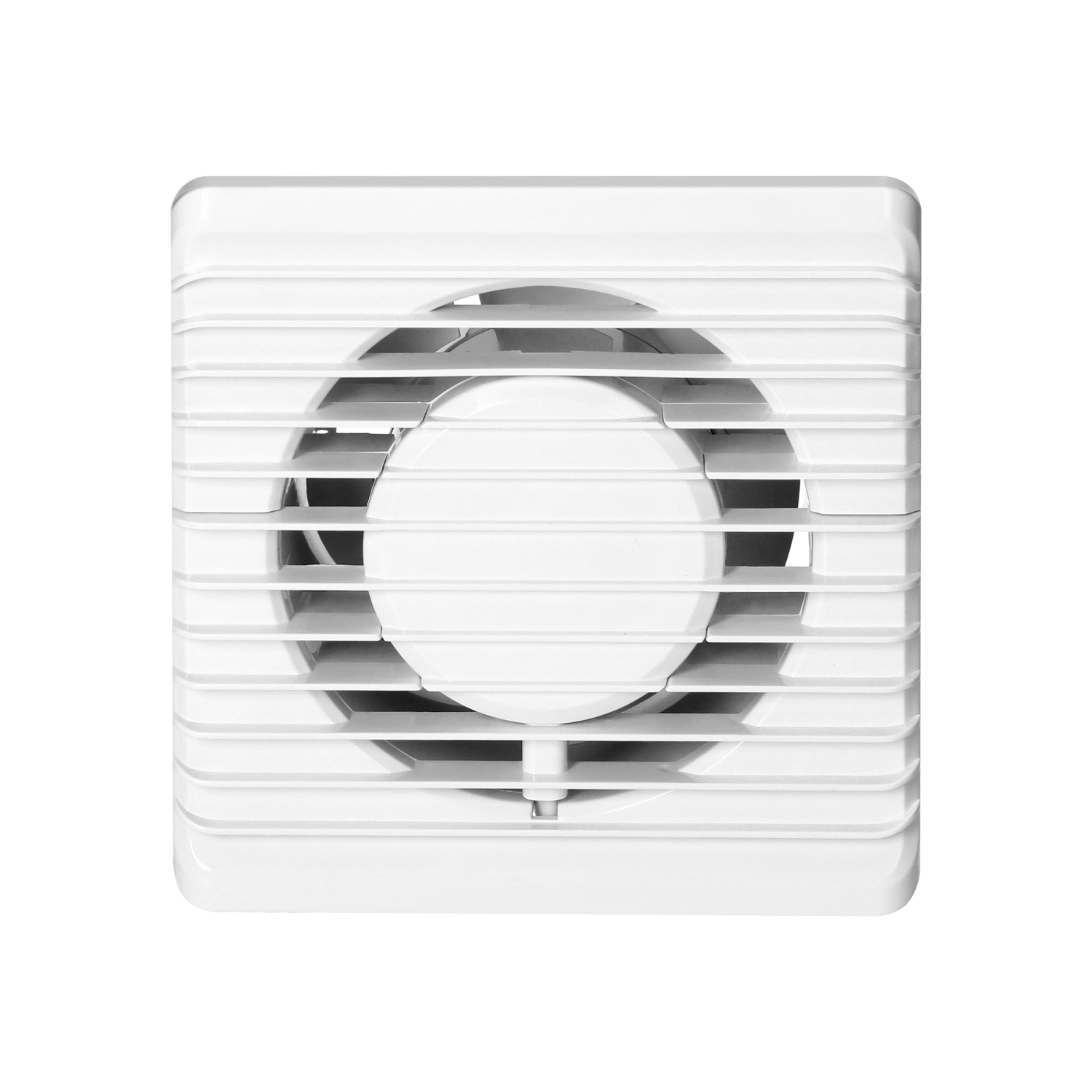

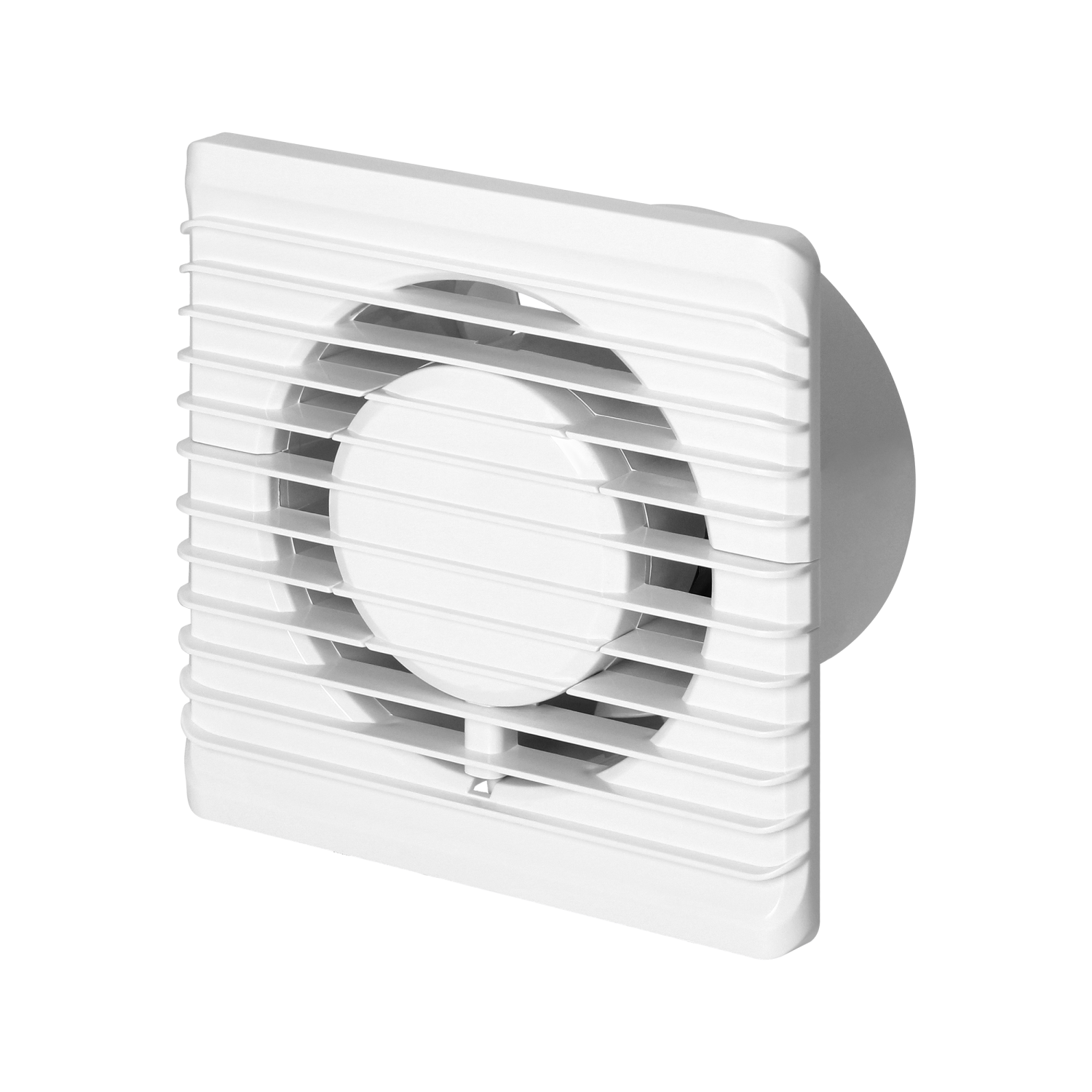

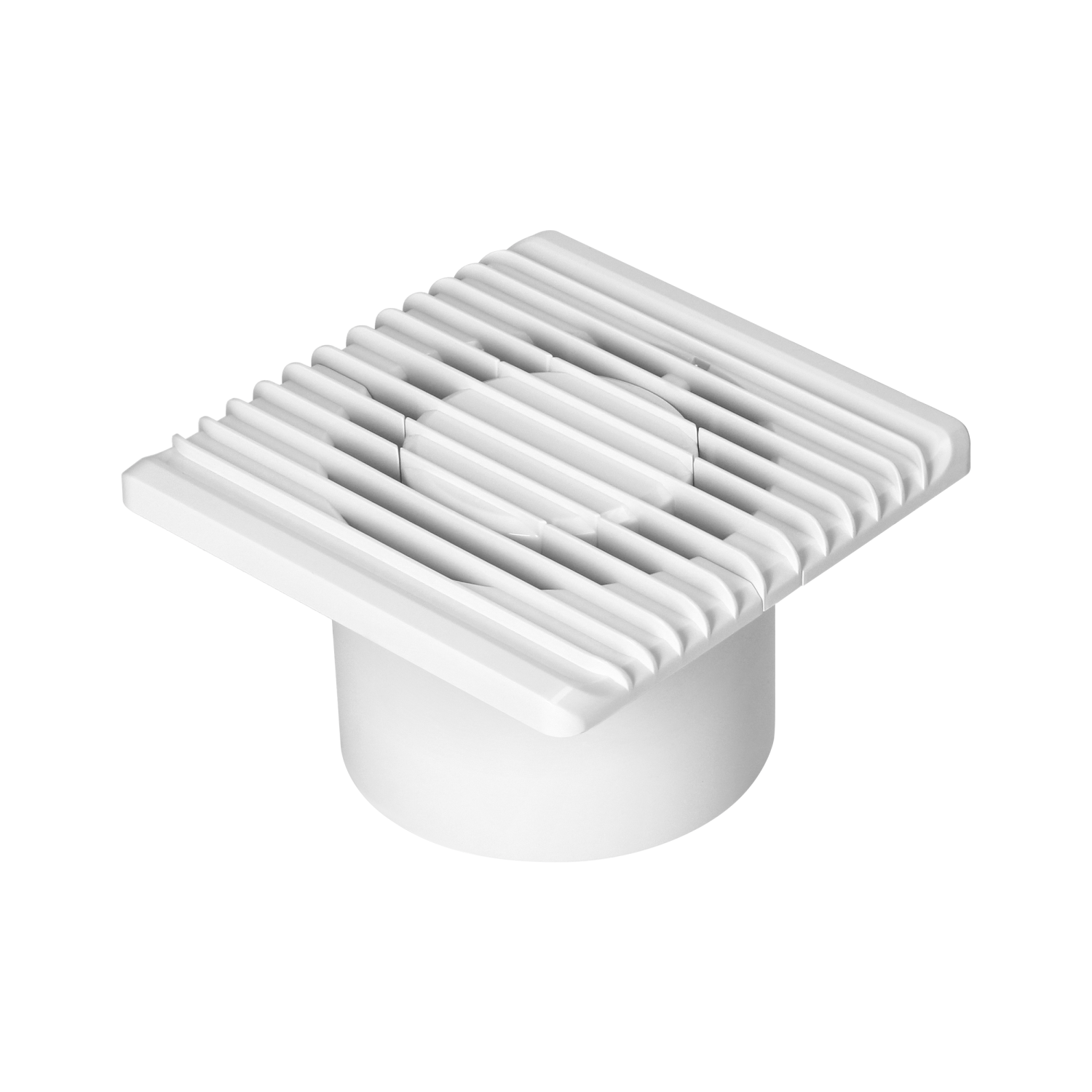

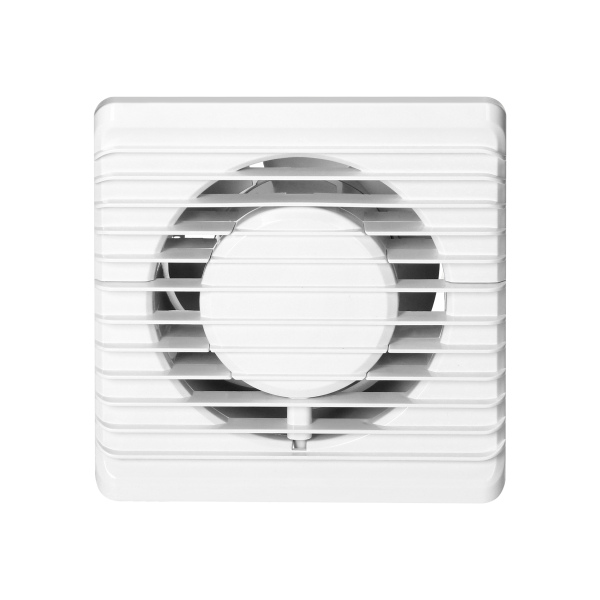

Useful bathroom fan that automatically draws the moist air to the outside. It is designed for wall mounting. A very quiet device that will take care of the air quality in the bathroom, but will not disturb our relaxation zone. The fan has a compact design 135x135mm and a short exhaust pipe (100mm), which will fit even in shallow ventilation ducts. High-class bearings guarantee a long service life of the device.

General information:
Static pressure: 30 Pa
Sound pressure: 26 dB
Rotation speed: 2400 rpm
Control: none
Air flow: 93 m³/h
Type of assembly: wall
Rated power: 8 W
Nominal voltage: 230V~, 50Hz
Material: ABS
Installation depth: 67 mm
Dimensions - width: 135 mm
Dimensions - depth: 79 mm
Dimensions - height: 135 mm
Diameter: 100 mm
Colour: white
Bearing: plain bearing

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:56Download
Product data sheetENpdf2024-07-17 10:22:41Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
User manualHRpdf2024-03-14 10:39:51Download
User manualMEpdf2024-03-14 10:39:51Download
