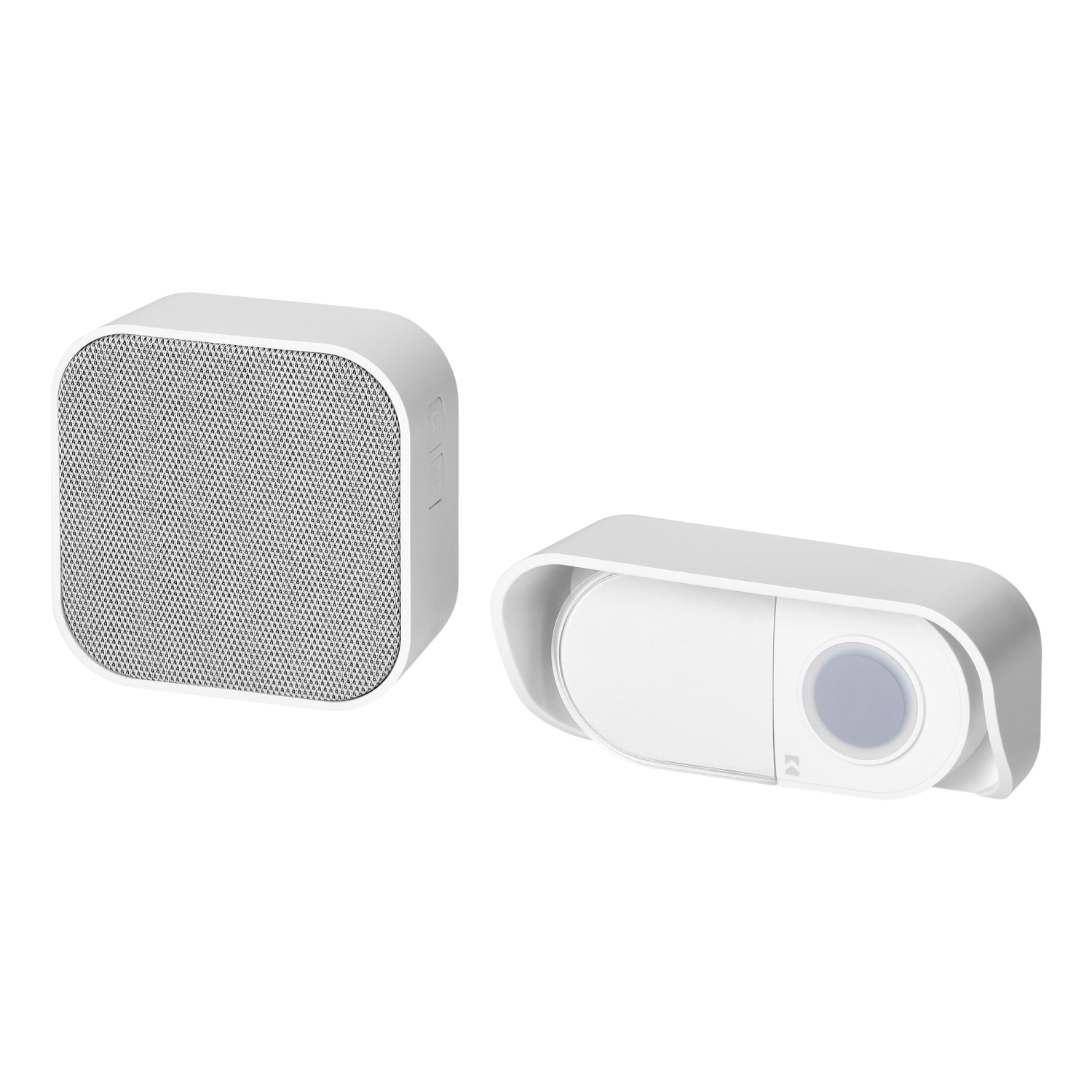

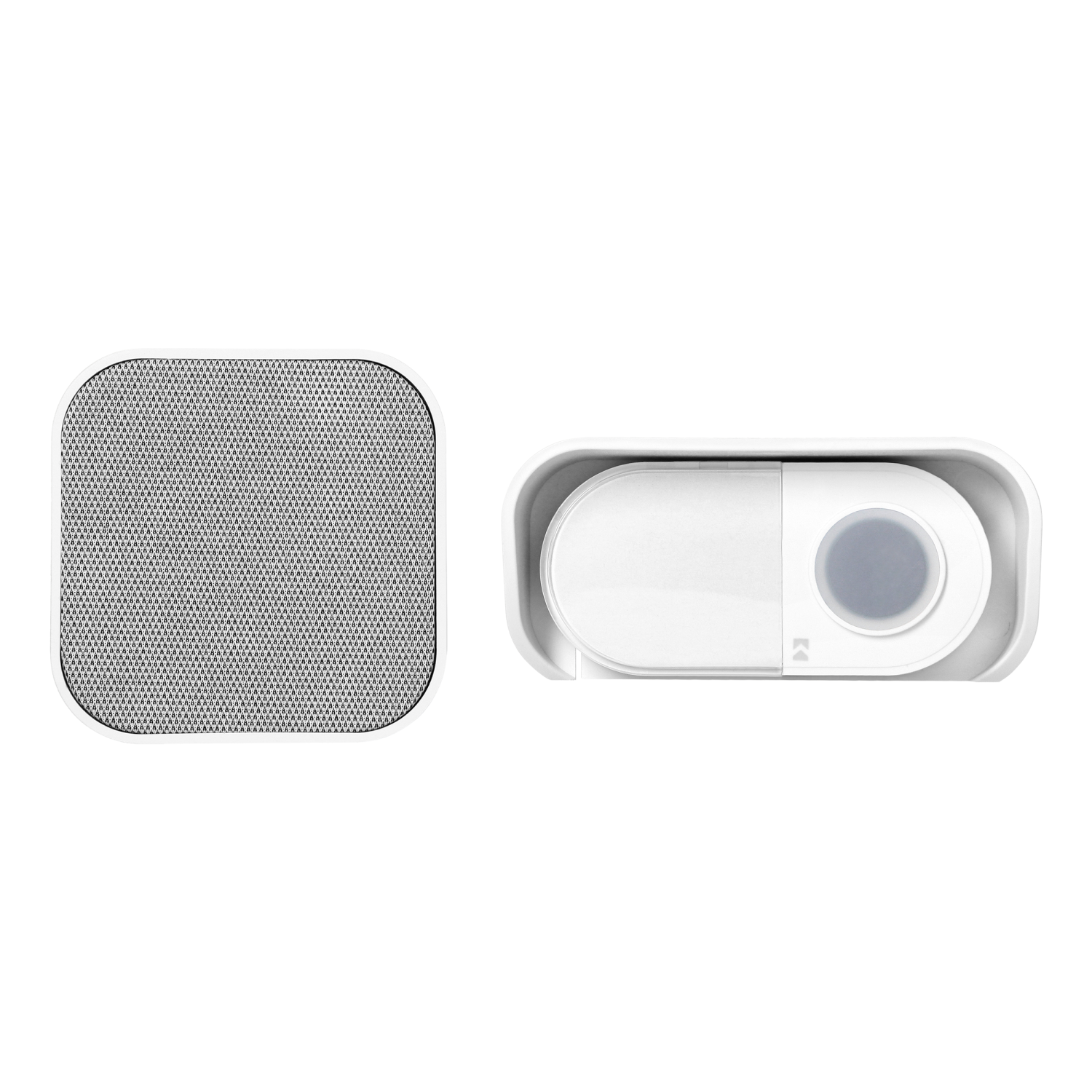

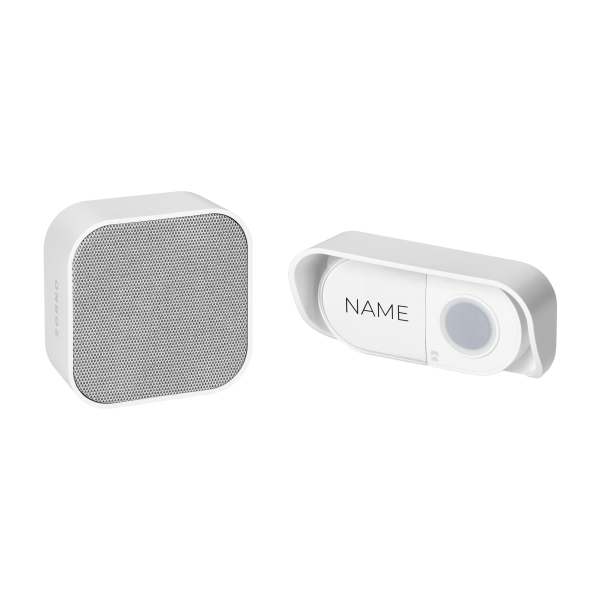

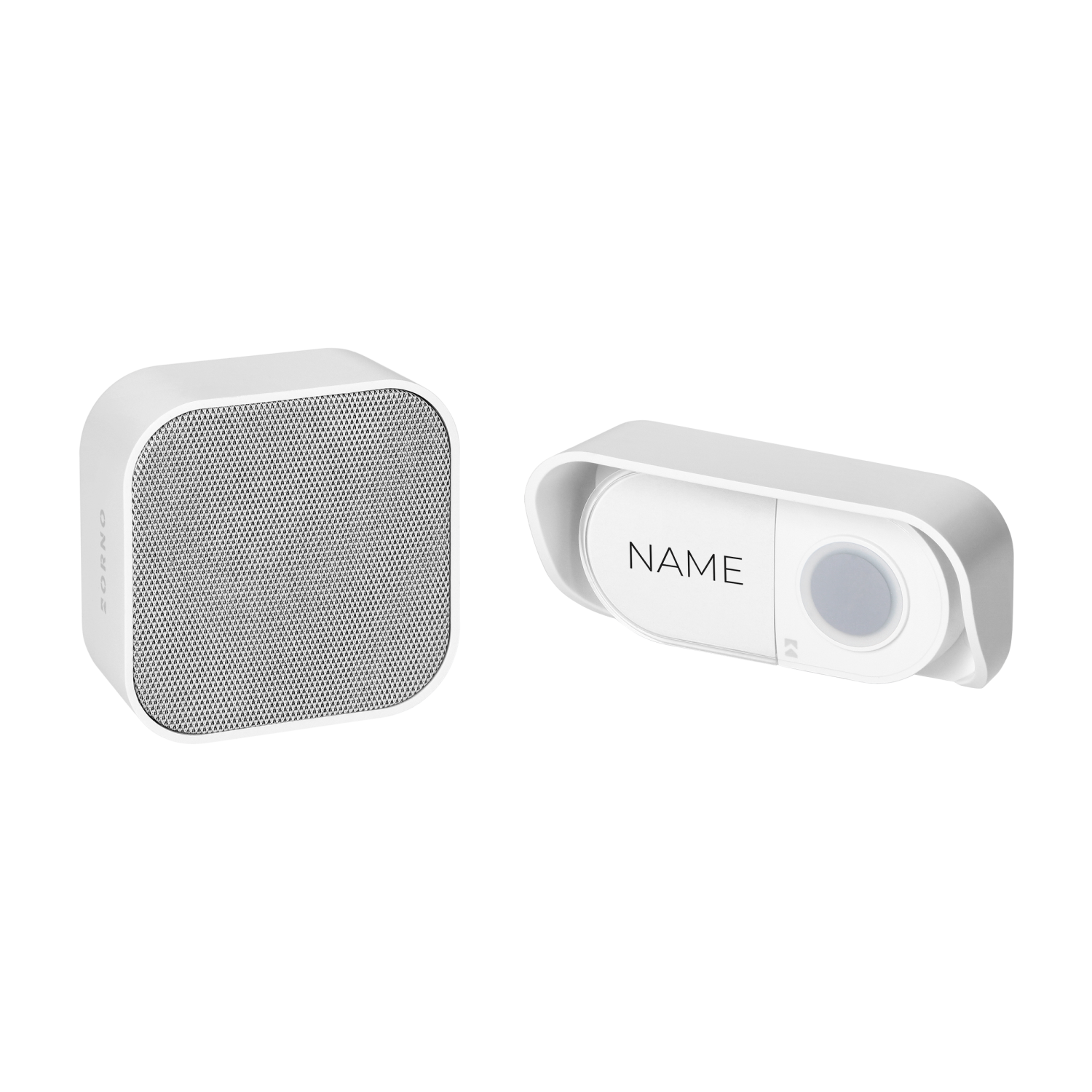

The wireless ATEL DC doorbell is a modern and functional device that has not only an outstanding aesthetics but many practical functions as well. A unique textile front finish of the receiver makes ATEL AC not only a functional but also an aesthetic model. As the dimensions of both the receiver and transmitter are small, the doorbell may be easily fitted in any room in the house. Additionally, the receiver may be placed far away from the transmitter as the range of the device is extensive (150m in the open field). The doorbell is powered by AA batteries, which one needs to buy, whereas, the transmitter is powered by CR2032 battery, which is included in the set.
The ringtone may be adjusted to one’s own needs since there are as many as 36 melodies to choose from. Thanks to four-stage sound regulation the intensity of the tunes may be adjusted according to the house members’ preferences. The device is also equipped with visual indication which makes it universal.
The IP55 transmitter is equipped with protective cover which means that you do not have to worry about the doorbell operation during rainy days or strong gusts of wind. What is more, the learning system allows to expand the system with additional transmitters and to easily adjust the doorbell to suit the users’ needs. White colour.
| General information: |
|---|
| Wireless: | tak |
| Max. transmission range [m]: | 150 |
| Frequency [MHz]: | 433,92 MHz |
| Possibility of extension by an additional transmitters: | tak |
| Other features: | learning system |

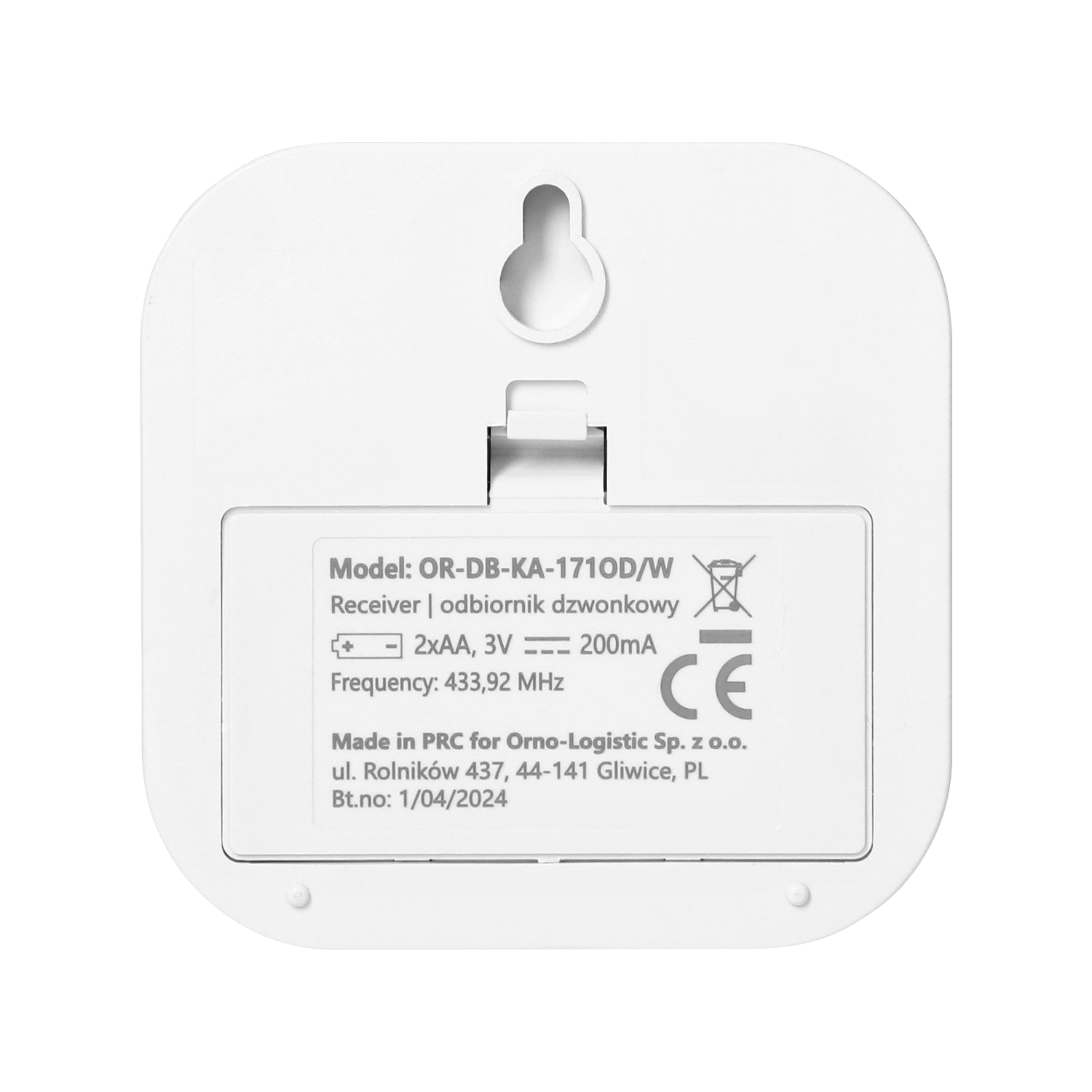

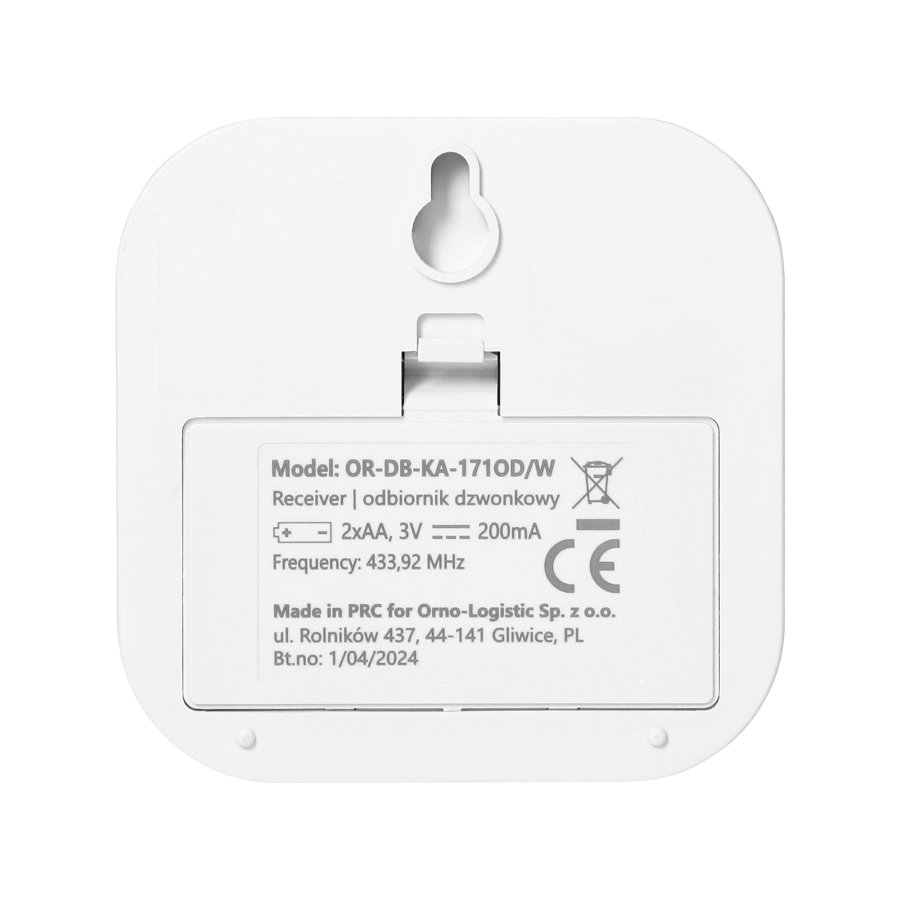

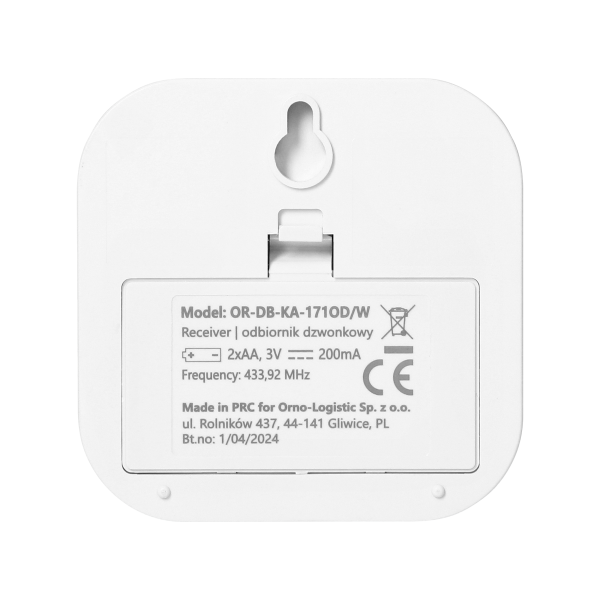

| Receiver: |
|---|
| Type of current (receiver): | DC |
| Nominal voltage [V]: | 3 |
| Battery - type and quantity (receiver): | 2xAA |
| Built-in battery (receiver): | nie |
| Electricity consumption [A]: | 0.2 |
| Number of ringtones: | 36 |
| Loudness [dB]: | 85 |
| Volume adjustment: | tak |
| Volume adjustment range [dB]: | 60-85 |
| Optical indication: | tak |
| Mounting method: | Montaż natynkowy |
| Degree of protection (IP): | IP20 |
| Housing material (receiver): | tworzywo sztuczne i materiał |
| Colour housing: | Biały |
| Width (receiver) [mm]: | 71 |
| Height (receiver) [mm]: | 71 |
| Depth (receiver) [mm]: | 31.5 |

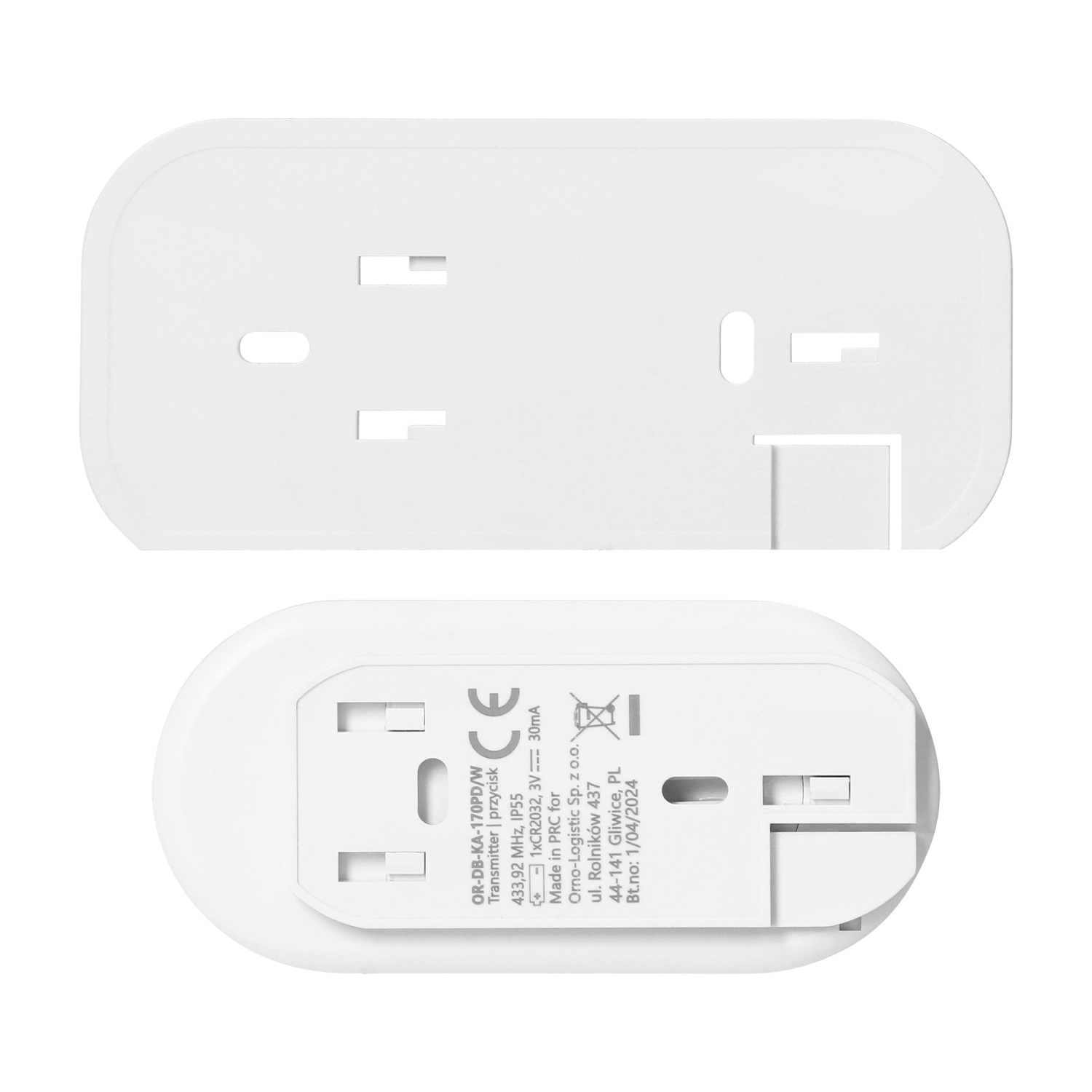

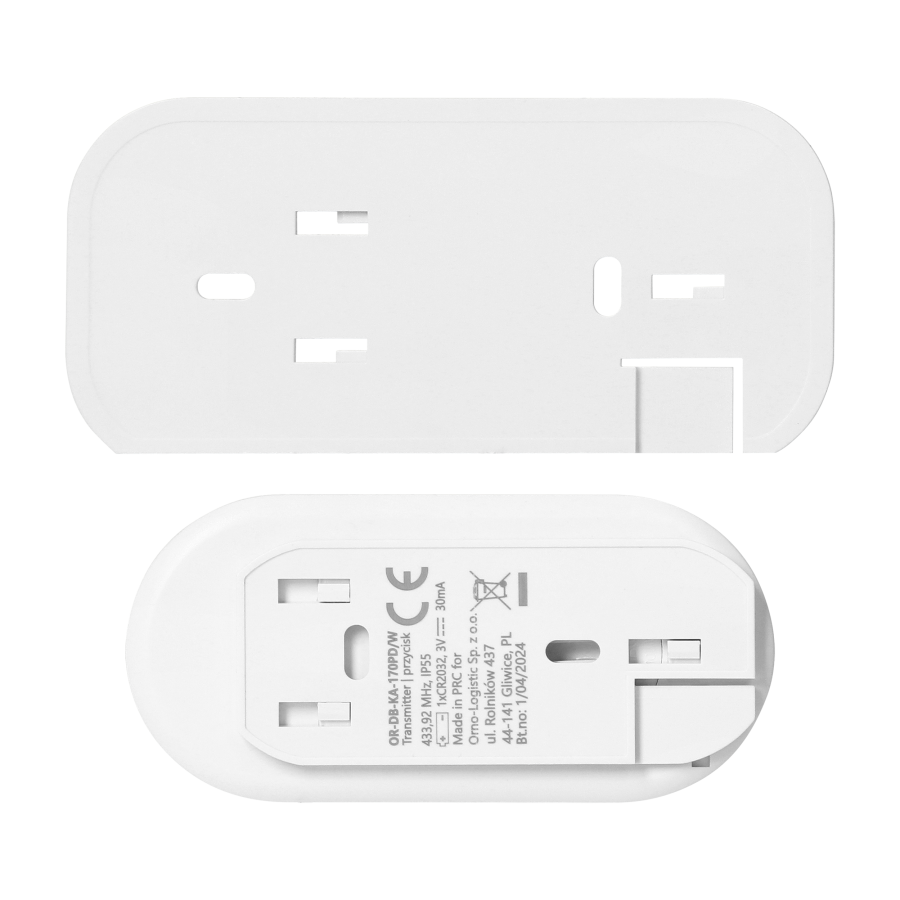

| Transmitter: |
|---|
| Type of current (transmitter): | DC |
| Nominal voltage (transmitter) [V]: | 3 |
| Battery - type and quantity (transmitter): | 1xCR2032 |
| Built-in battery (transmitter): | tak |
| Transmitter max. power [mW]: | 10 |
| Degree of protection (IP) (transmitter): | IP55 |
| With lighting: | tak |
| With name plate: | tak |
| Housing material (transmitter): | Tworzywo sztuczne |
| Colour (transmitter): | Biały |
| Width (transmitter) [mm]: | 97 |
| Height (transmitter) [mm]: | 45 |
| Depth (transmitter) [mm]: | 31 |
