Brass busbars

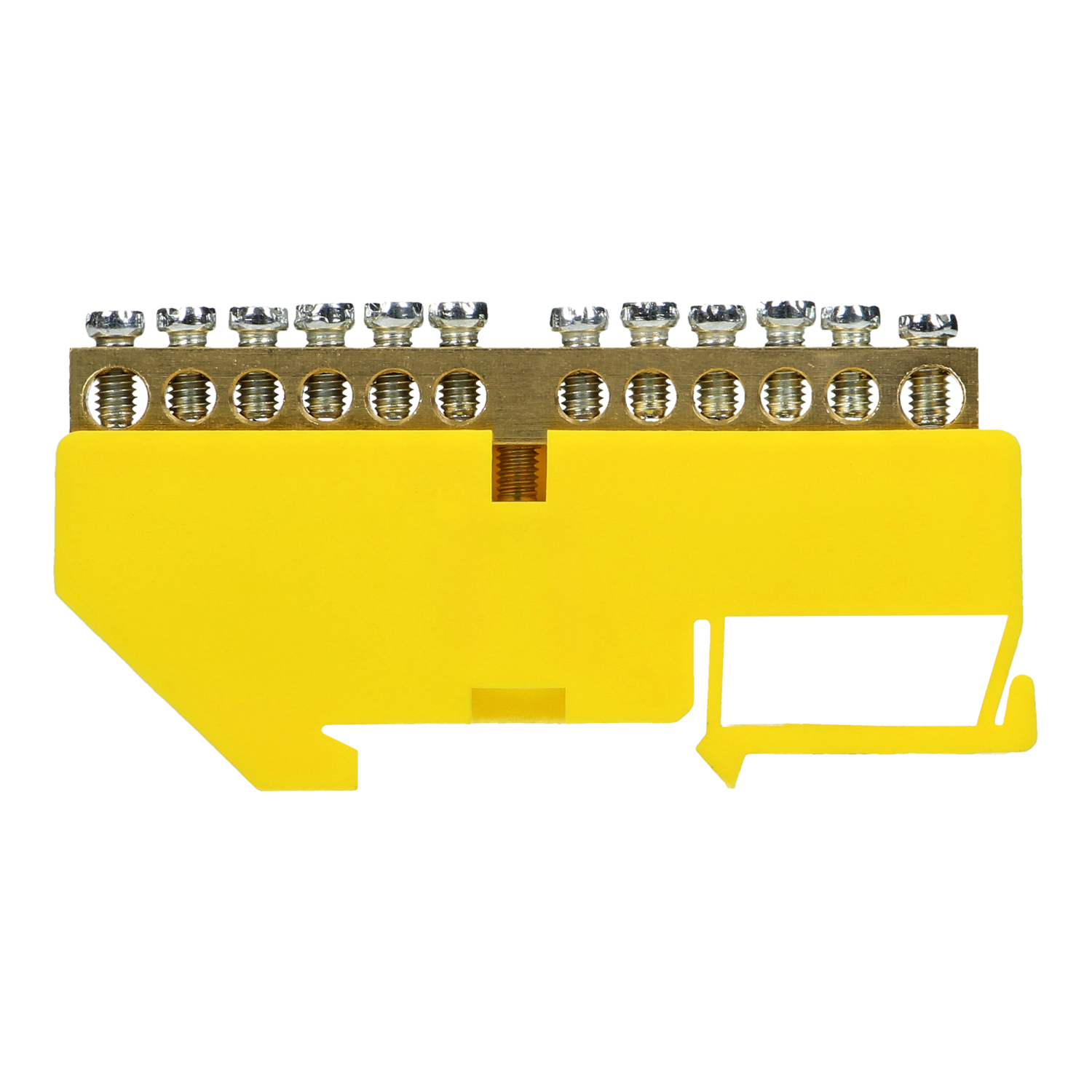

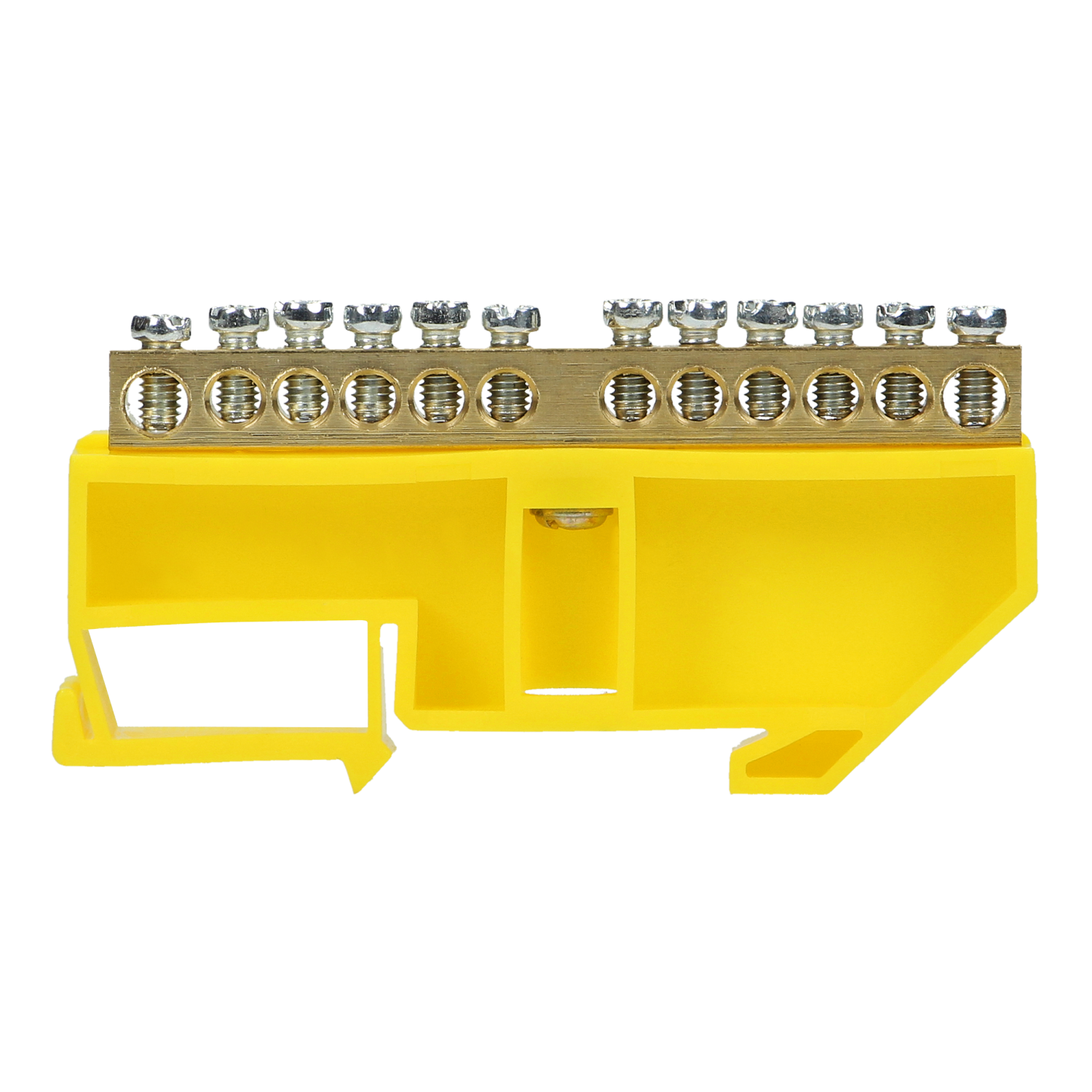

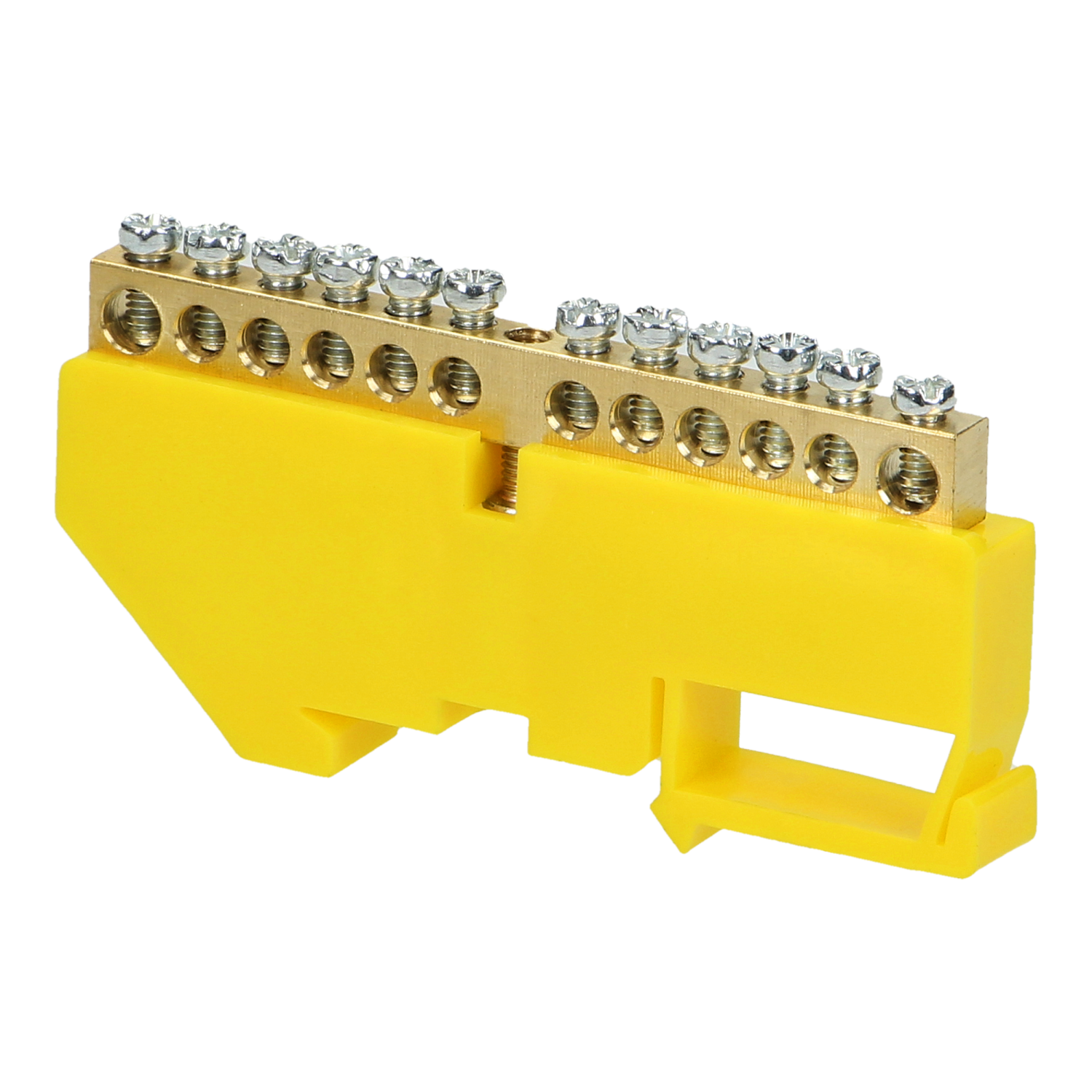

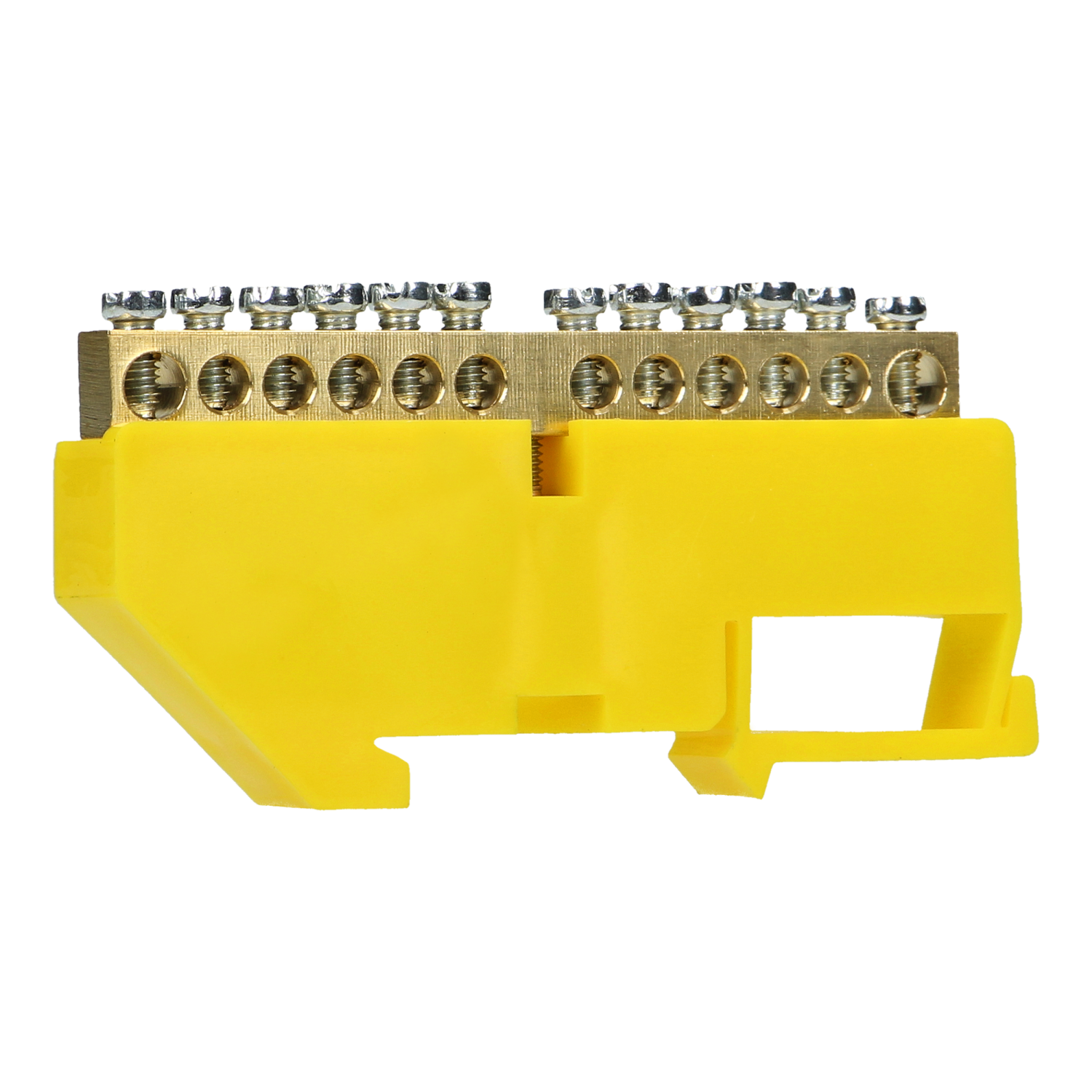

Distribution busbar for grounding cable (yellow). It is used in electric switchboards to enable energy and cabling distribution. This distribution busbar is suitable for installation on a DIN rail.
| General information: | |
|---|---|
| Type: | insulated distribution busbar PE |
| Number of wires: | 12 |
| Max. wire diameter: | 4.5 mm |
| Installation: | DIN rail / mounting plate |
| Degree of protection (IP): | 00 |
| Conductor: | brass |
| Colour: | yellow |
| Dimensions - depth: | 11.5 mm |
| Dimensions - width: | 81 mm |
| Case flammability standard UL94: | V2 |
| Dimensions - length (mm): | 43 mm |
| Material: | PA |
