OR-LZ-8203/12/BL

Description

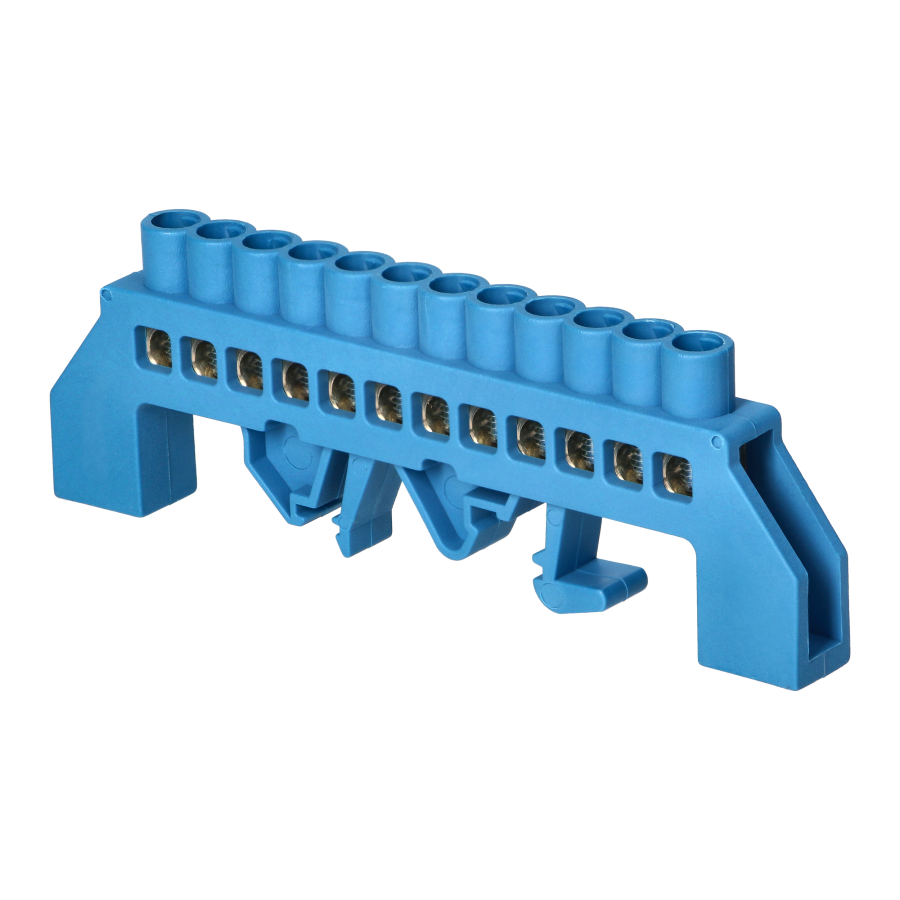

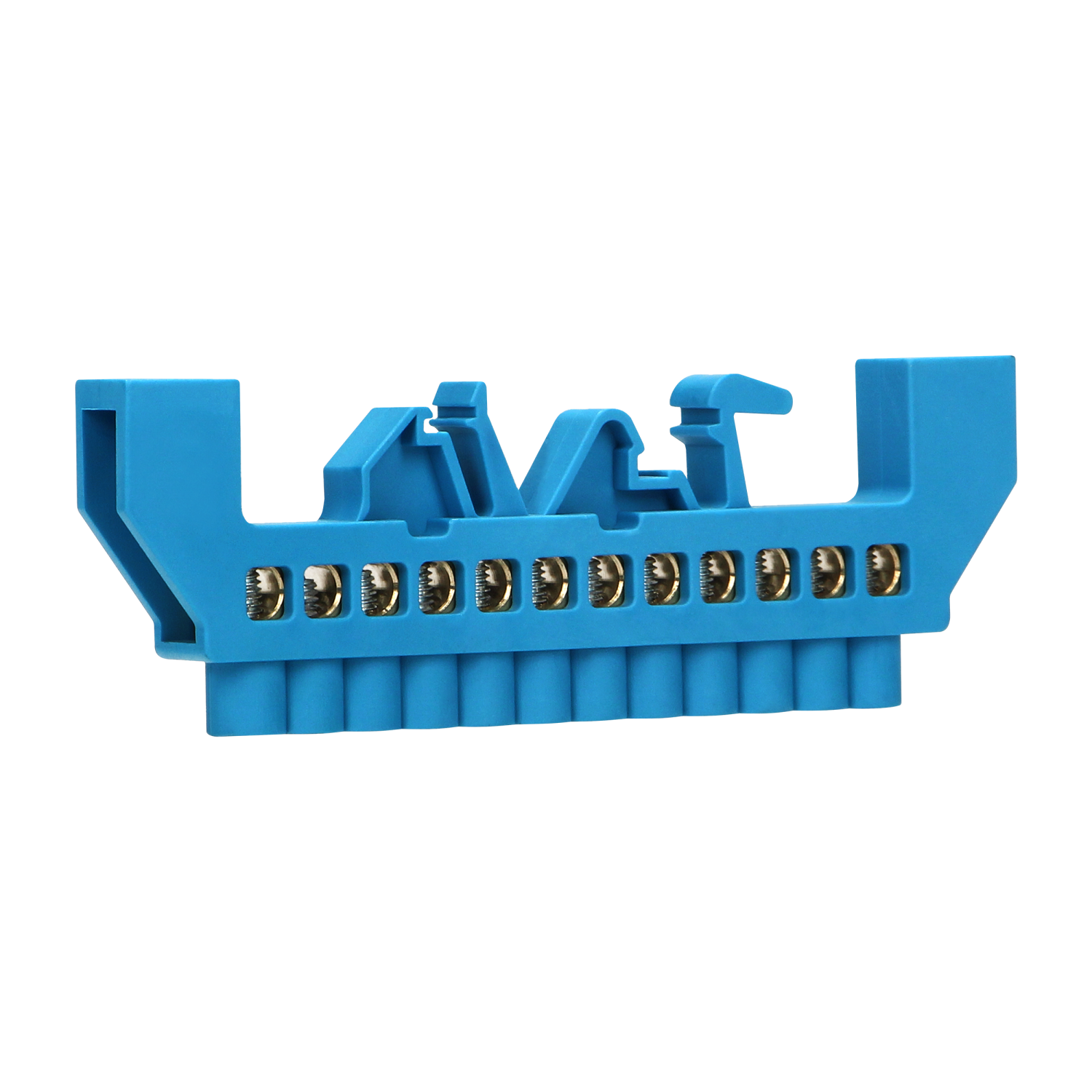

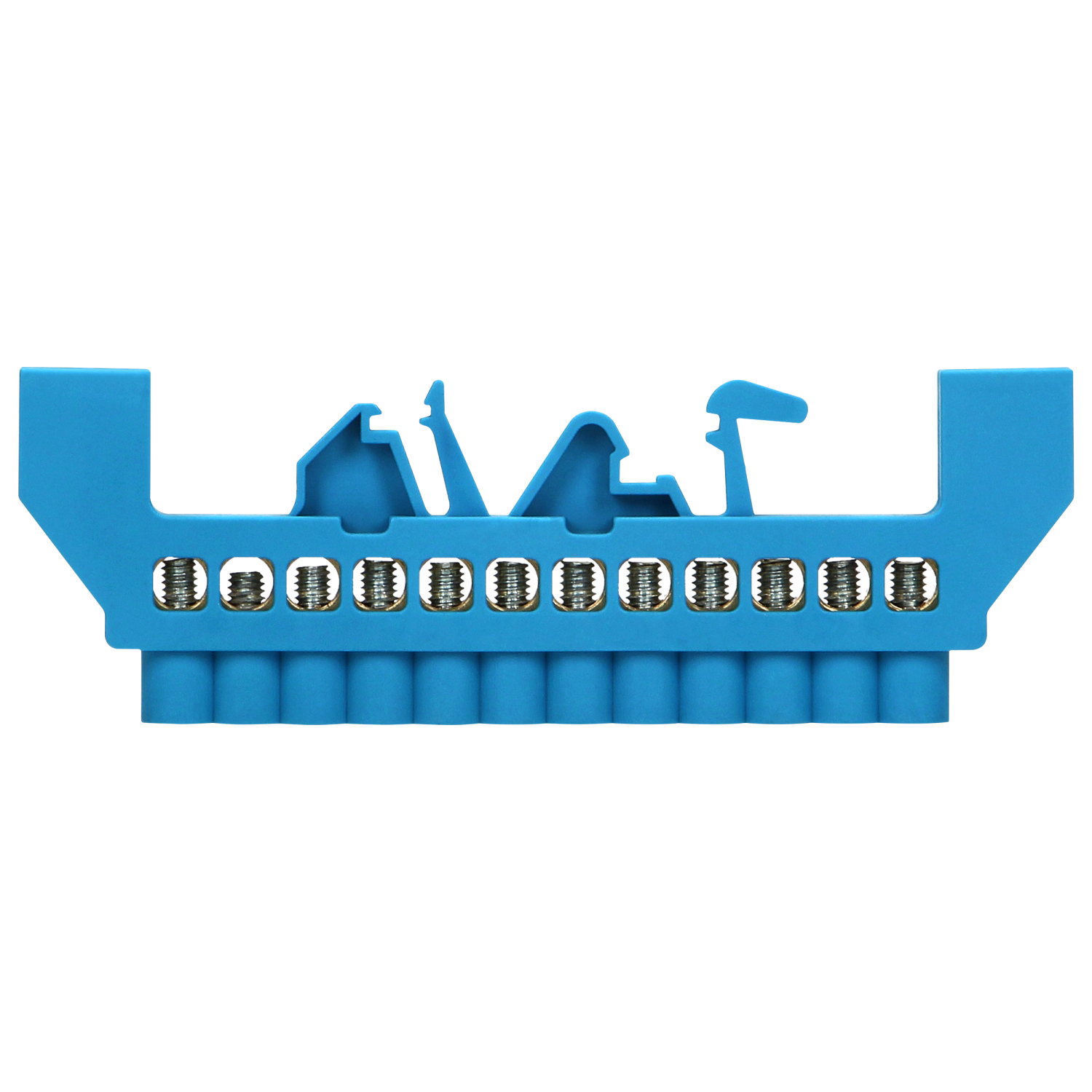

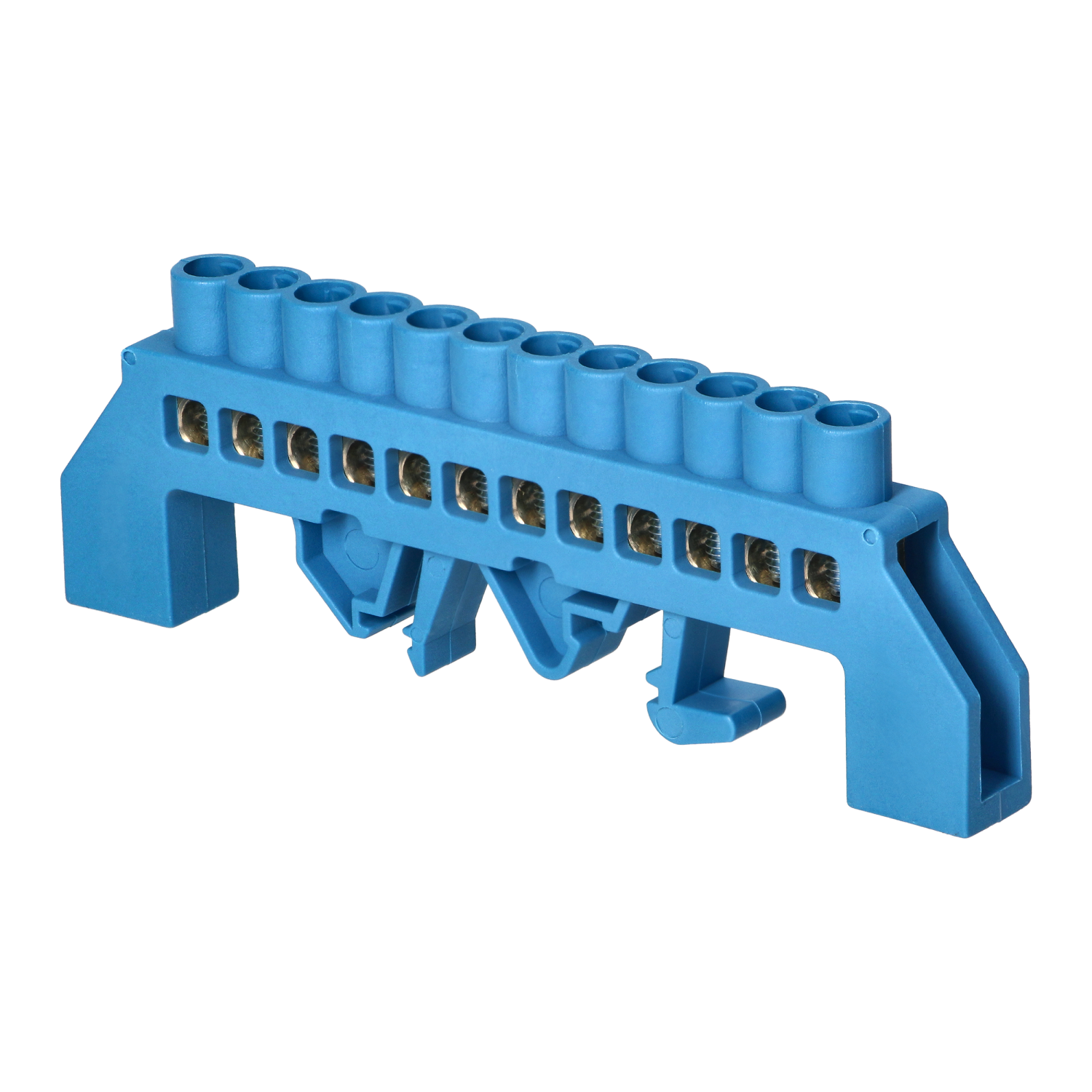

Insulated distribution busbar for neutral (blue) cable. It is used in electric switchboards to enable energy and cabling distribution. Insulation of the busbar reduces the risk of accidental ground fault. This distribution busbar is suitable for installation on a DIN rail or a mounting plate.

General information:
Type: insulated distribution busbar
Number of wires: 12
Max. wire diameter: 4.8 mm
Installation: DIN rail / mounting plate
Degree of protection (IP): 20
Conductor: brass
Colour: blue
Dimensions - depth: 11 mm
Dimensions - width: 102 mm
Case flammability standard UL94: V2
Dimensions - length (mm): 35 mm
Material: PA

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:13:31Download
Product data sheetENpdf2024-07-17 10:21:22Download
