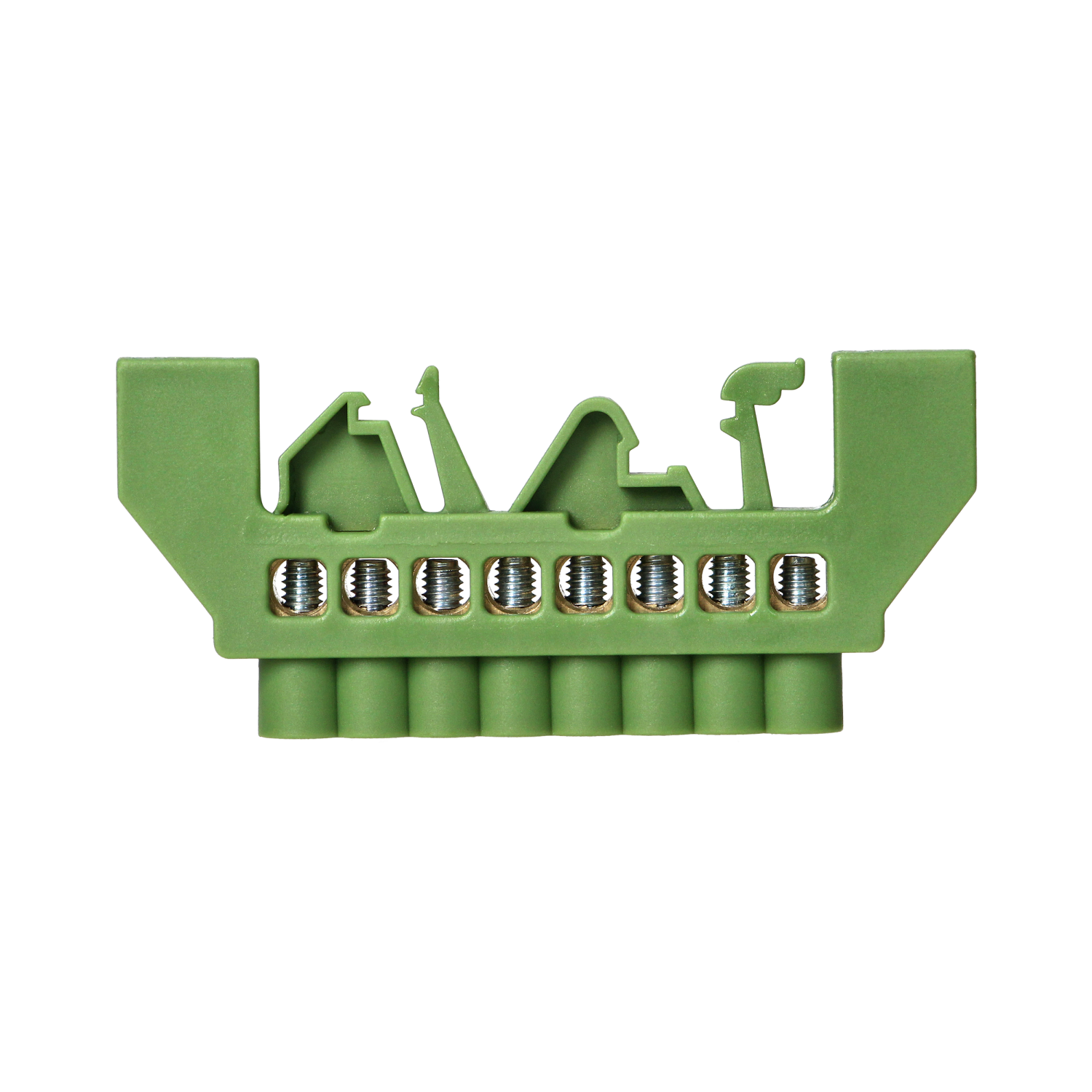

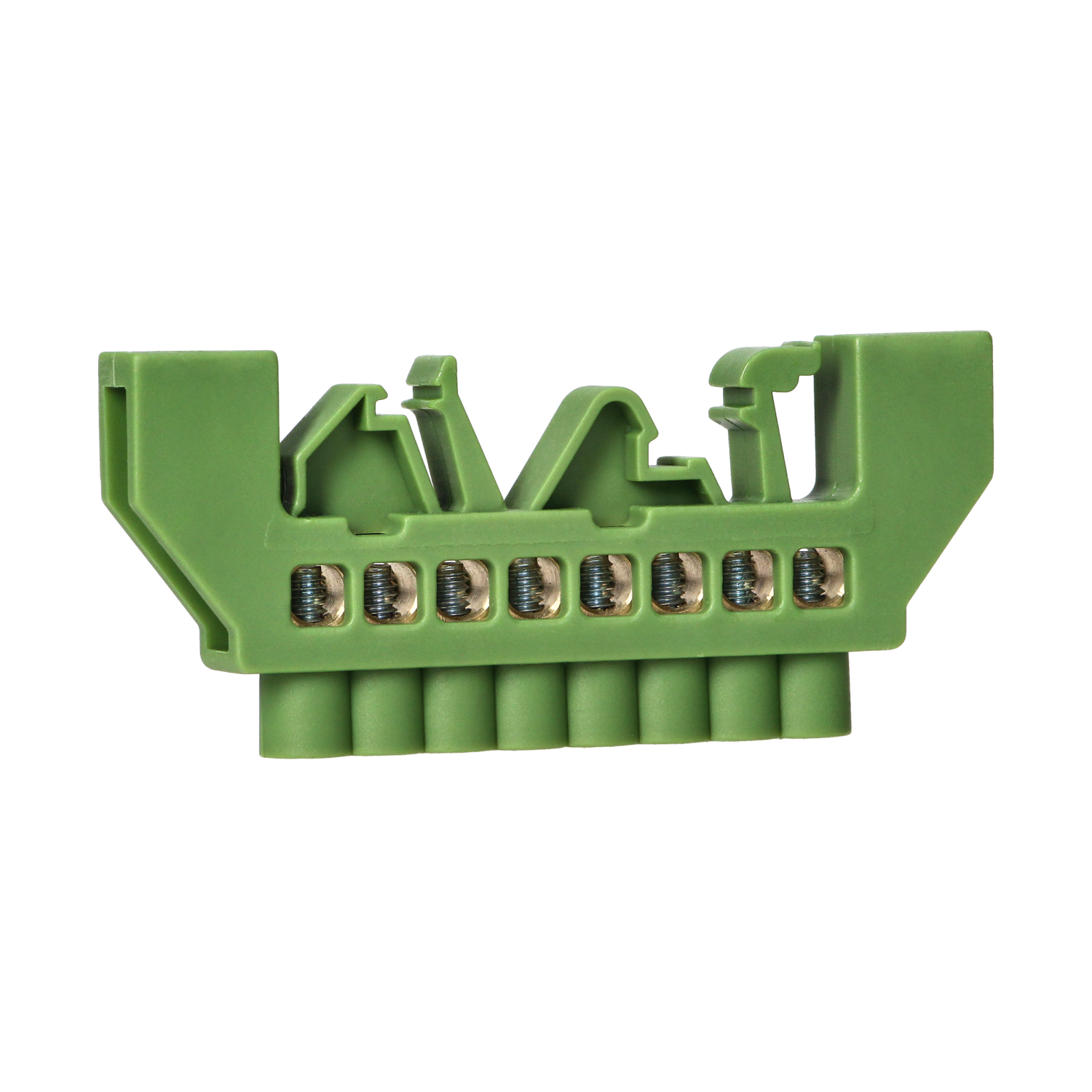

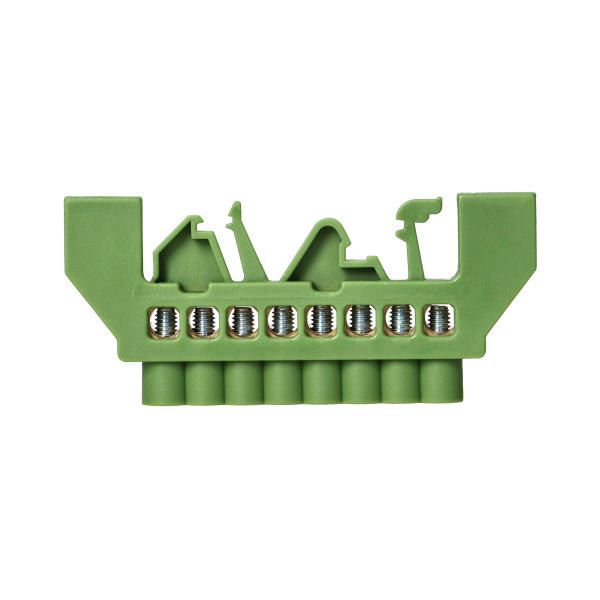

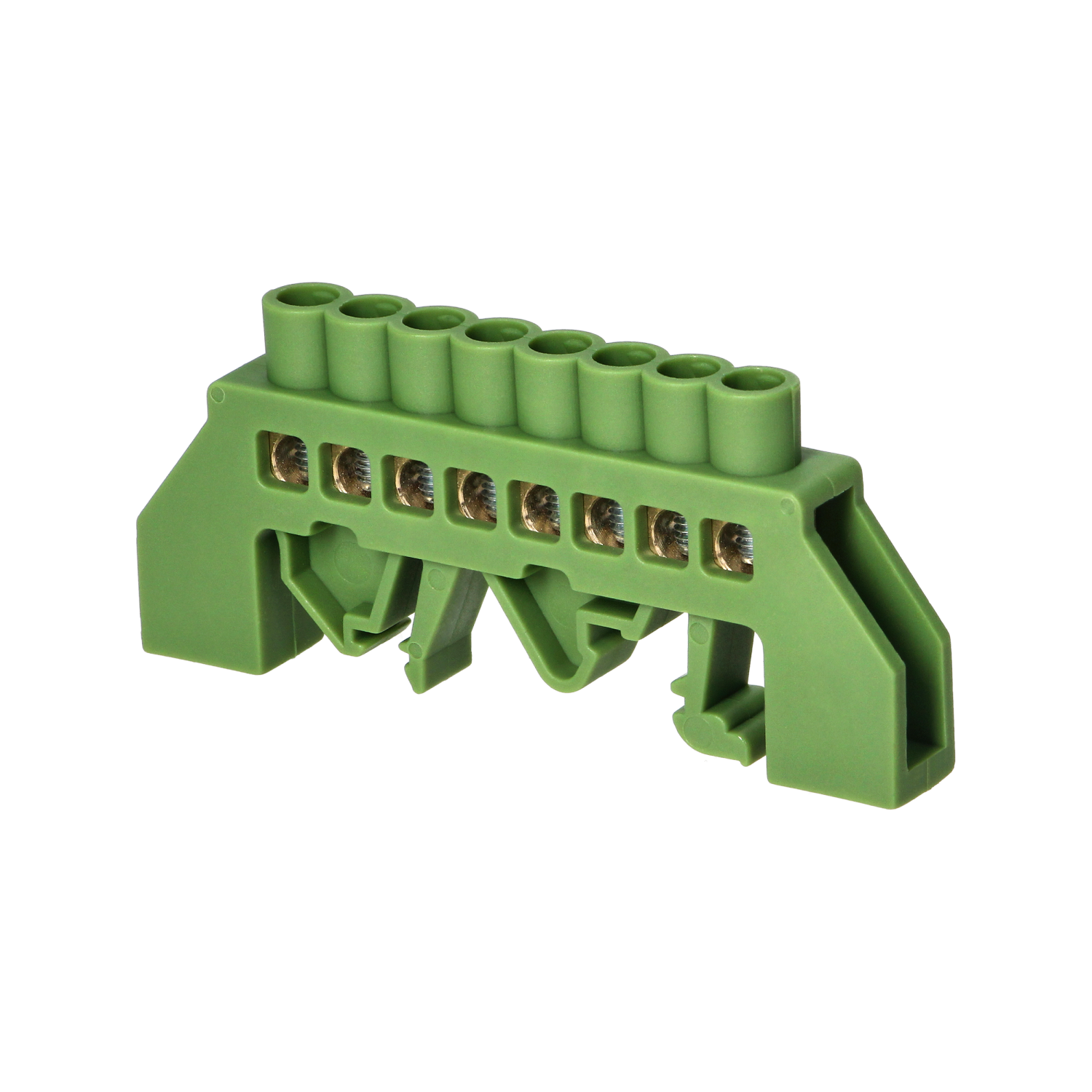

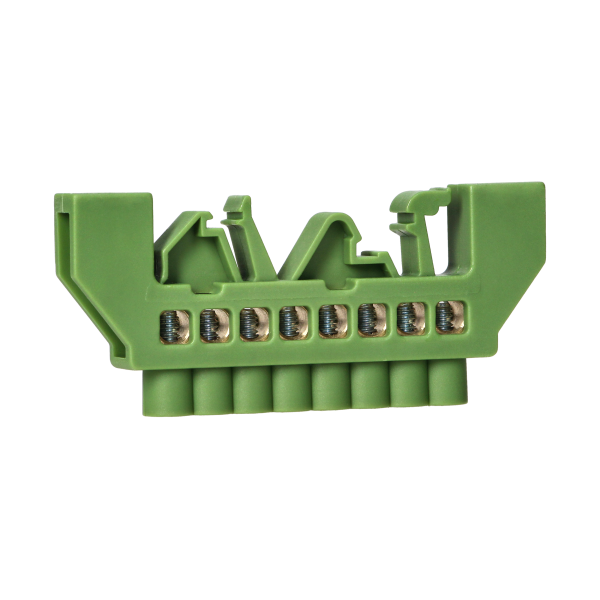

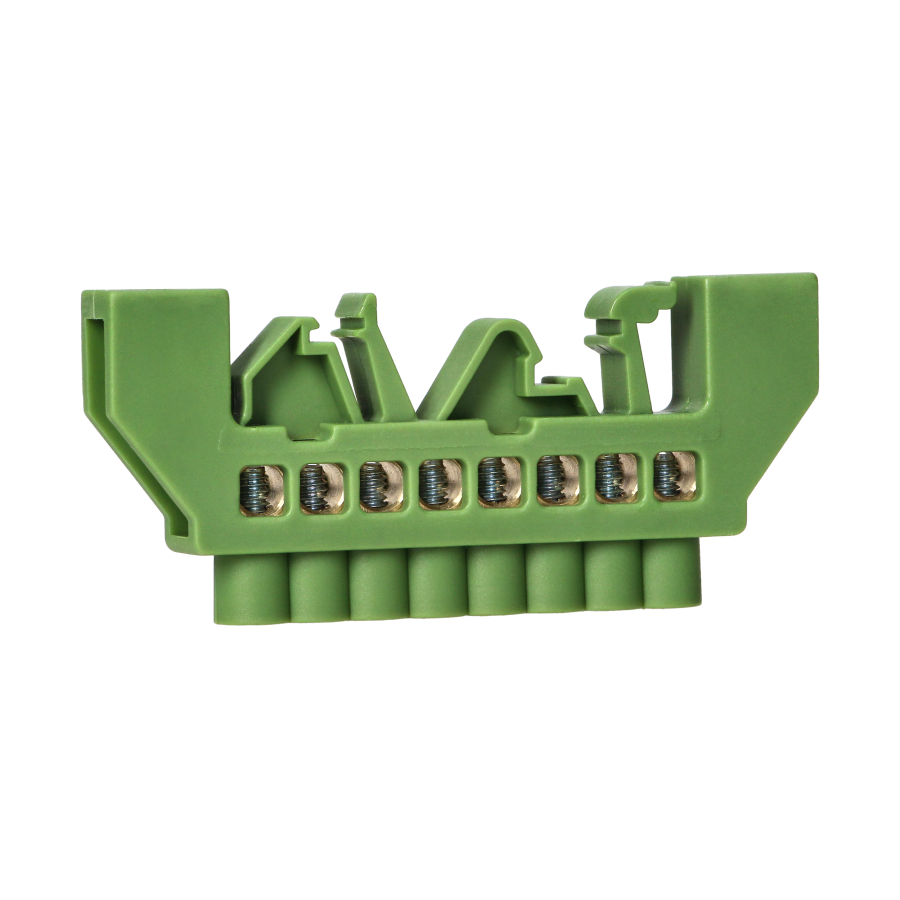

Brass busbars
Insulated distribution busbar for grounded (green) cable. It is used in electric switchboards to enable energy and cabling distribution. Insulation of the busbar reduces the risk of accidental ground fault. This distribution busbar is suitable for installation on a DIN rail or a mounting plate.
| General information: | |
|---|---|
| Type: | insulated distribution busbar PE |
| Number of wires: | 8 |
| Max. wire diameter: | 4.8 mm |
| Installation: | DIN rail / mounting plate |
| Degree of protection (IP): | 20 |
| Conductor: | brass |
| Colour: | green |
| Dimensions - depth: | 11 mm |
| Dimensions - width: | 78.5 mm |
| Case flammability standard UL94: | V2 |
| Dimensions - length (mm): | 35 mm |
| Material: | PA |
