OR-CR-257

Description

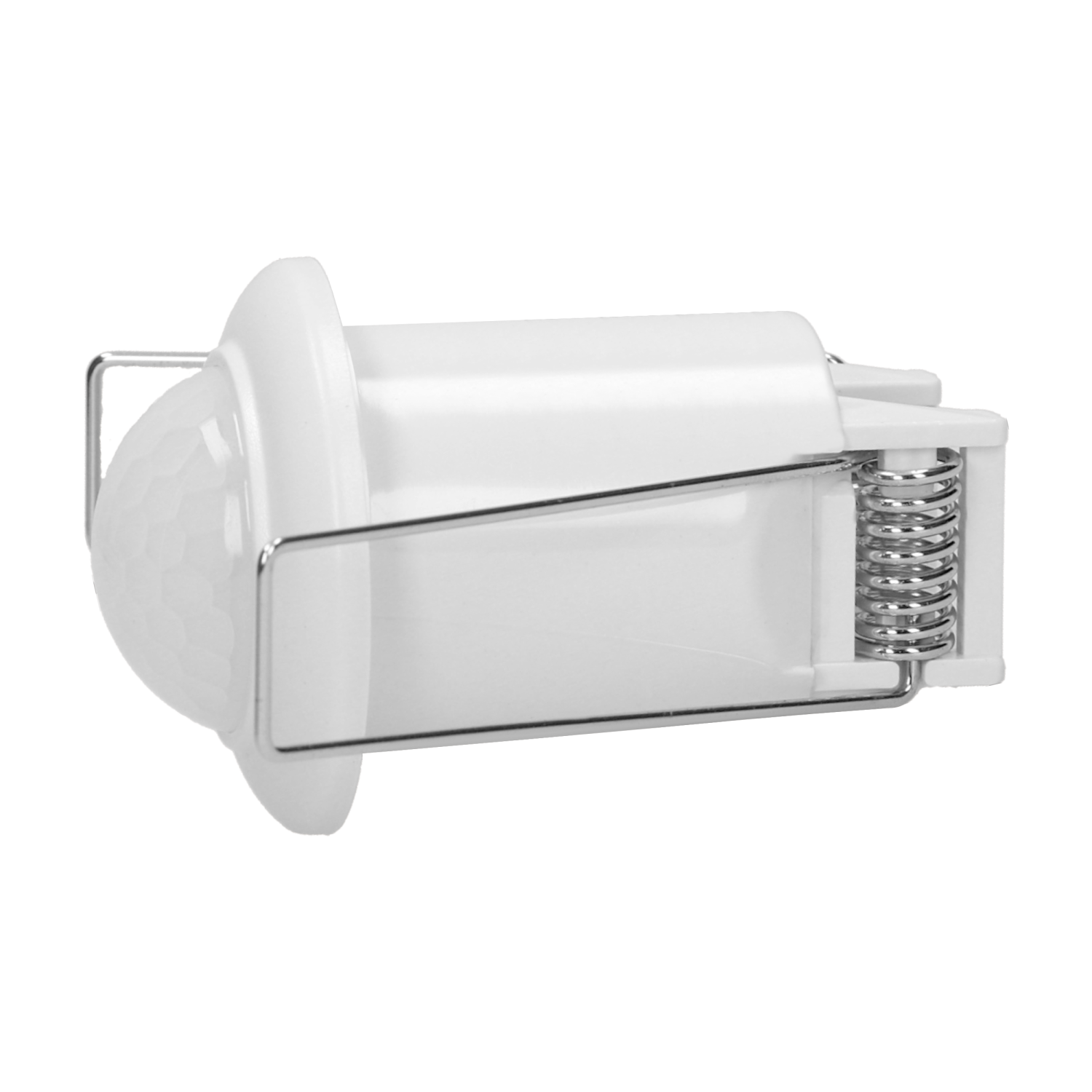

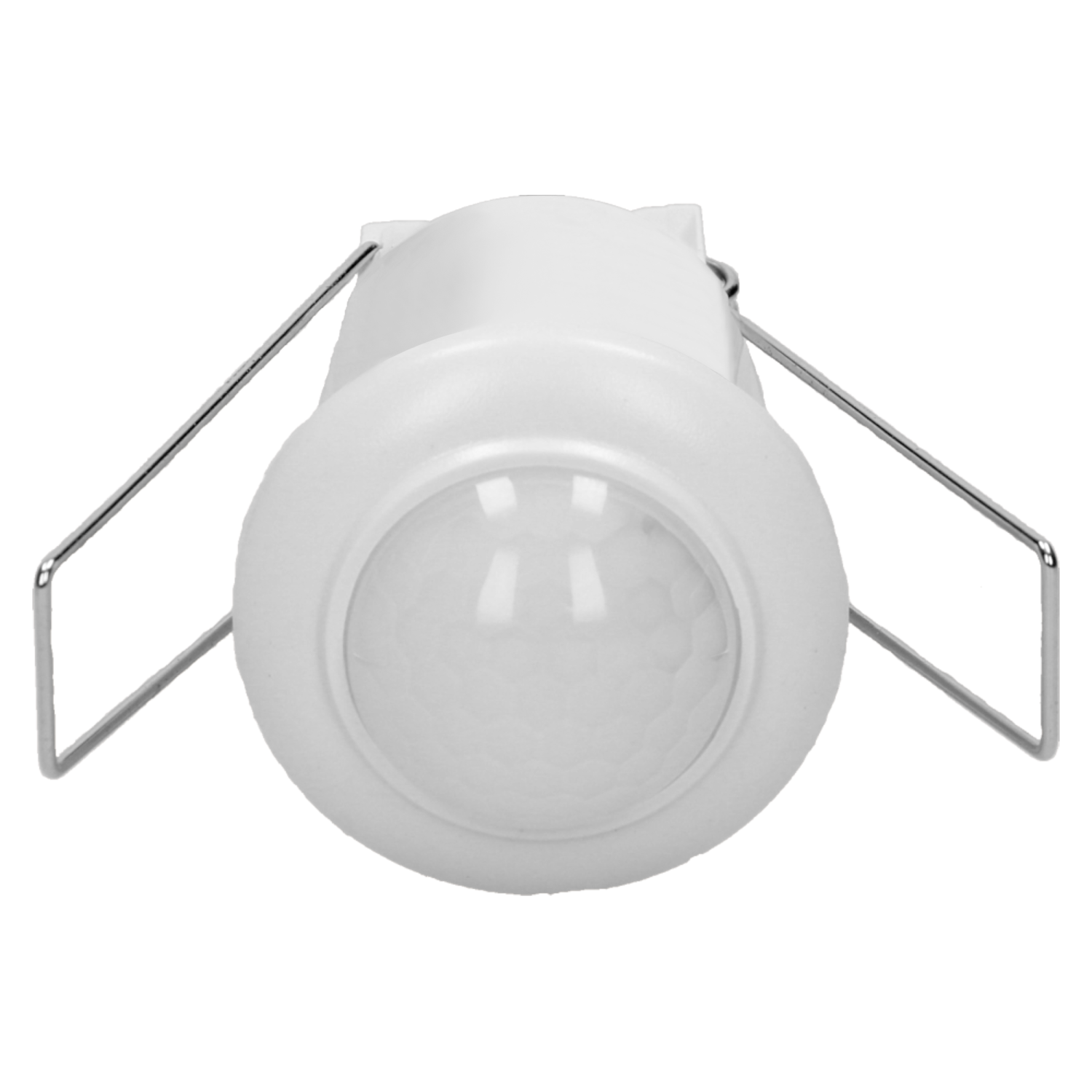

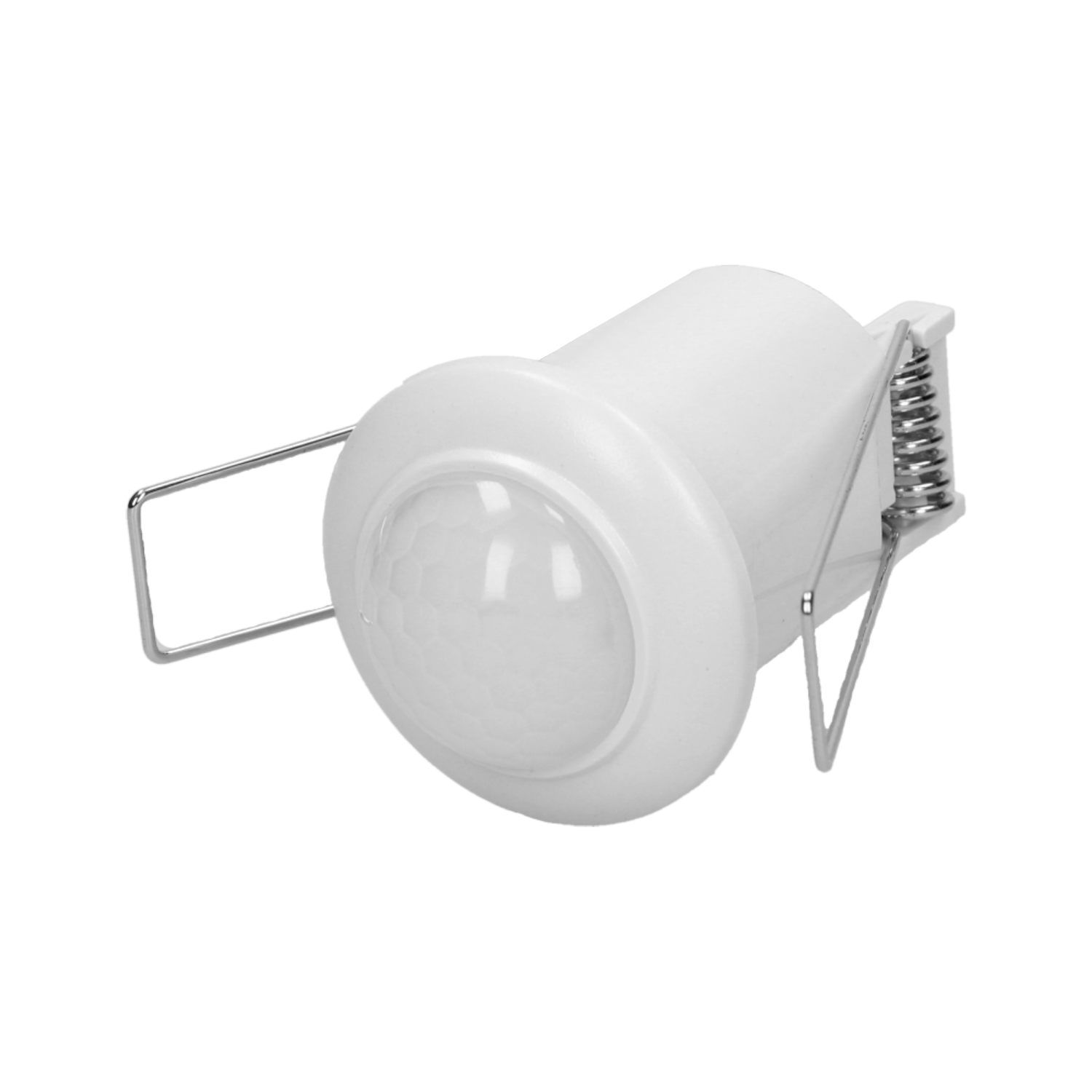

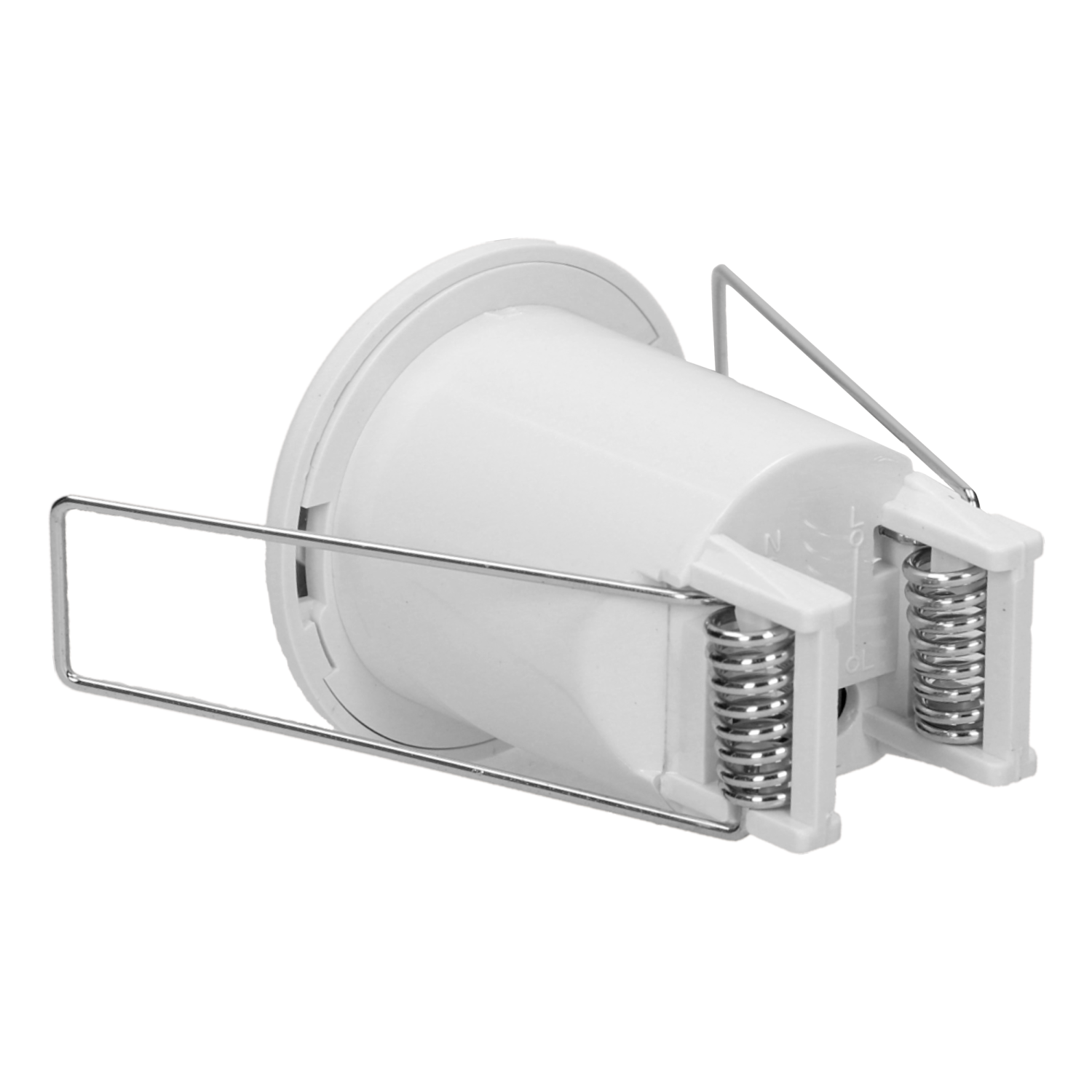

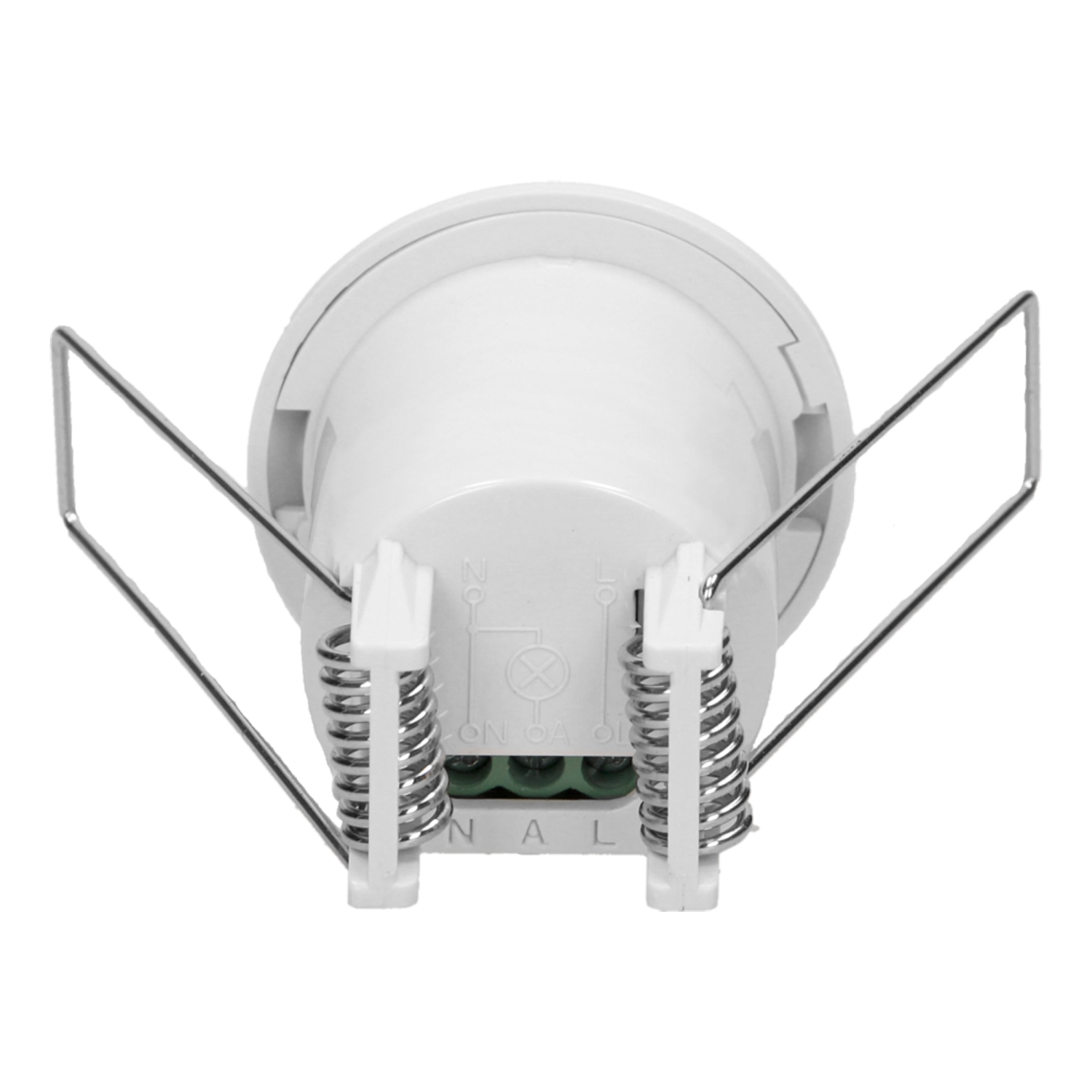

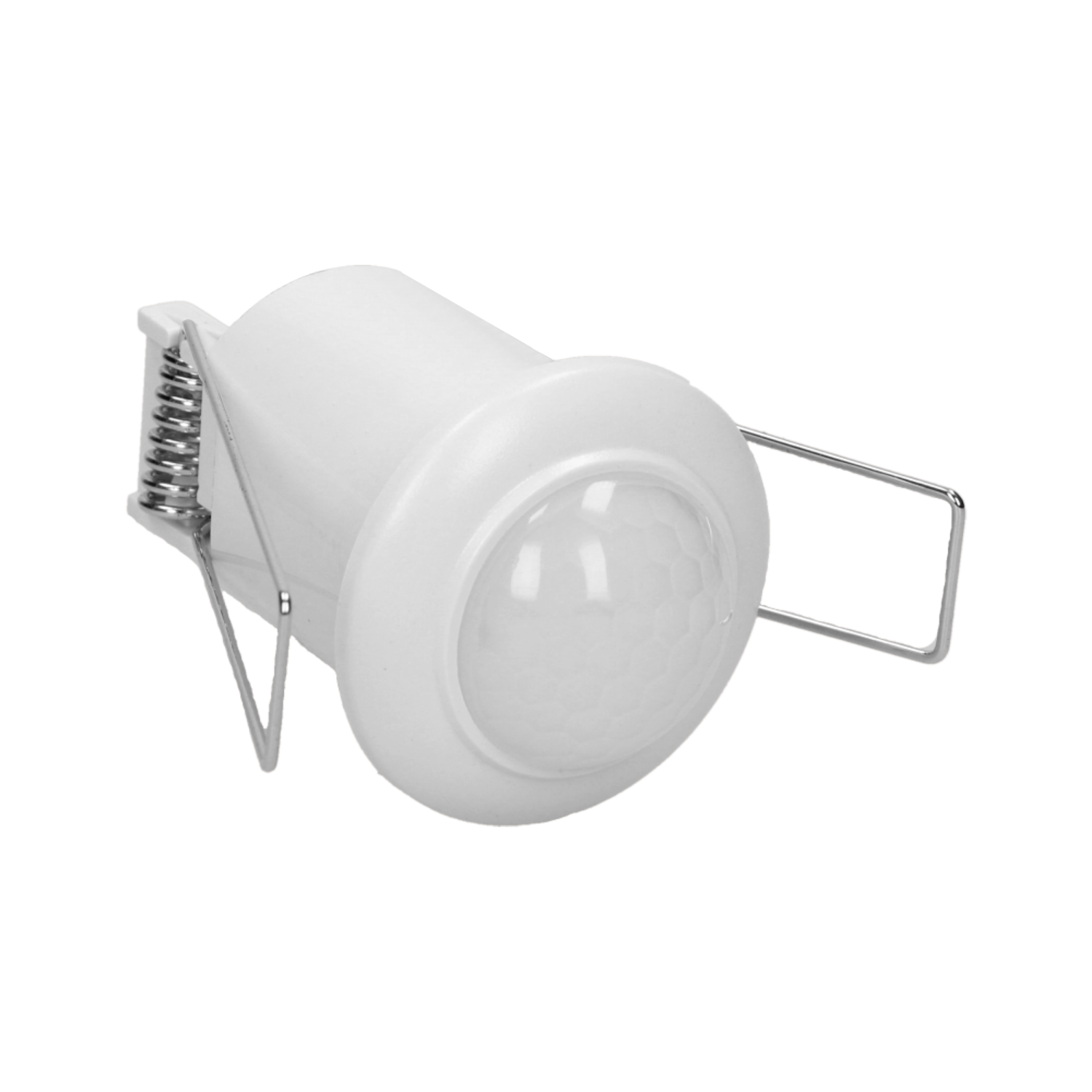

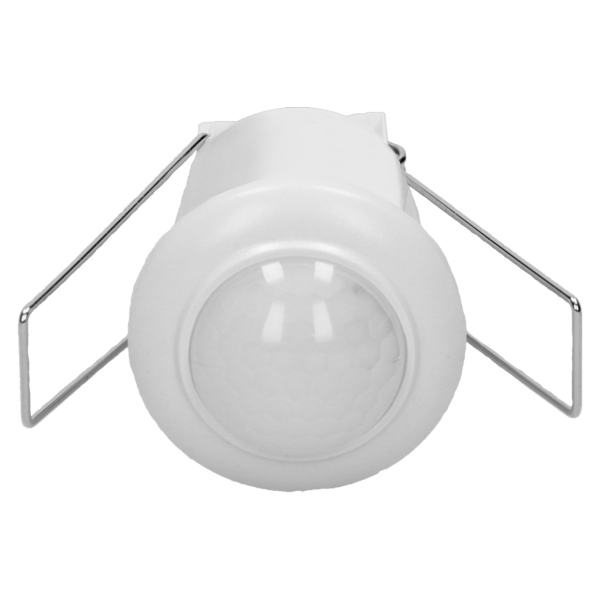

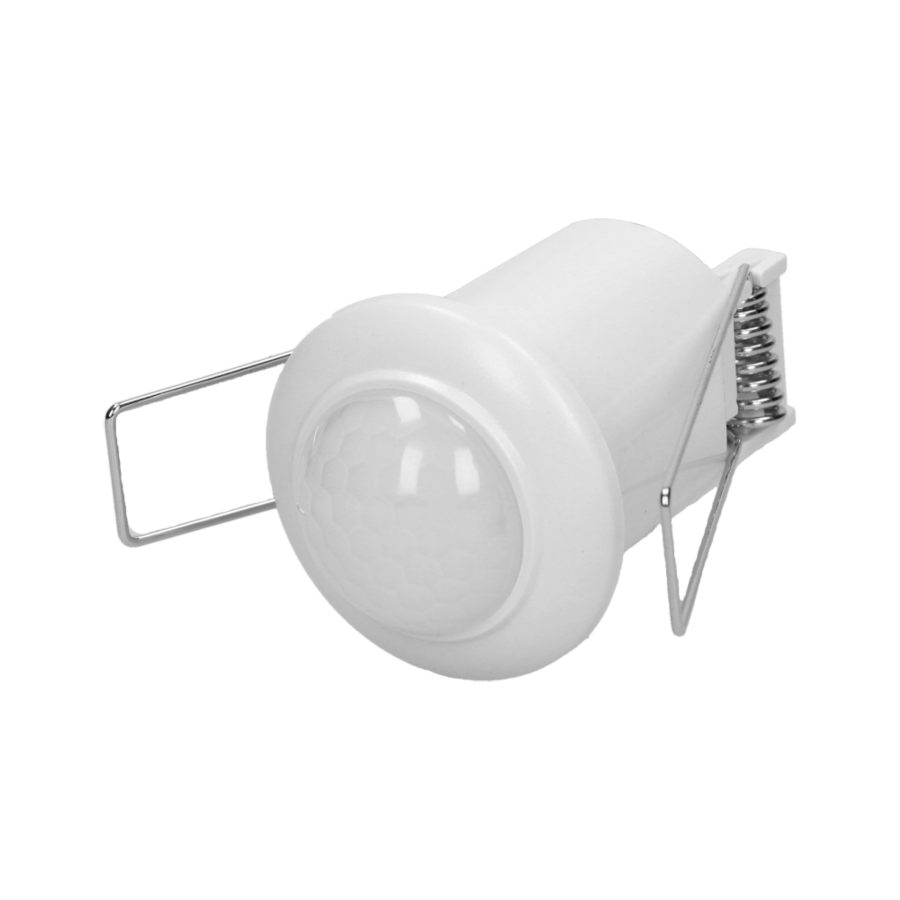

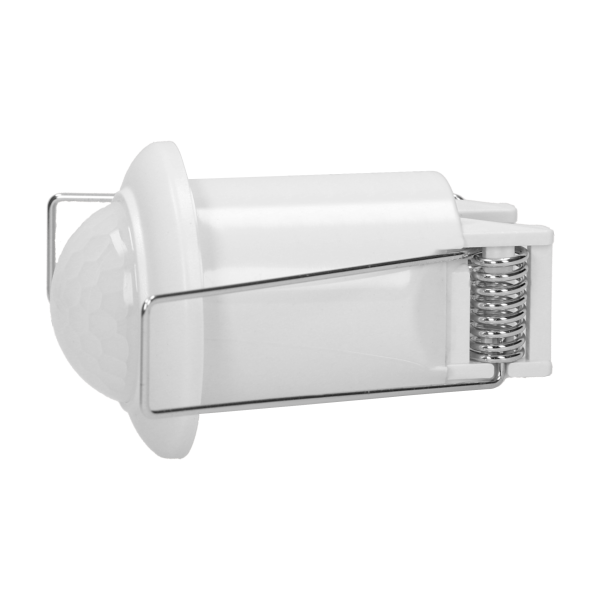

Small sensor is adapted to be mounted in suspended ceilings, and it is designed for an automatic control of lighting or other electrical equipment. Great accuracy - detects even minor movements. Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX). The sensor cooperates with LED lighting.

General information:
Max. load: 800
Max. load of the LED light source: 75 W
Degree of protection (IP): 20
Relay output: No
Nominal voltage: 230V~, 50Hz
Presence detector: Yes
Colour: white
Installation: flush mounting
Dimensions of the sensor - width (mm): Ø43 mm
Dimensions of the sensor - height (mm): Ø43 mm
Dimensions of the sensor - depth (mm): 66.5 mm
Detection angle: 360°
Dimensions of the mounting hole: Ø33 mm
Type of sensor: Infrared
Detection range: Ø6m m
Adjustable daylight sensor (LUX): Yes
Daylight sensor adjustment range (LUX): <3—2000lux
Adjustable time setting (TIME): Yes
Lighting time adjustment range (TIME): min.: 10 sek. ± 3 sek., max.: 15min.±2min
Adjustment of motion detection range (SENS): No

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:12:26Download
Product data sheetENpdf2024-07-17 10:20:31Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
