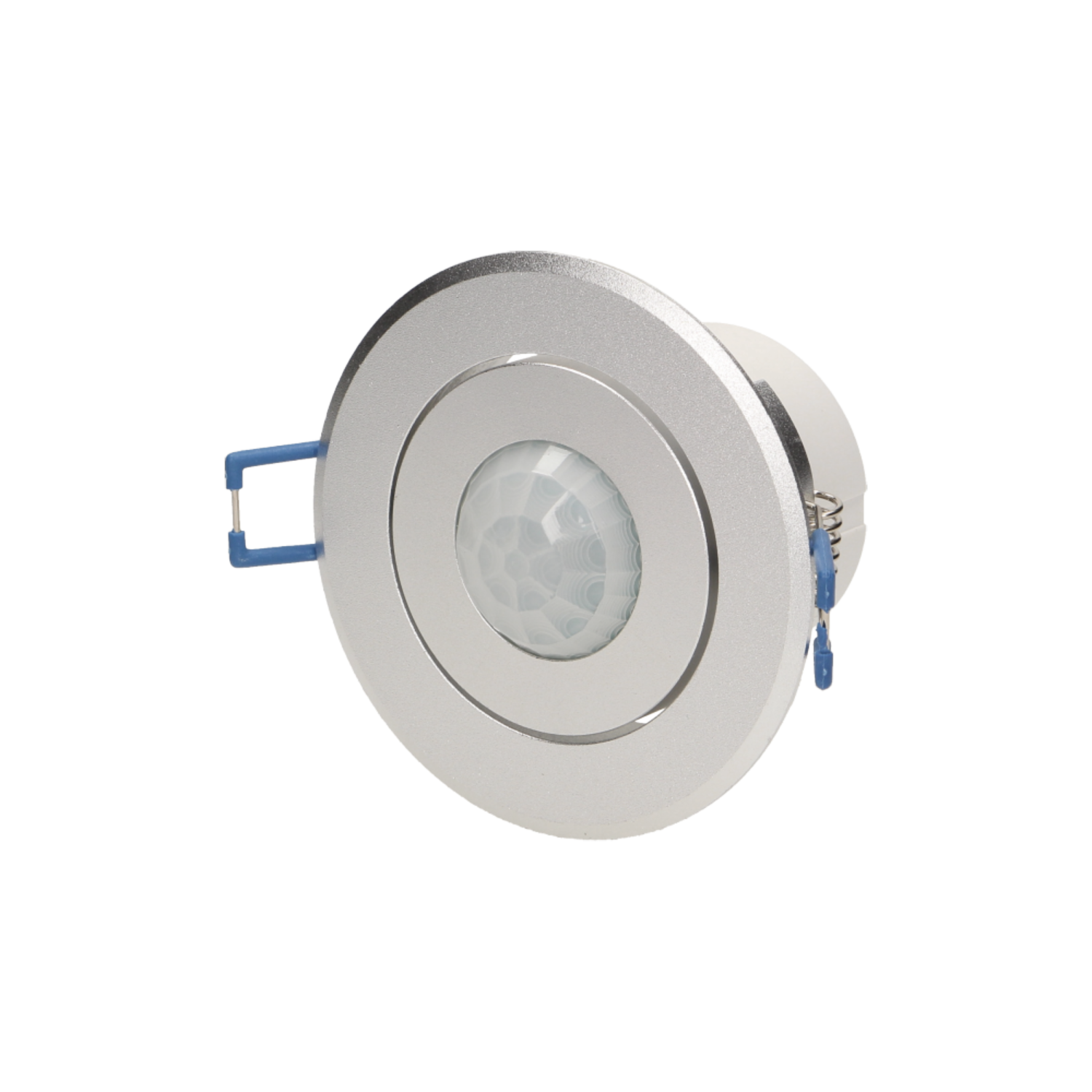

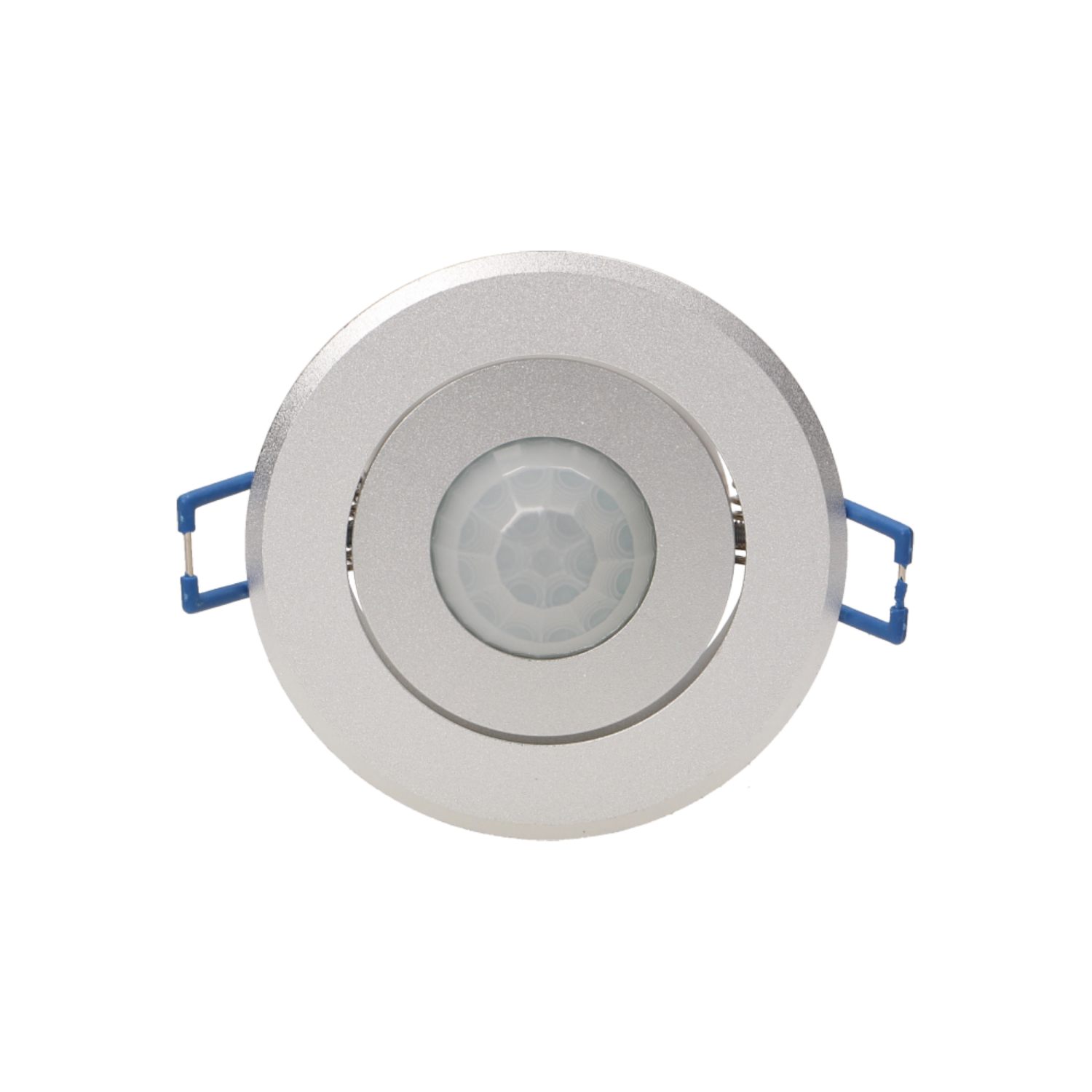

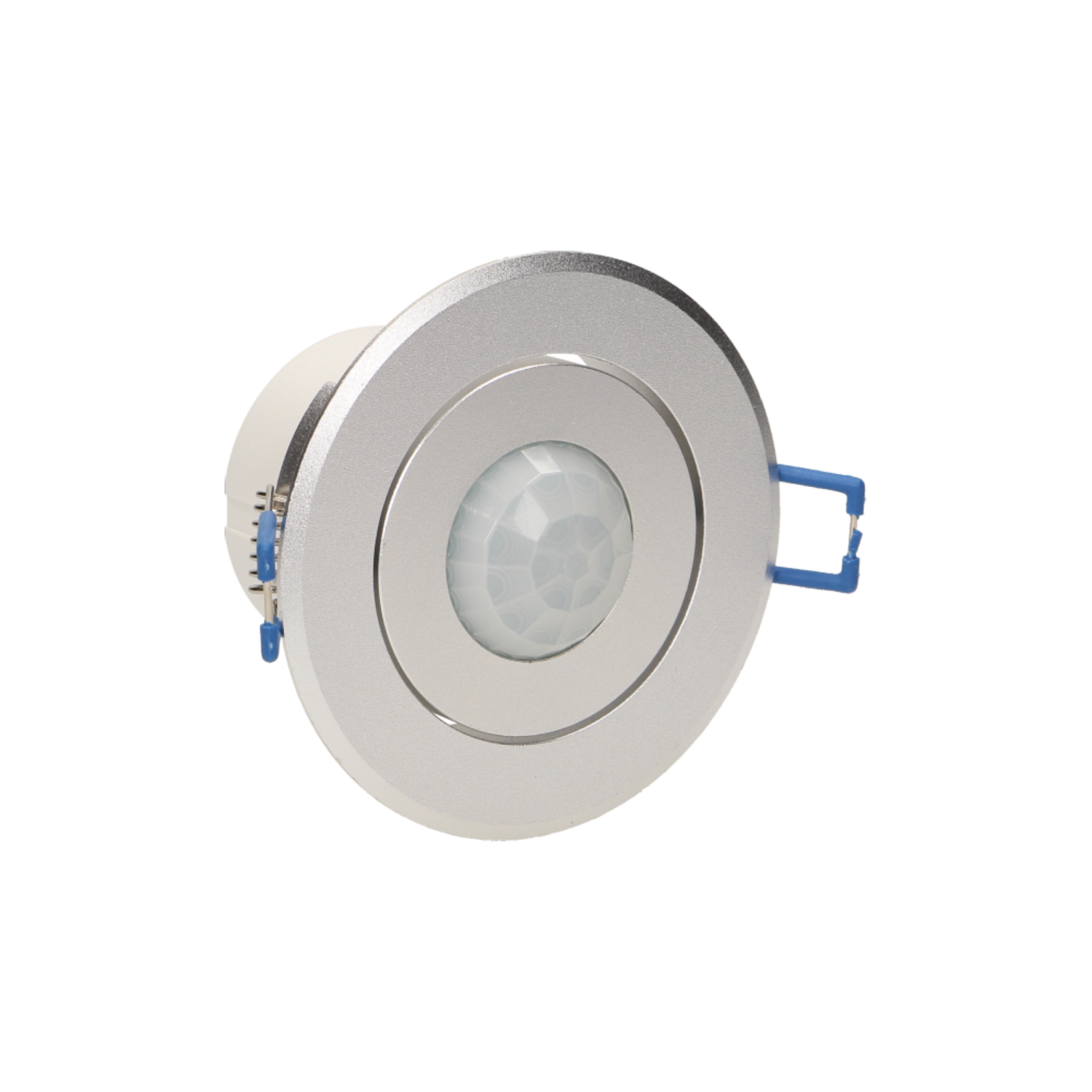

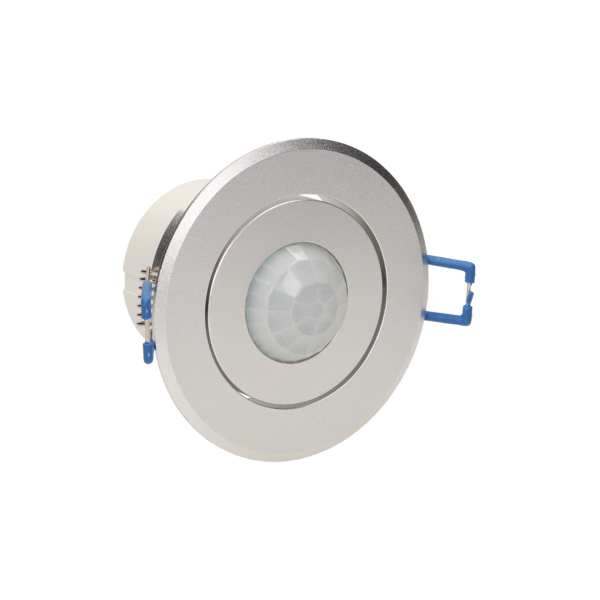

Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°
Adjustable flush mounted PIR motion sensor 360°

Adjustable flush mounted PIR motion sensor 360°

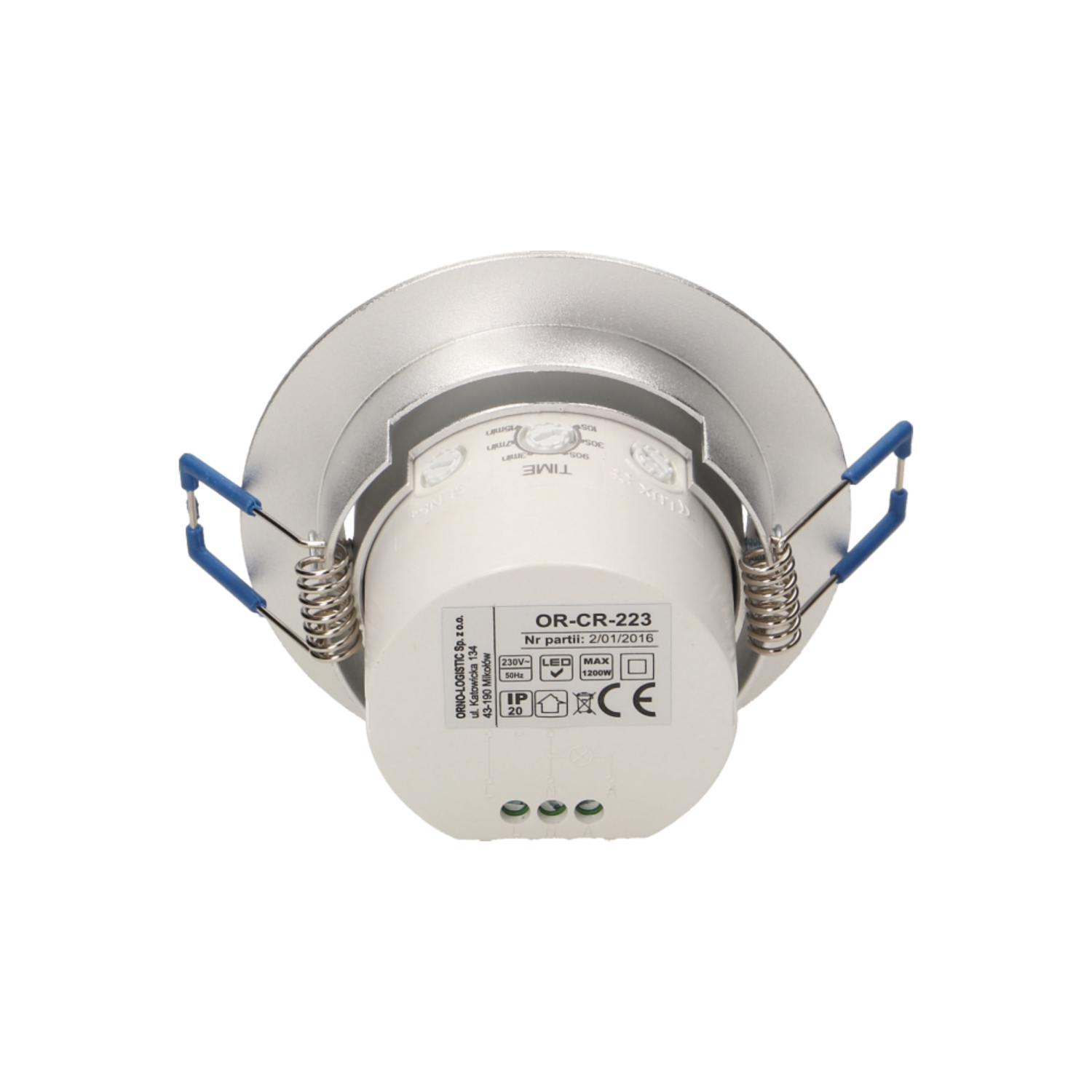

OR-CR-223

Description

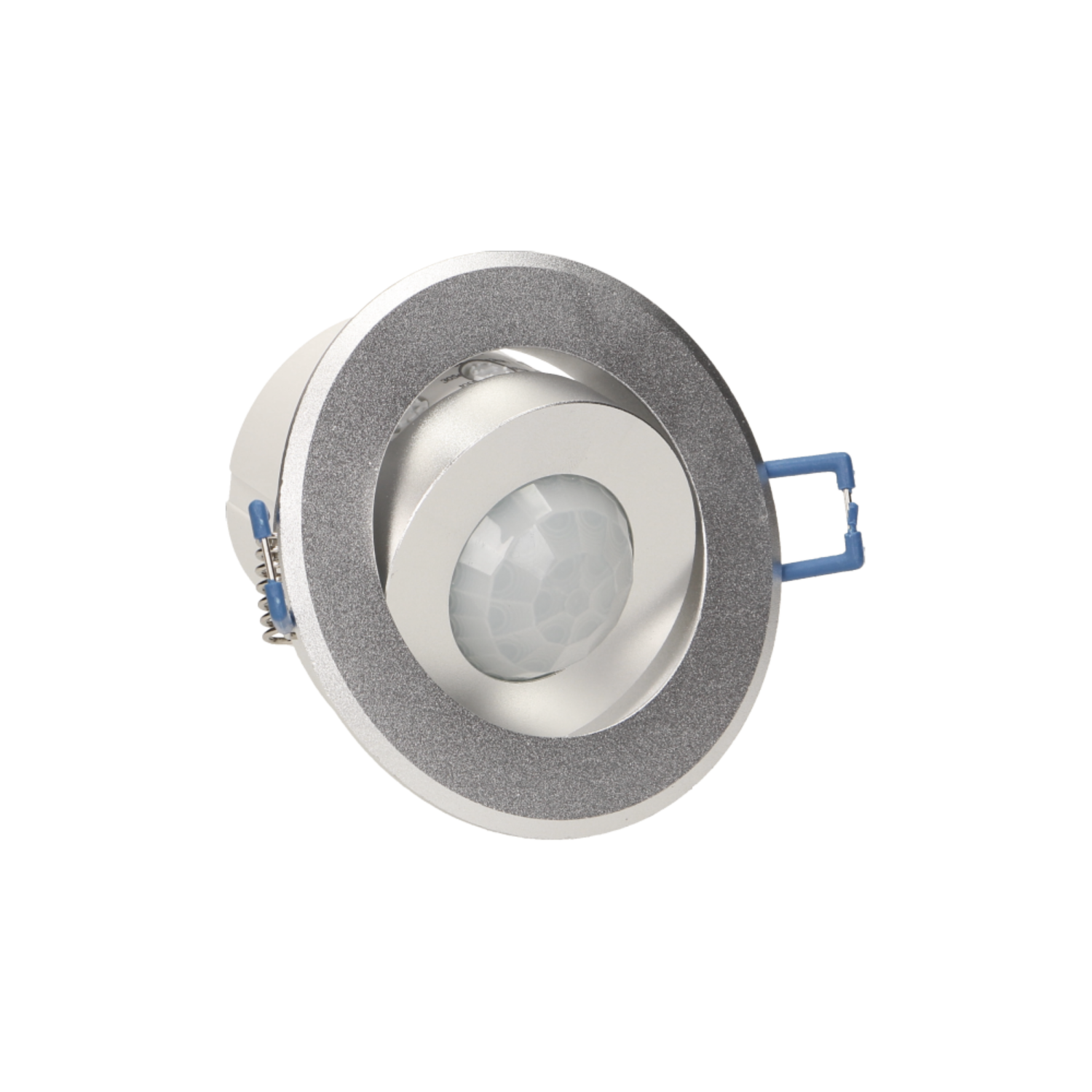

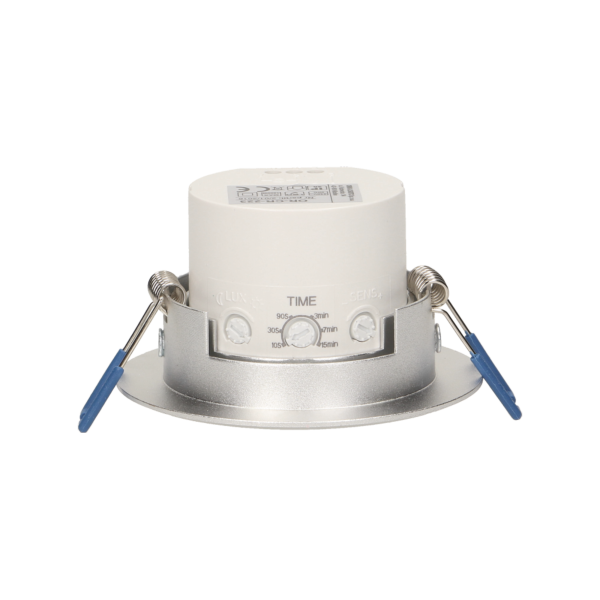

Passive infrared sensor For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME), the sensitivity of the light intensity (LUX) and range of motion detection (SENS) Installation in suspended ceilings Adjustable sensor's position.

General information:
Max. load: 1200
Max. load of the LED light source: 300 W
Degree of protection (IP): 20
Relay output: Yes
Nominal voltage: 230V~, 50Hz
Presence detector: No
Colour: silver
Installation: flush mounting
Dimensions of the sensor - width (mm): Ø85 mm
Dimensions of the sensor - height (mm): Ø85 mm
Dimensions of the sensor - depth (mm): 56.7 mm
Detection angle: 360°
Dimensions of the mounting hole: Ø63 mm
Type of sensor: Infrared
Detection range: Ø3-6 m
Adjustable daylight sensor (LUX): Yes
Daylight sensor adjustment range (LUX): <3—2000lux

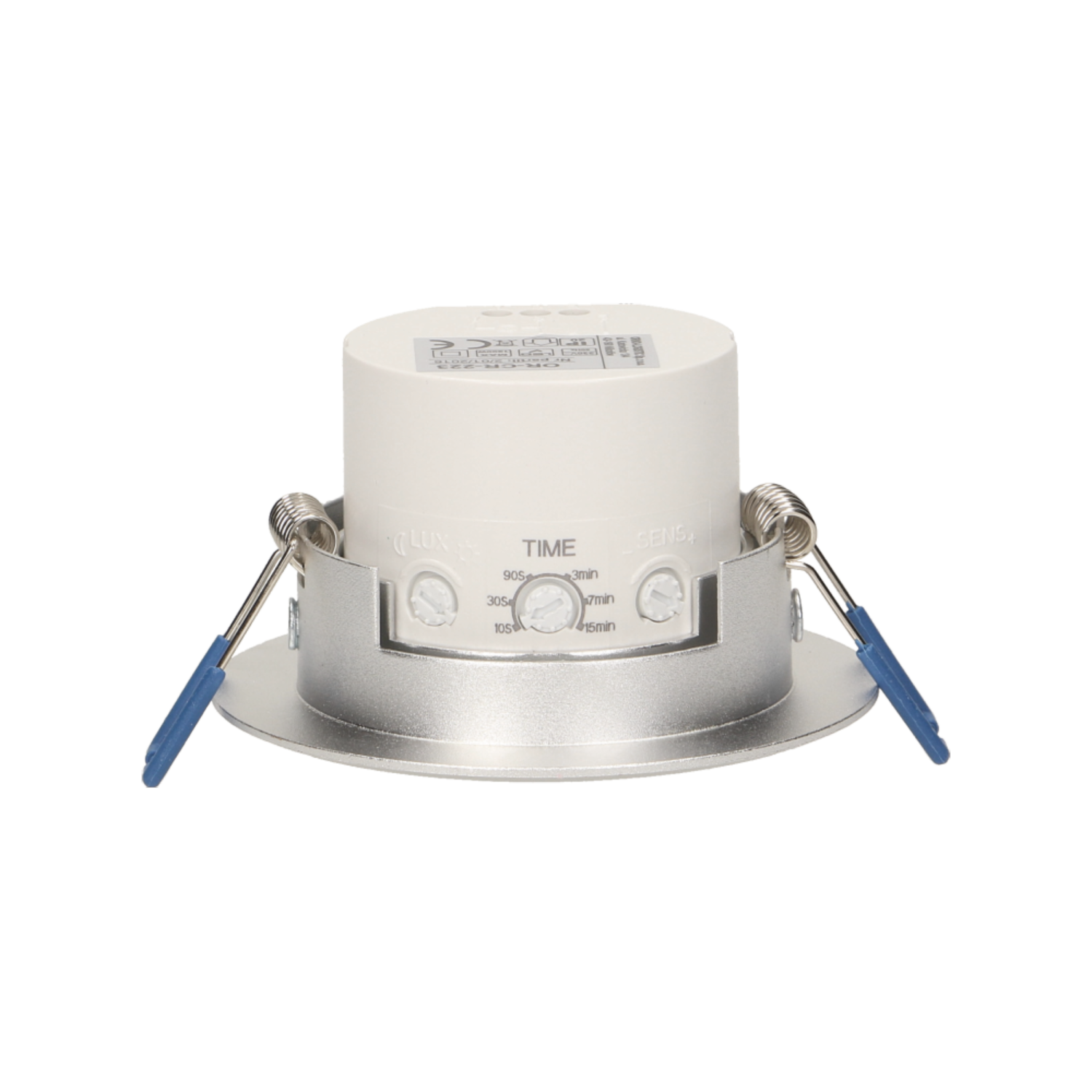

Adjustable time setting (TIME): Yes
Lighting time adjustment range (TIME): min.: 10 sek. ± 3 sek., max.: 15min.±2min
Adjustment of motion detection range (SENS): Yes
