Ceiling sensors

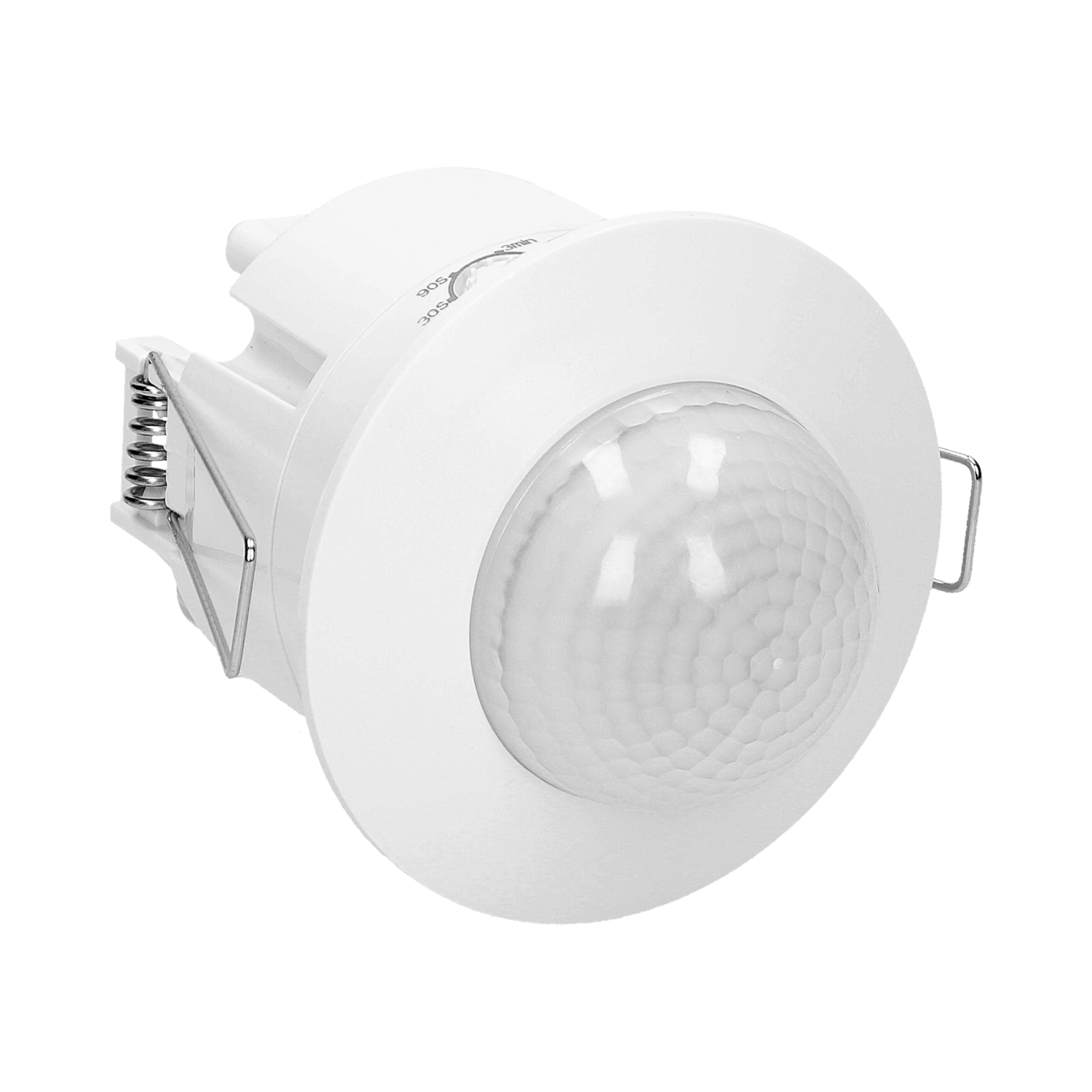

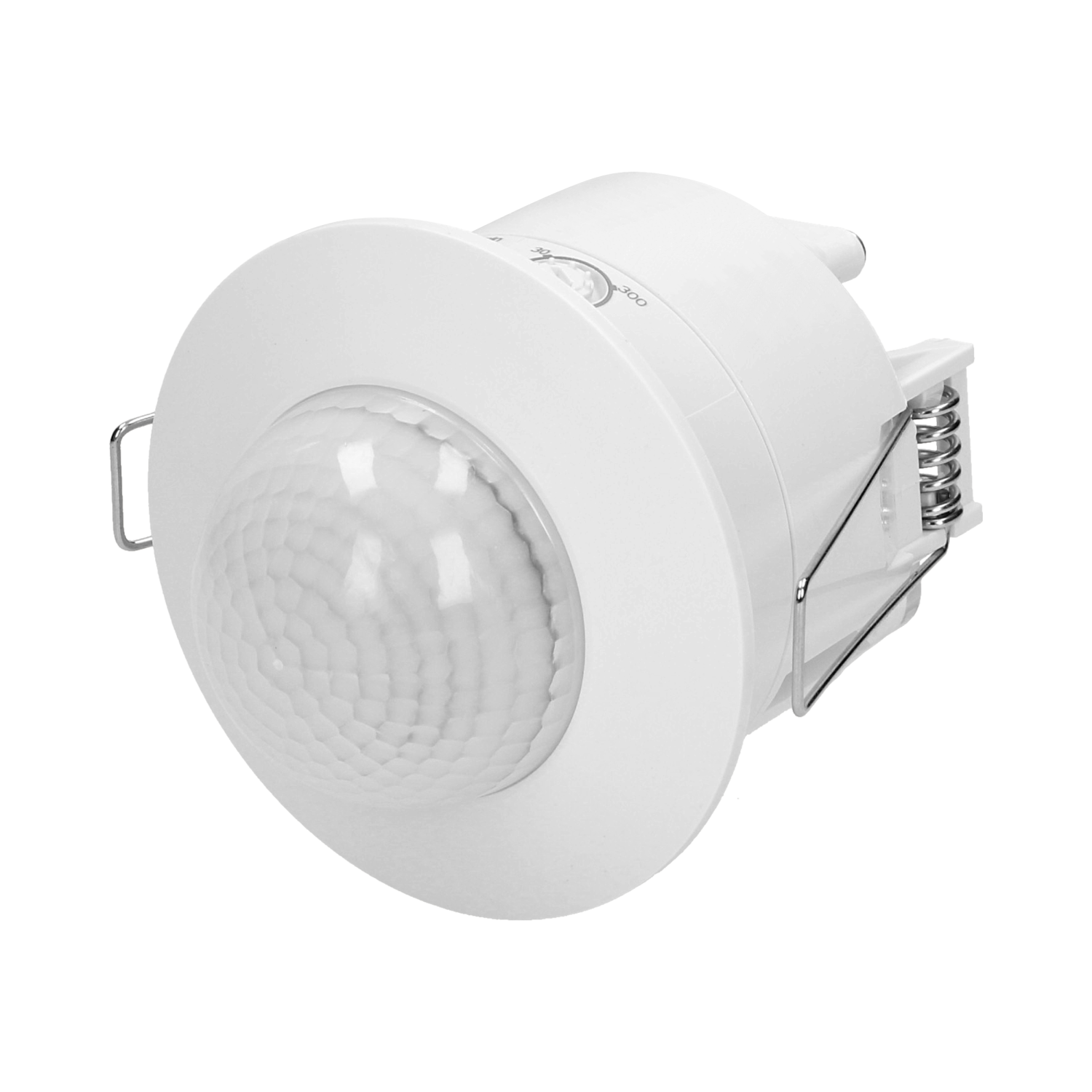

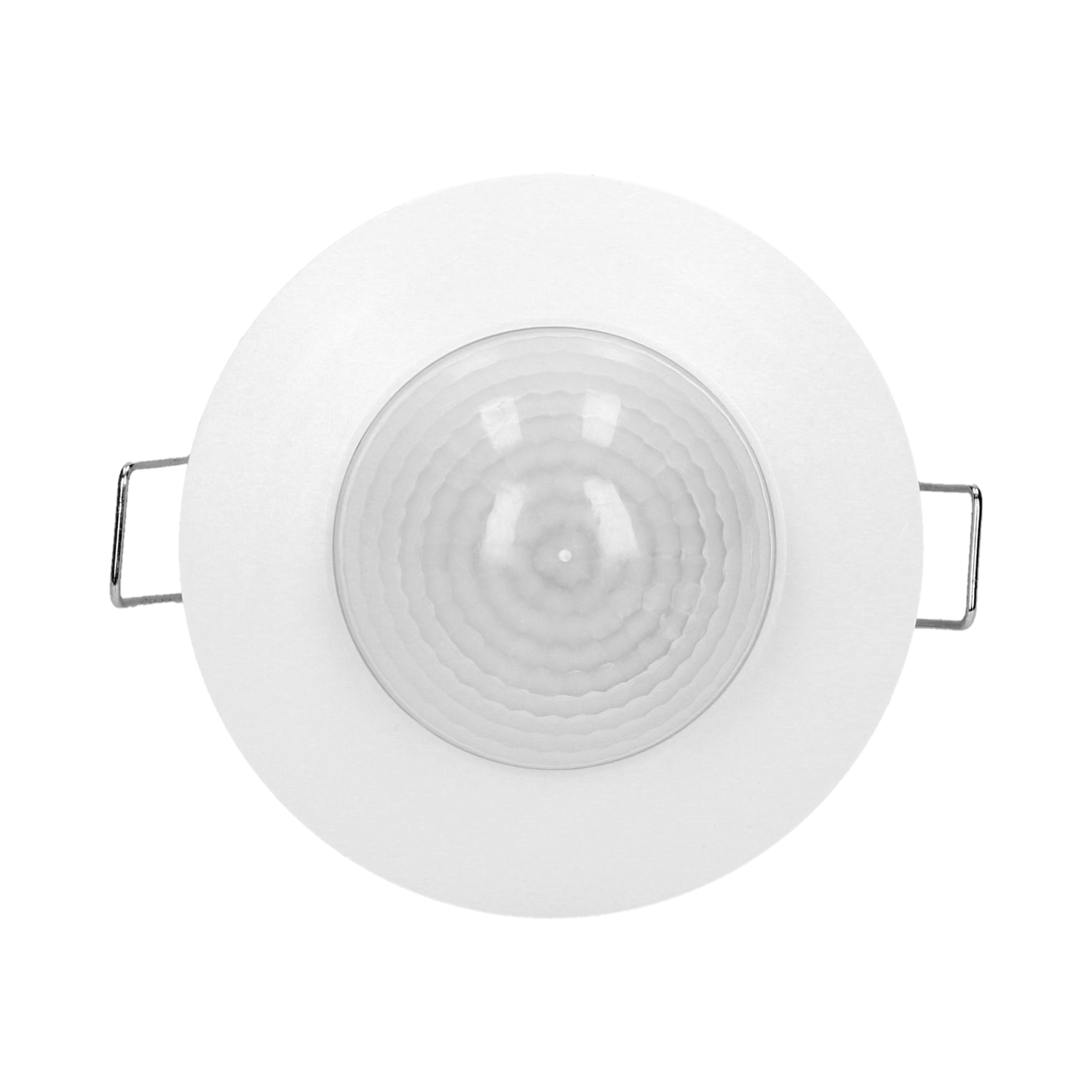

Passive infrared sensor (triple sensor motion detectors system positioned at a specific angle) For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX) Suitable for large rooms e.g. warehouses, waiting rooms Installation in suspended ceilings.
| General information: | |
|---|---|
| Max. load: | 1200 |
| Max. load of the LED light source: | 300 W |
| Degree of protection (IP): | 20 |
| Relay output: | Yes |
| Nominal voltage: | 230V~, 50Hz |
| Presence detector: | Yes |
| Colour: | white |
| Installation: | flush mounting |
| Dimensions of the sensor - width (mm): | Ø76 mm |
| Dimensions of the sensor - height (mm): | Ø76 mm |
| Dimensions of the sensor - depth (mm): | 87.3 mm |
| Detection angle: | 360° |
| Dimensions of the mounting hole: | Ø61,5 mm |
| Type of sensor: | Infrared |
| Detection range: | Ø12 m |
| Adjustable daylight sensor (LUX): | Yes |
| Daylight sensor adjustment range (LUX): | <3—2000lux |

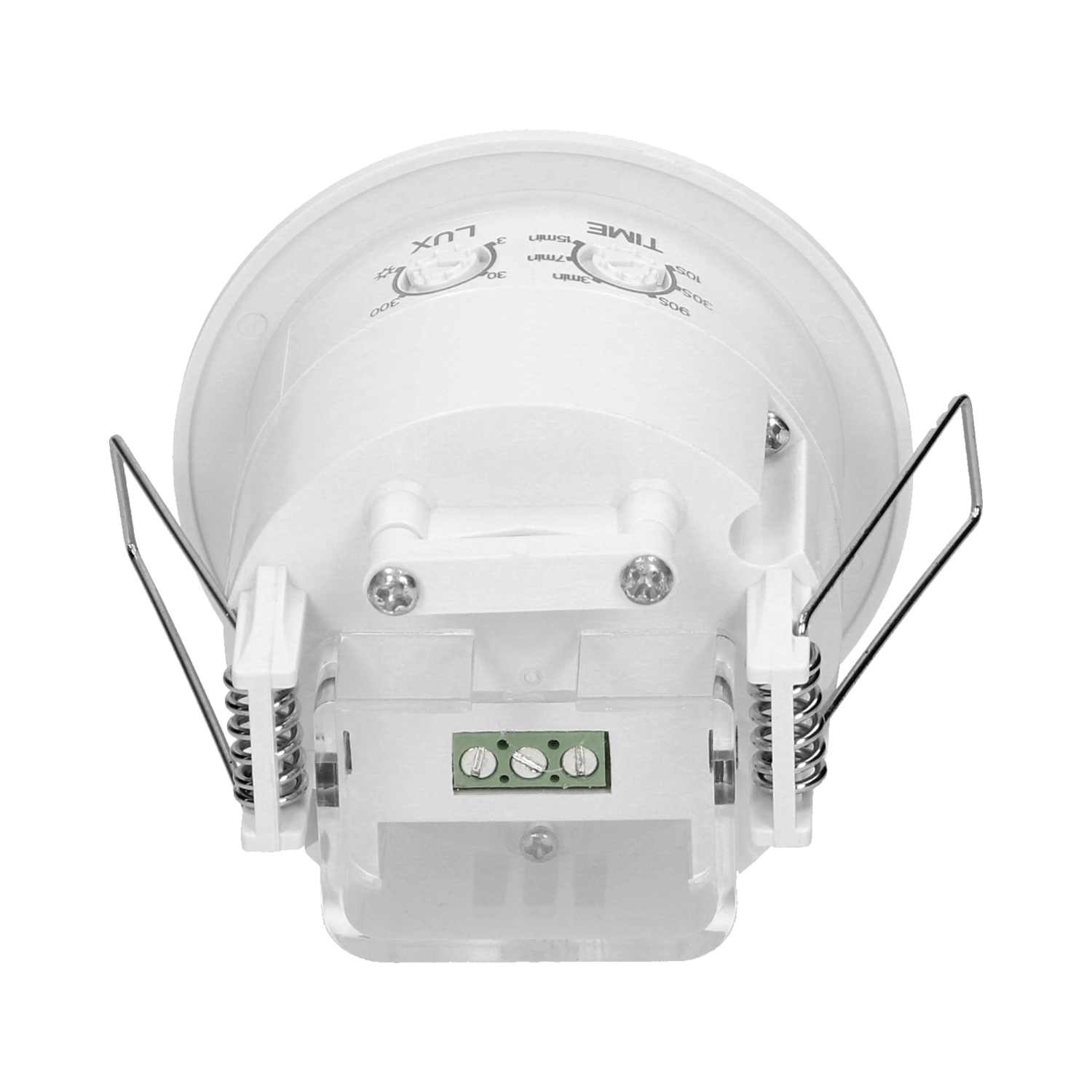

| Adjustable time setting (TIME): | Yes |
| Lighting time adjustment range (TIME): | min.: 10 sek. ± 3 sek., max.: 15min.±2min |
| Adjustment of motion detection range (SENS): | No |
