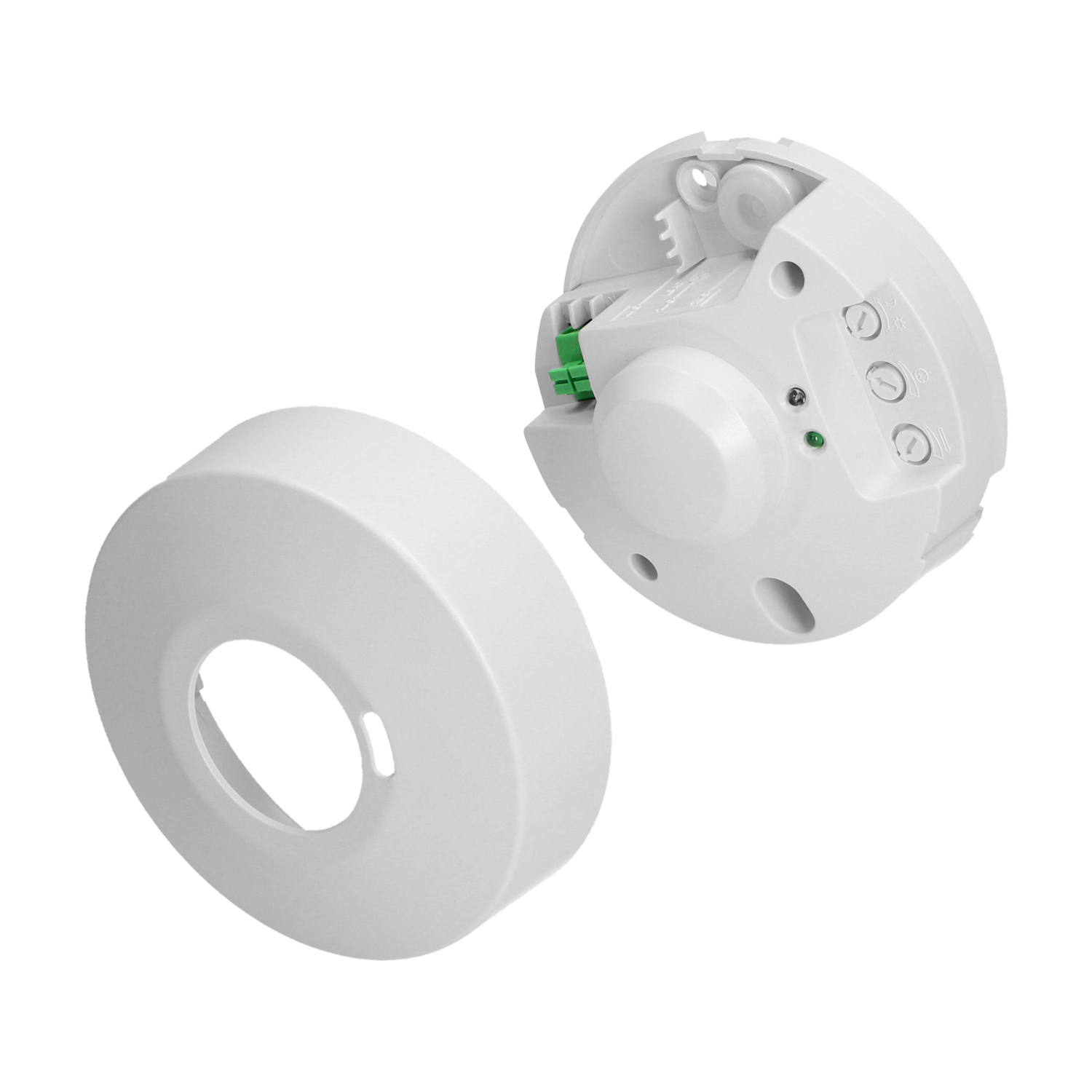

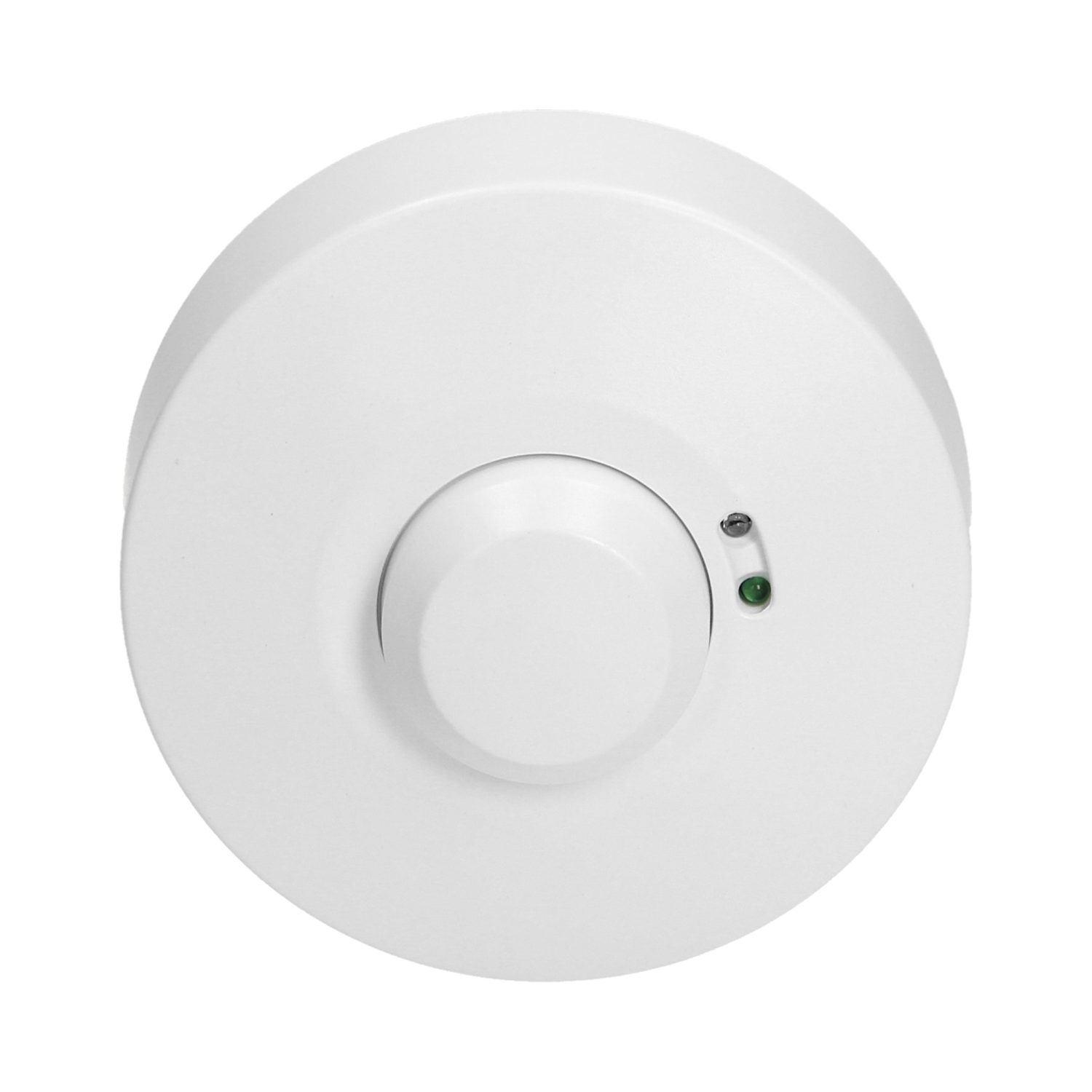

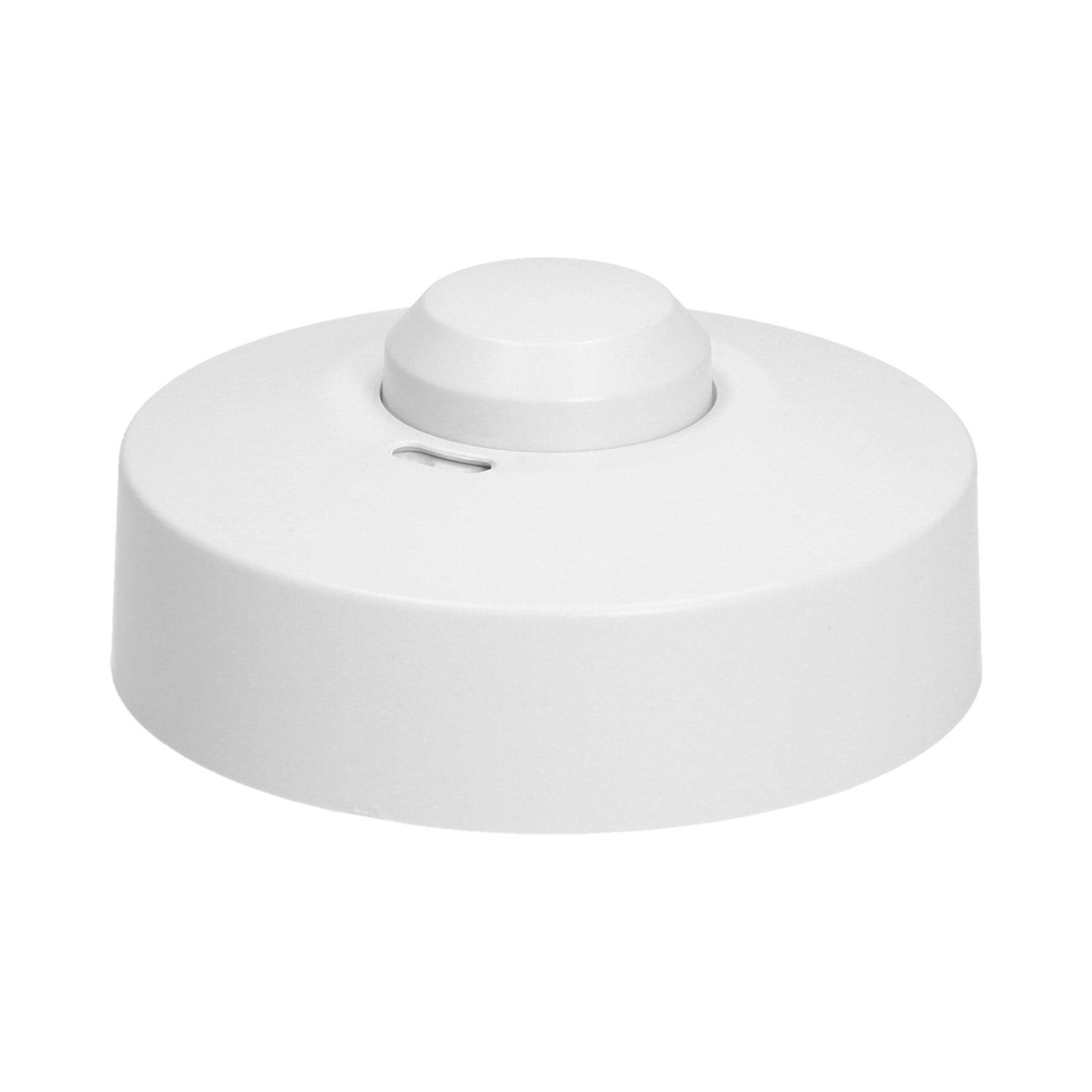

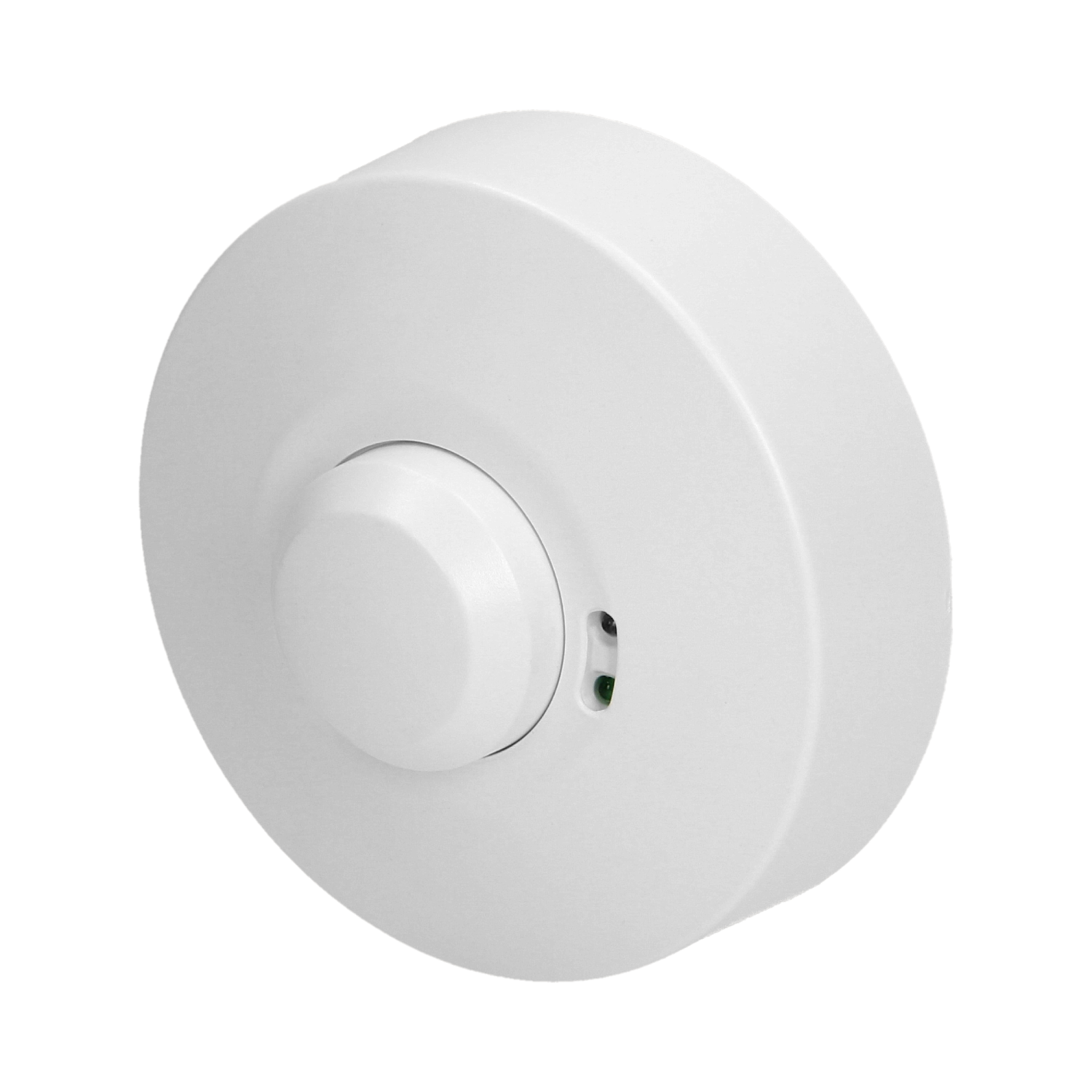

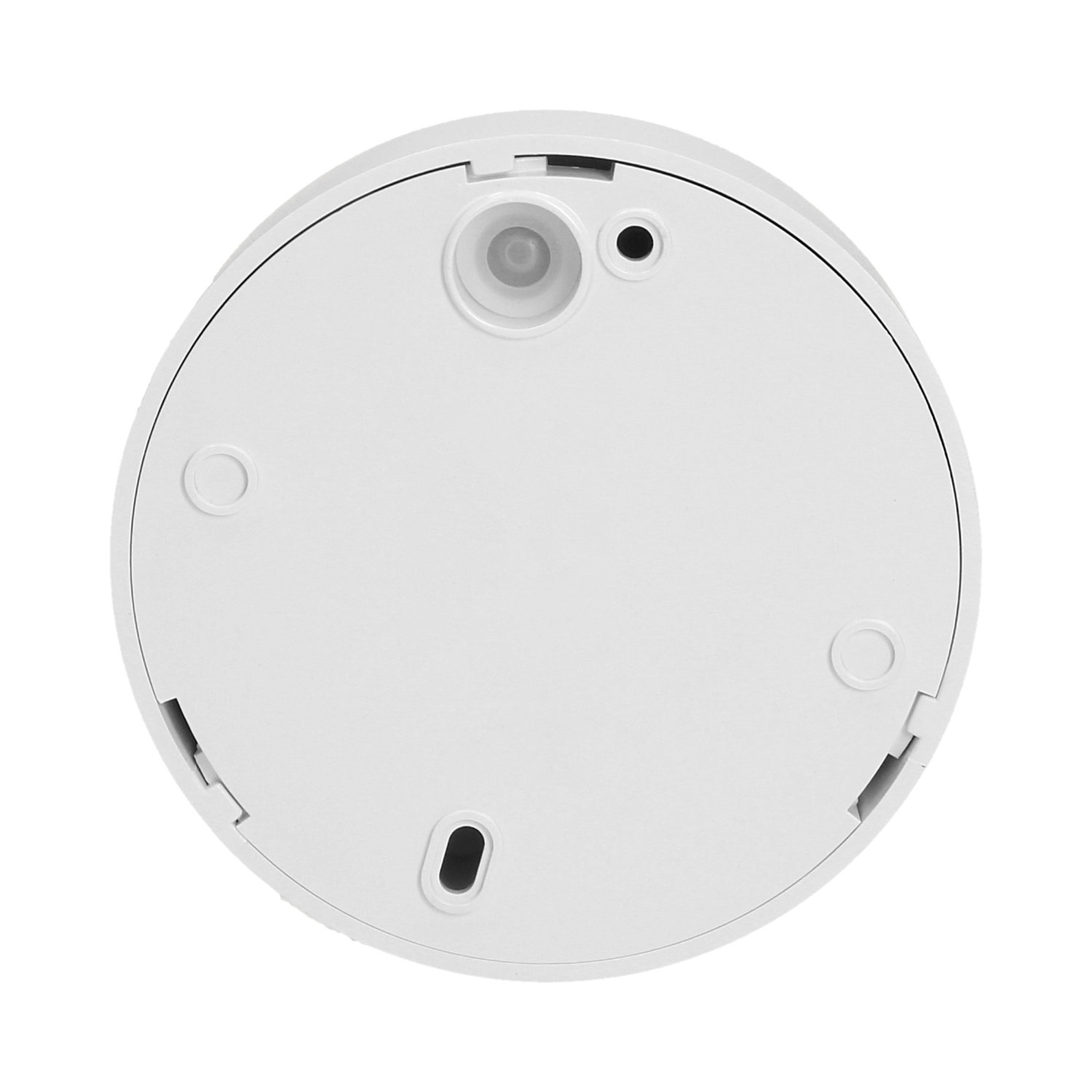

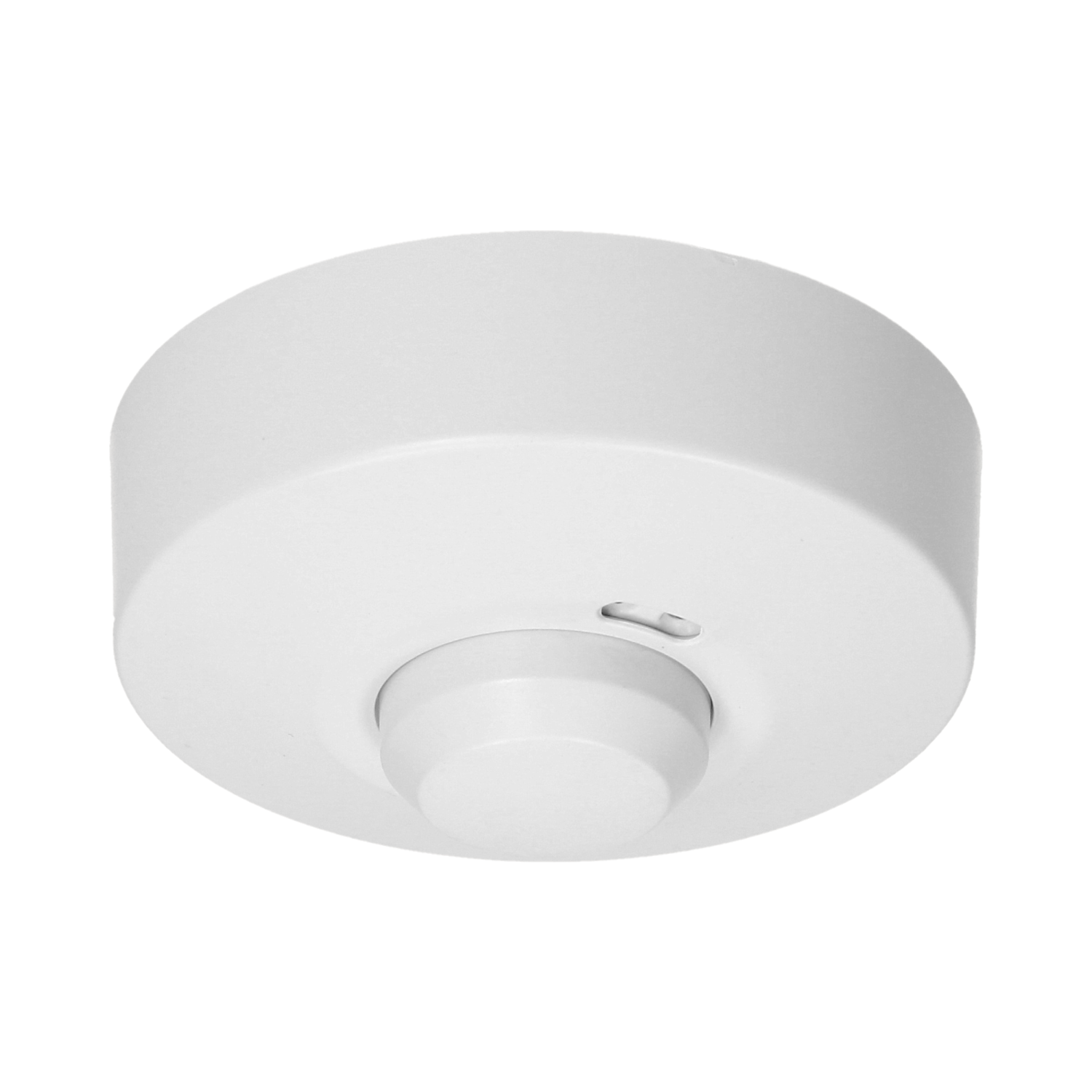

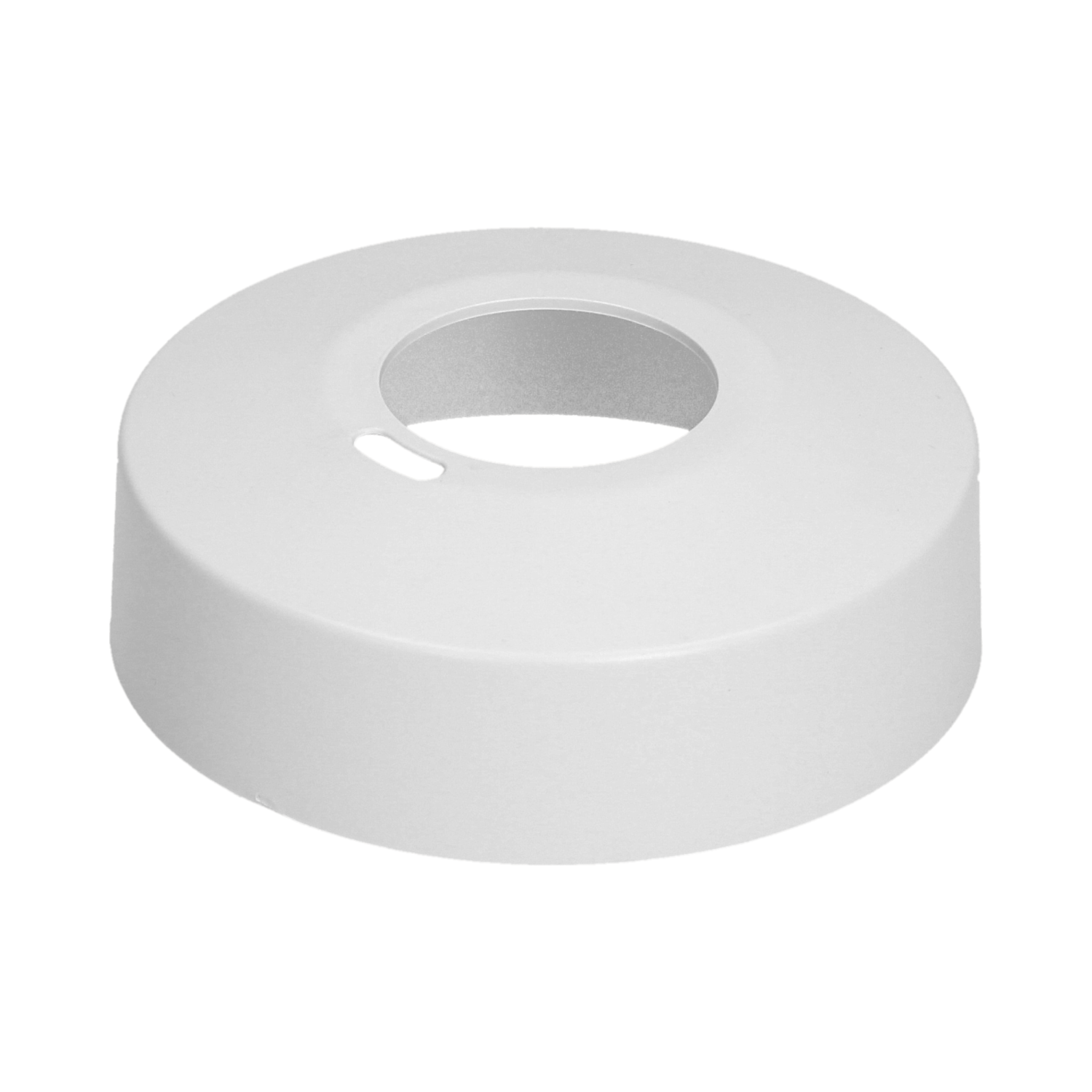

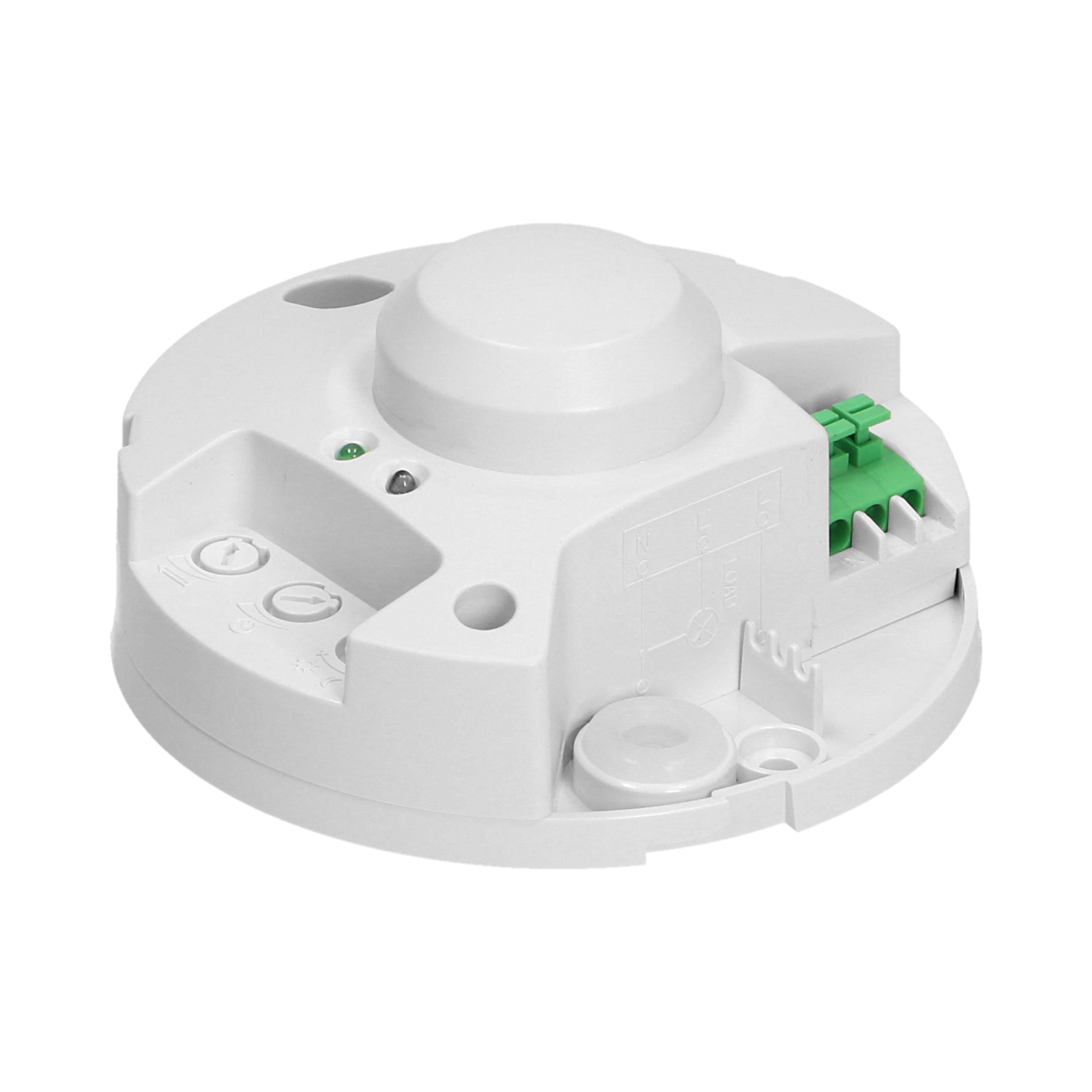

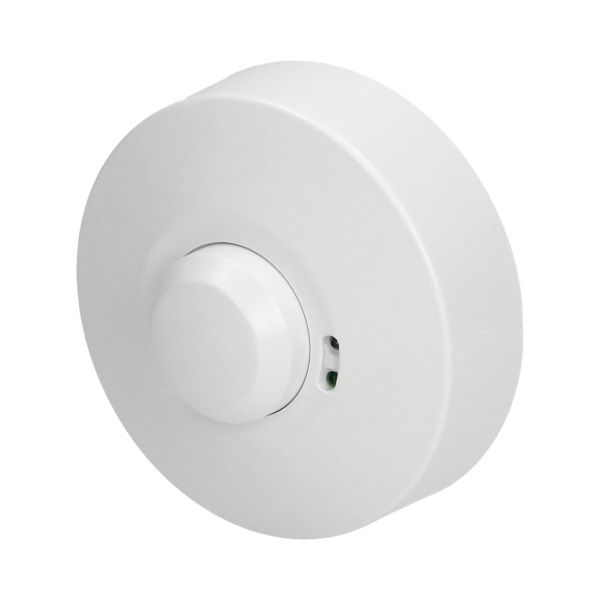

Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover
Microwave sensor 360° with cover

Microwave sensor 360° with cover

OR-CR-212

Description

Microwave (radar) motion sensor with low power emission For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME), the sensitivity of the light intensity (LUX) and the range of motion detection (SENS) Designed for installation in luminaires Built-in twilight sensor and timer Temperature does not affect the detection.

General information:
Max. load: 1200
Max. load of the LED light source: 300 W
Degree of protection (IP): 20
Relay output: Yes
Nominal voltage: 230V~, 50Hz
Presence detector: No
Colour: white
Installation: surface mounting
Dimensions of the sensor - width (mm): Ø102,5 mm
Dimensions of the sensor - height (mm): Ø102,5 mm
Dimensions of the sensor - depth (mm): 43.5 mm
Working temperature: -20℃~+50℃
Detection angle: 360°
Type of sensor: microwave
Detection range: 1-8m m
Adjustable daylight sensor (LUX): Yes
Daylight sensor adjustment range (LUX): <3—2000lux
Adjustable time setting (TIME): Yes
Lighting time adjustment range (TIME): min: 10 sek. ± 3 sek.; max: 12 min. ± 1 min.
Adjustment of motion detection range (SENS): Yes

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:12:23Download
Product data sheetENpdf2024-07-17 10:20:28Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
