Code locks

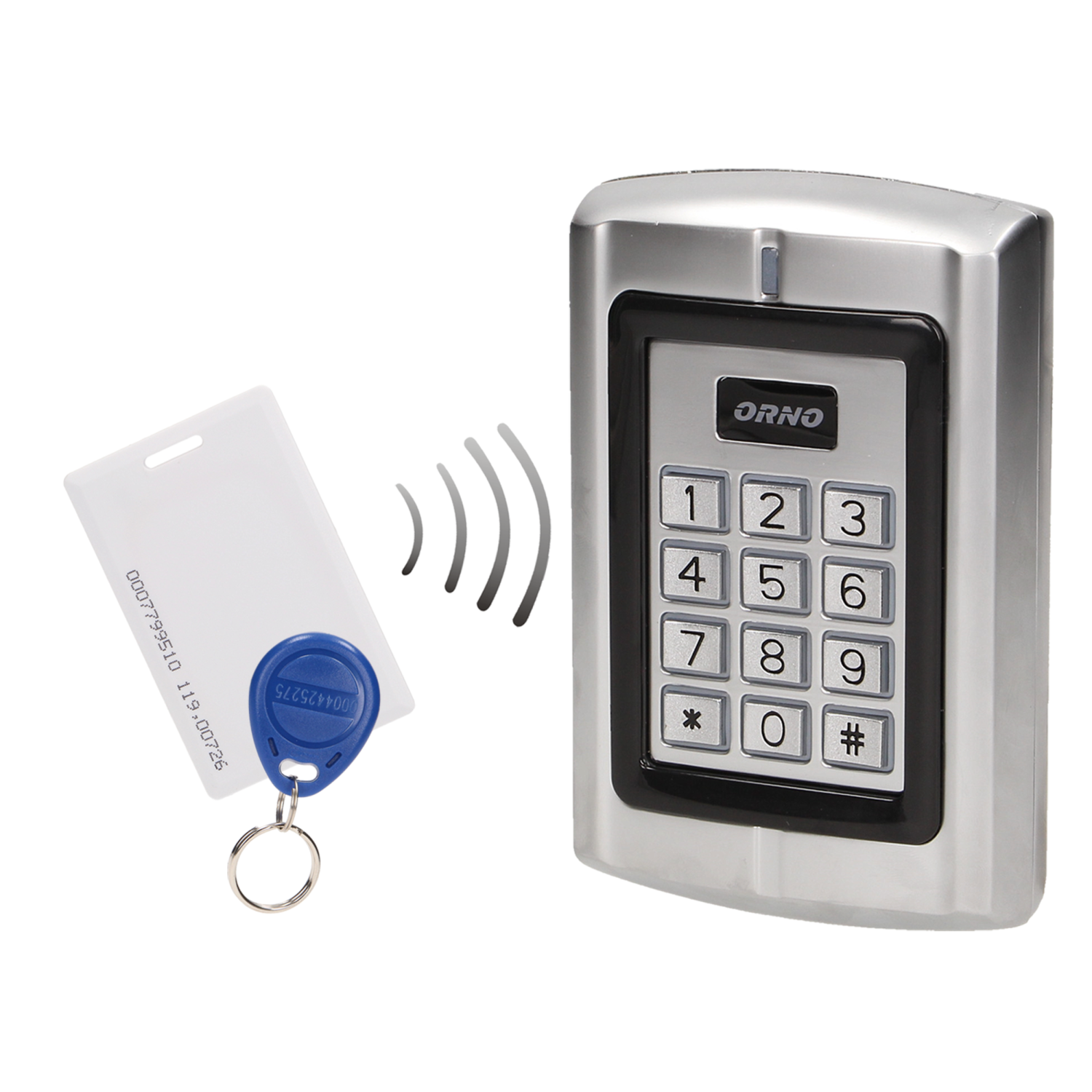

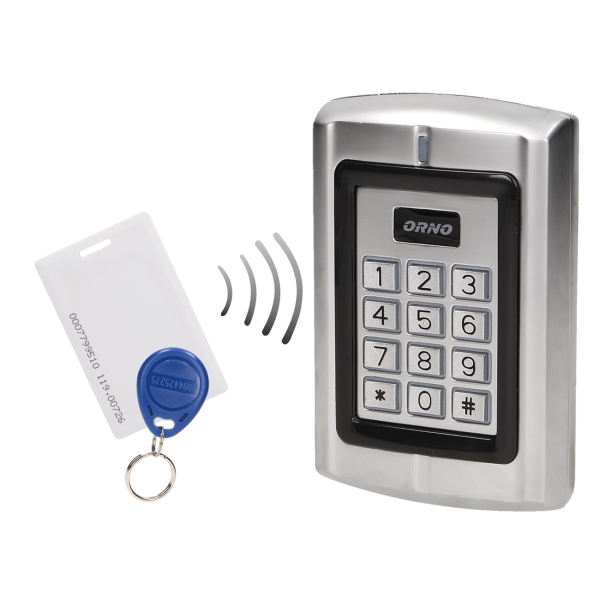

Works with electromagnetic locks and access control systems Controls other electrical or alarm devices 1 Relay output Supports cards and PIN codes (10 000 combinations, 1000 PINs) Remembers saved codes and parameters in case of the power failure Backlit keyboard Vandal-proof housing, requires surface mounting Detection of the doors opening Two levels of the keypad protection.
| General information: | |
|---|---|
| Touch keyboard: | No |
| Doorbell button: | No |
| Type: | Code lock cylinder |
| Operating mode: | proximity tag / proximity tag + card / proximity tag or code |
| Degree of protection (IP): | 44 |
| Type of transmission: | wired |
| Number of relay outputs: | 1 |
| Nominal voltage: | 12V DC |
| Max. number of users: | 1000 |
| Installation: | surface mounting |
| Dimensions - depth: | 28 mm |
| Proximity reader: | Yes |
| Dimensions - width: | 82 mm |
| Keypad: | Yes |
| Dimensions - height: | 128 mm |
| Frequency: | 125 kHz |
| Backlight: | Yes |
