Code locks

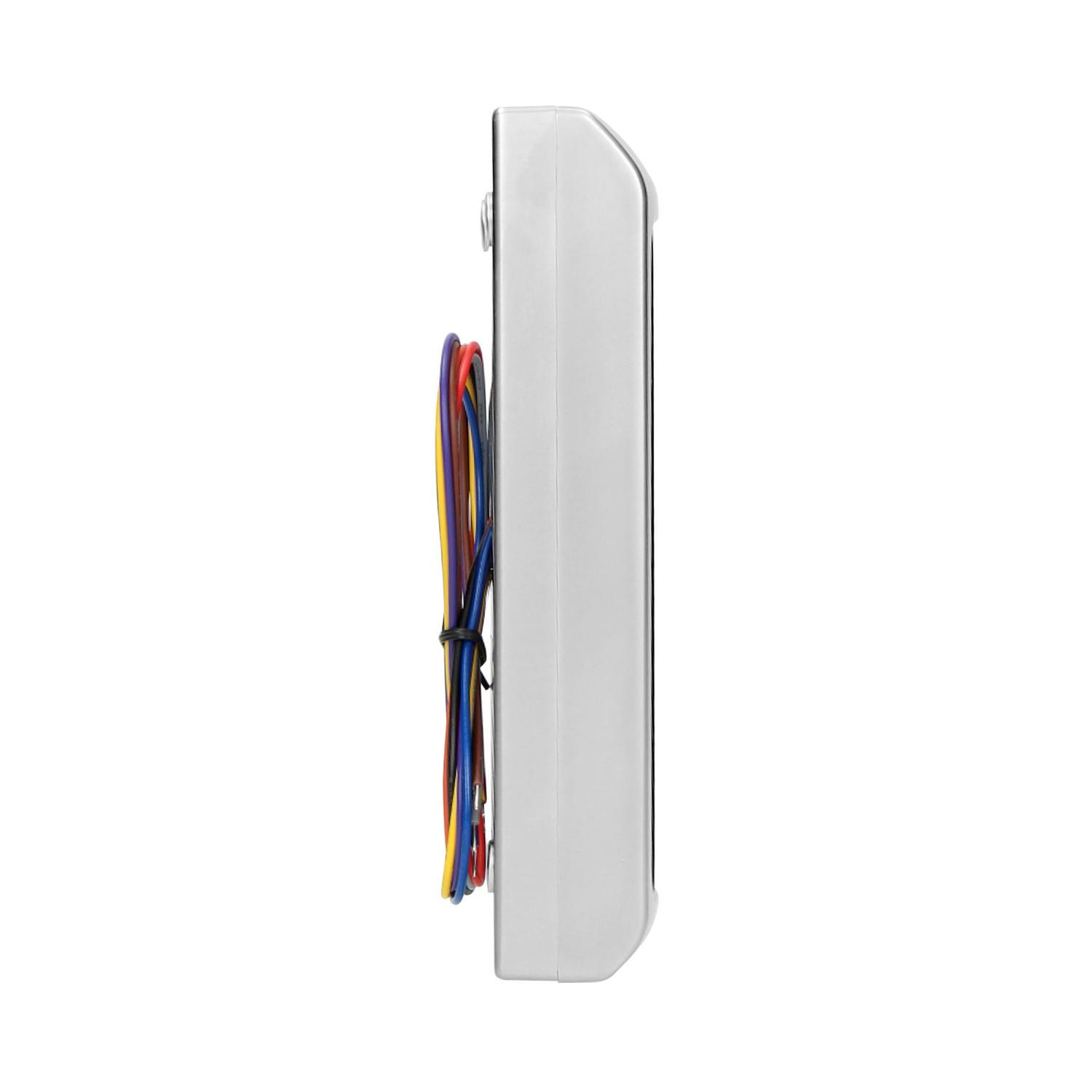

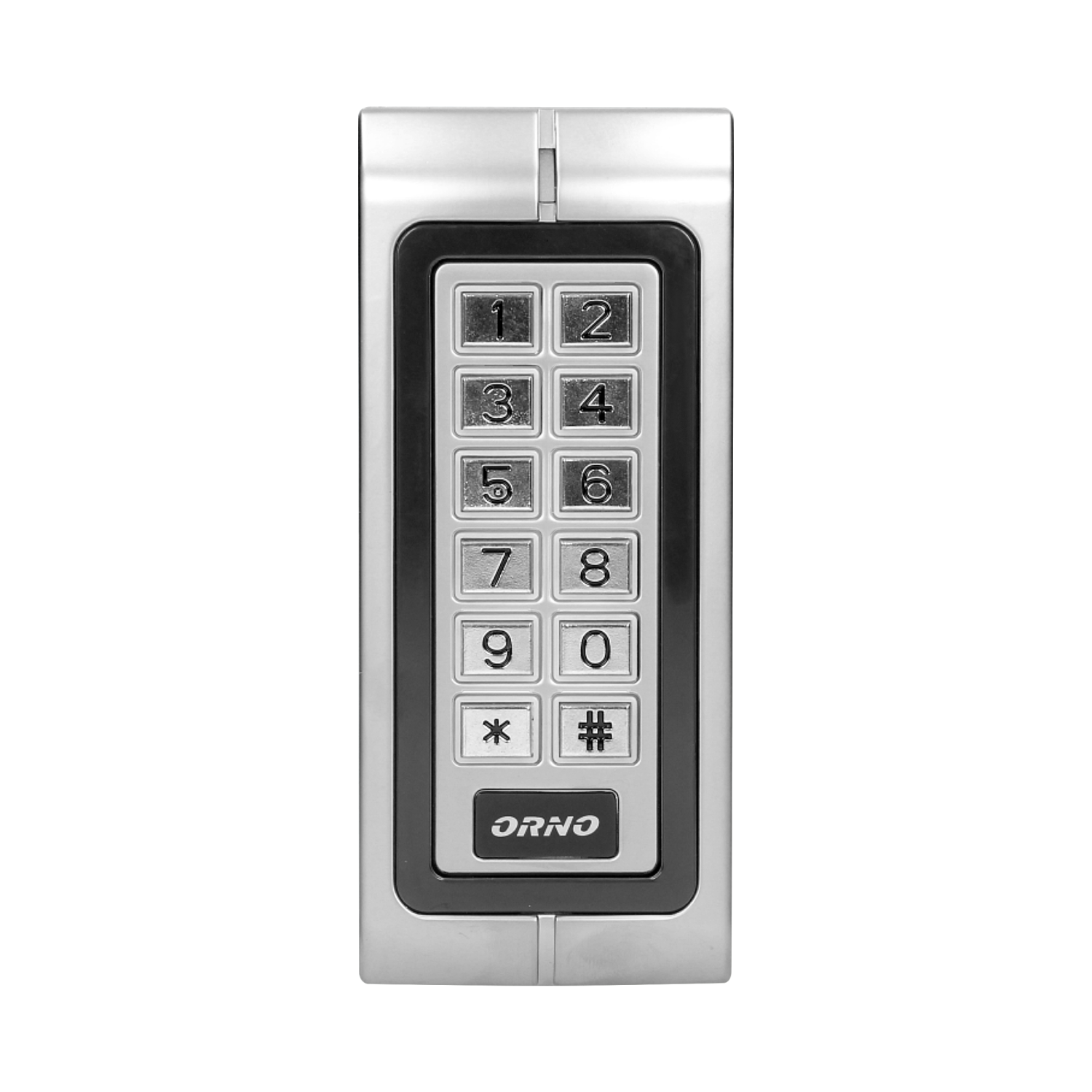

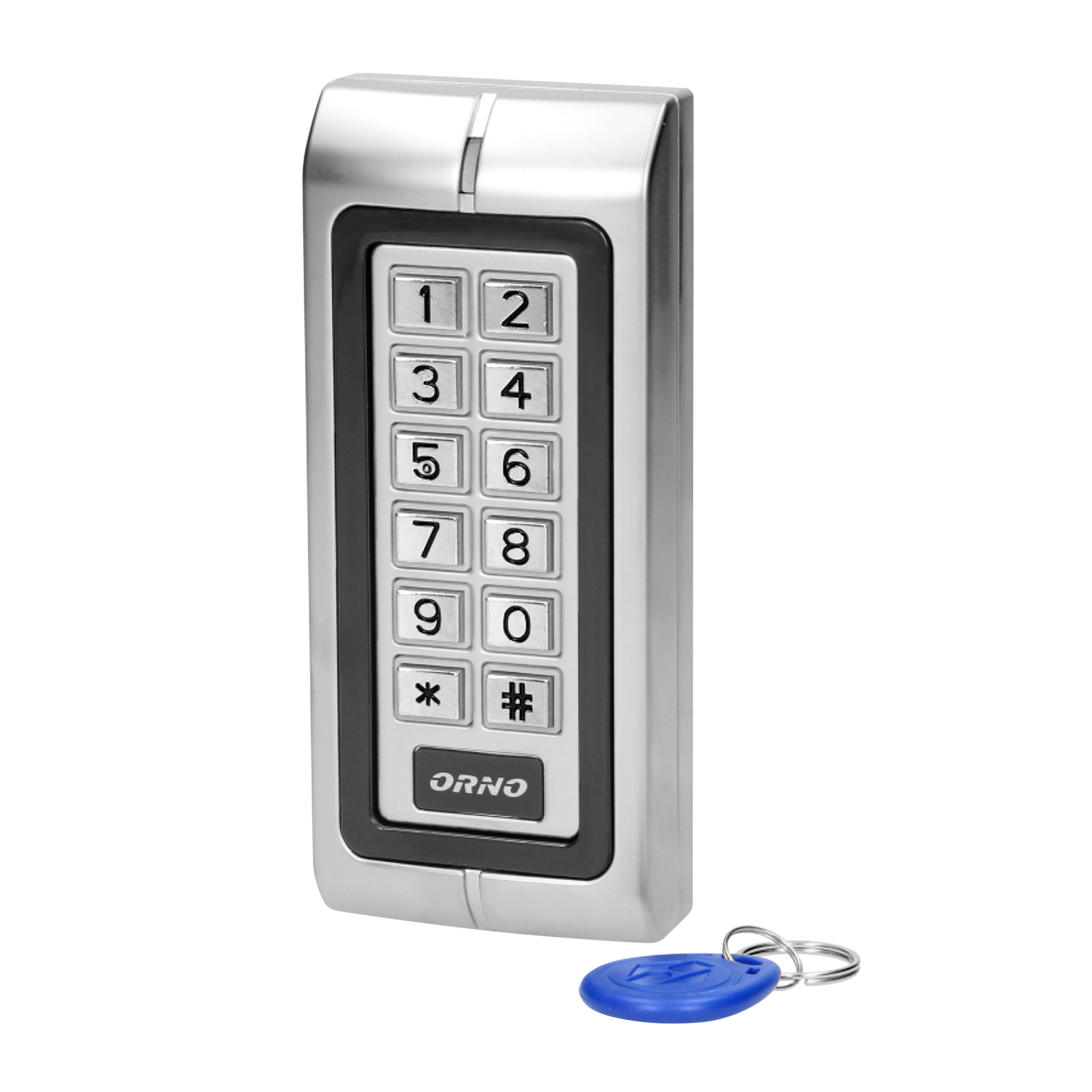

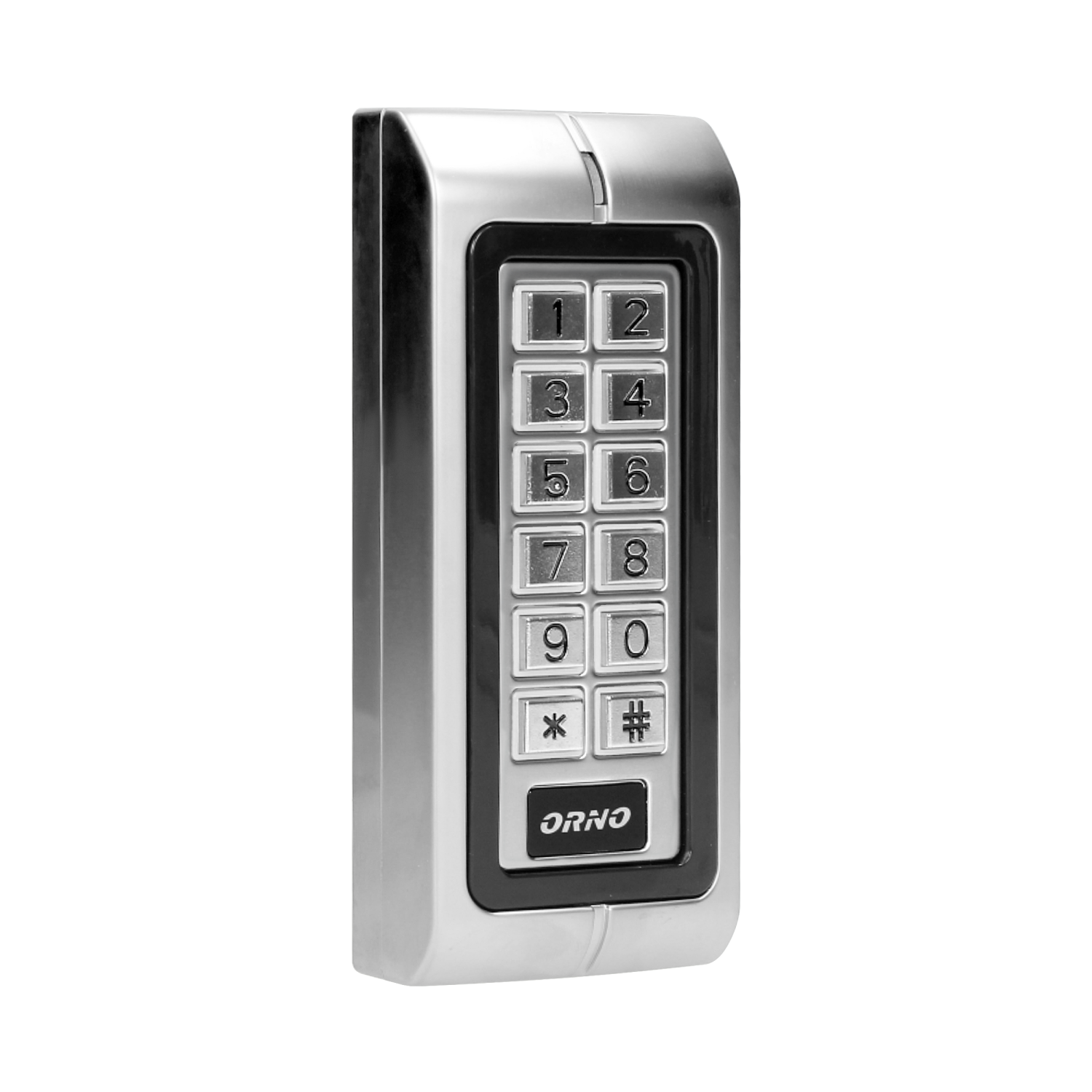

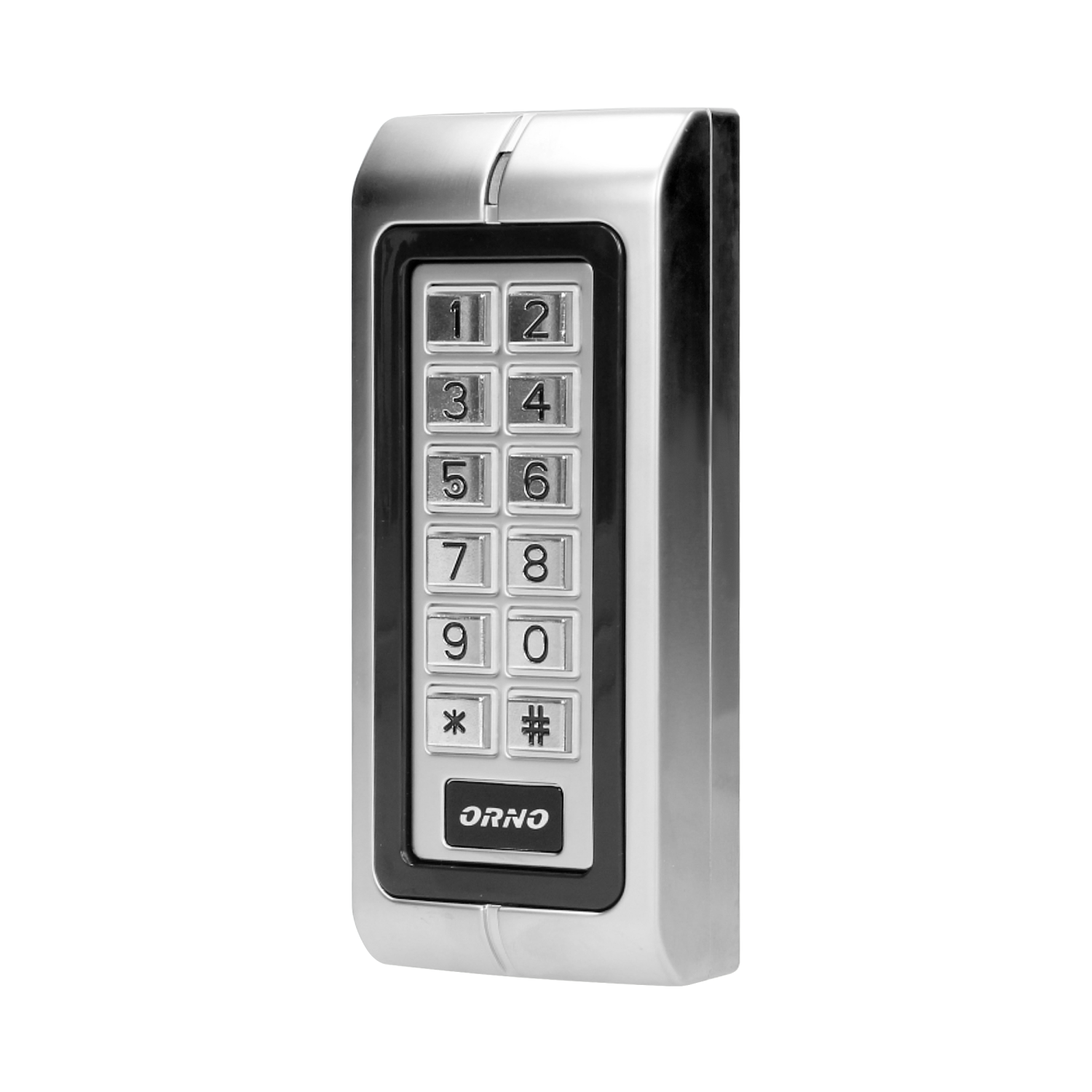

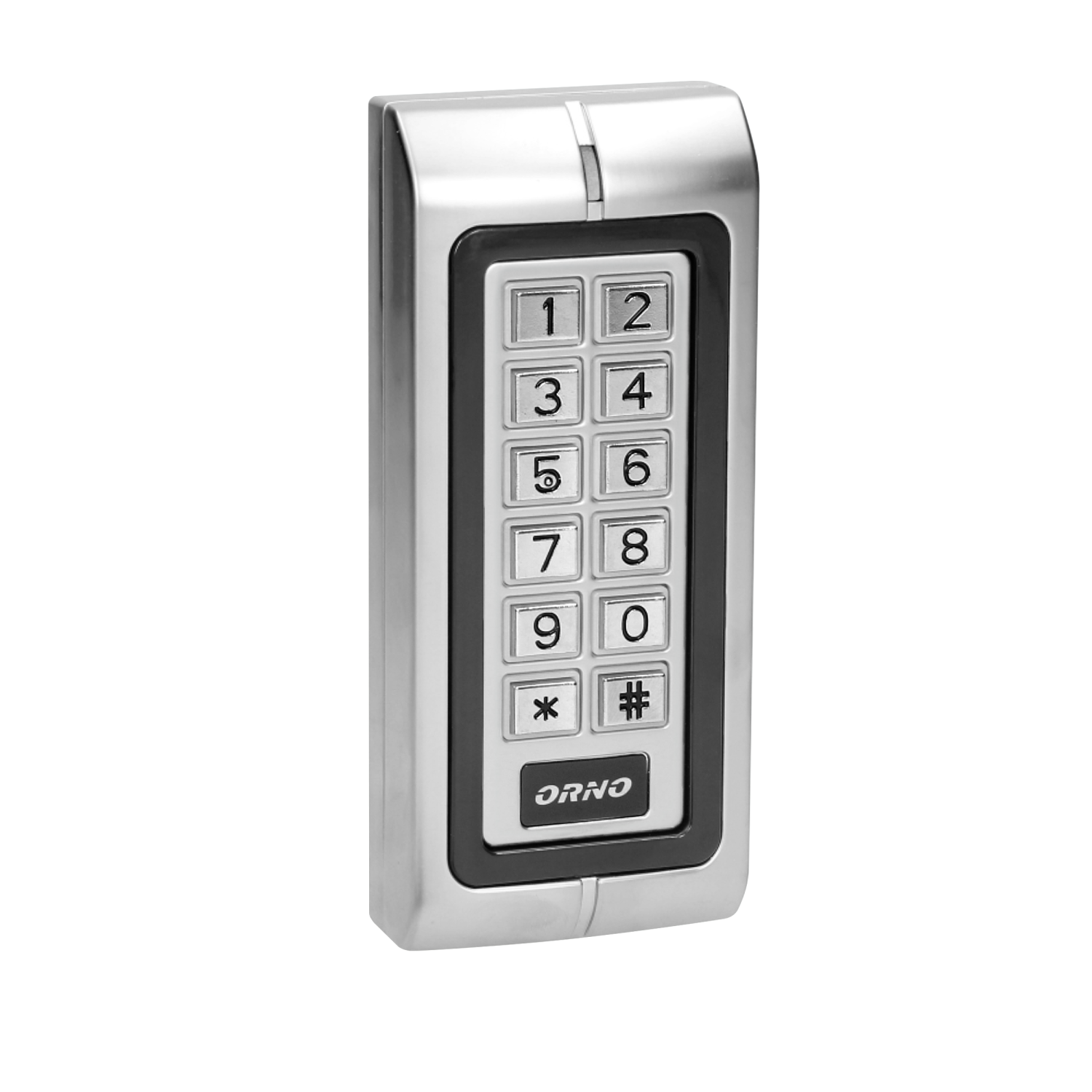

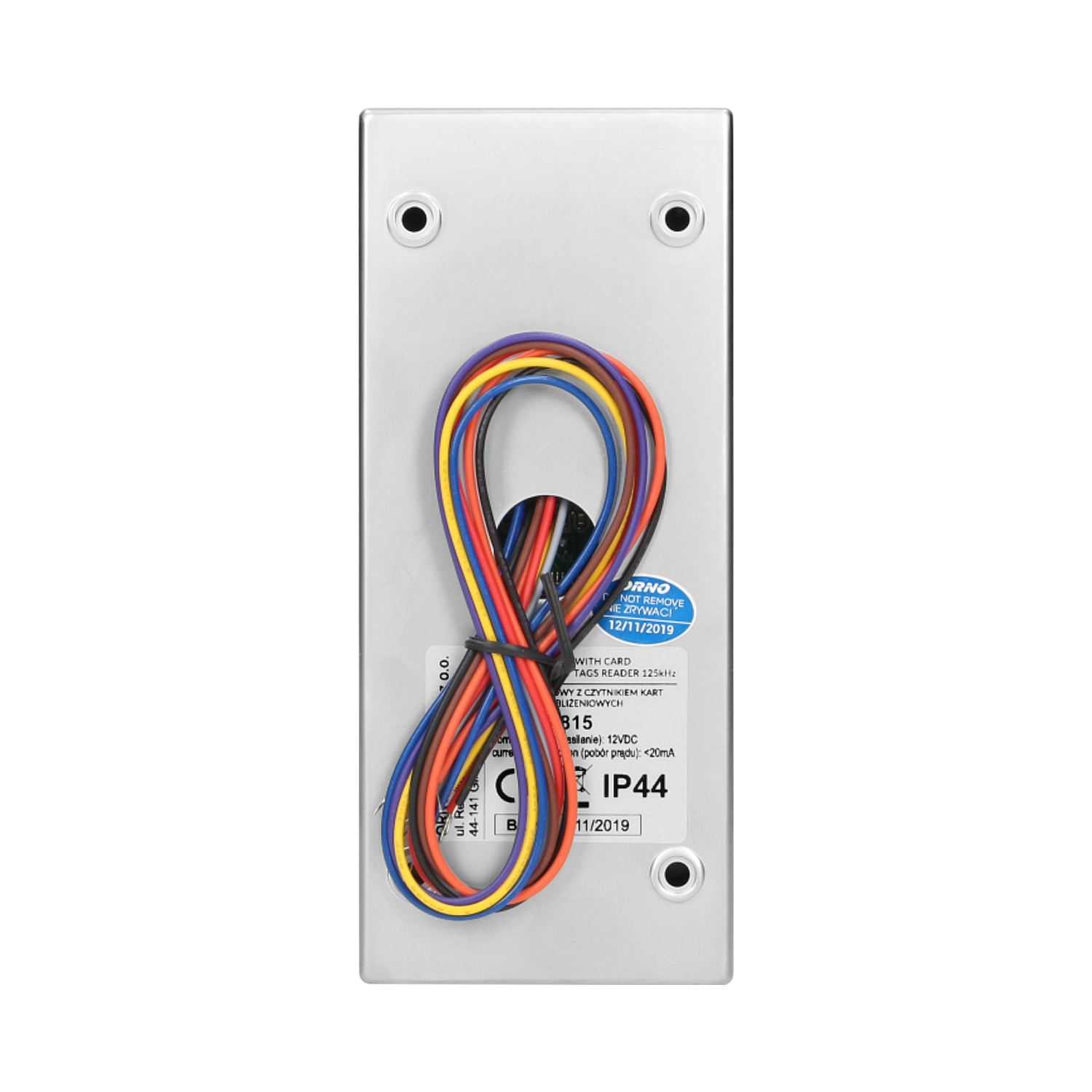

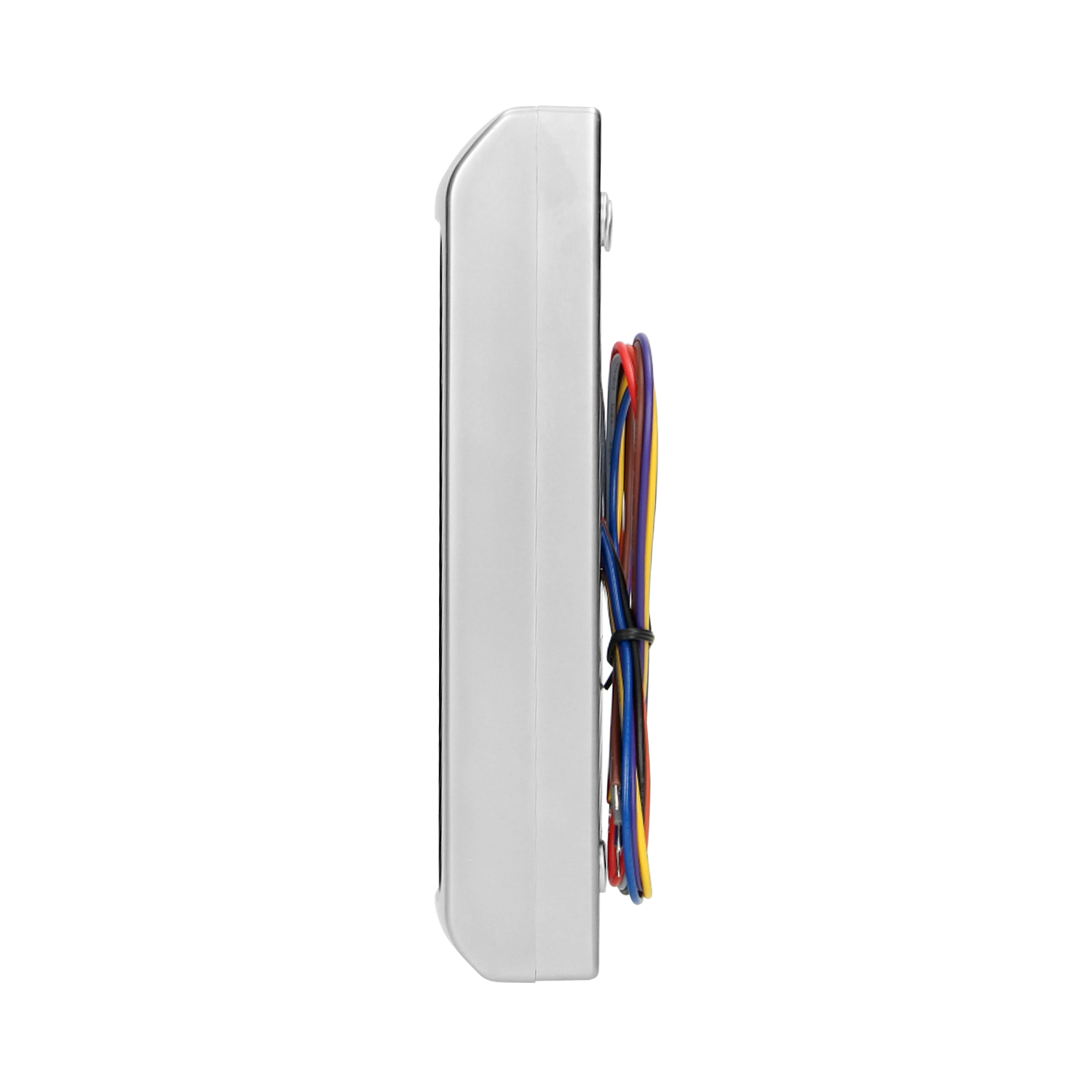

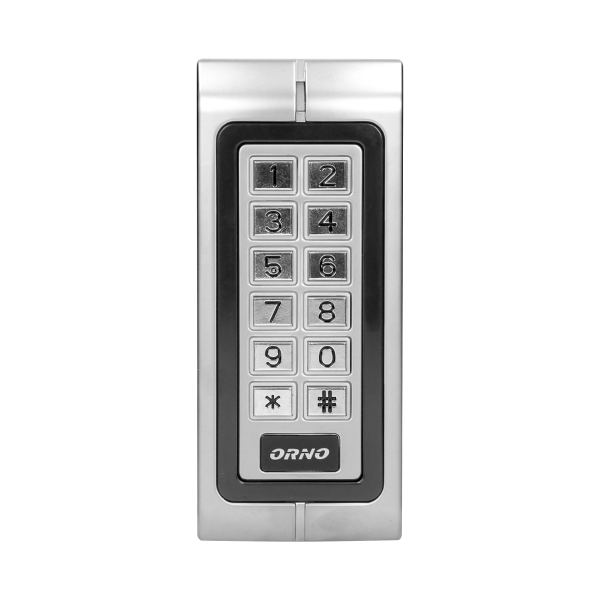

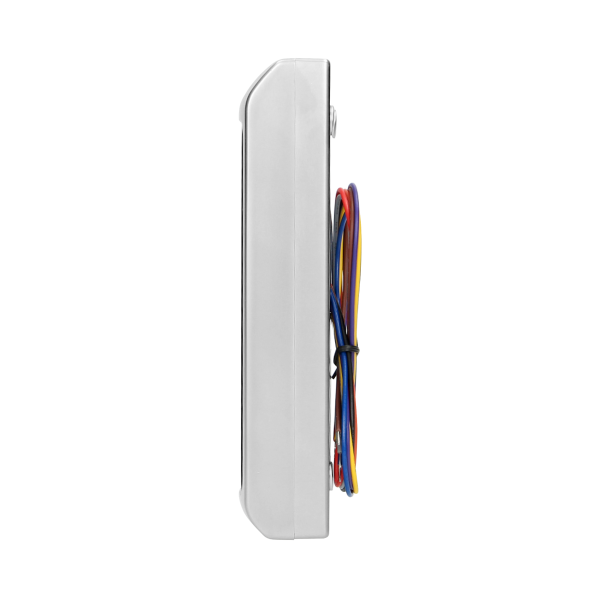

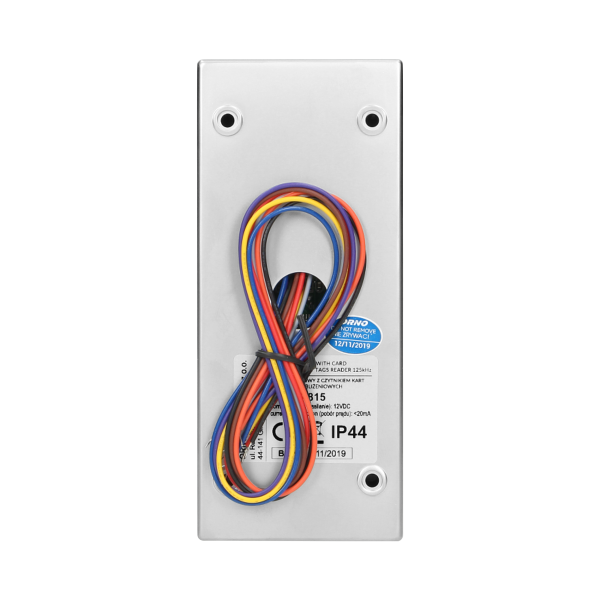

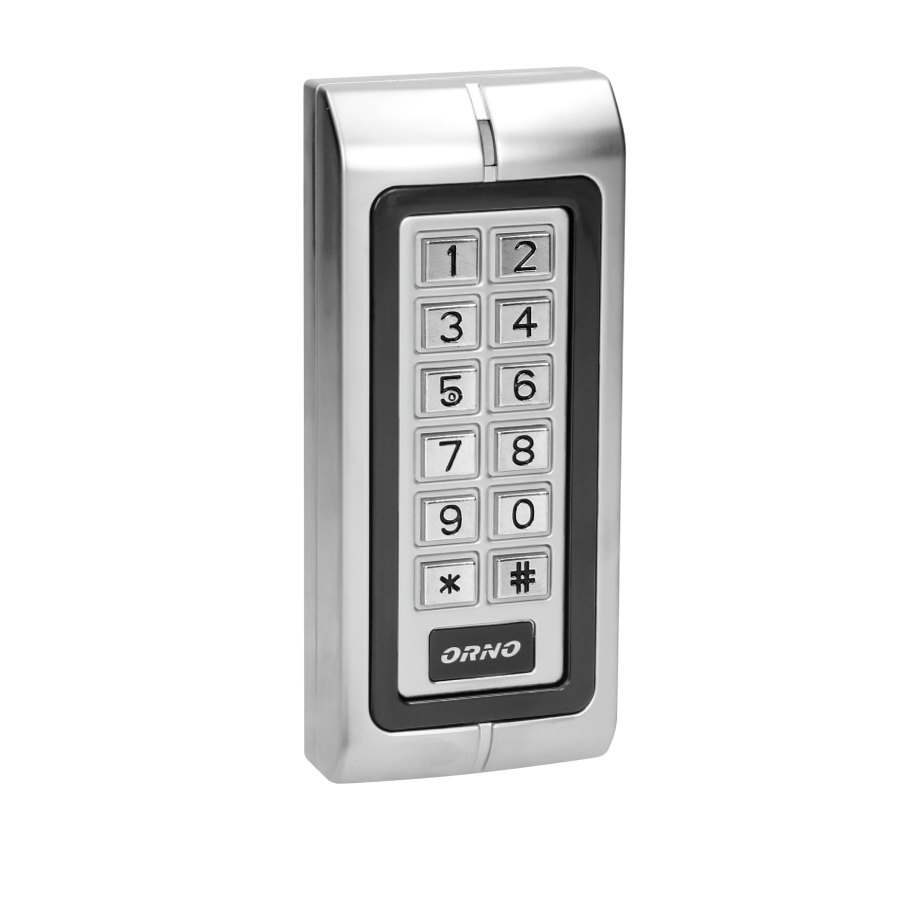

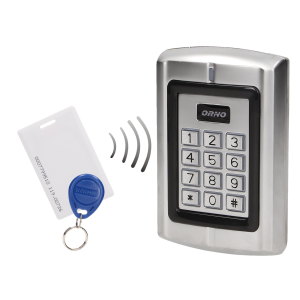

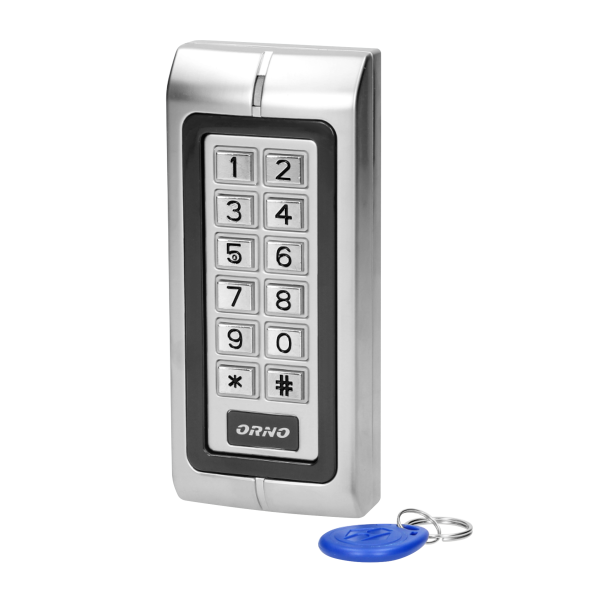

An independent code lock features functions of a digital key pad and a card or proximity tags reader. This modern device is compatible with electromagnetic locks and access control systems. It can also control other electric or alarm appliances. This code lock has one relay output and a card/proximity tags reader. All authorised users can enter the protected space upon reading their card/proximity tag or entering an access code. A non-volatile EPROM memory remembers user codes and parameters, even in case of power shortage. The backlit key pad makes it easier to enter access codes even after it gets dark. The durable casing of the device guarantees its resistance to variable weather conditions. It can be mounted on walls, facades and fences. Its flashing LED diodes prove that the device is in a working mode.
| General information: | |
|---|---|
| Touch keyboard: | No |
| Doorbell button: | No |
| Type: | Code lock |
| Operating mode: | proximity tag / proximity tag + card / proximity tag or code |
| Degree of protection (IP): | 44 |
| Type of transmission: | wired |
| Number of relay outputs: | 1 |
| Nominal voltage: | 12V DC |
| Max. number of users: | 1000 |
| Installation: | surface mounting |
| Dimensions - depth: | 135 mm |
| Proximity reader: | Yes |
| Dimensions - width: | 58 mm |
| Keypad: | Yes |
| Dimensions - height: | 26 mm |
| Frequency: | 125 kHz |
| Backlight: | Yes |
