OR-ZS-816

Description

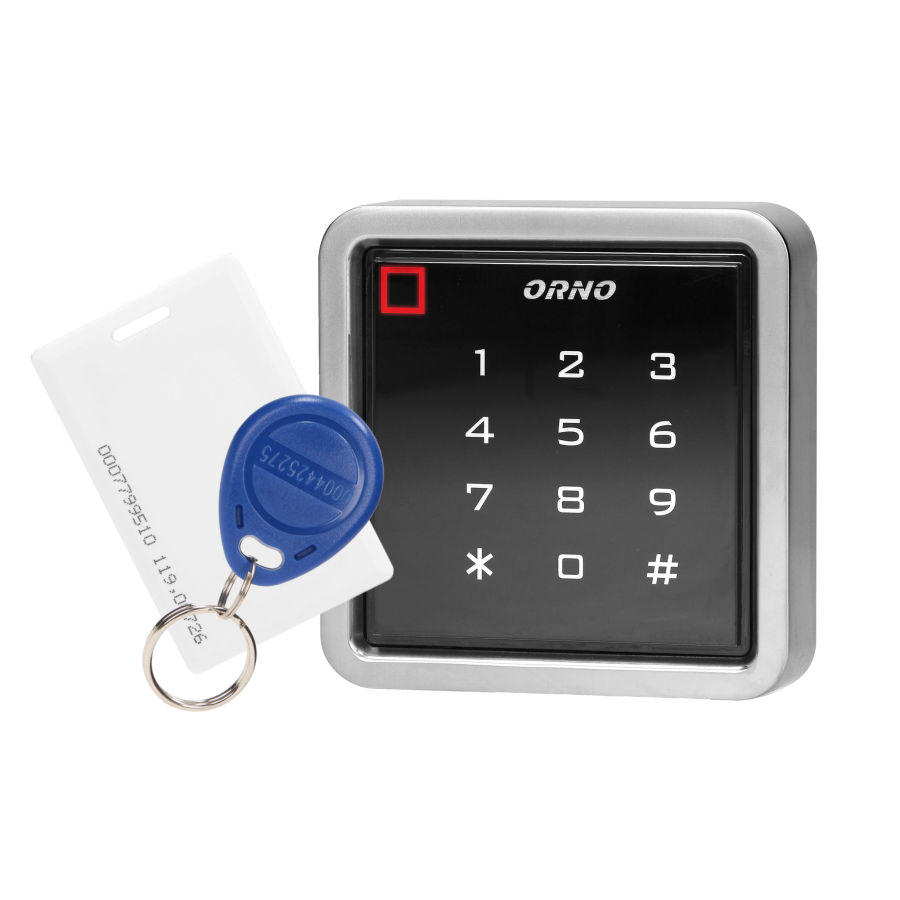

A code lock built in a slim and elegant, aluminum case features functions of a digital key pad and a card or proximity tags reader. This modern device is compatible with electromagnetic locks and access control systems. It can also control other electric or alarm appliances. This code lock has one relay output and a card/proximity tags reader. All authorized users can enter the protected space upon reading their card/proximity tag or entering an access code. A non-volatile EPROM memory remembers user codes and parameters, even in case of power shortage. The backlit key pad makes it easier to enter access codes even after it gets dark. The durable casing of the device guarantees its resistance to variable weather conditions. It can be mounted on walls, facades and fences. Its flashing LED diodes prove that the device is in a working mode. Two tags (OR-ZS-890) and two proximity card (OR-ZS-892) included.

General information:
Touch keyboard: No
Doorbell button: No
Type: Touch Code Lock
Type of power supply: 12V DC
Degree of protection (IP): 68
Type of transmission: wired
Number of relay outputs: 1
Nominal voltage: 12V DC
Max. number of users: 2000
Installation: surface mounting
Dimensions - depth: 20 mm
Proximity reader: Yes
Keypad: Yes
Dimensions - height: 86 mm
Frequency: 125 kHz
Temporary access can be granted: No
Permanent access can be granted: No
Backlight: Yes
Fingerprint reader: No

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:15:01Download
Product data sheetENpdf2024-07-17 10:22:46Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
