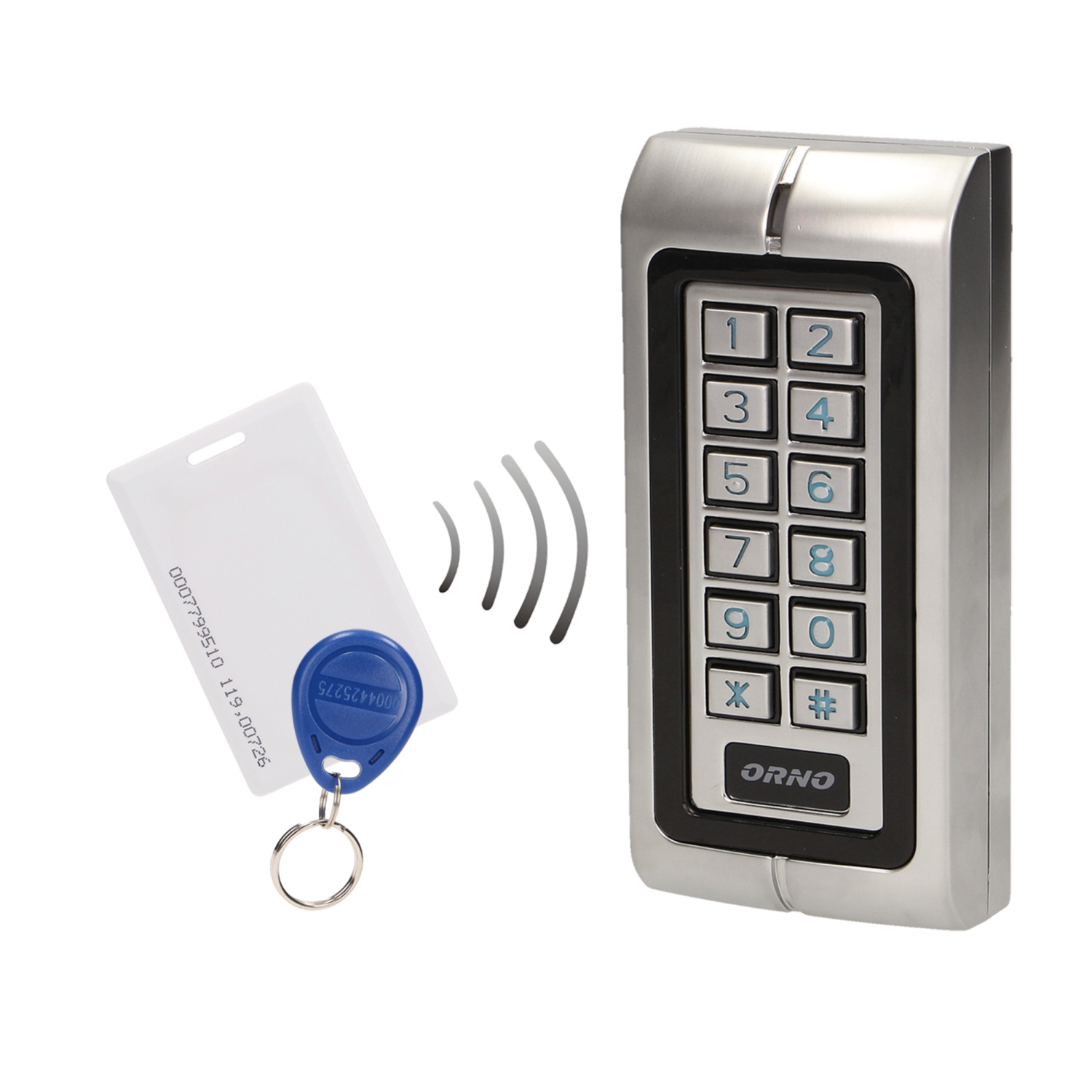

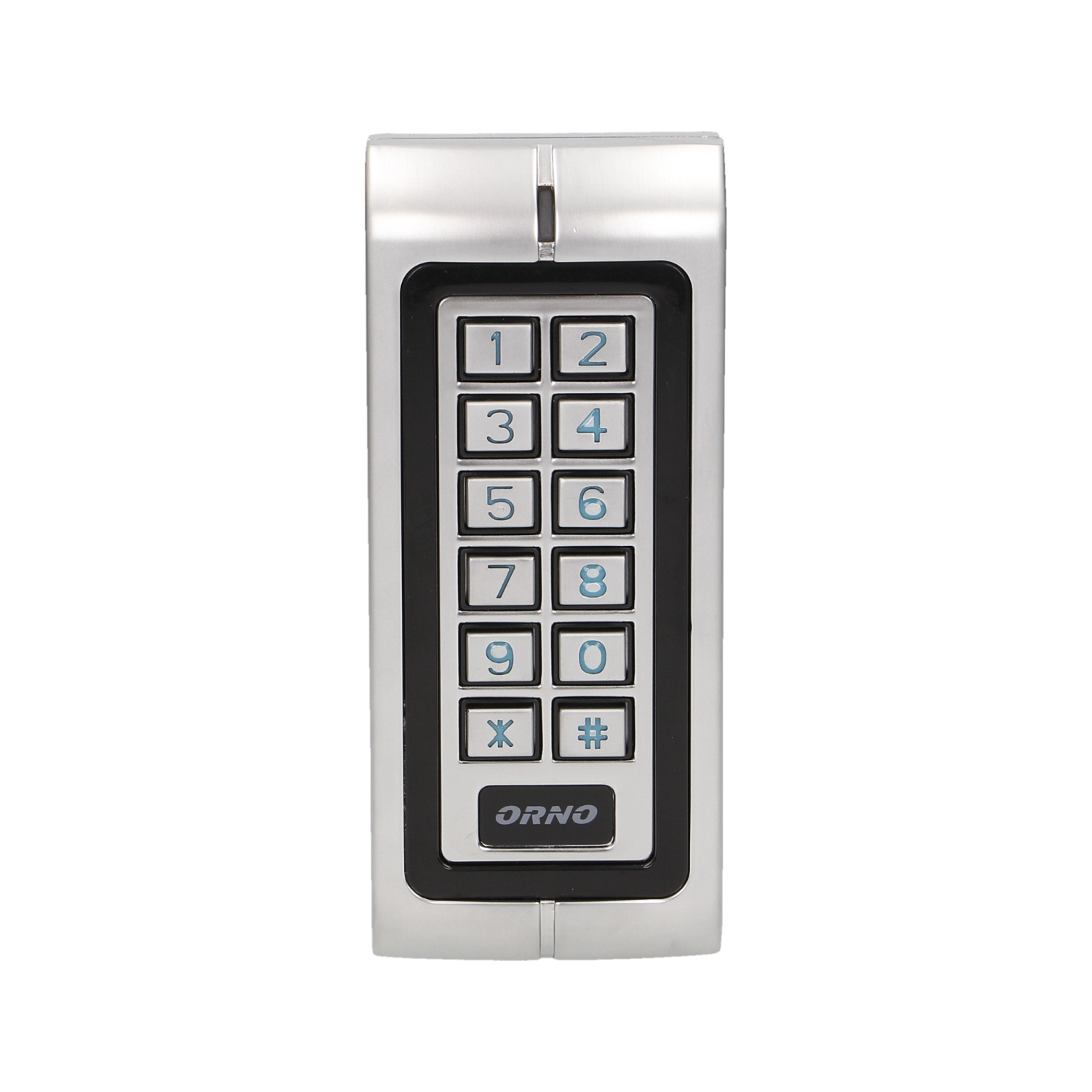

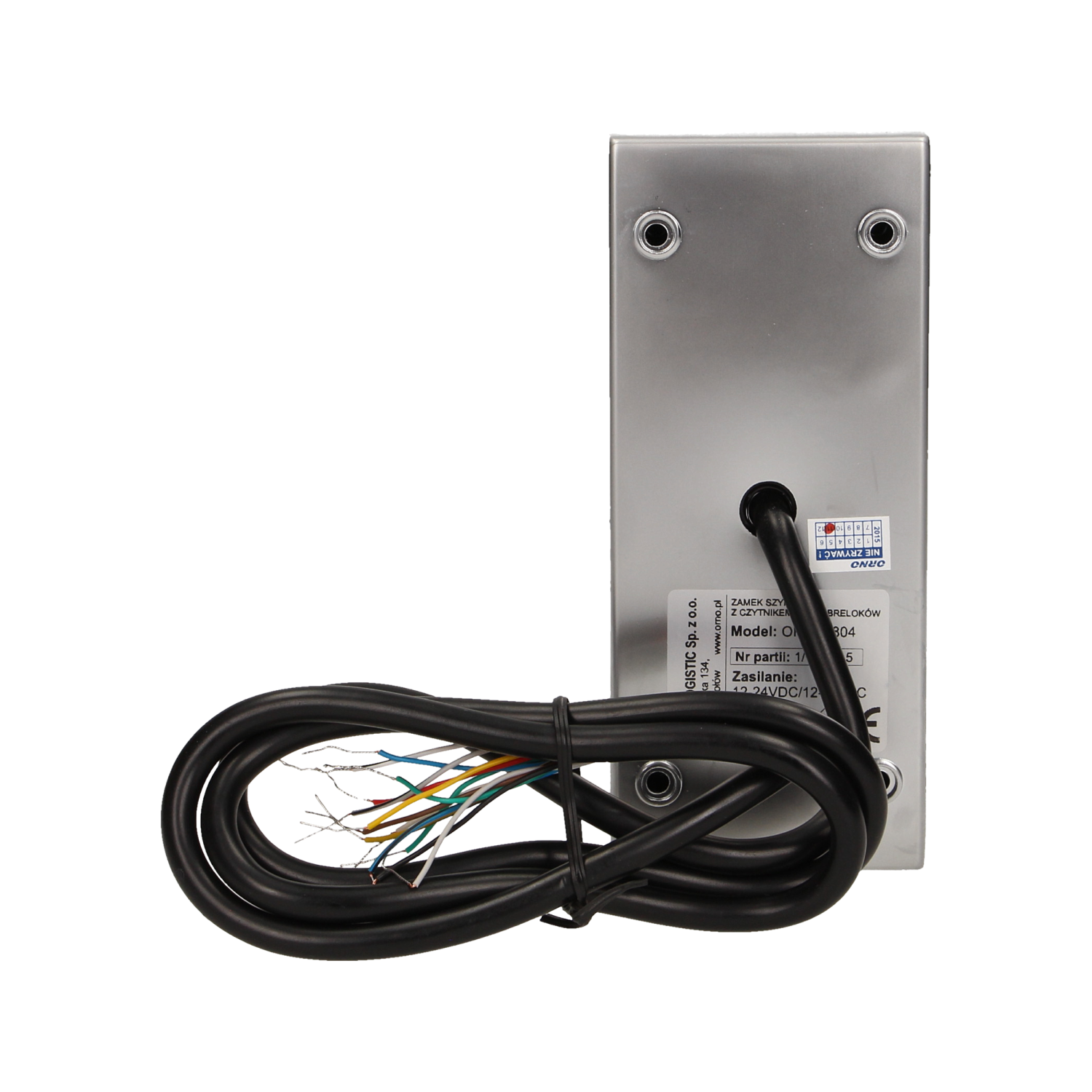

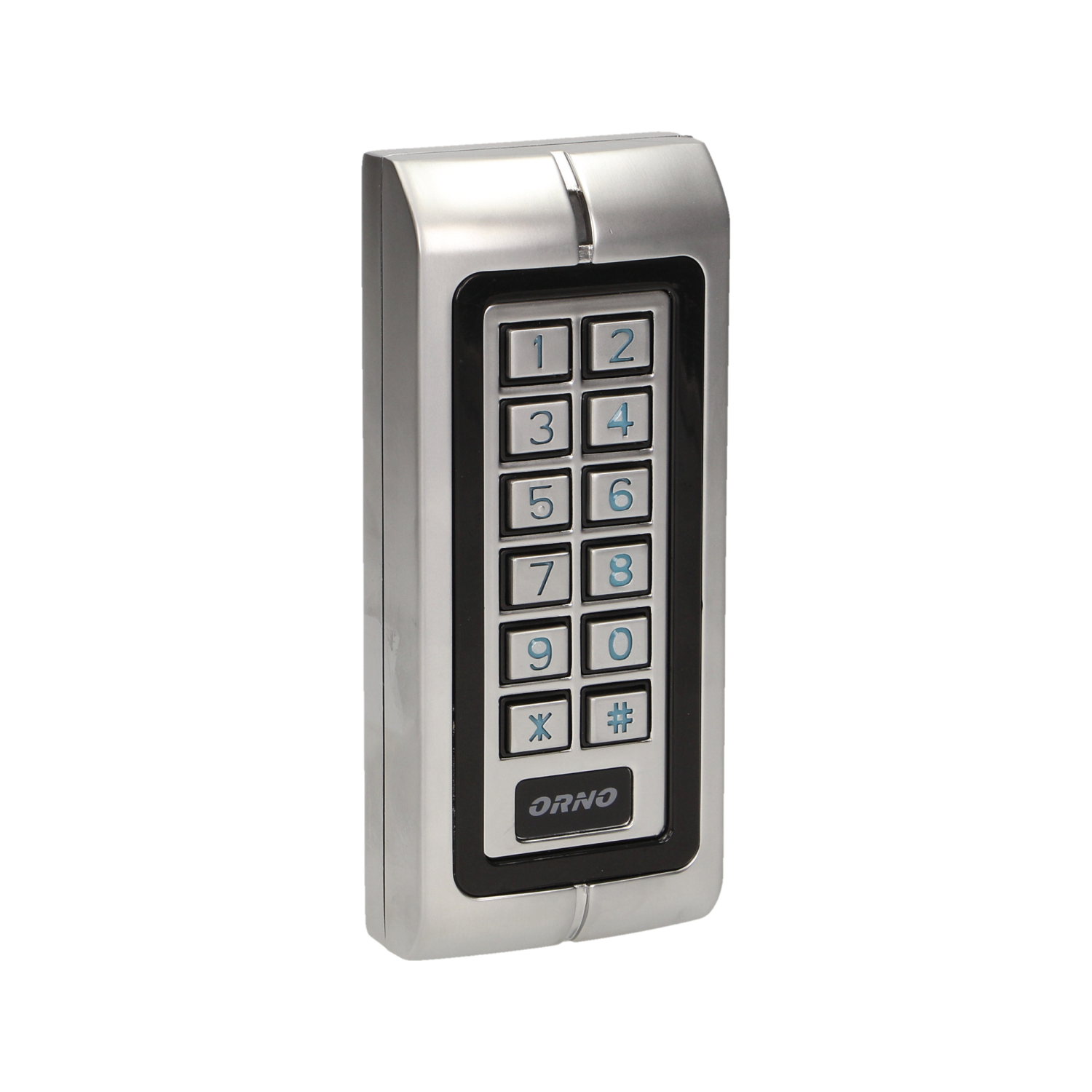

Code locks
Works with electromagnetic locks and access control systems Controls other electrical or alarm devices 2 Relay outputs Supports cards and PIN codes (100 million possible combinations) 1200 PINs User's identification number (ID) Remembers saved codes and parameters in case of the power failure Backlit keyboard covered with epoxy coating Vandal-resistant and waterproof casing, requires surface mounting Light and sound signalling.
| General information: | |
|---|---|
| Touch keyboard: | No |
| Doorbell button: | No |
| Operating mode: | proximity tag / proximity tag + card / proximity tag or code |
| Degree of protection (IP): | 68 |
| Type of transmission: | wired |
| Number of relay outputs: | 2 |
| Nominal voltage: | 12-24V DC/12-18V AC |
| Max. number of users: | 1200 |
| Installation: | surface mounting |
| Dimensions - depth: | 26 mm |
| Proximity reader: | Yes |
| Dimensions - width: | 58 mm |
| Keypad: | Yes |
| Dimensions - height: | 135 mm |
| Frequency: | 125 kHz |
| Temporary access can be granted: | No |
| Permanent access can be granted: | No |
| Backlight: | Yes |
| Fingerprint reader: | No |
