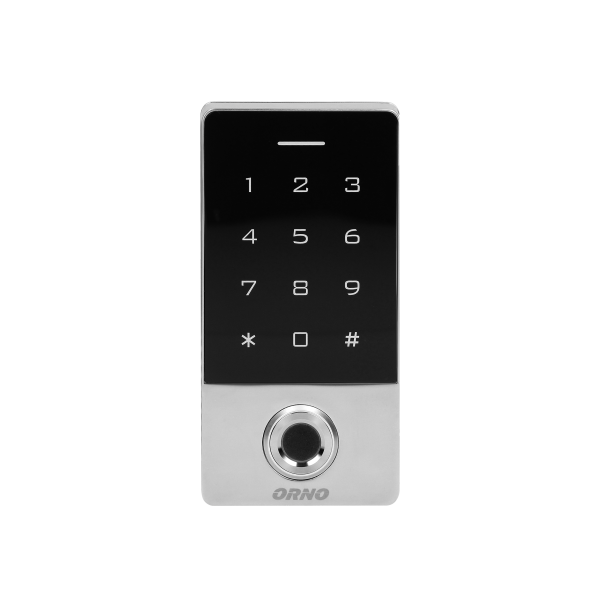

Code locks

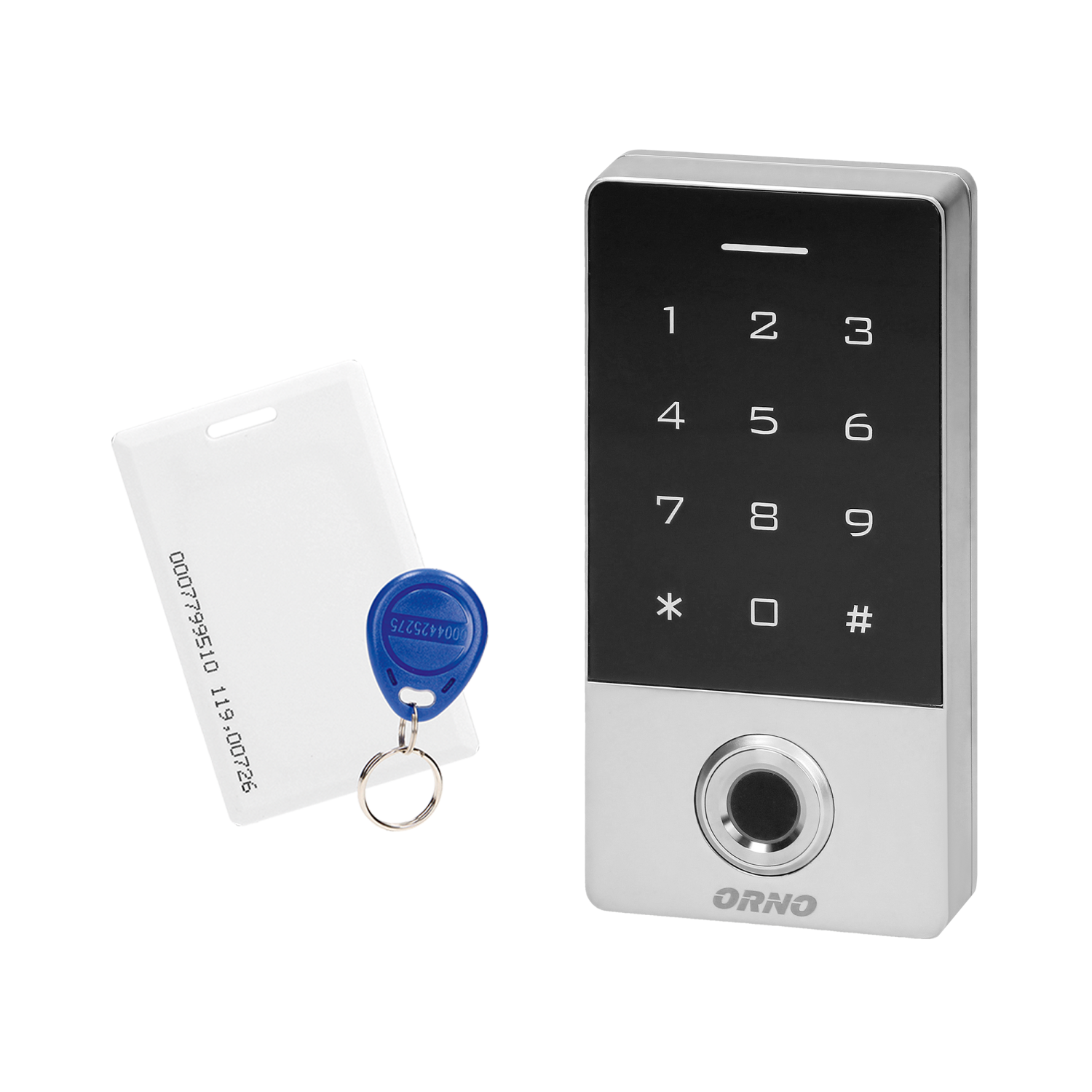

The standalone code lock combines the function of a touch access control keypad, proximity card and tag reader and fingerprint reader. This modern device works with electromagnetic locks, which use an access control system. It can also control other electrical or alarm devices. The lock has 1 relay output. Authorized persons may enter the room or building after reading the card, entering the access code or scanning the previously saved fingerprint. Non-volatile EPROM memory stores stored codes and parameters in the memory in the event of a power failure. Robust and extremely resistant housing for changing weather conditions. The lock is suitable for surface mounting. Bright LED diodes indicate the operating status of the keypad. Two tags (OR-ZS-890) and two proximity card (OR-ZS-892) included.
| General information: | |
|---|---|
| Touch keyboard: | No |
| Doorbell button: | No |
| Type: | Code lock |
| Operating mode: | fingerprint / card / pin code |
| Degree of protection (IP): | 68 |
| Type of transmission: | wired |
| Number of relay outputs: | 1 |
| Nominal voltage: | 12V DC |
| Load capacity: | 1A |
| Max. number of users: | 10000 |
| Installation: | surface mounting |
| Dimensions - depth: | 24 mm |
| Proximity reader: | Yes |
| Dimensions - width: | 70 mm |
| Keypad: | Yes |
| Dimensions - height: | 140 mm |
| Frequency: | 125 kHz |
| Temporary access can be granted: | No |
| Permanent access can be granted: | No |
| Backlight: | Yes |
| Fingerprint reader: | Yes |
