Code locks

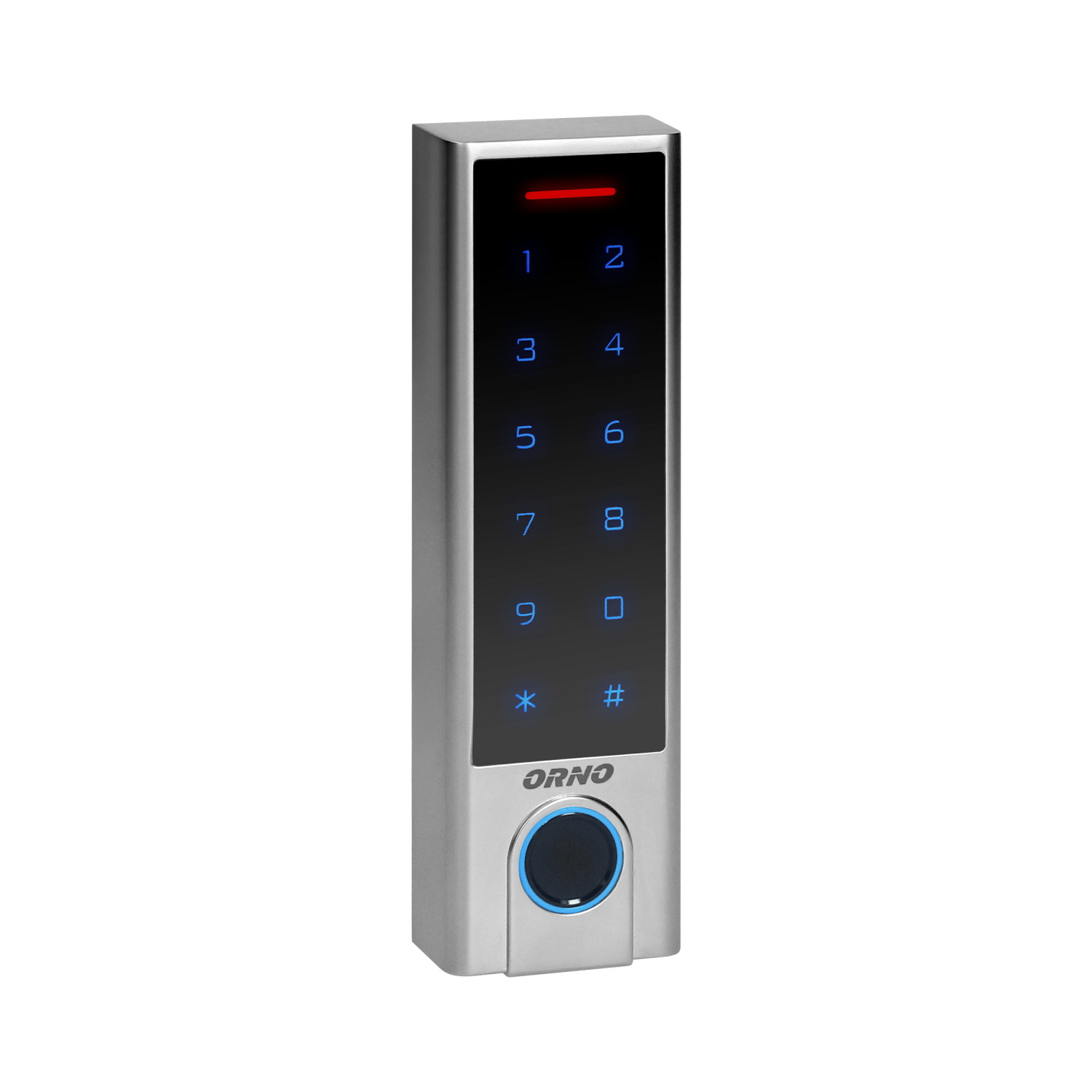

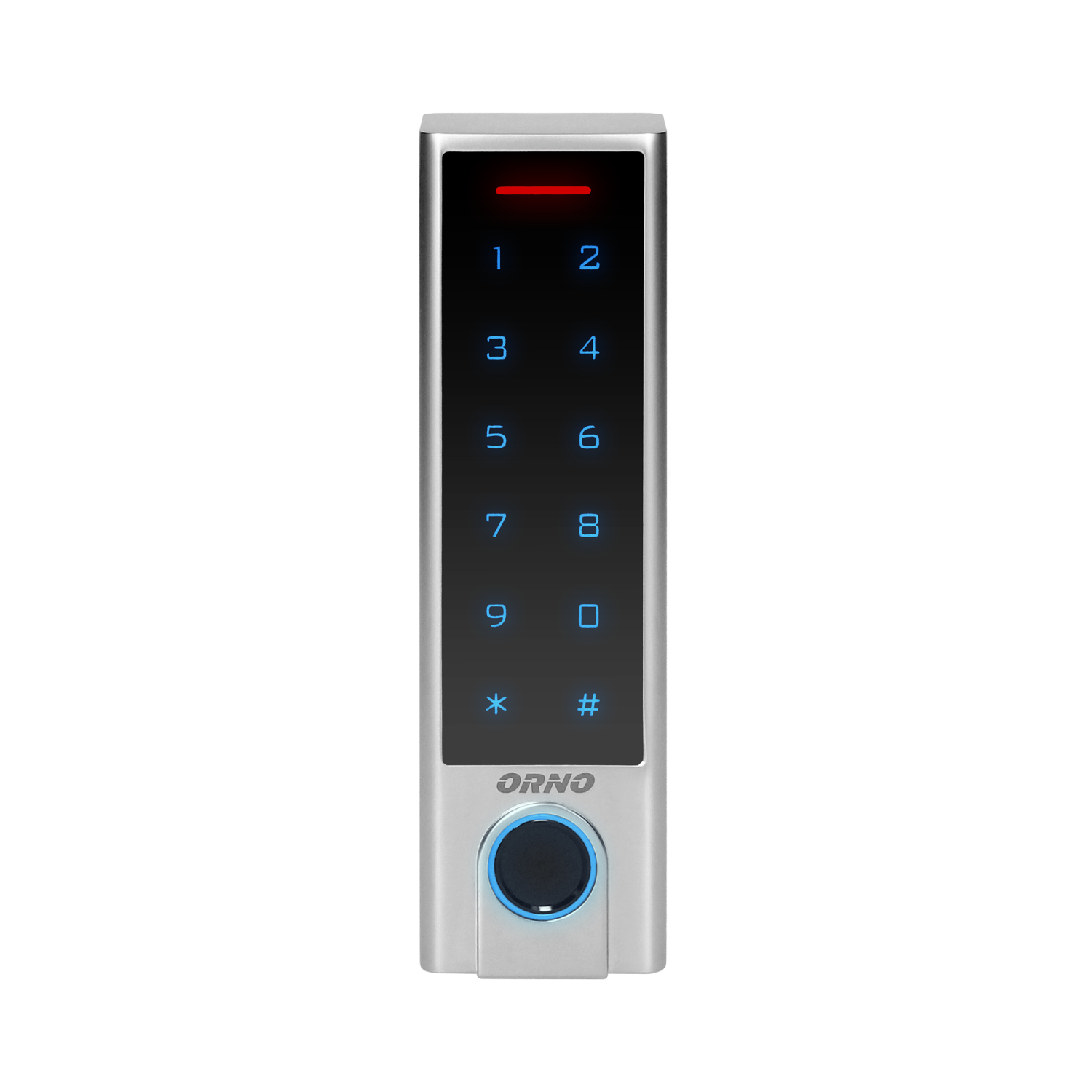

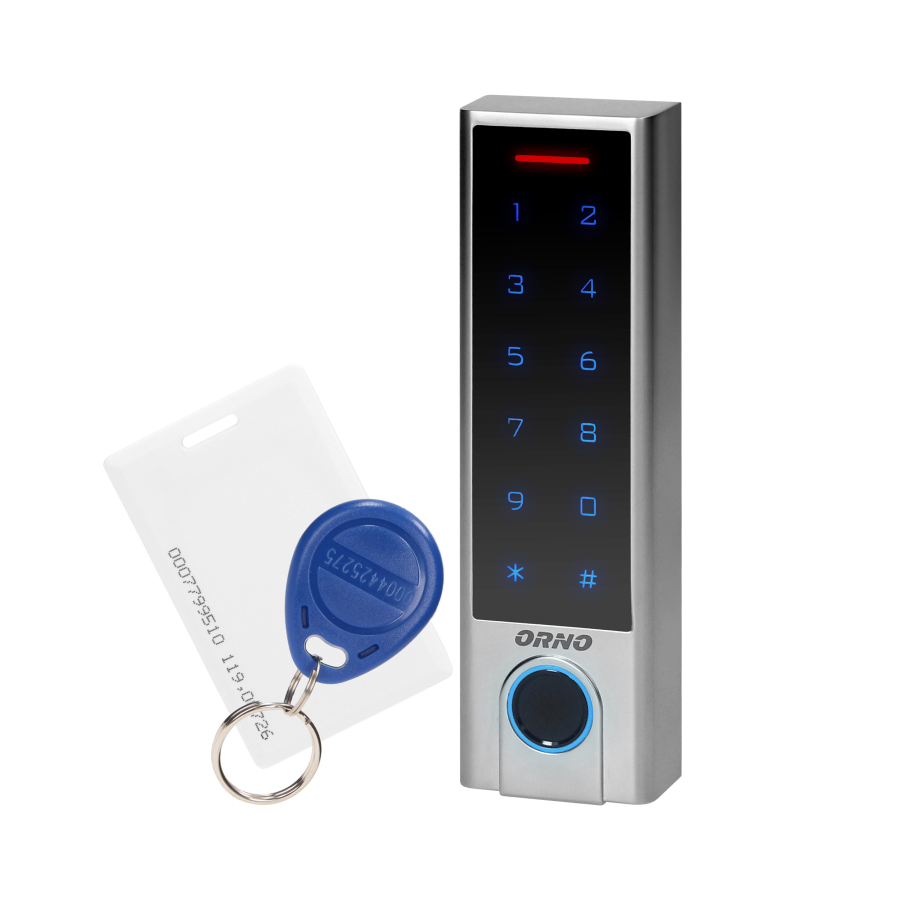

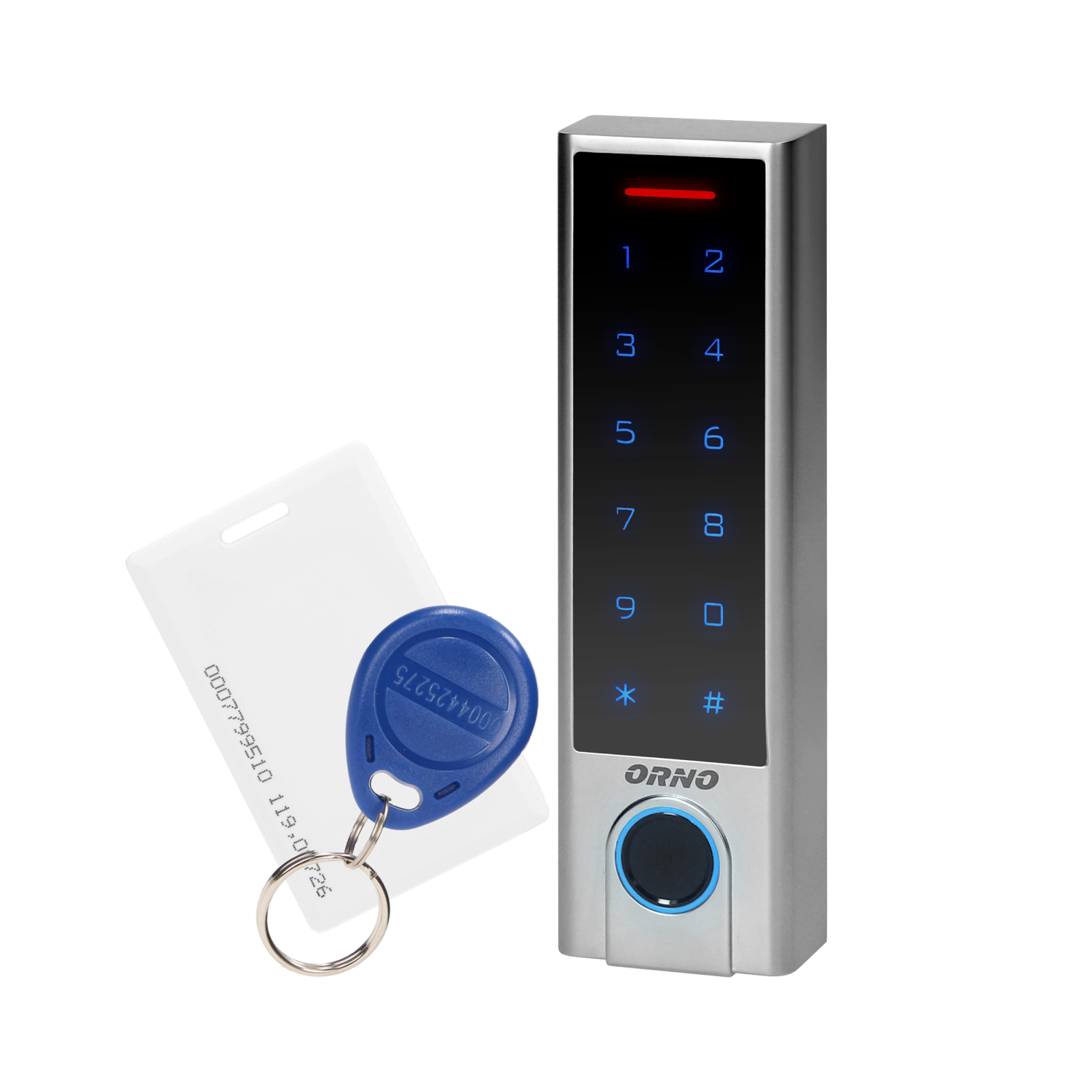

The autonomous code lock combines the function of a digital access control keypad, card and proximity tags reader as well as a fingerprint reader. This modern device works with electromagnetic locks with an access control system. It can also control other electrical or alarm devices. The lock has 1 relay output. Authorized people may enter the room or building after reading the card, entering the access code or scanning the previously saved fingerprint. The non-volatile EPROM memory remembers the stored codes and parameters in the memory in the event of a power failure. Durable and extremely resistant housing to changing weather conditions (IP68). The lock is suitable for surface mounting. It is extremely narrow and can be easily mounted on a fence post. The lit LEDs indicate the operating status of the encoder. Two tags (OR-ZS-890) and two proximity card (OR-ZS-892) included.
| General information: | |
|---|---|
| Working temperature: | -30℃~+60℃ |
| Touch keyboard: | Yes |
| Doorbell button: | No |
| Type: | Touch Code Lock |
| Operating mode: | finger/ card/ code |
| Degree of protection (IP): | 68 |
| Type of transmission: | wired |
| Number of relay outputs: | 1 |
| Nominal voltage: | 12V DC |
| Load capacity: | 3A |
| Max. number of users: | 1000 |
| Installation: | surface mounting |
| Dimensions - depth: | 22 mm |
| Proximity reader: | Yes |
| Keypad: | Yes |
| Dimensions - height: | 149 mm |
| Frequency: | 125 kHz |
| Backlight: | Yes |
| Fingerprint reader: | Yes |
