OR-ZS-826

Description

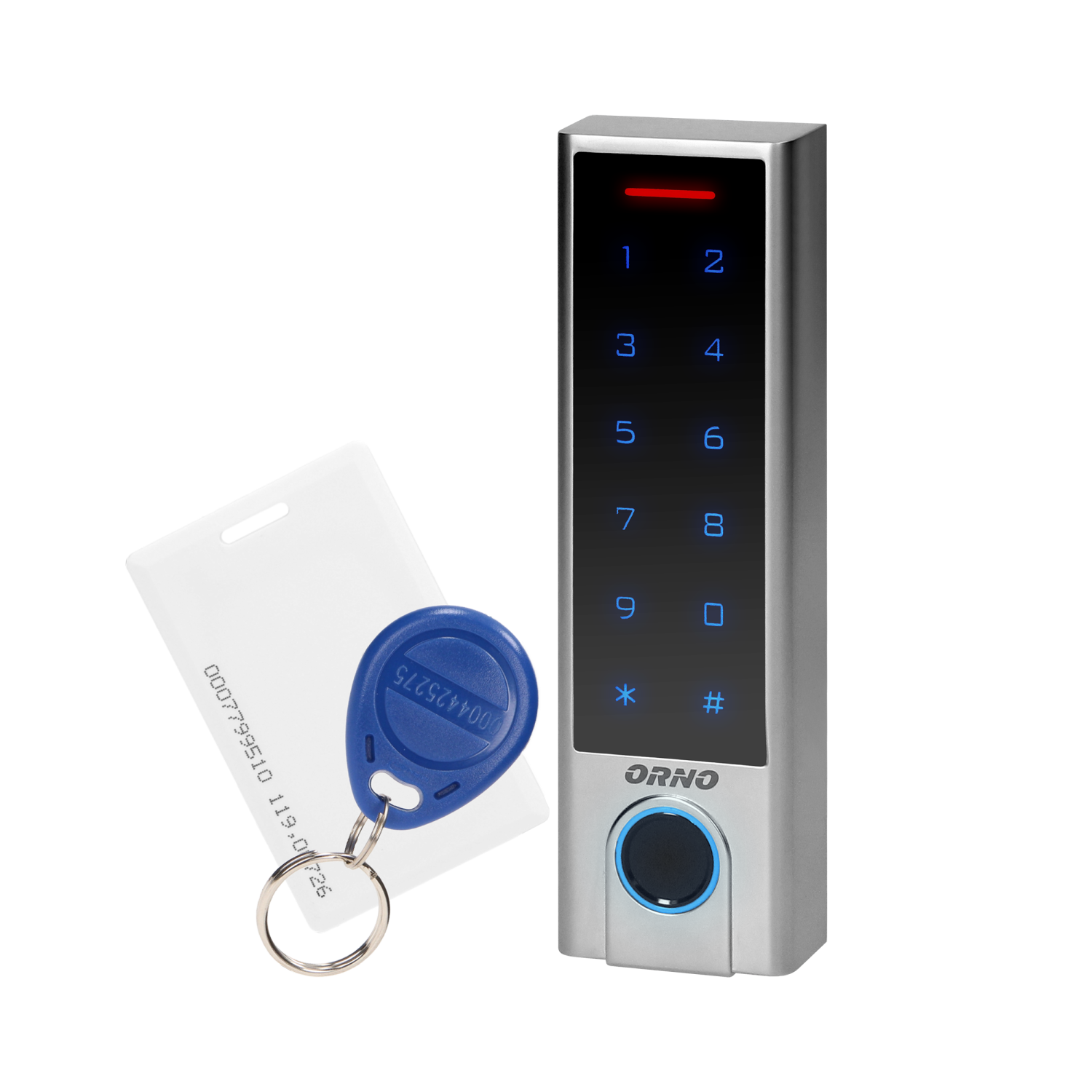

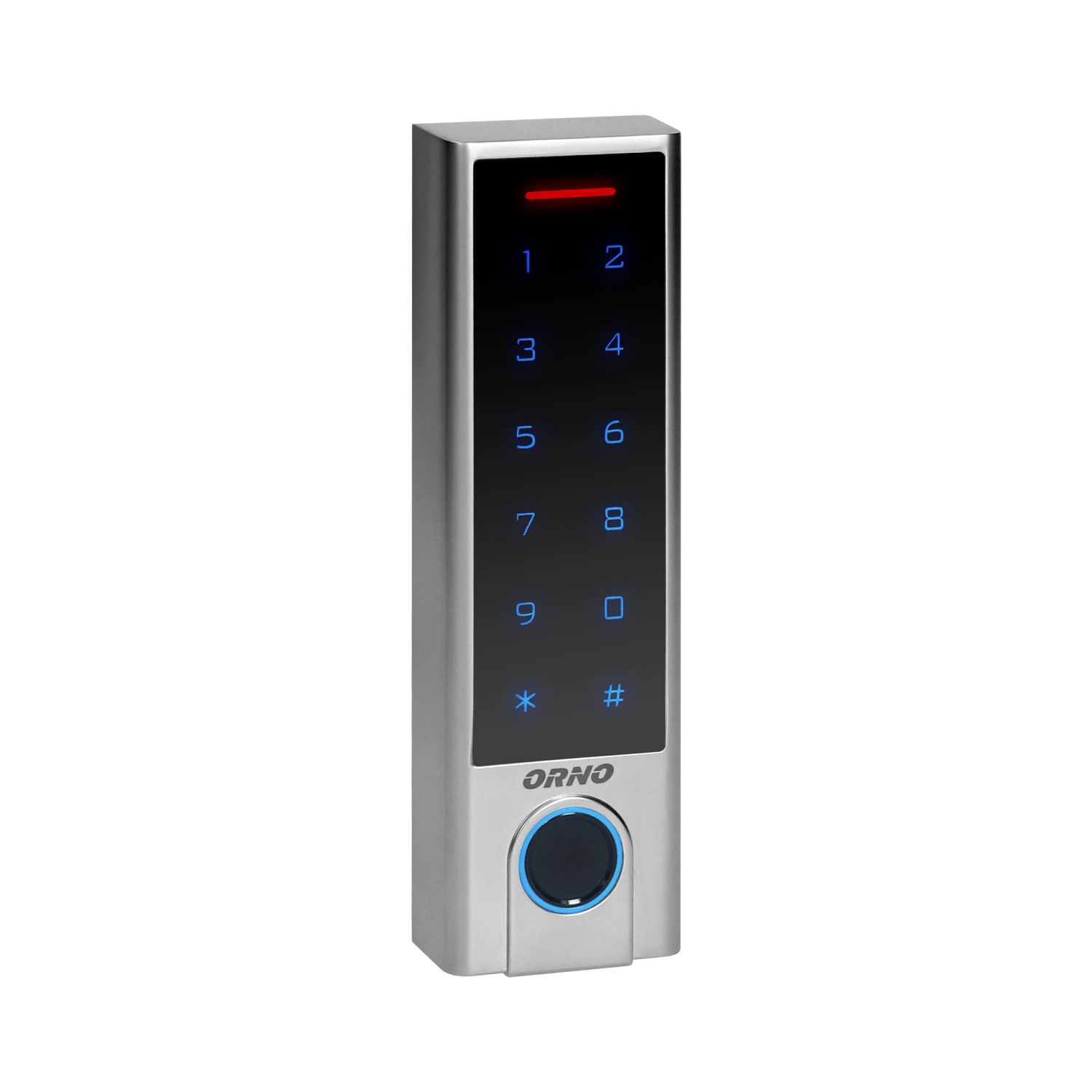

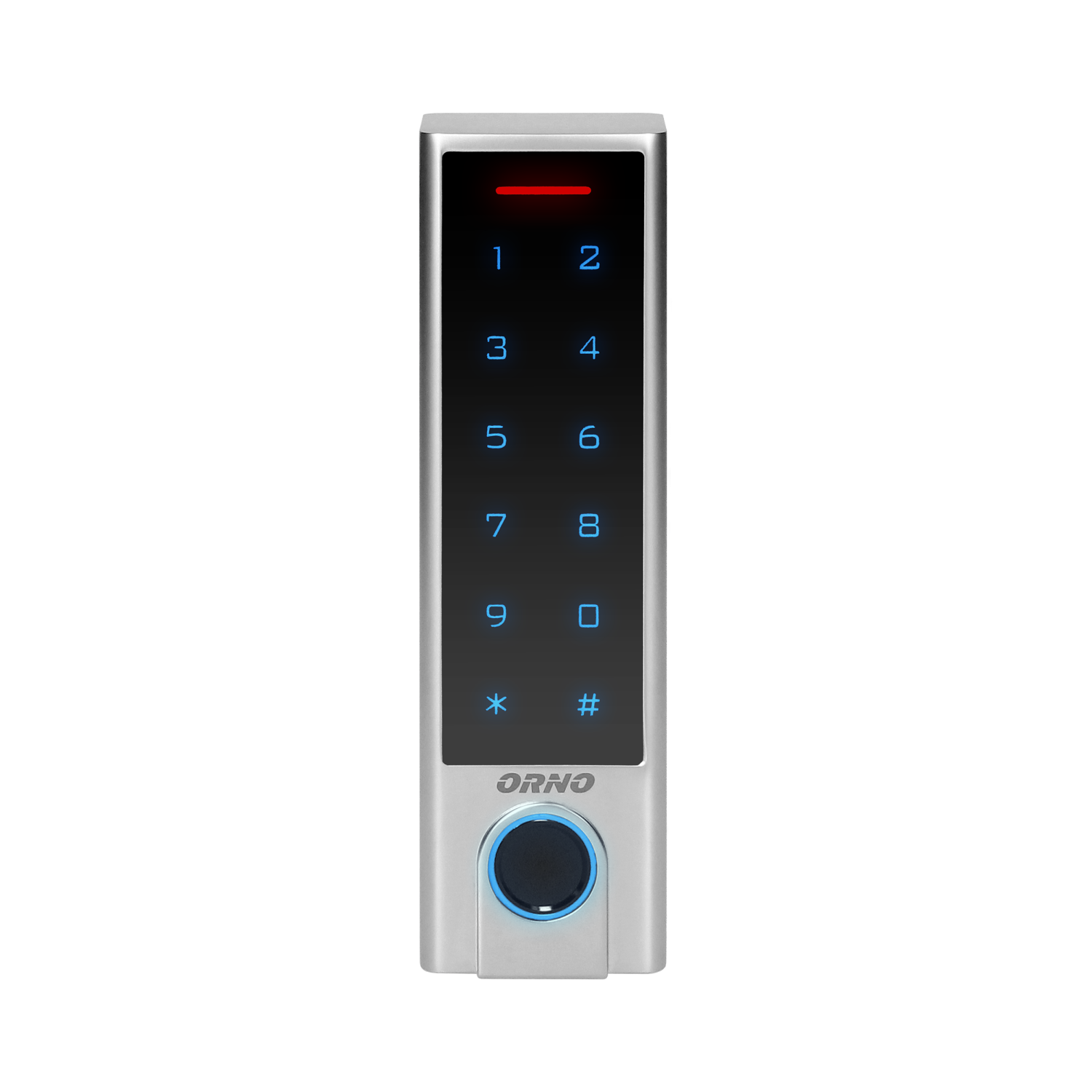

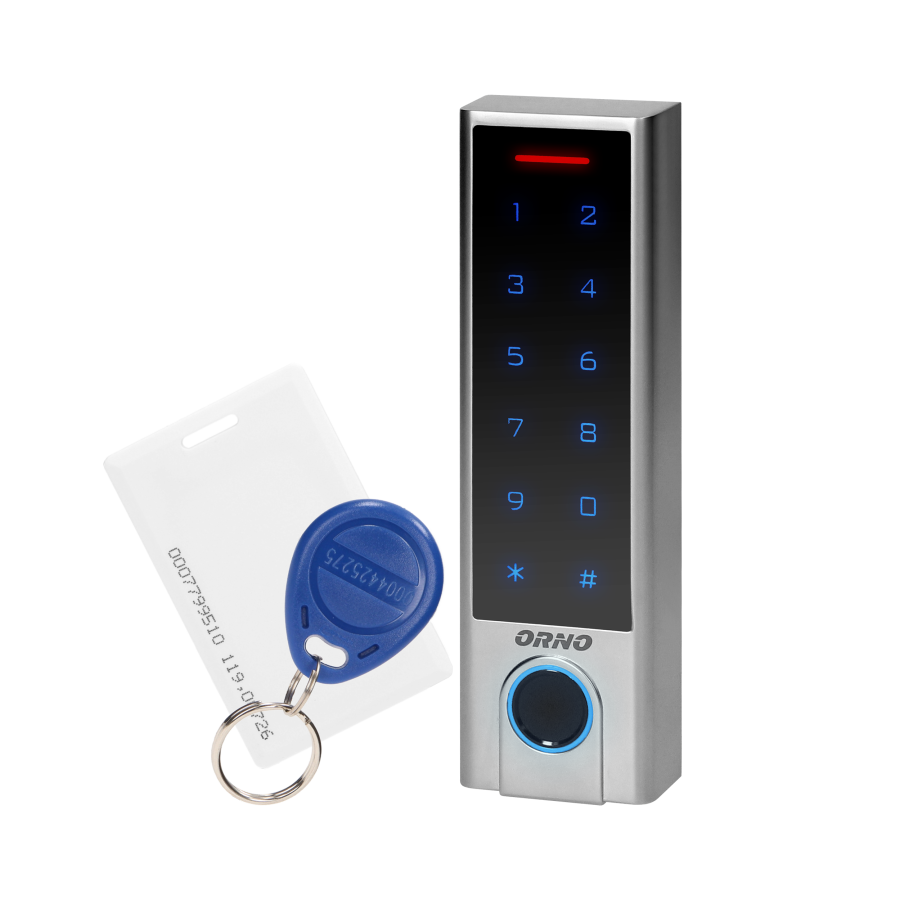

The autonomous code lock combines the function of a digital access control keypad, card and proximity tags reader as well as a fingerprint reader. In addition, the presented model is supported by the TUYA software and has a Bluetooth function. This solution allows you to remotely open a door or a gate via a smartphone, even when you are away from home. This modern device works with electromagnetic locks with an access control system. It can also control other electrical or alarm devices. The lock has 1 relay output. Authorized people may enter the room or building after reading the card, entering the access code or scanning the previously saved fingerprint. The non-volatile EPROM memory remembers the stored codes and parameters in the memory in the event of a power failure. Durable and extremely resistant housing to changing weather conditions (IP68). The lock is suitable for surface mounting. It is extremely narrow and can be easily mounted on a fence post. The lit LEDs indicate the operating status of the encoder. Two tags (OR-ZS-890) and two proximity card (OR-ZS-892) included.

General information:
Working temperature: -30℃~+60℃
Touch keyboard: Yes
Doorbell button: No
Type: Touch Code Lock
Operating mode: Bluetooth/ finger/ card/ code
Degree of protection (IP): 68
Type of transmission: wired
Number of relay outputs: 1
Nominal voltage: 12V DC
Load capacity: 3A
Max. number of users: 1000
Installation: surface mounting
Dimensions - depth: 22 mm
Proximity reader: Yes
Keypad: Yes
Dimensions - height: 149 mm
Frequency: 125 kHz
Backlight: Yes
Fingerprint reader: Yes

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:15:02Download
Product data sheetENpdf2024-07-17 10:22:47Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
User manualHRpdf2024-03-14 10:39:51Download
