Connectors for photovoltaic panels

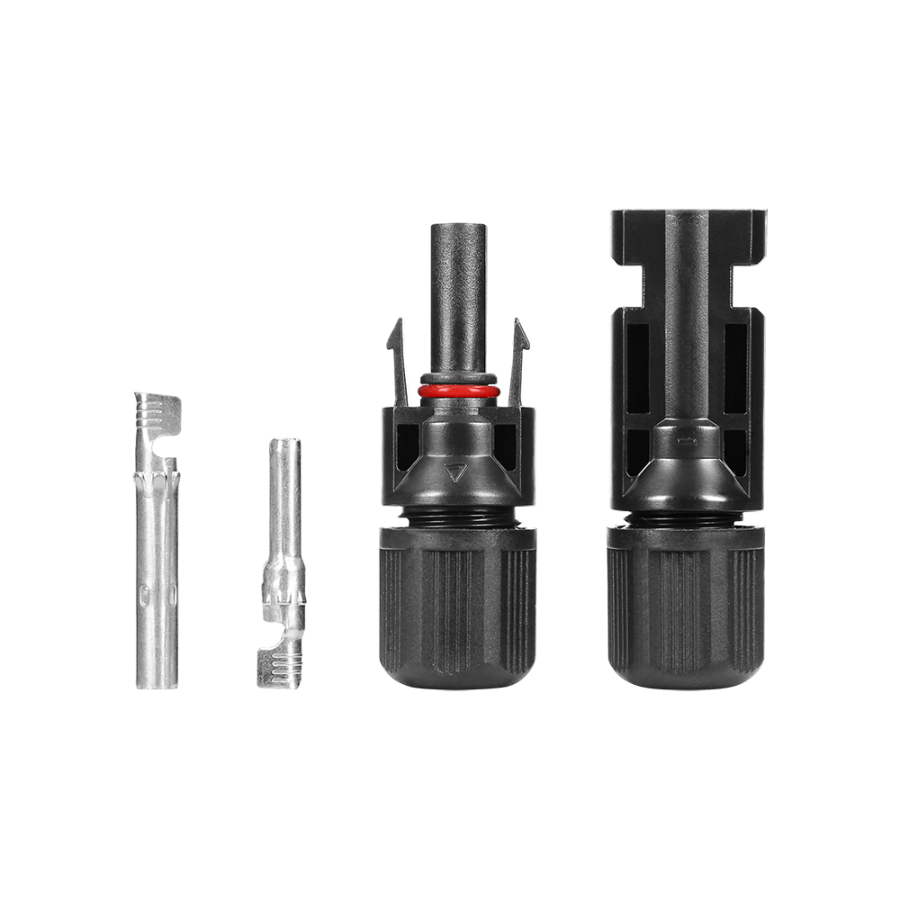

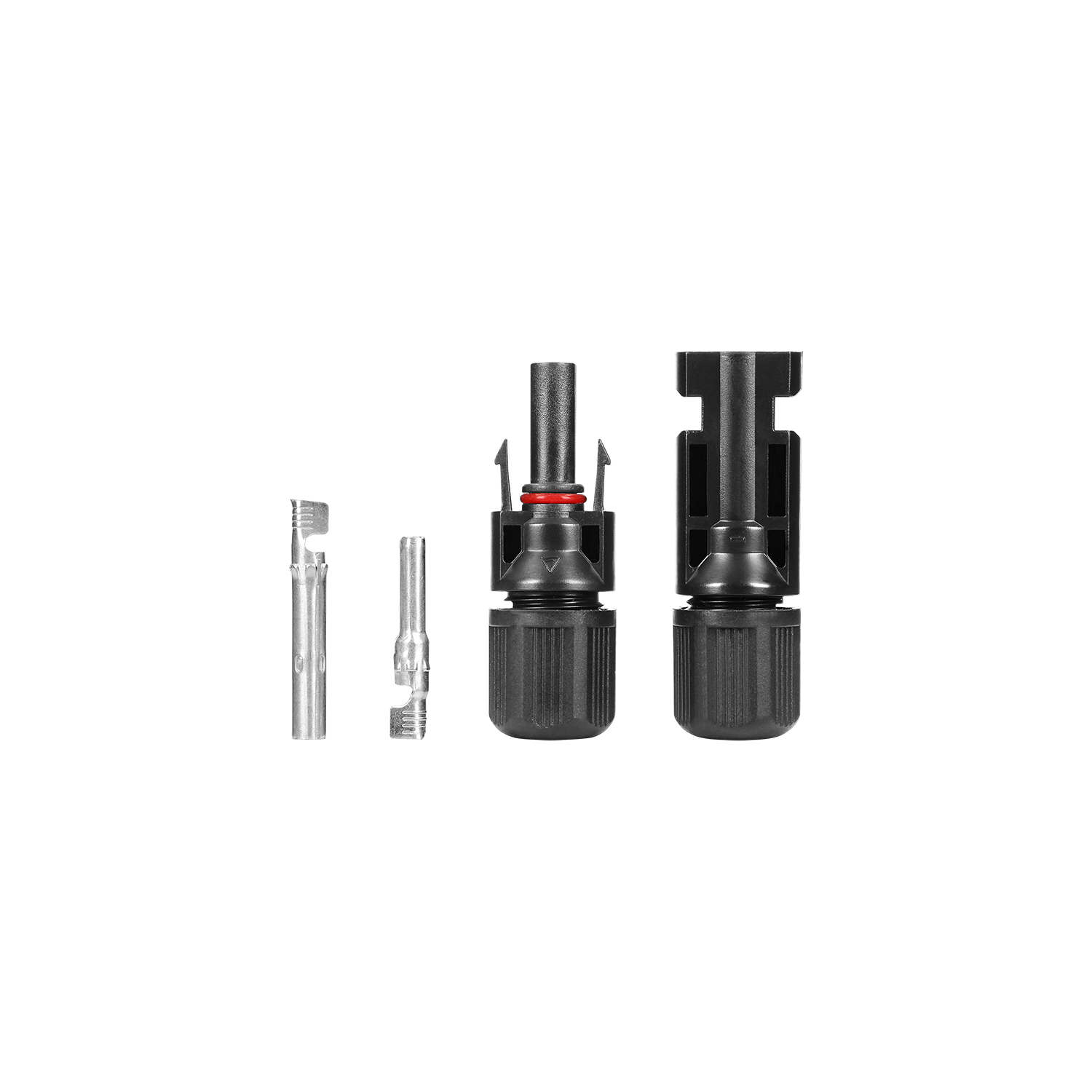

High-quality, full set of MC4 connectors (male and female) which are used to connect photovoltaic panels. The set is compatible with PV wires: 1.5-6mm². Long service life of the device is guaranteed by high-quality finishing. Protection level IP67 ensures water and dust resistance. These connectors also present resistance against UV rays and harsh weather conditions, 100 pcs.
| General information: | |
|---|---|
| Connector type: | MC4 |
| Wire cross-section: | 1,5-6 mm² |
| Number of wires: | 1 |
| Power supply: | 1000V DC |
| Current: | 30 A |
| Degree of protection (IP): | 67 |
| Contacts material: | Copper (100%) Tinned |
| UV radiation resistance: | Yes |
| Case flammability standard UL94: | V0 |
| Type of connection: | clamp |
| Underground installation: | No |
| Material housing: | PC/PPO |
