Connectors for photovoltaic panels

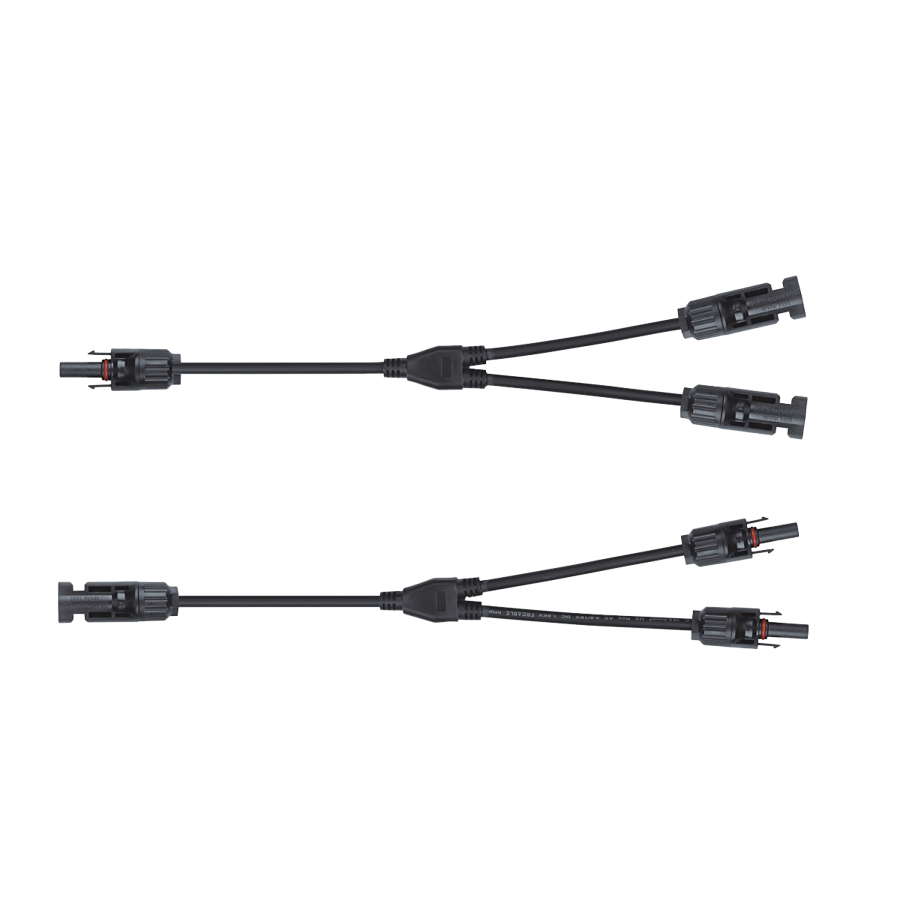

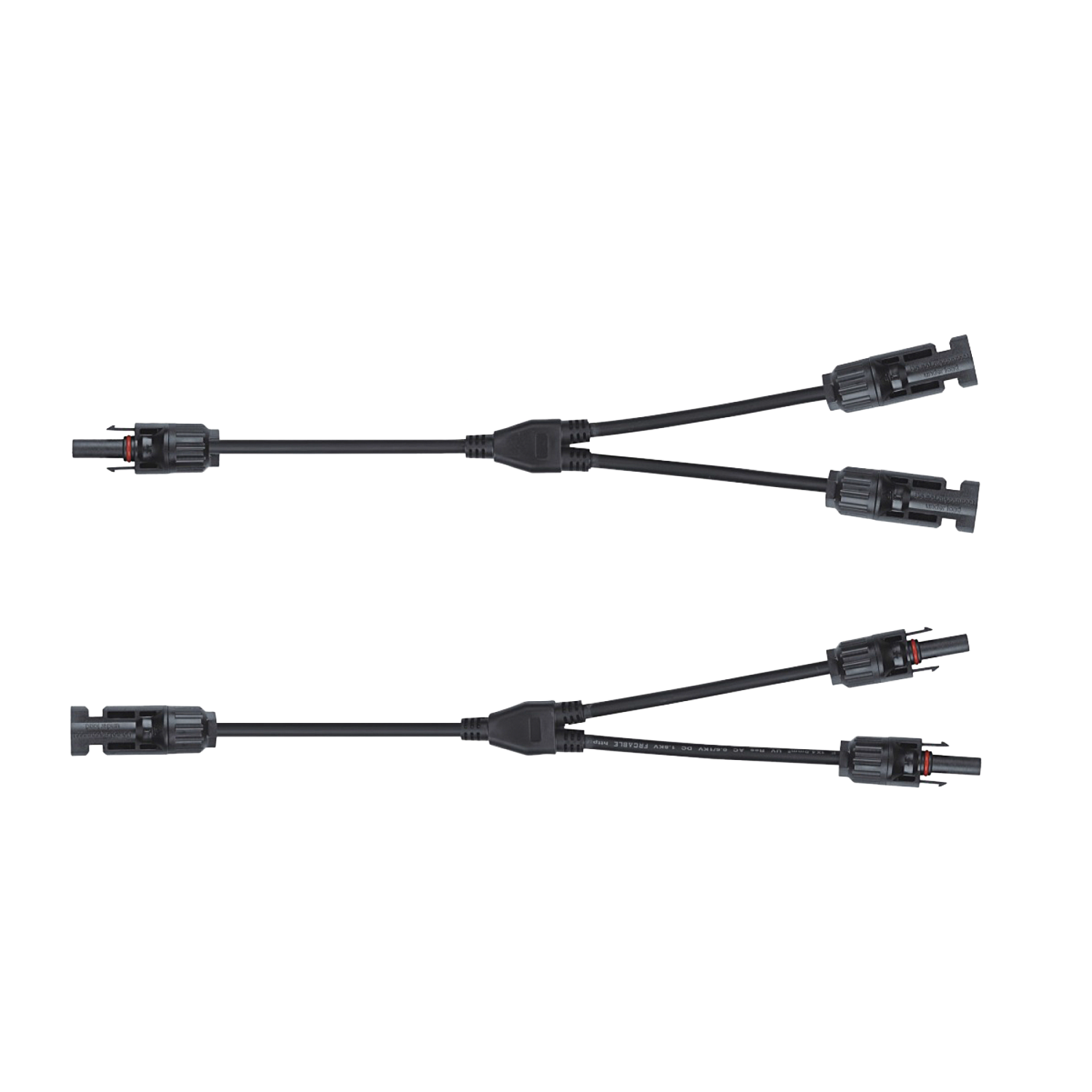

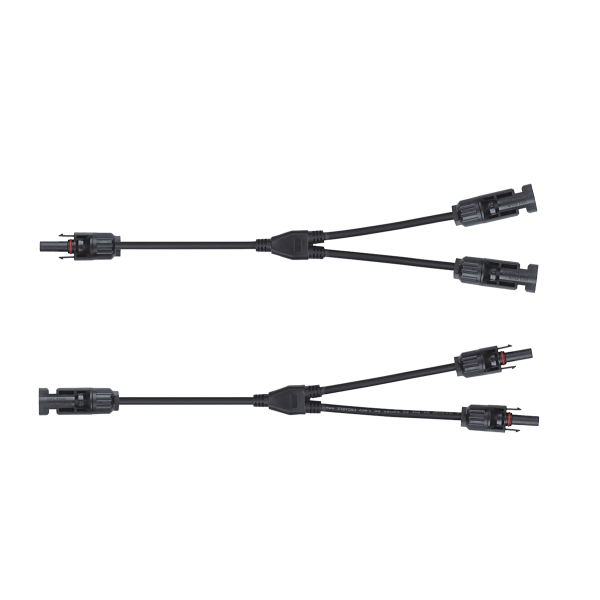

2xMC4 splitter (Y type) for photovoltaic panels helps to connect the panels in a professional, safe and fast way. This product is compatible with PV wires: 1.5-6mm2. Long service life of the device is guaranteed by high-quality finishing. Protection level IP67 ensures water and dust resistance. These splitters also present resistance against UV rays and harsh weather conditions.
| General information: | |
|---|---|
| Wire cross-section: | 1,5-6 mm² |
| Connector type: | 2xMC4 ,Typ Y |
| Number of wires: | 2 |
| Current: | 30 A |
| Degree of protection (IP): | 67 |
| Contacts material: | Copper (100%) Tinned |
| Dimensions - depth: | 300 mm |
| UV radiation resistance: | Yes |
| Dimensions - width: | 18 mm |
| Case flammability standard UL94: | V0 |
| Dimensions - height: | 18 mm |
| Type of connection: | clamp |
| Material housing: | PC/PA |
