4xMC4 splitter, Y type for photovoltaic panels
4xMC4 splitter, Y type for photovoltaic panels

4xMC4 splitter, Y type for photovoltaic panels

OR-PV-13608

Description

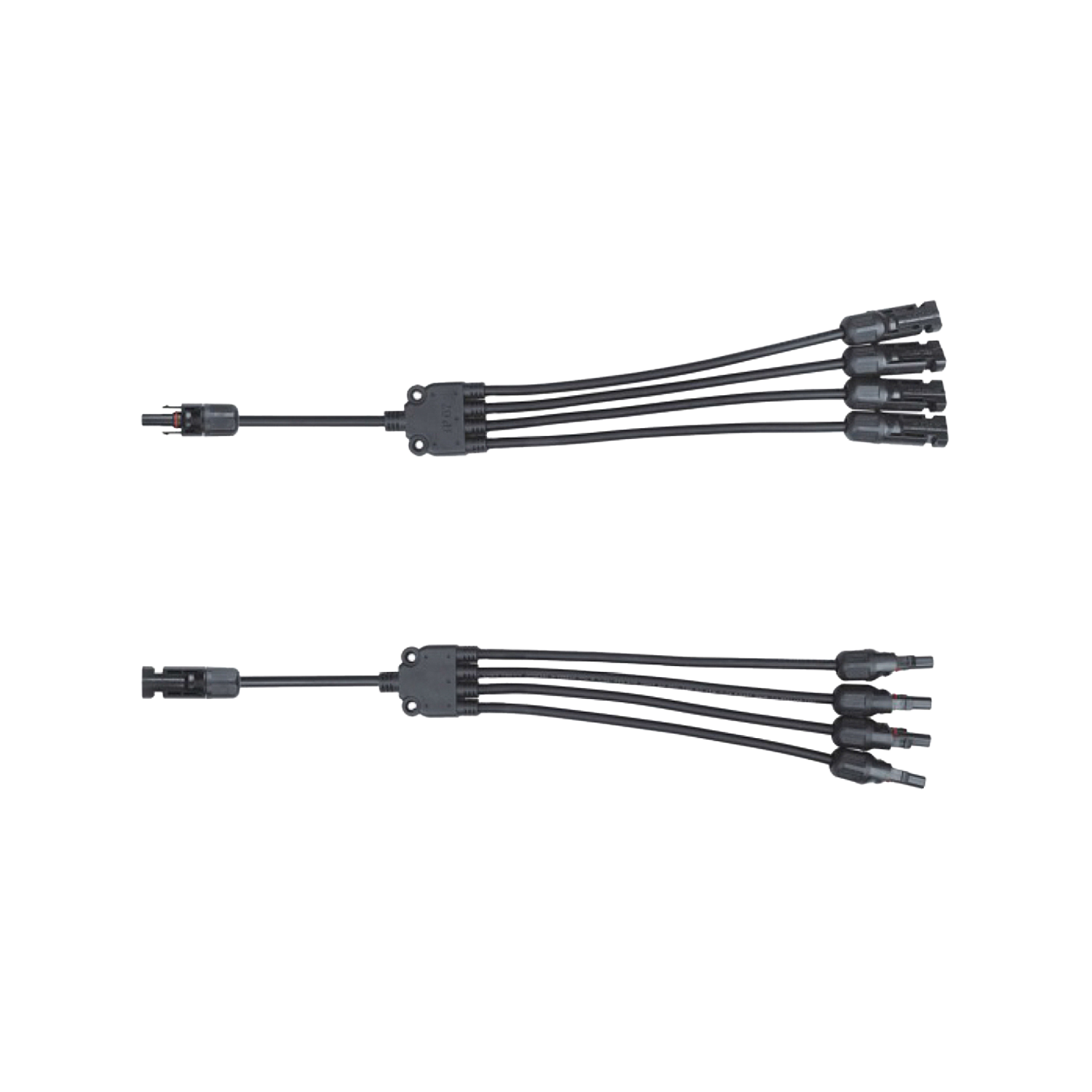

4xMC4 splitter (Y type) for photovoltaic panels helps to connect the panels in a professional, safe and fast way. This product is compatible with PV wires: 1.5-6mm2. Long service life of the device is guaranteed by high-quality finishing. Protection level IP67 ensures water and dust resistance. These splitters also present resistance against UV rays and harsh weather conditions.

General information:
Wire cross-section: 1,5-6 mm²
Weight: 295.5 g
Power supply: 1000VDC
Connector type: 4xMC4 ,Typ Y
Number of wires: 4
Current: 30 A
Degree of protection (IP): 67
Contacts material: Copper (100%) Tinned
UV radiation resistance: Yes
Case flammability standard UL94: V0
Material housing: PC/PA

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:21Download
Product data sheetENpdf2024-07-17 10:22:07Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
