Connectors for photovoltaic panels

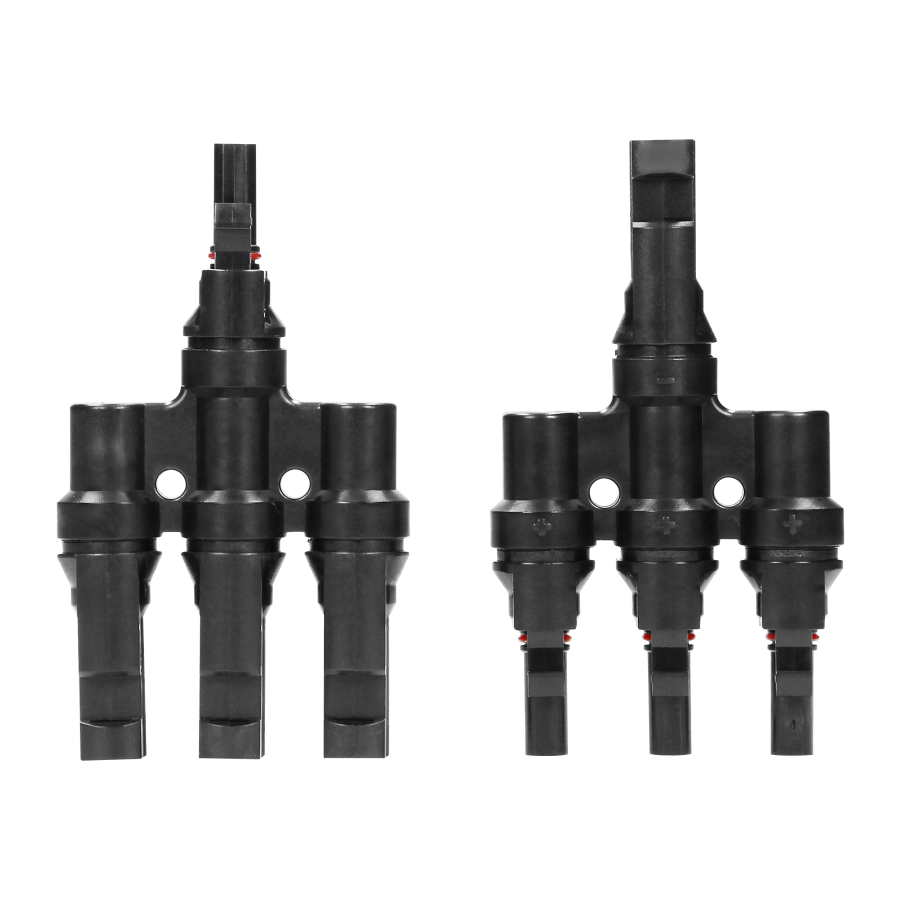

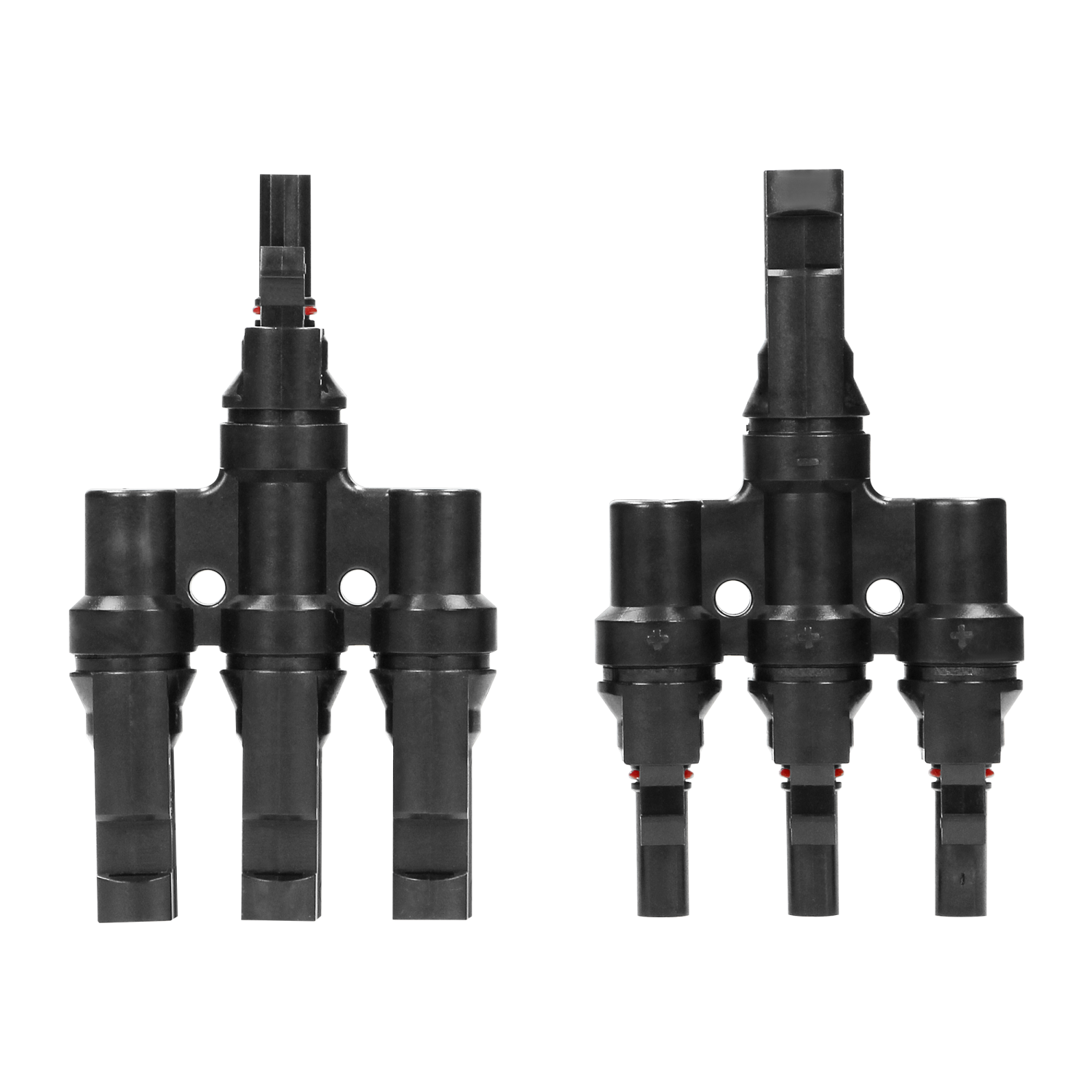

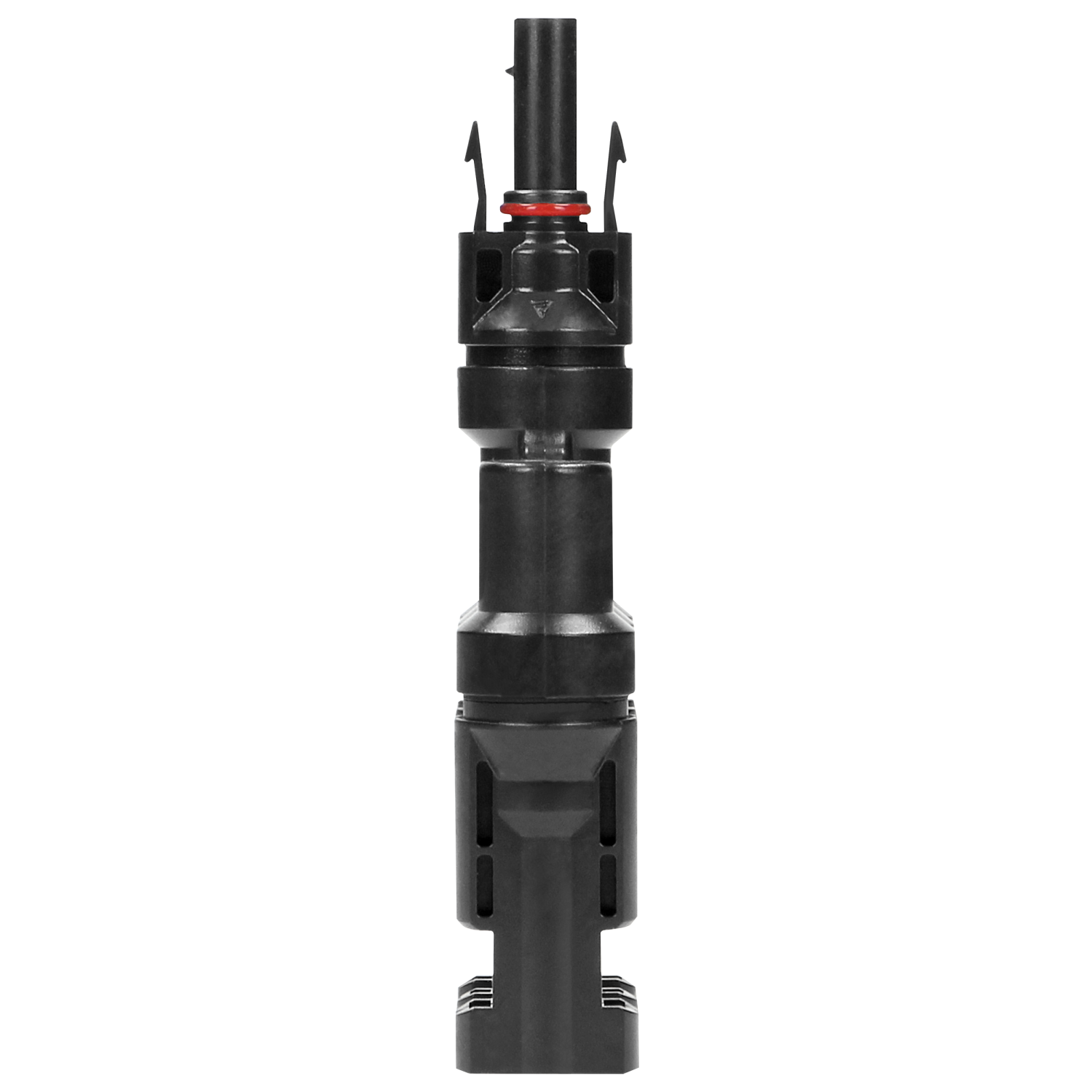

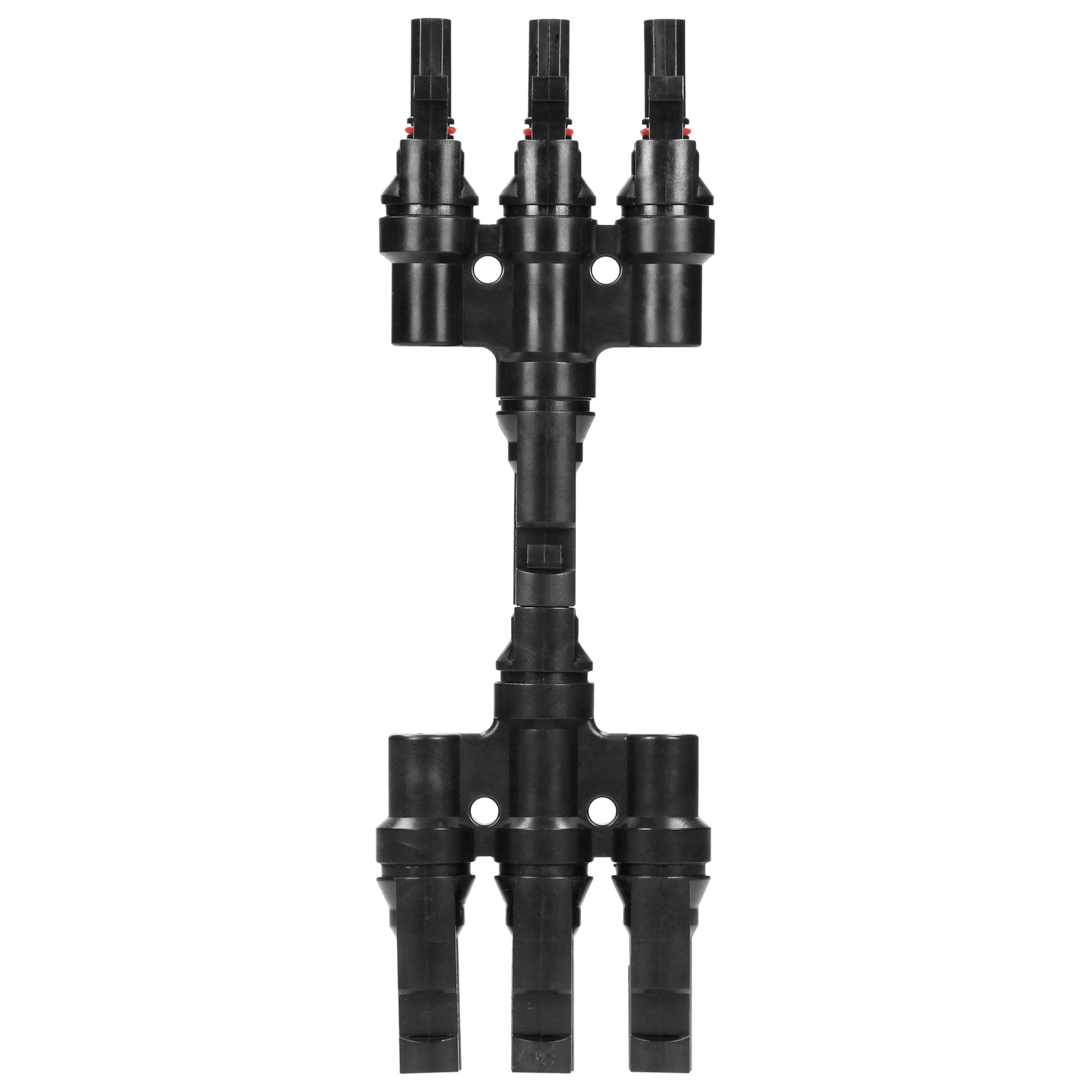

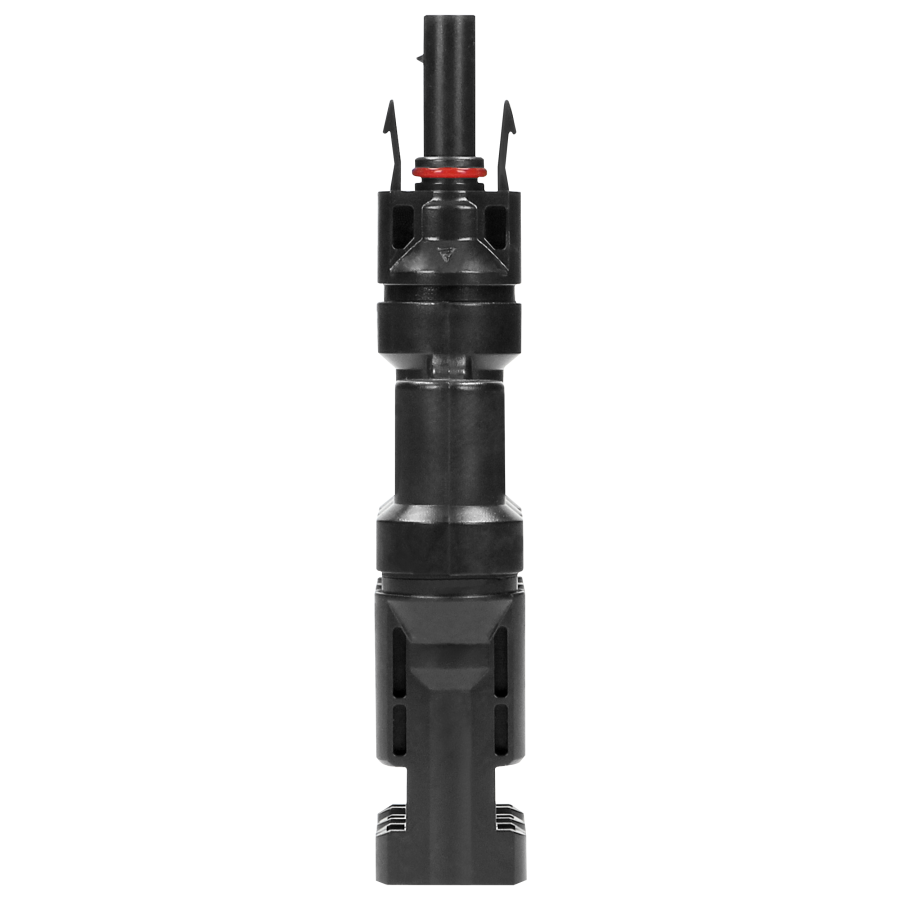

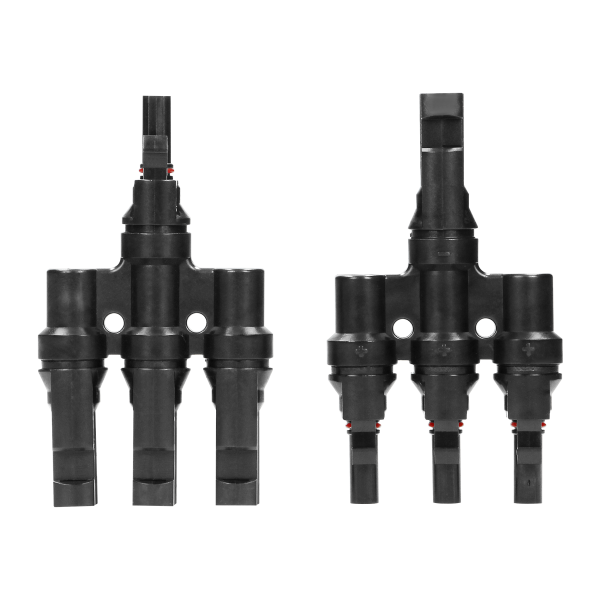

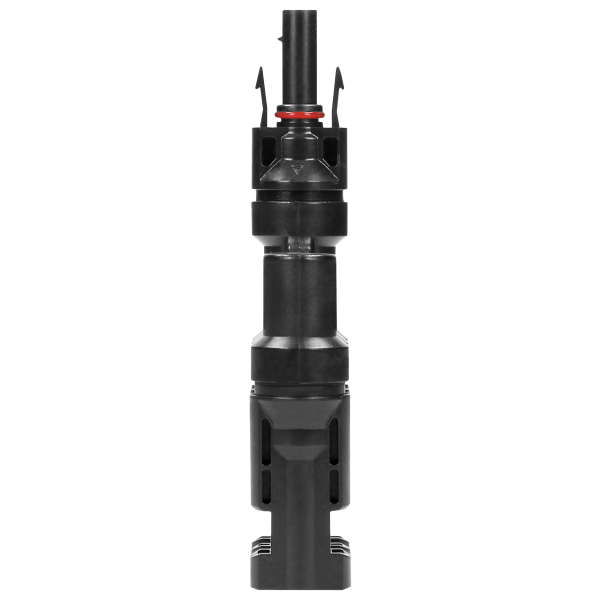

3xMC4 splitter (T type) for photovoltaic panels helps to connect the panels in a professional, safe and fast way. This product is compatible with PV wires: 1.5-6mm2. Long service life of the device is guaranteed by high-quality finishing. Protection level IP67 ensures water and dust resistance. These splitters also present resistance against UV rays and harsh weather conditions.
| General information: | |
|---|---|
| Wire cross-section: | 1,5-6 mm² |
| Power supply: | 1000VDC |
| Connector type: | 3xMC4 ,Typ T |
| Number of wires: | 3 |
| Current: | 30 A |
| Degree of protection (IP): | 67 |
| Contacts material: | Copper (100%) Tinned |
| Dimensions - depth: | 118 mm |
| UV radiation resistance: | Yes |
| Case flammability standard UL94: | V0 |
| Dimensions - height: | 63 mm |
| Type of connection: | clamp |
| Material housing: | PPO |
