Insulated cable end terminals, max. section 2.5mm², copper sleeve length: 10mm, blister pack 25 pcs.
Insulated cable end terminals, max. section 2.5mm², copper sleeve length: 10mm, blister pack 25 pcs.
Insulated cable end terminals, max. section 2.5mm², copper sleeve length: 10mm, blister pack 25 pcs.
Insulated cable end terminals, max. section 2.5mm², copper sleeve length: 10mm, blister pack 25 pcs.

Insulated cable end terminals, max. section 2.5mm², copper sleeve length: 10mm, blister pack 25 pcs.

OR-KK-8100/2,5/10/B2

Description

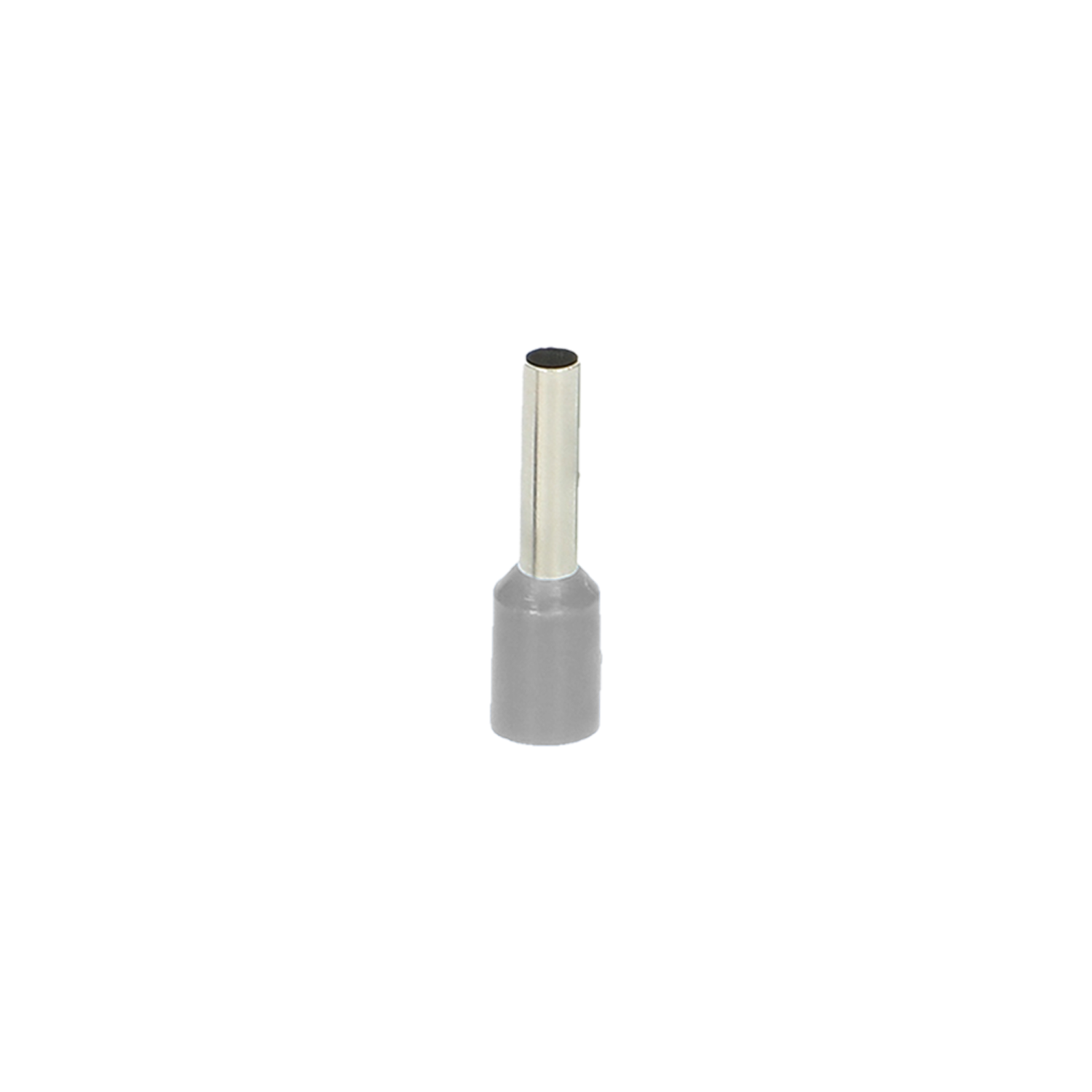

Insulated end terminals that can be clenched on cable ends. They help to join cables in a neat and fixed manner. Thanks to the use of an end terminal, stranded wires can be entered to push-in connectors and they help to increase the quality of screw connection. Our offer includes insulated end terminals of many different max. section parameters and different sleeve lengths. Blister pack: 25 pcs.

General information:
Terminal length: 10
Packaging: Blister
Insulation material: PP
Type: Insulated sleeve
Contacts material: Copper (100%) Tinned
Number of items in a collective packaging: 25 pcs
Colour: grey
Compliance with standards: EN 60352-2:2006

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:13:22Download
Product data sheetENpdf2024-07-17 10:21:14Download
