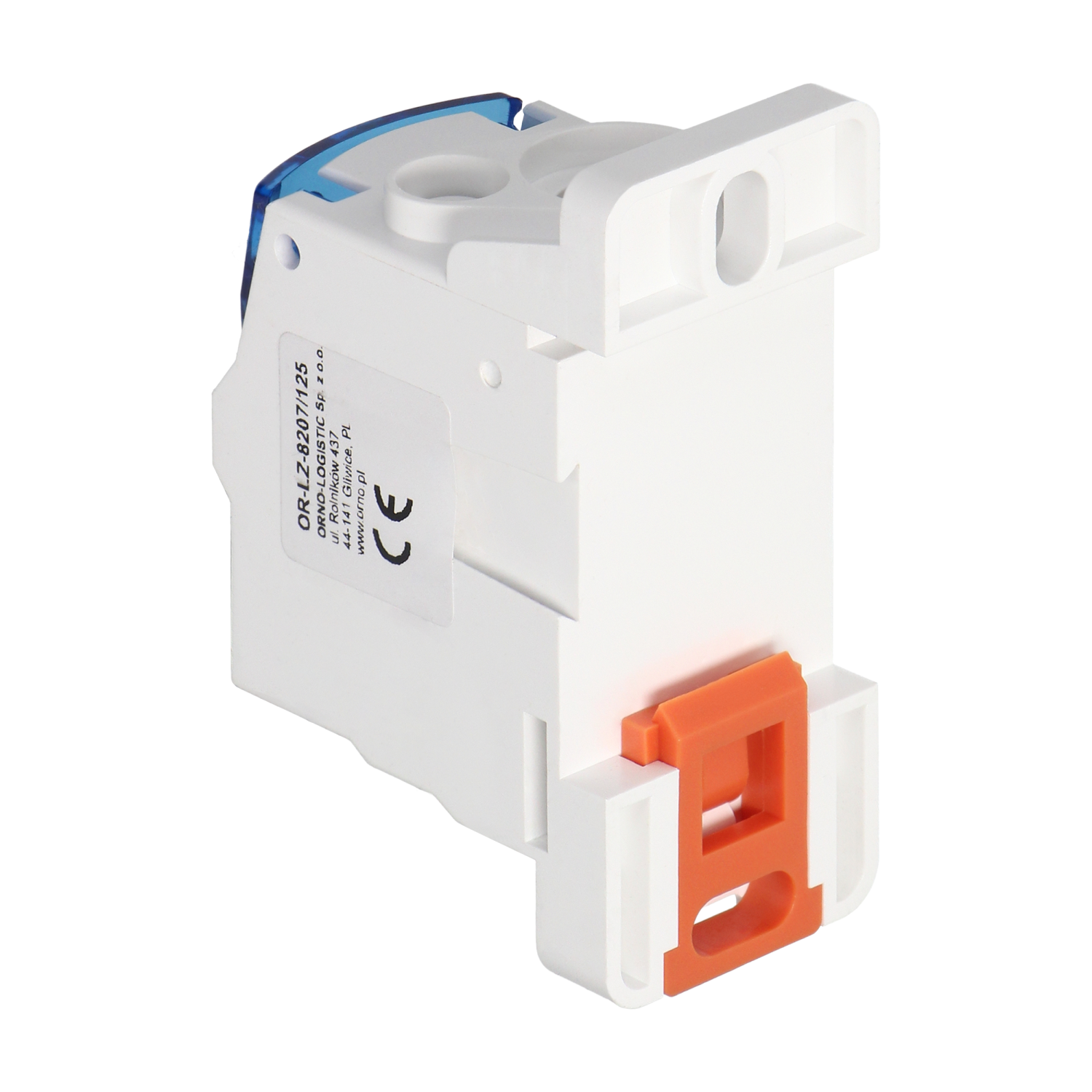

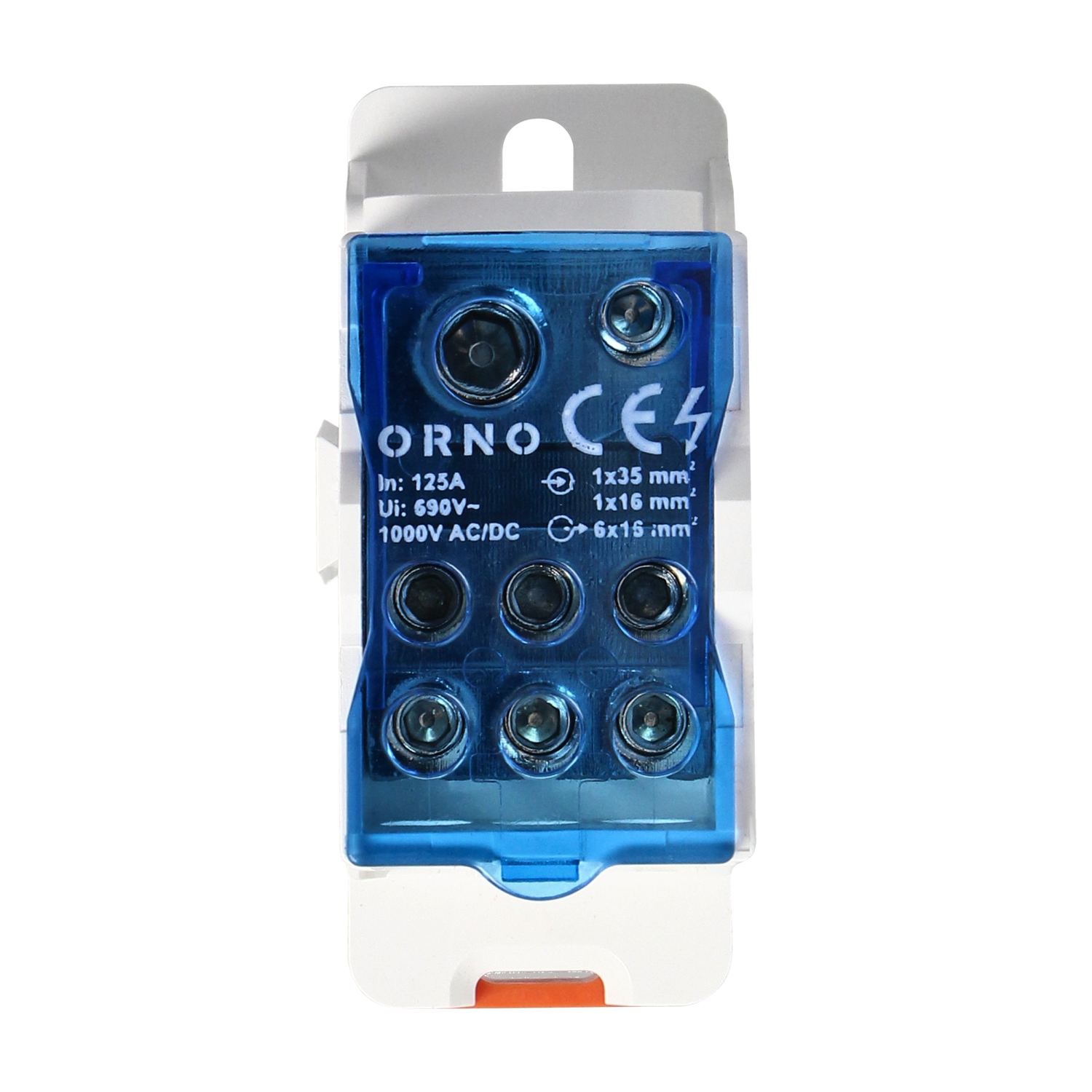

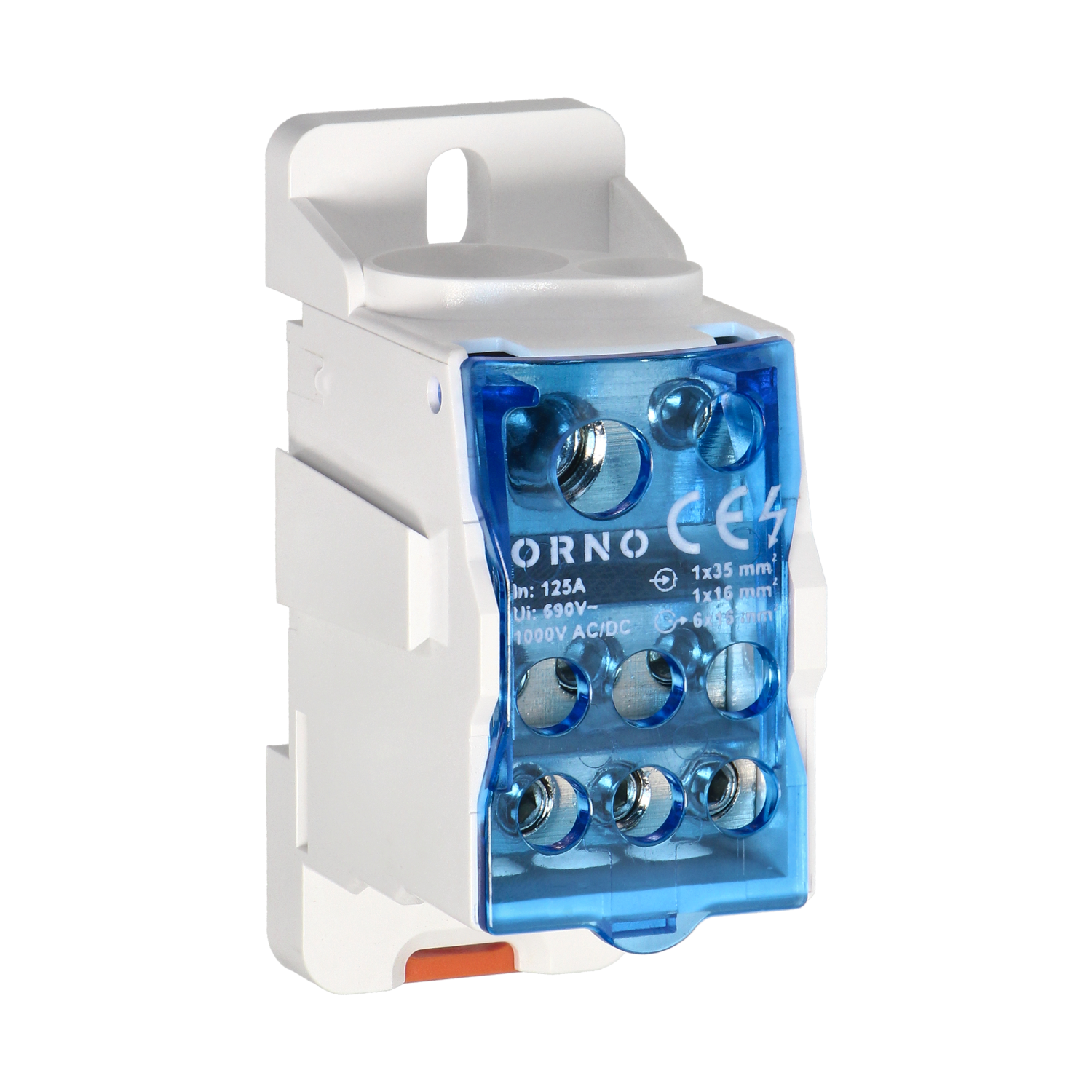

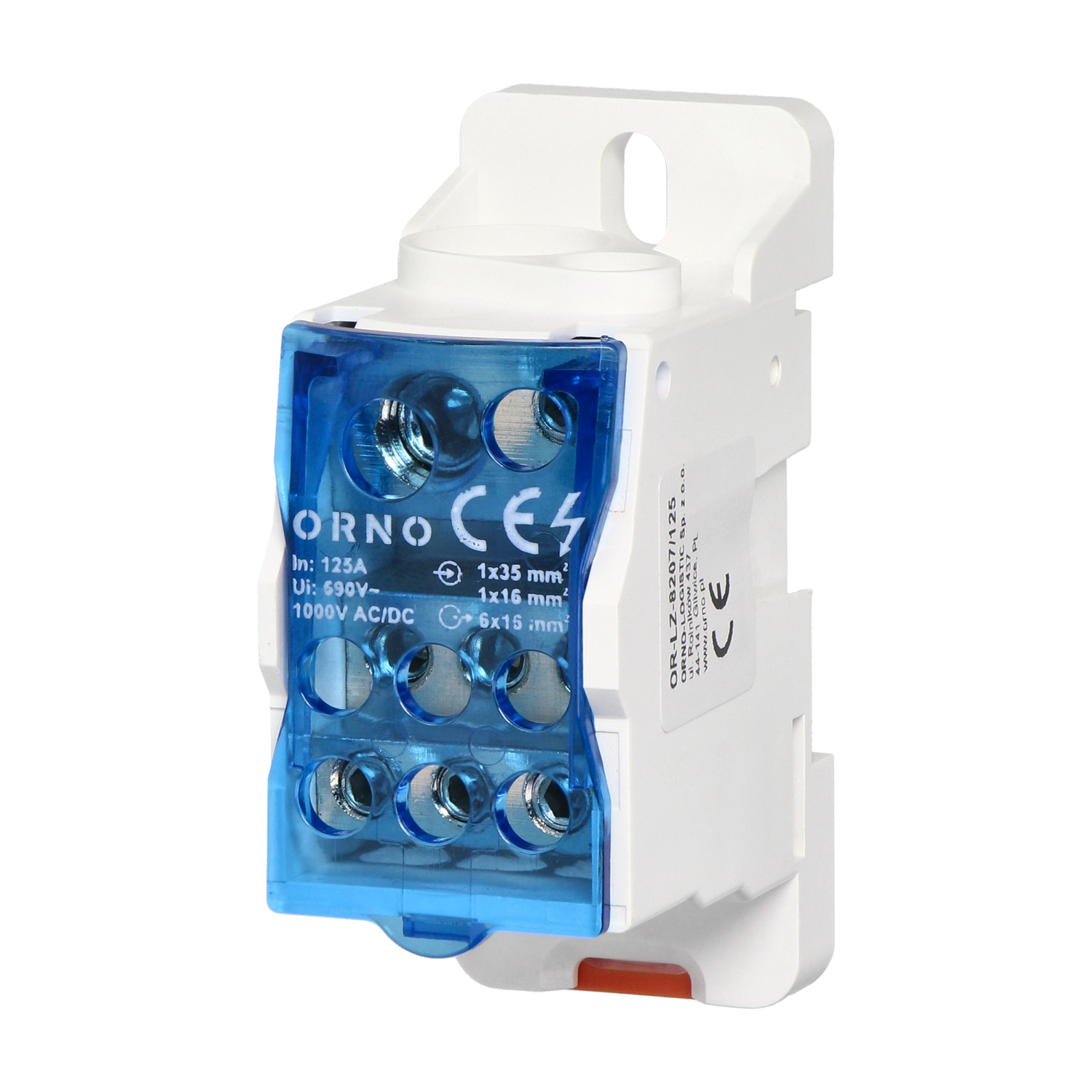

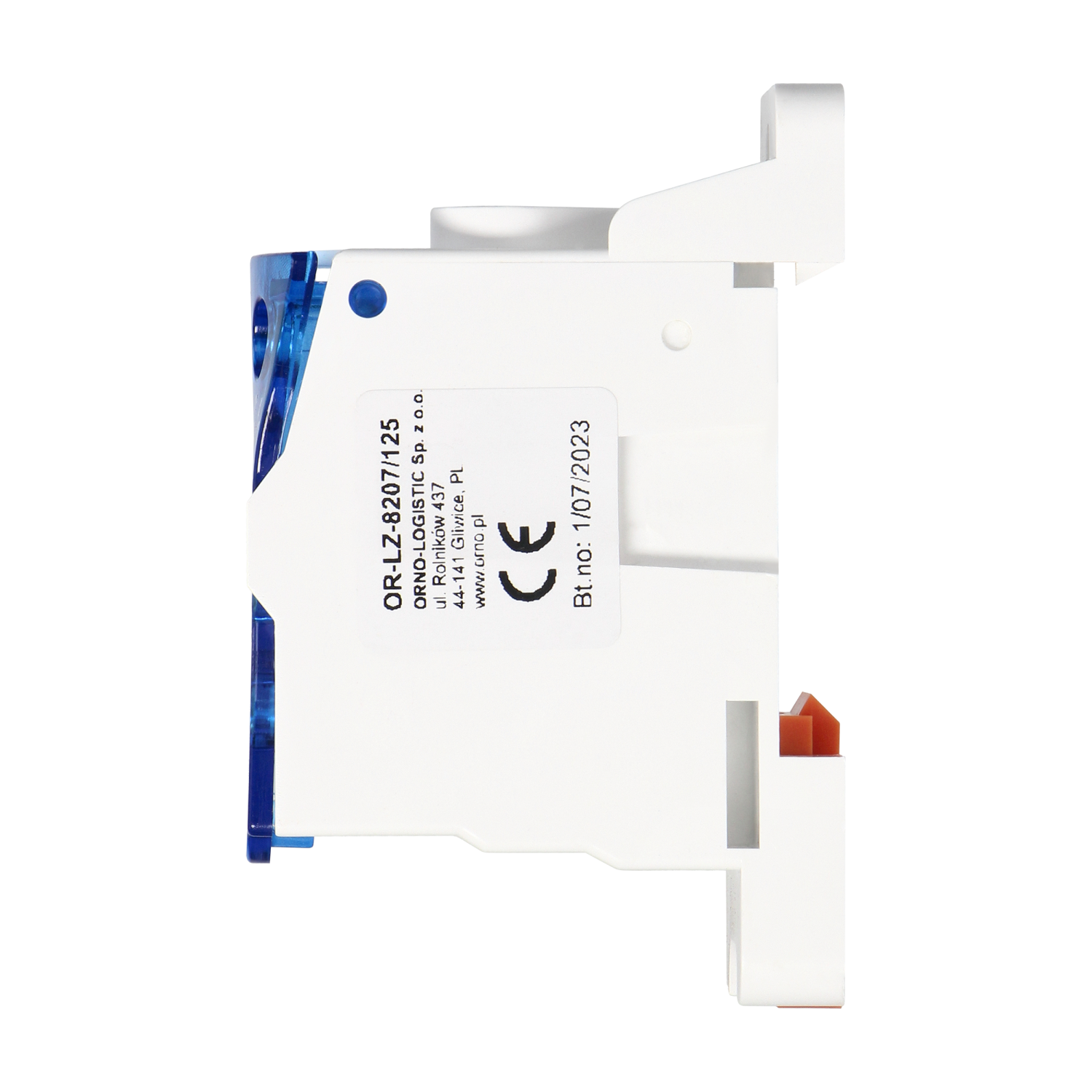

OR-LZ-8207/125

Description

Power distribution blocks, suitable for DIN rail or mounting on a plate, help to connect heavy section cables. These blocks are used in electric switchboards and industrial casings for energy distribution.

General information:
Type: distribution block
Input screw terminals: 1x 6-16; 1x 10-35mm²
Current: 80 A
Output terminals: 6x 2,5-16 mm²
Degree of protection (IP): 20
Insulation voltage Ui acc. to IEC: 1000 V
Insulation voltage Ui acc. to UL: 600 V
Rated short-time withstand current Icw: 4.2 kA
Peak short-circuit withstand current Ipk: 30 kA
Colour: blue
Possibility of extension: Yes
Dimensions - depth: 77 mm
Dimensions - height: 46 mm
Screw tightening torque: Input: 3,5 ; 8,5 Output: 3,5 Nm
