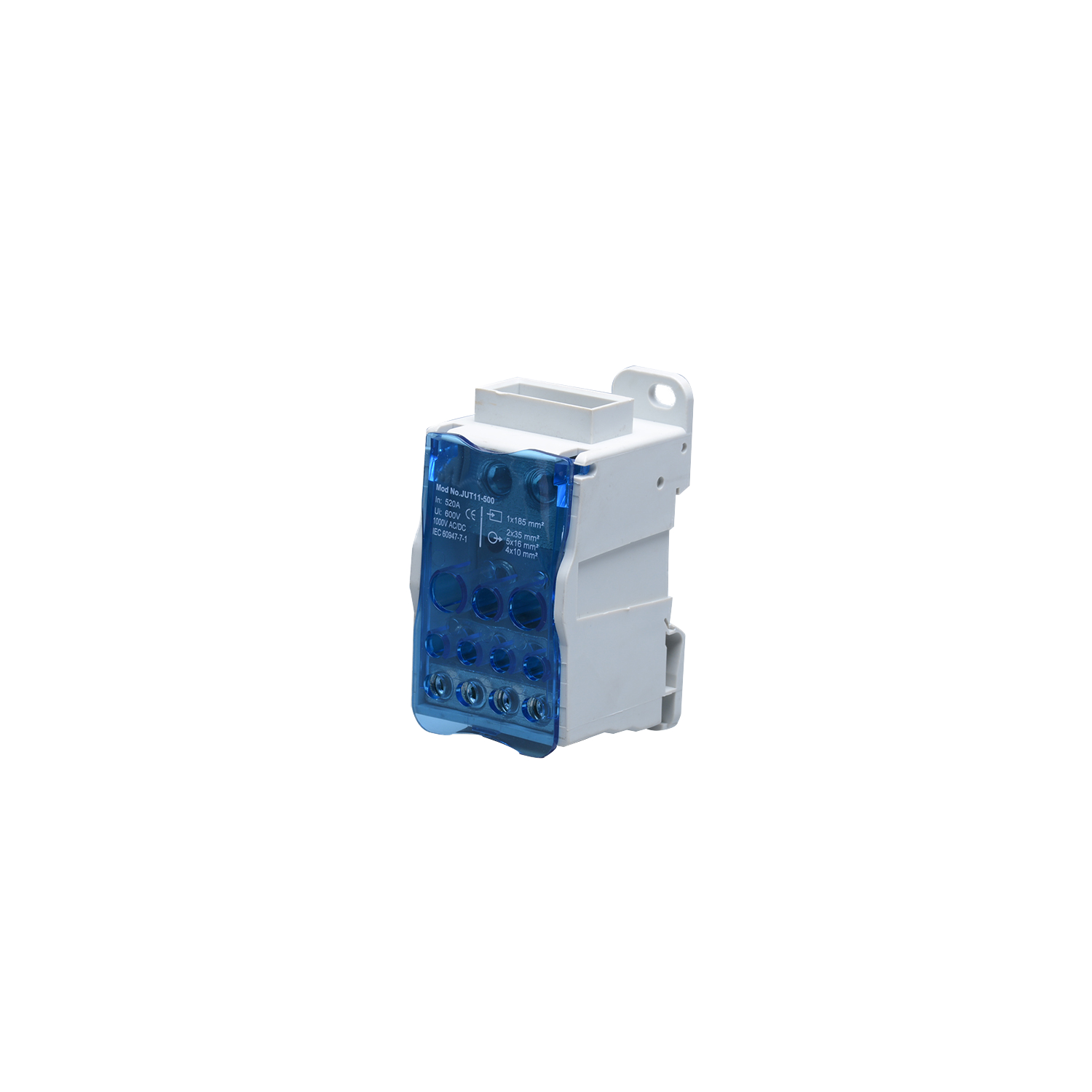

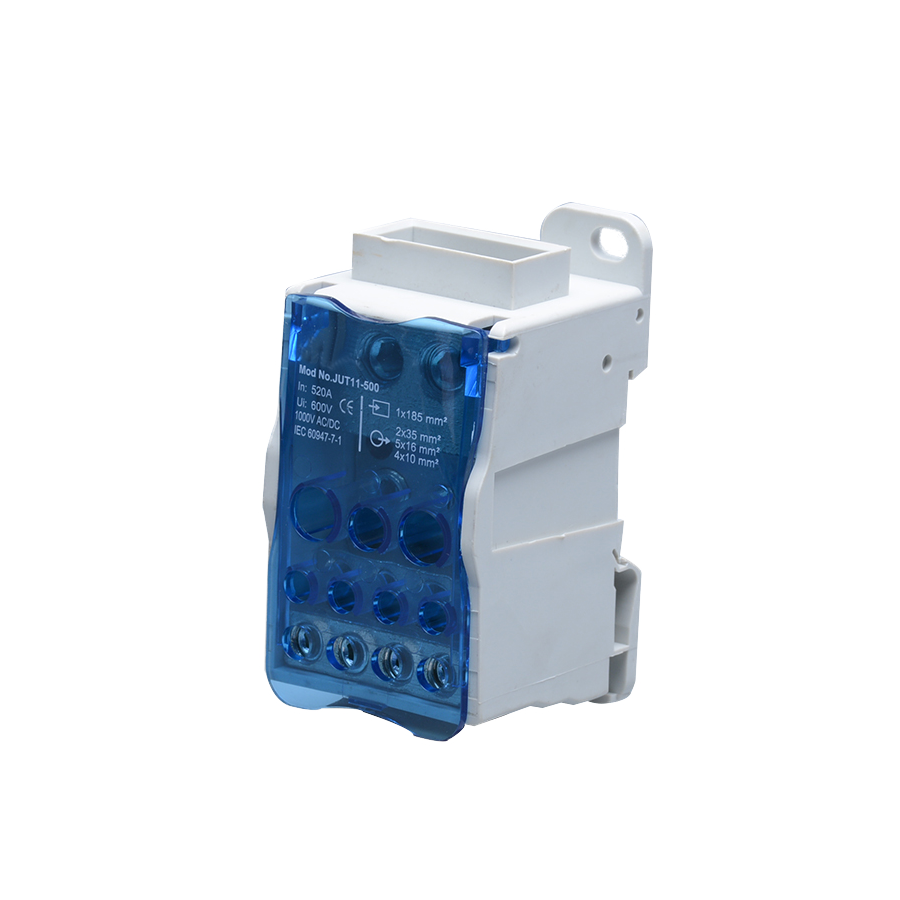

Power distribution block 500A, input terminal (rail) 8x24x1, output terminals 4x10, 5x16 and 2x25mm²
Power distribution block 500A, input terminal (rail) 8x24x1, output terminals 4x10, 5x16 and 2x25mm²

Power distribution block 500A, input terminal (rail) 8x24x1, output terminals 4x10, 5x16 and 2x25mm²

OR-LZ-8200/500

Description

Power distribution blocks, suitable for DIN rail or mounting on a plate, help to connect flexible busbars. These blocks are used in electric switchboards and industrial casings for energy distribution.

General information:
Type: distribution block
Input screw terminals: 4x15,5x0,8 - 8x24x1
Current: 500 A
Output terminals: 2x 6-35; 5x 2,5-16; 4x 2,5-10 mm²
Installation: DIN rail / mounting plate
Degree of protection (IP): 20
Insulation voltage Ui acc. to IEC: 1000 V
Insulation voltage Ui acc. to UL: 600 V
Rated short-time withstand current Icw: 24.5 kA
Peak short-circuit withstand current Ipk: 51 kA
Colour: blue
Possibility of extension: Yes
Compliance with standards: IEC 60998-1, IEC 60998-2-1, IEC 60947-7-1, IEC 60947-7-1, UL 1059, UL 486E, CSA22.2 158-1987, GB 13140.1, GB 13140.2
Dimensions - depth: 96 mm
Dimensions - width: 49 mm
Mounting holes spacing: 85x29 mm
Dimensions - height: 50 mm
Screw tightening torque: Input: 10 Output: 4,4 ; 2,7 ; 2,7 Nm
