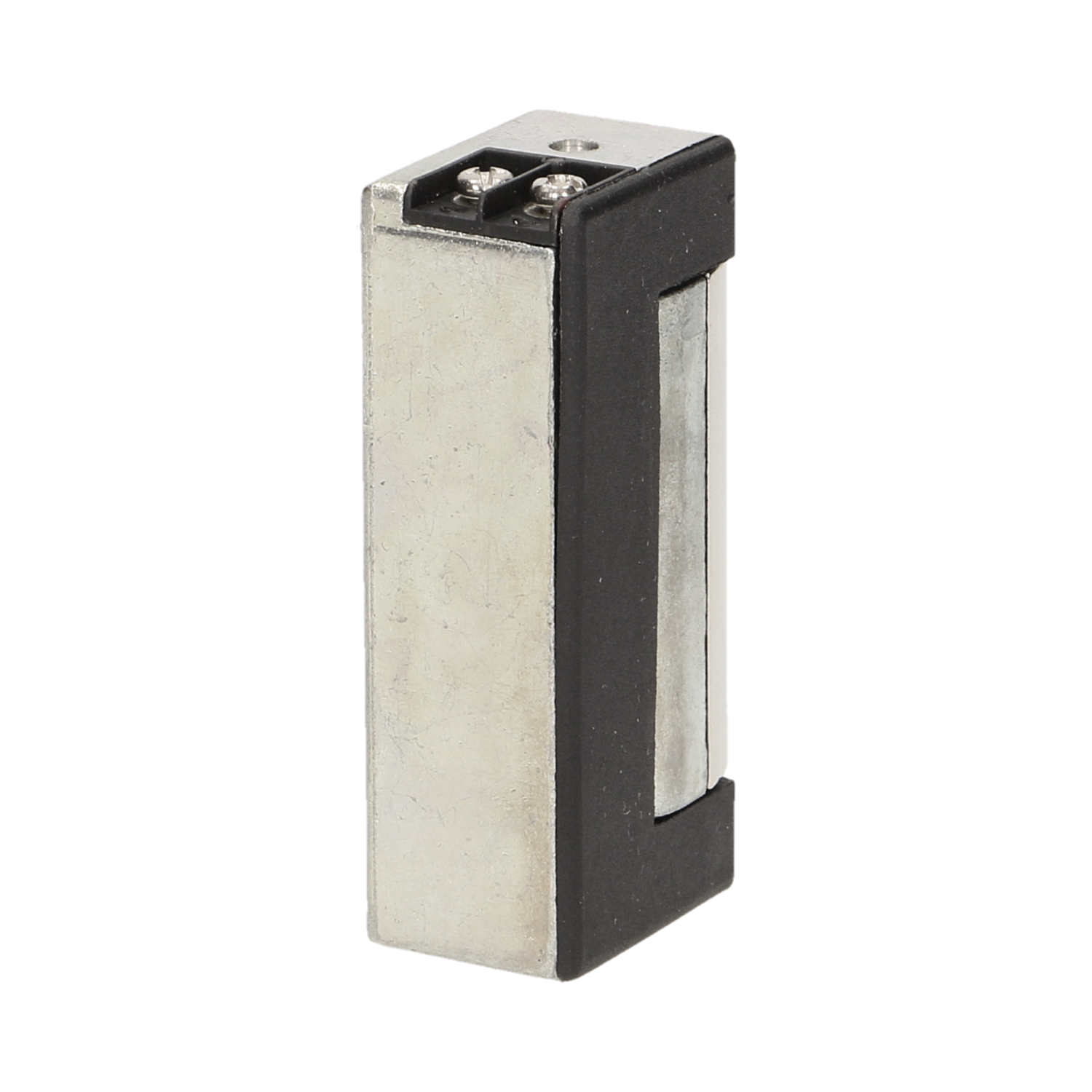

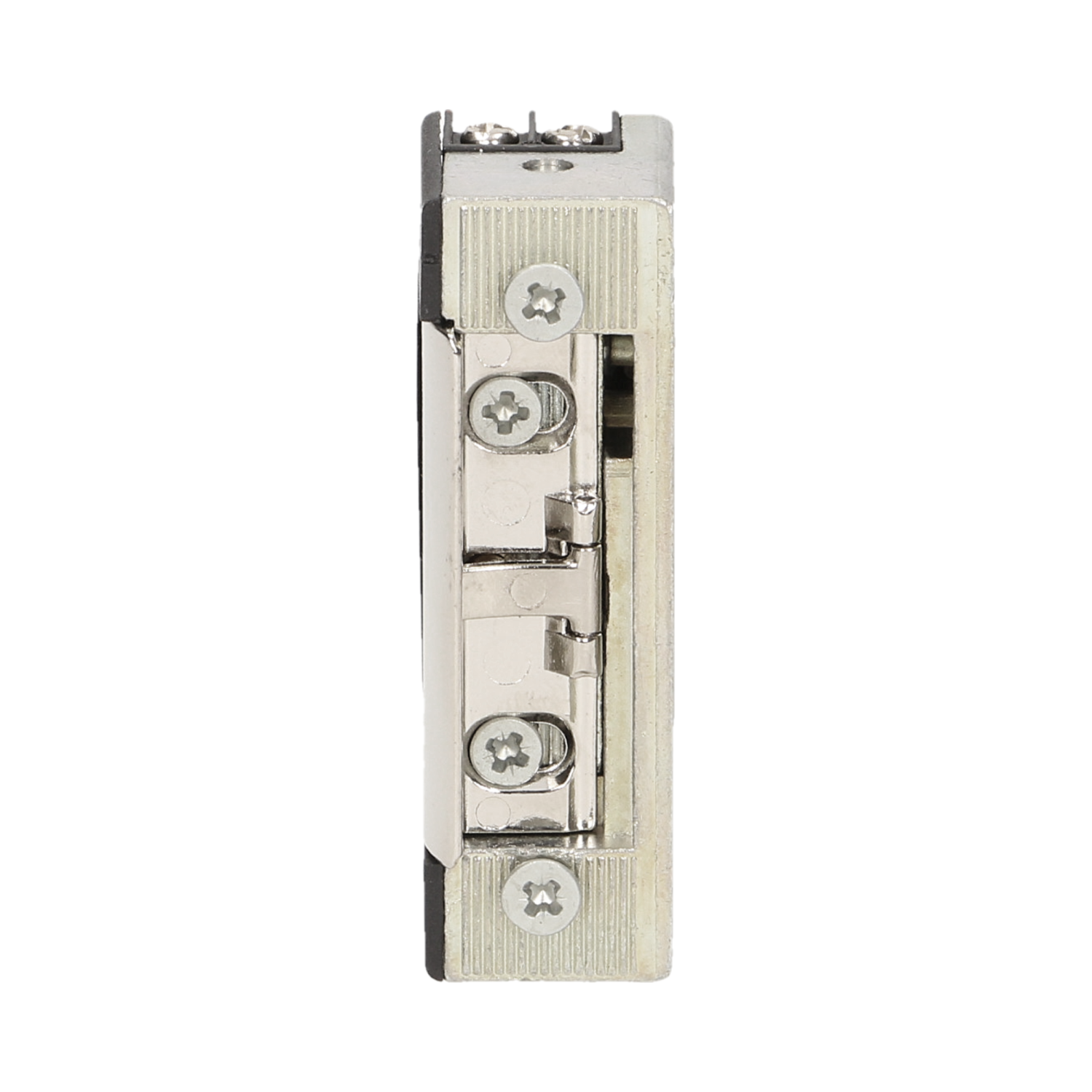

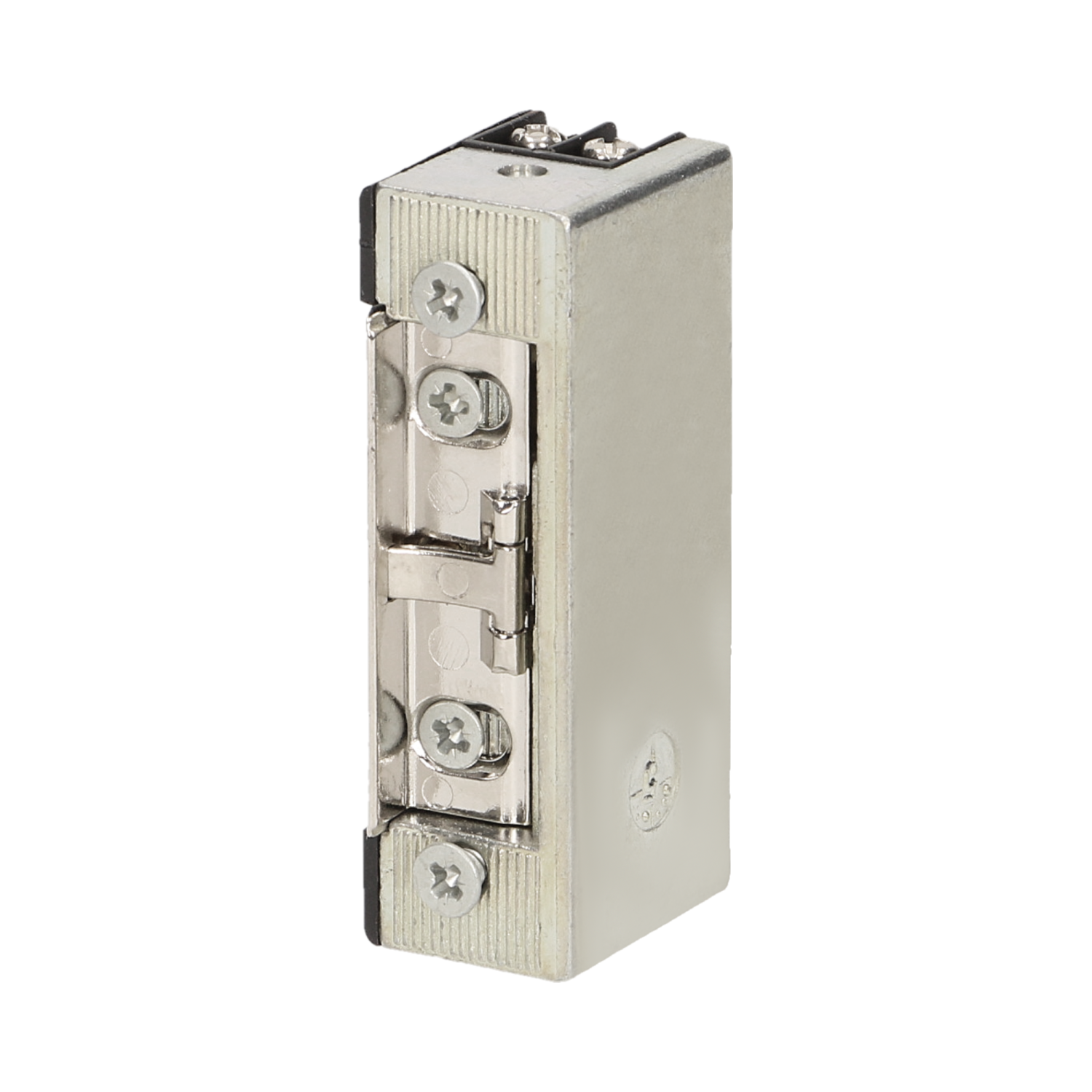

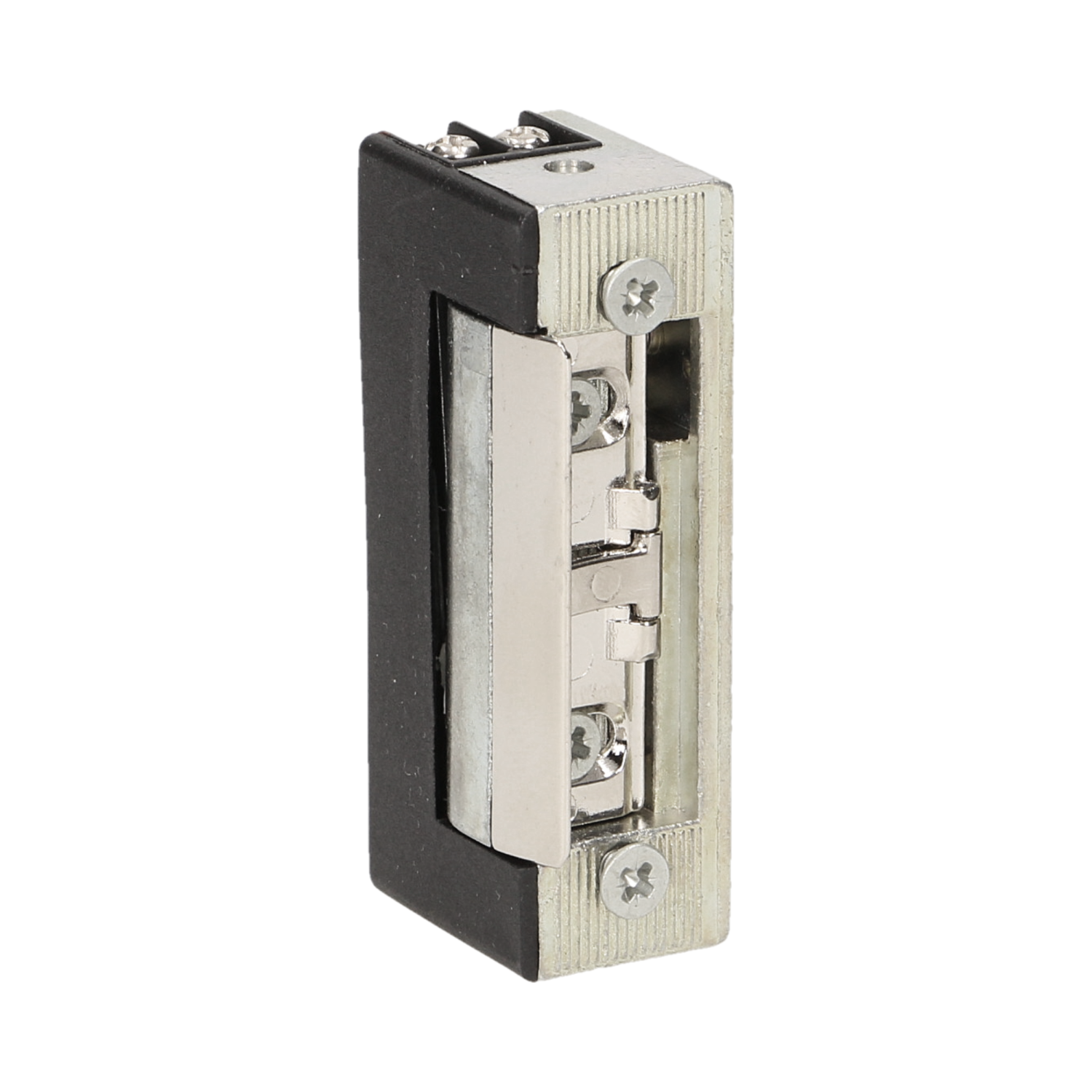

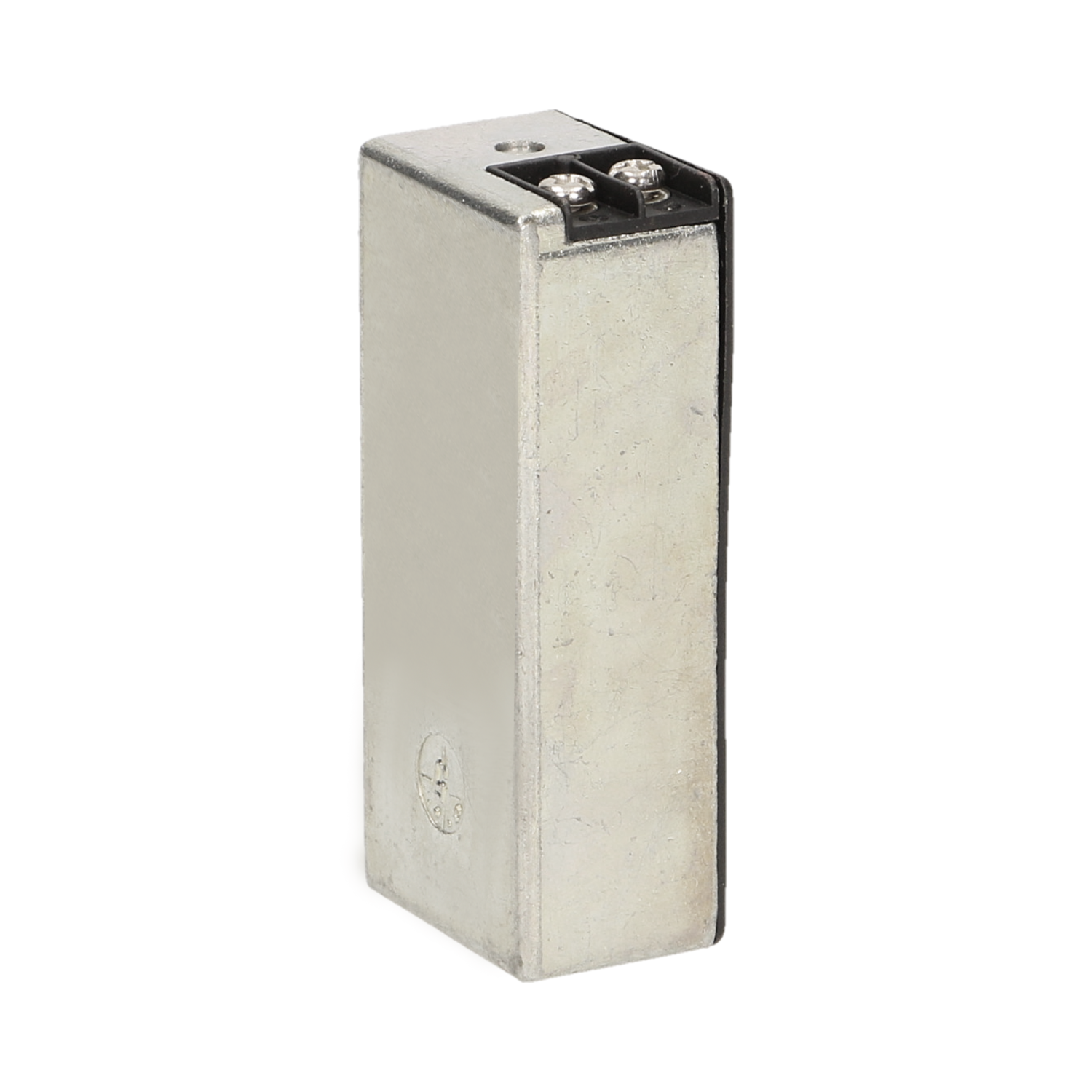

Electric strikes
It can work with the doorphones and video doorphones installation at the front of single- and multi-family doors Made from Alloy Zamak, which is extremely durable and resistant to corrosion It can be mounted on the outside of the standard faceplate Symmetrical design and small dimensions enable the use in sliding gates systems, narrow pots and door frames Equipped with safe, patented and adjustable latch keeper mechanism. Electric strike has been equipped with Low current coil with wide voltage range , current consumption is 280mA for 12V direct current and 250mA for 12V alternating current.
| General information: | |
|---|---|
| Power consumption during operation: | 280mA / 12VDC |
| Direction of opening: | right/left |
| Latch adjustment: | Yes |
| Nominal voltage: | 10-24 V AC/DC |
| Door open indicator: | No |
| Latch guide: | no |
| Mechanical unlocking: | No |
| Dimensions - depth: | 21 mm |
| Dimensions - width: | 21 mm |
| Dimensions - height: | 69 mm |
| Memory: | Yes |
