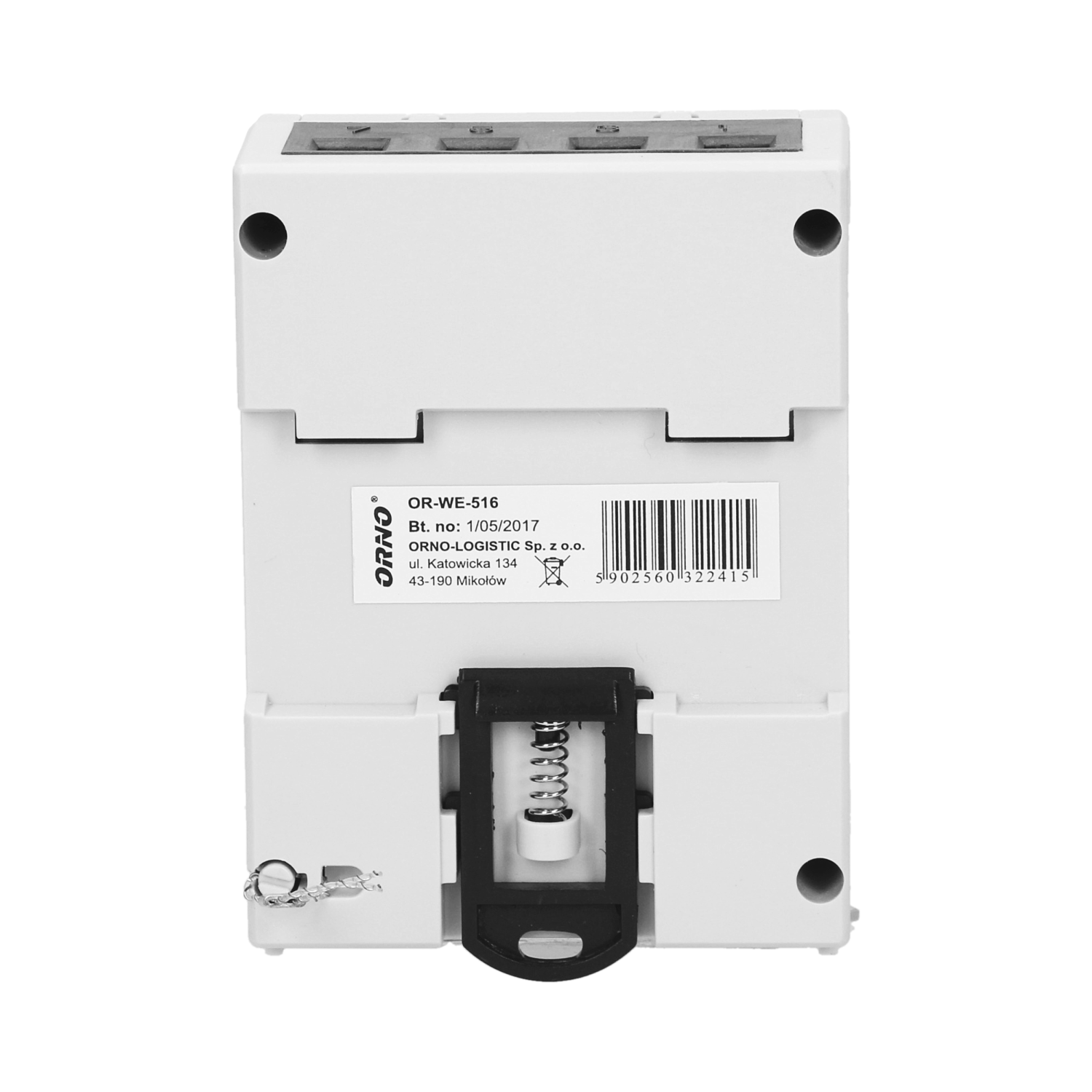

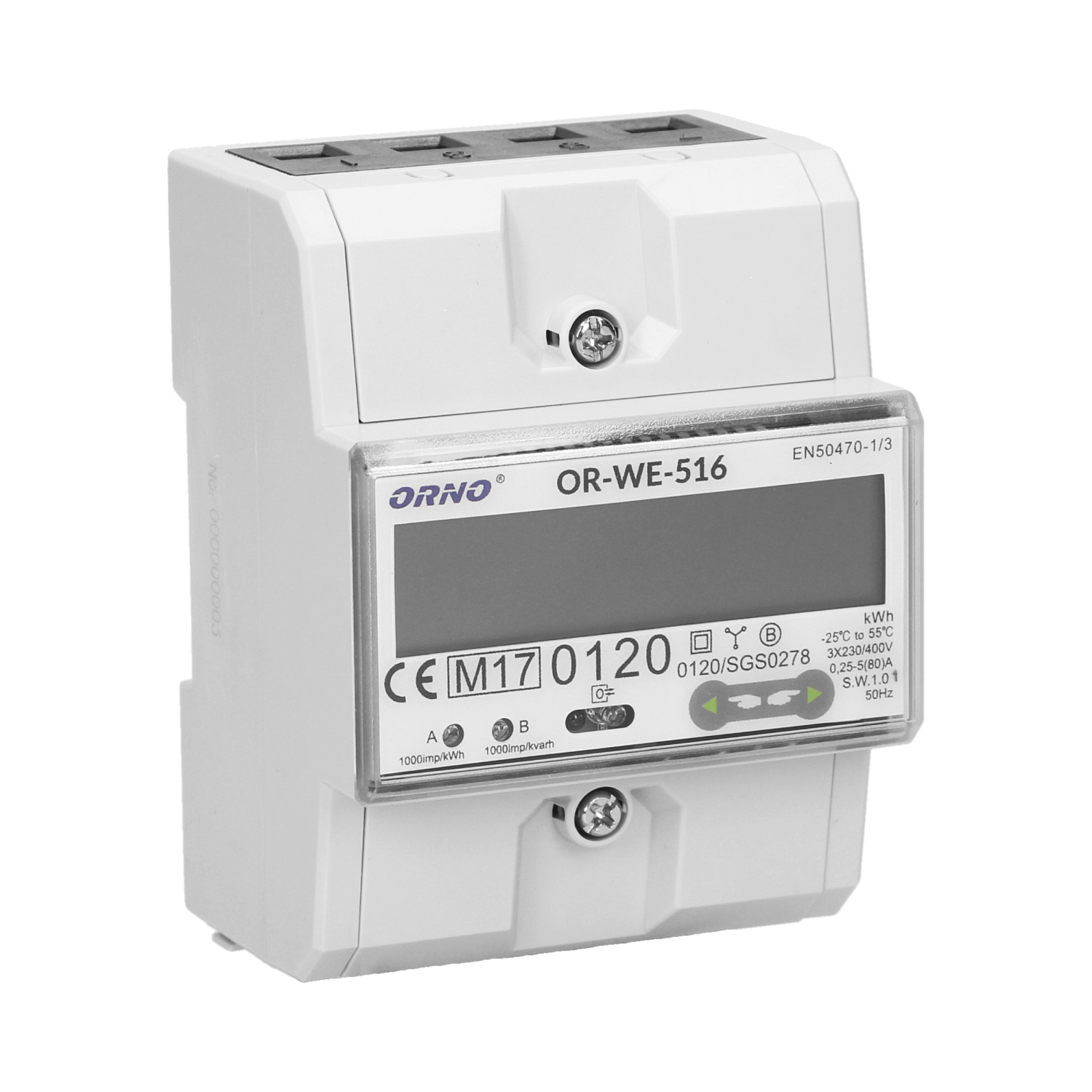

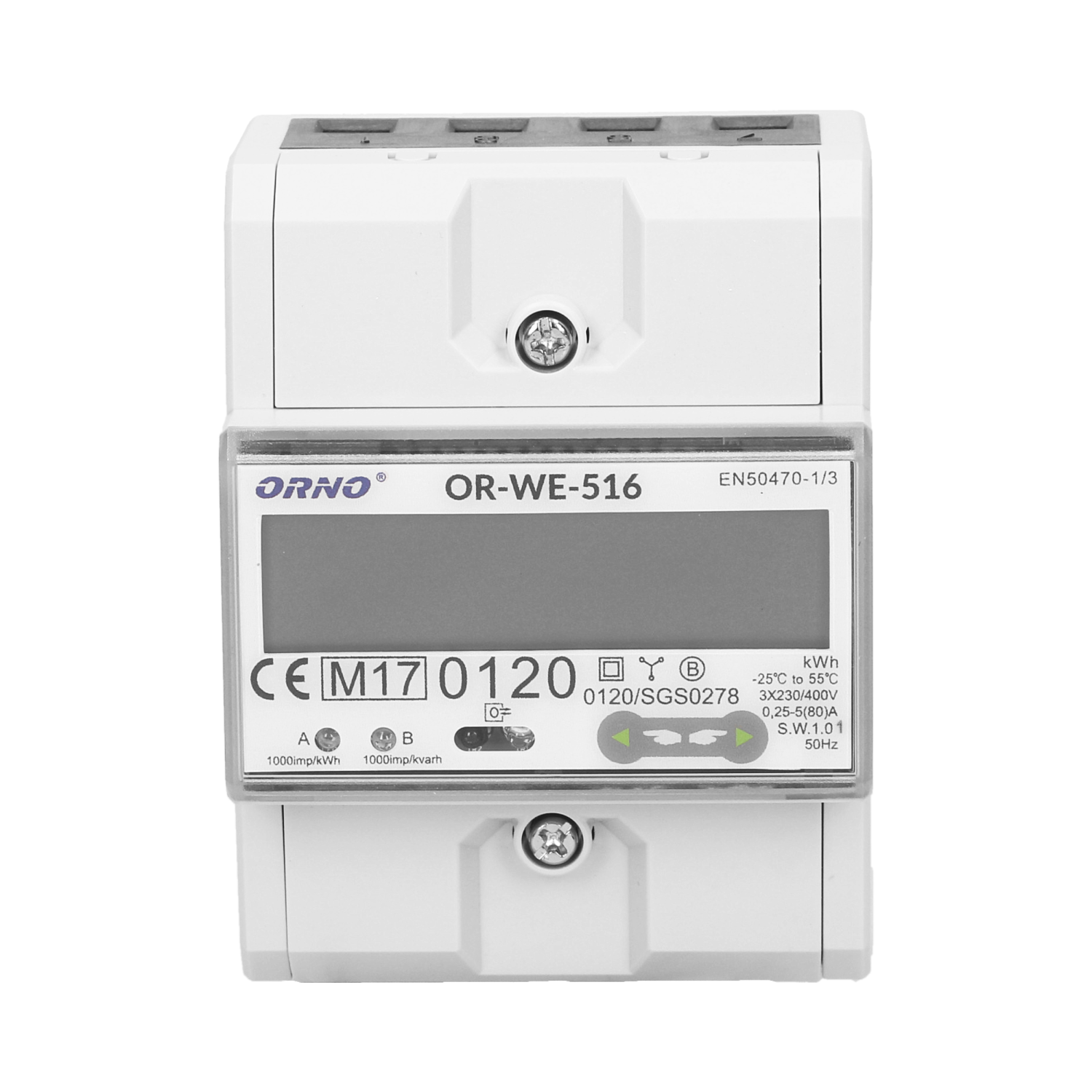

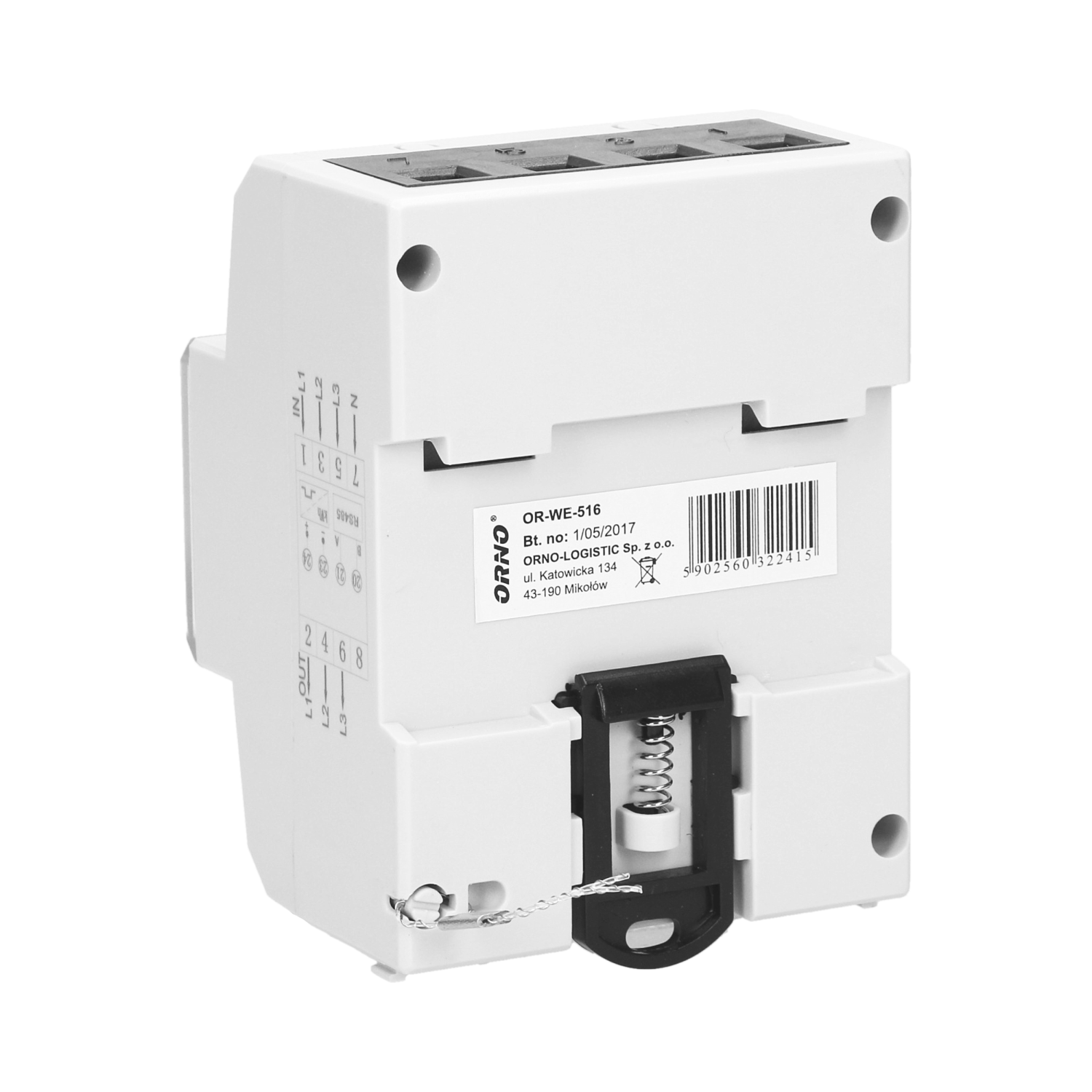

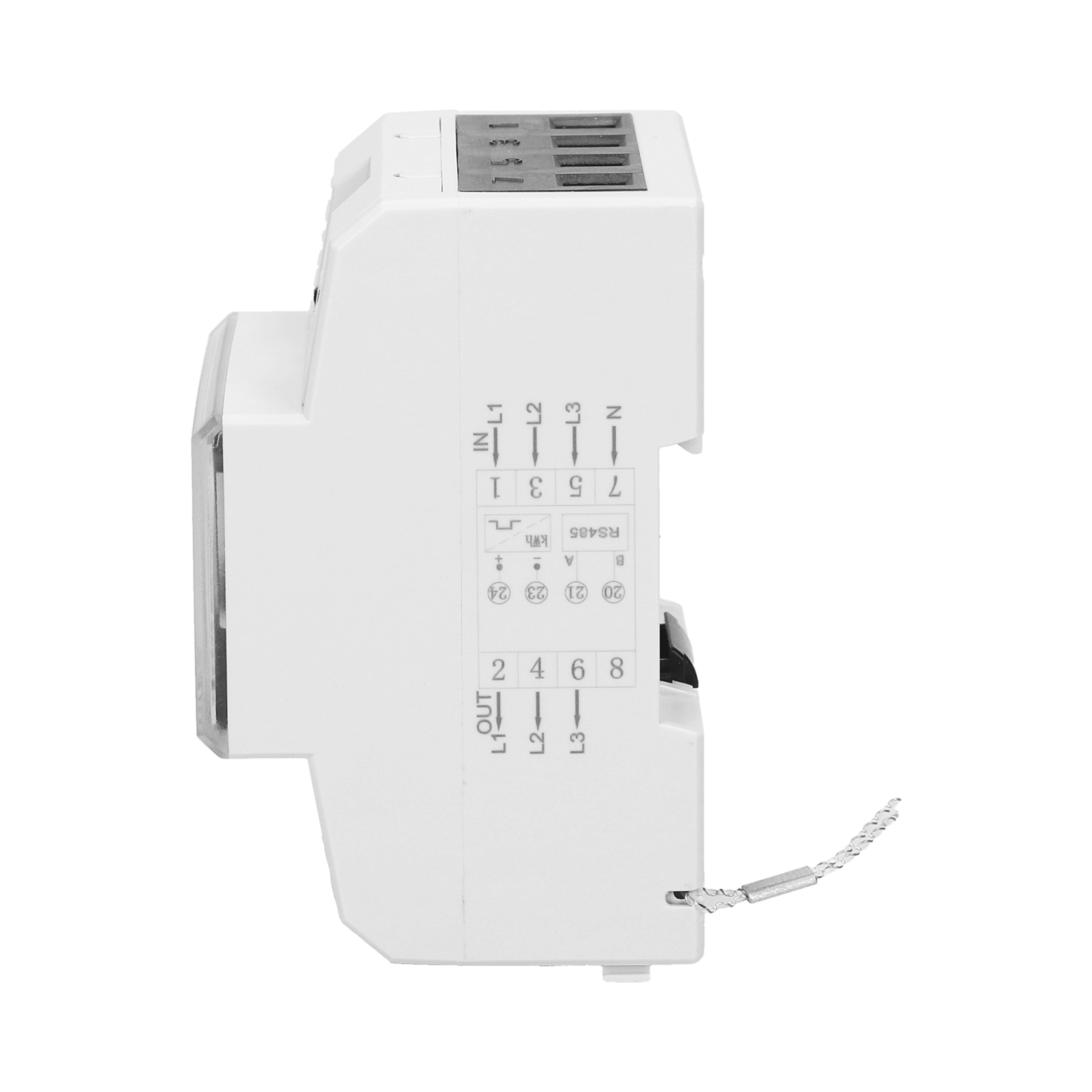

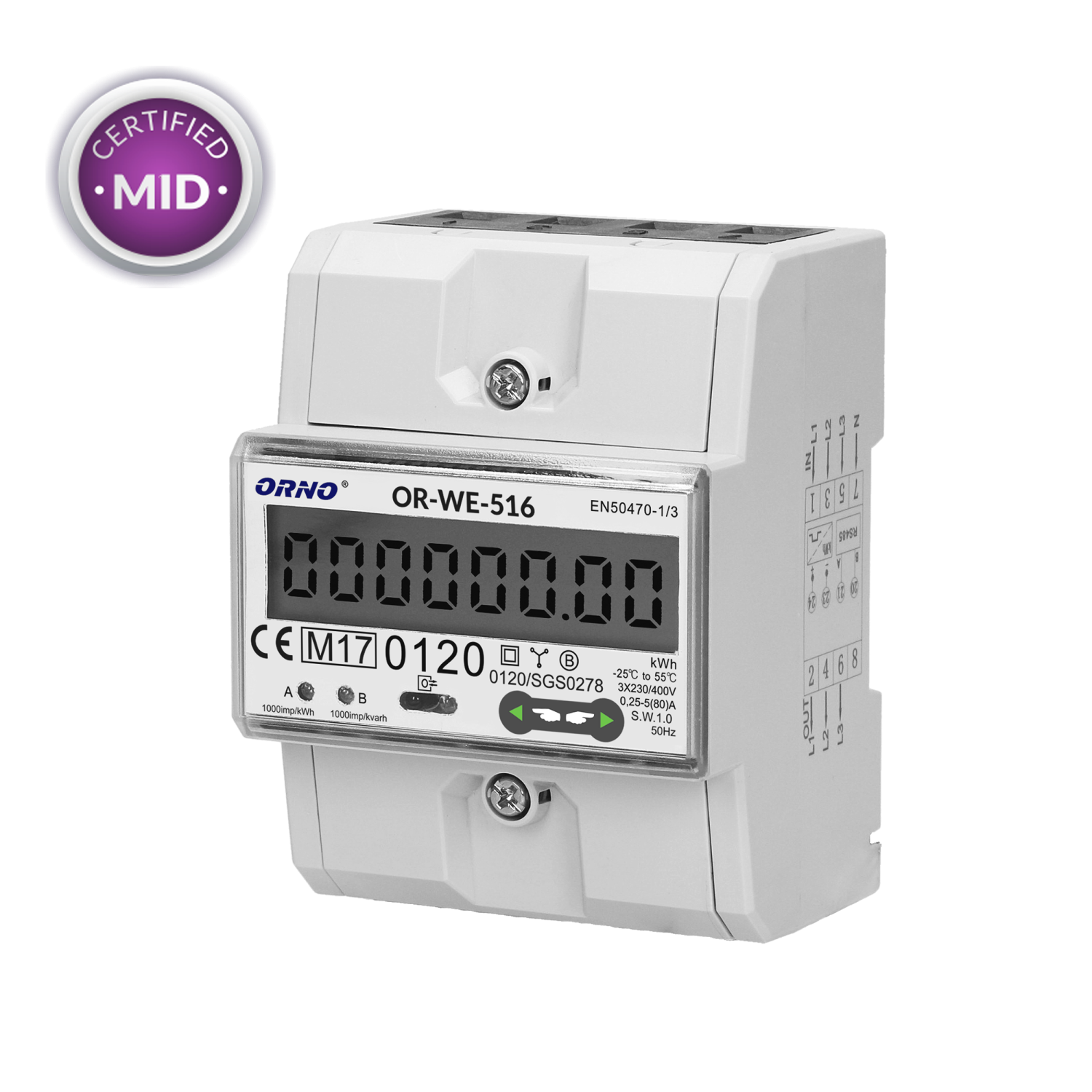

OR-WE-516

Description

Device for making indications in kWh with the possibility of remote reading registers of indicators, via a wired network of RS-485 standard. A special electronic circuit, by the flow of current and applied voltage generates pulses in proportion to the energy consumed. Phase energy consumption is signaled by a flashing LED. The number of pulses is converted into energy input and its value is indicated on the LCD display (6 + 2). MID Certificate 0120/SGS0278.

General information:
Backlight: No
Type: 3-phase
Base current (lb): 5 A
Maximum current (lmax): 80 A
Degree of protection (IP): 51
Min. current: 0.25 A
Pulse frequency: 1000 imp/kWh
Class of measurement accuracy: B
Pulse output: Yes
Multi-tariff: No
Dimensions - depth: 66 mm
Number of modules: 4.5
Dimensions - width: 76 mm
Number of digits on a display: 6 + 2
Dimensions - height: 100 mm
Other features: IR optical port
Compliance with mid certificate (2014/32/eu): Yes
Communication protocol: Modbus
Ports: RS485

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:54Download
Product data sheetENpdf2024-07-17 10:22:39Download
SoftwareEN7z2024-09-13 15:36:35Download
SoftwareENpdf2024-09-13 15:36:35Download
Conformity declarationsENpdf2024-09-13 15:36:35Download
Conformity declarationsENpdf2024-09-13 15:36:35Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
User manualHRpdf2024-03-14 10:39:51Download
User manualMEpdf2024-03-14 10:39:51Download
User manualSLpdf2024-03-14 10:39:51Download
