Energy meters without MID

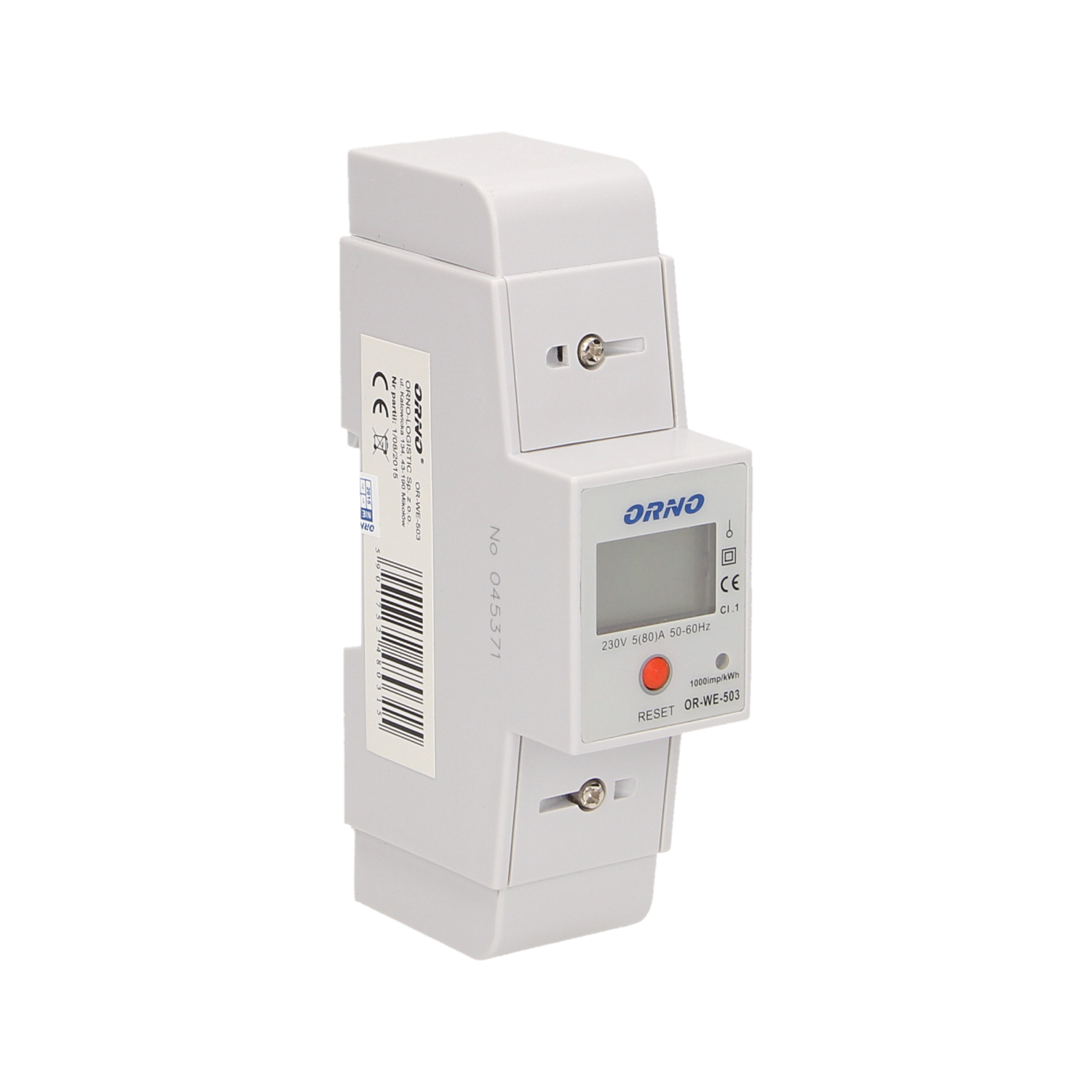

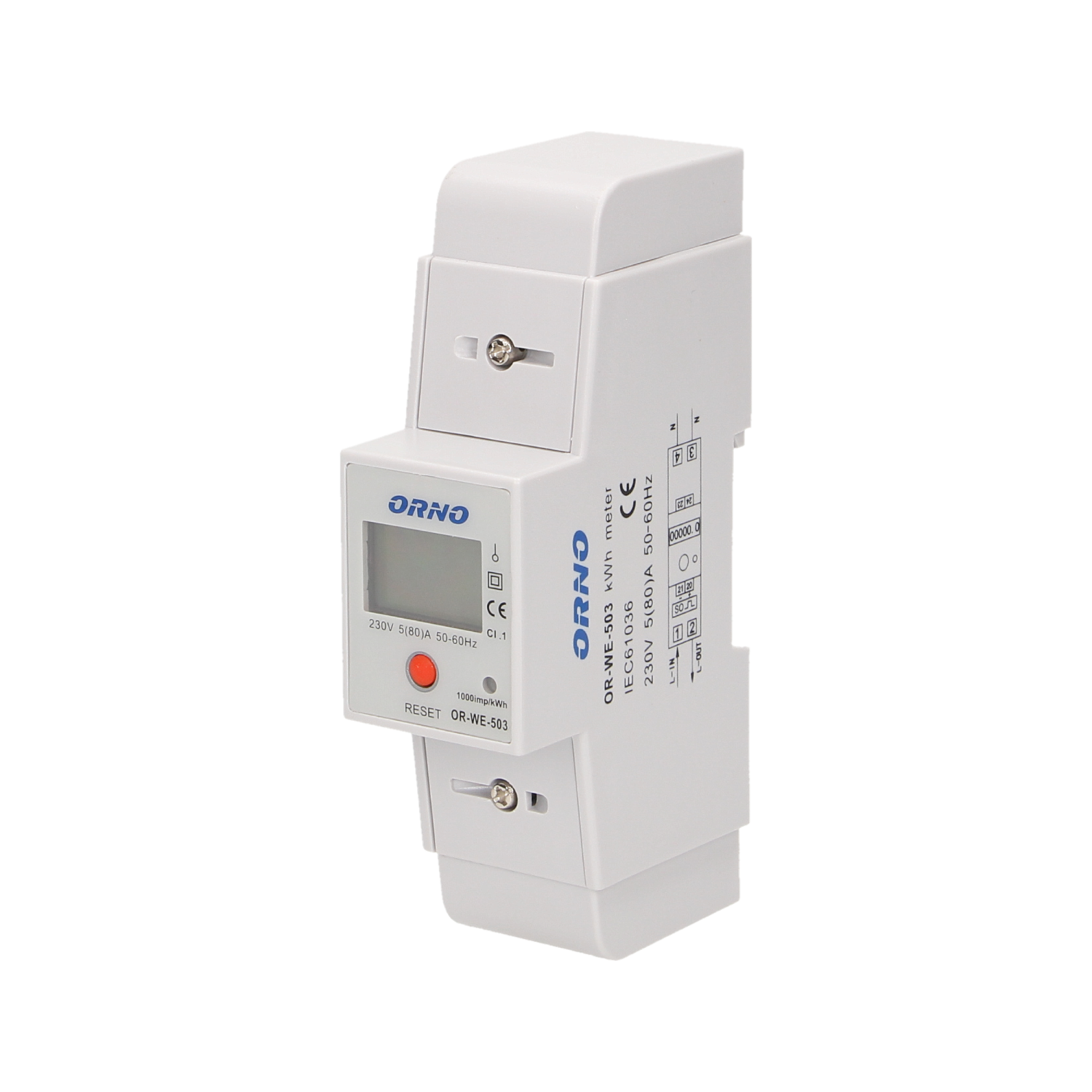

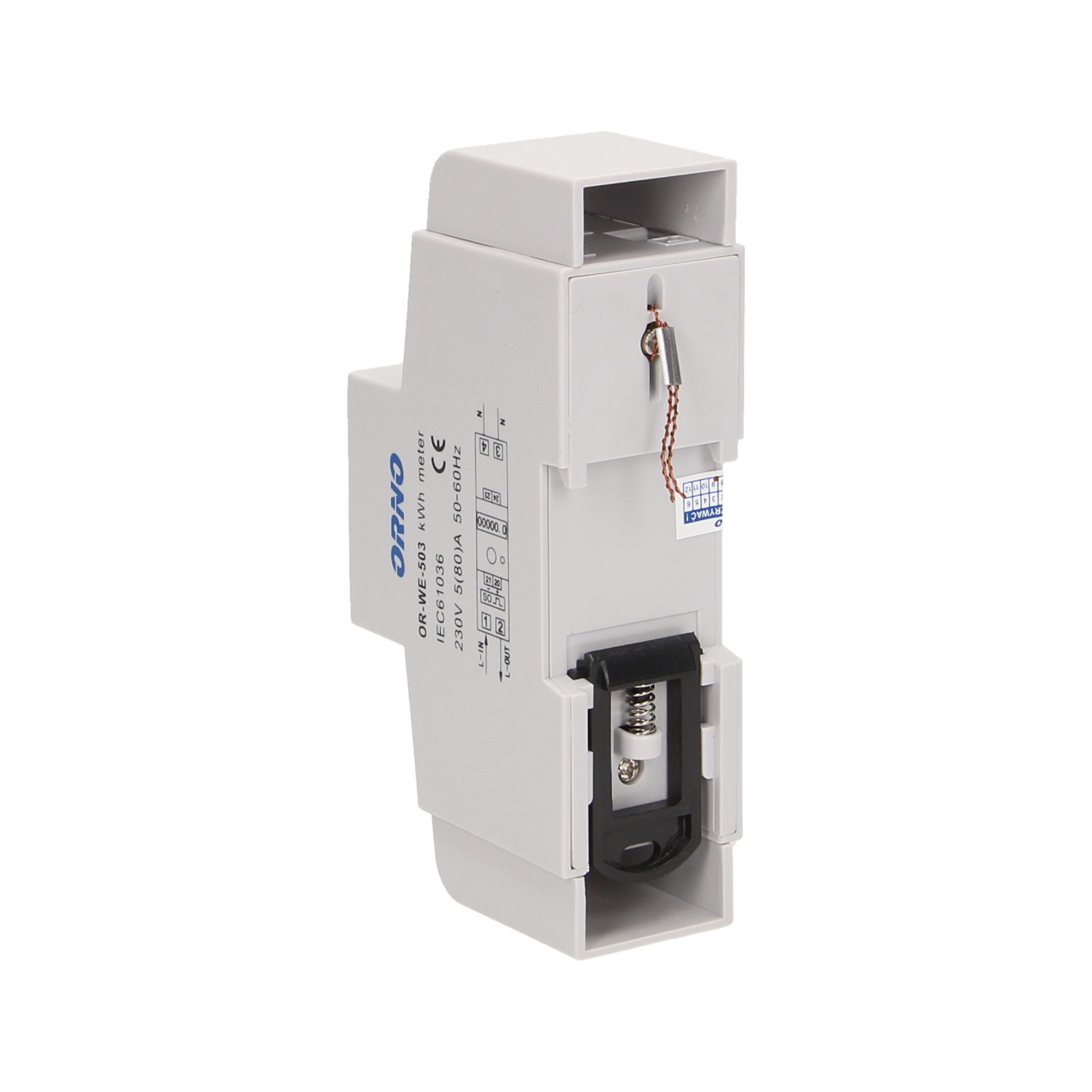

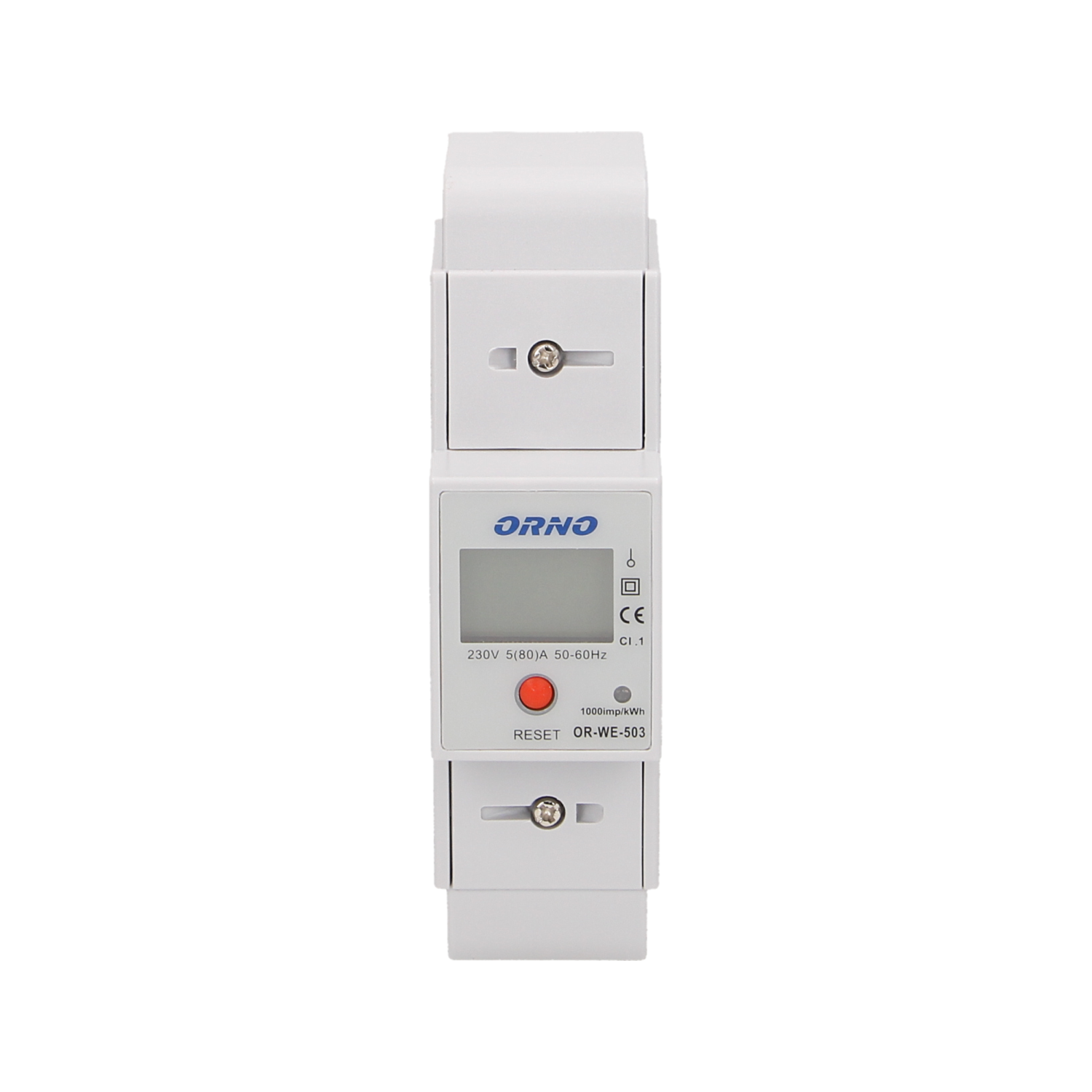

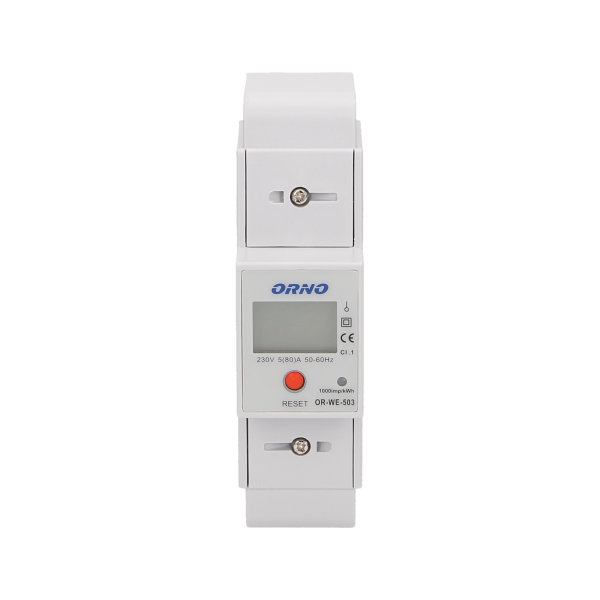

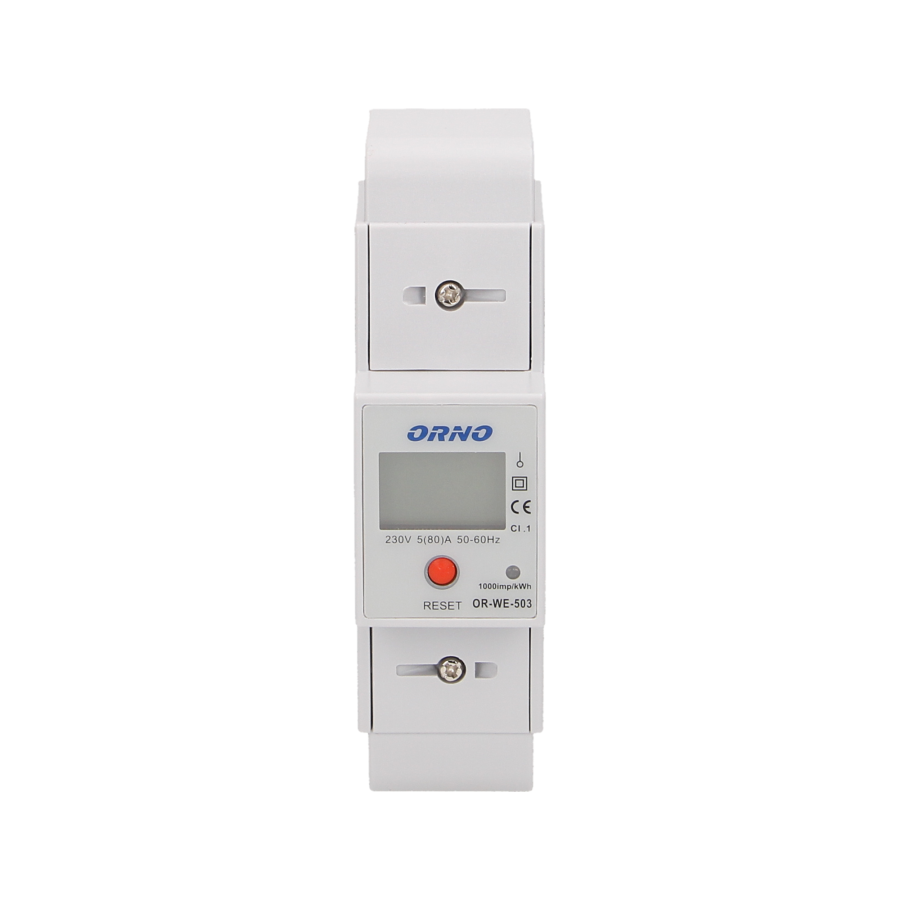

Device for making indications in kWh. A special electronic circuit, by the flow of current and applied voltage generates pulses in proportion to the energy consumed. Phase energy consumption is signaled by a flashing LED. The number of pulses is converted into energy input and its value is indicated on the LCD display (5 + 1). Equipped with an additional indicator with the possibility of erasing. Pulse output: voltage: 27V; current: 27mA; current pulse: 90ms; maximum cable length: 20 m; connection terminals 20 and 21; maximum value: max voltage 60VDC; maximum current of 50mA.
| General information: | |
|---|---|
| Backlight: | Yes |
| Type: | 1-phase |
| Base current (lb): | 5 A |
| Maximum current (lmax): | 80 A |
| Degree of protection (IP): | 20 |
| Pulse frequency: | 1000 imp/kWh |
| Class of measurement accuracy: | 1 |
| Pulse output: | Yes |
| Multi-tariff: | No |
| Dimensions - depth: | 129 mm |
| Number of modules: | 2 |
| Dimensions - width: | 36,5 mm |
| Dimensions - height: | 65 mm |
| Other features: | an additional indicator with the possibility of deleting |
| Compliance with mid certificate (2014/32/eu): | No |
| Communication protocol: | none |
| Display: | 5+1 " |
| Ports: | none |
