Energy meters without MID

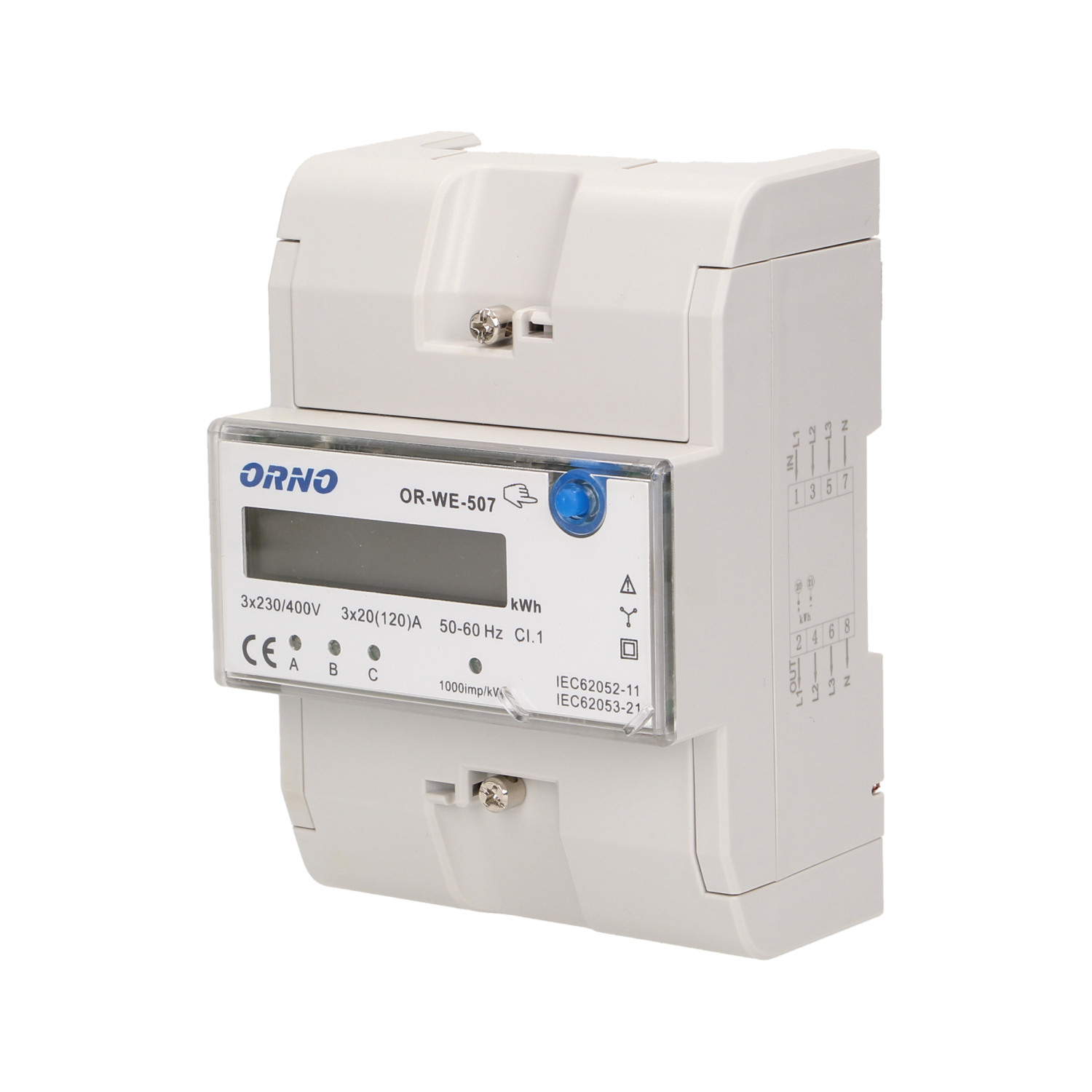

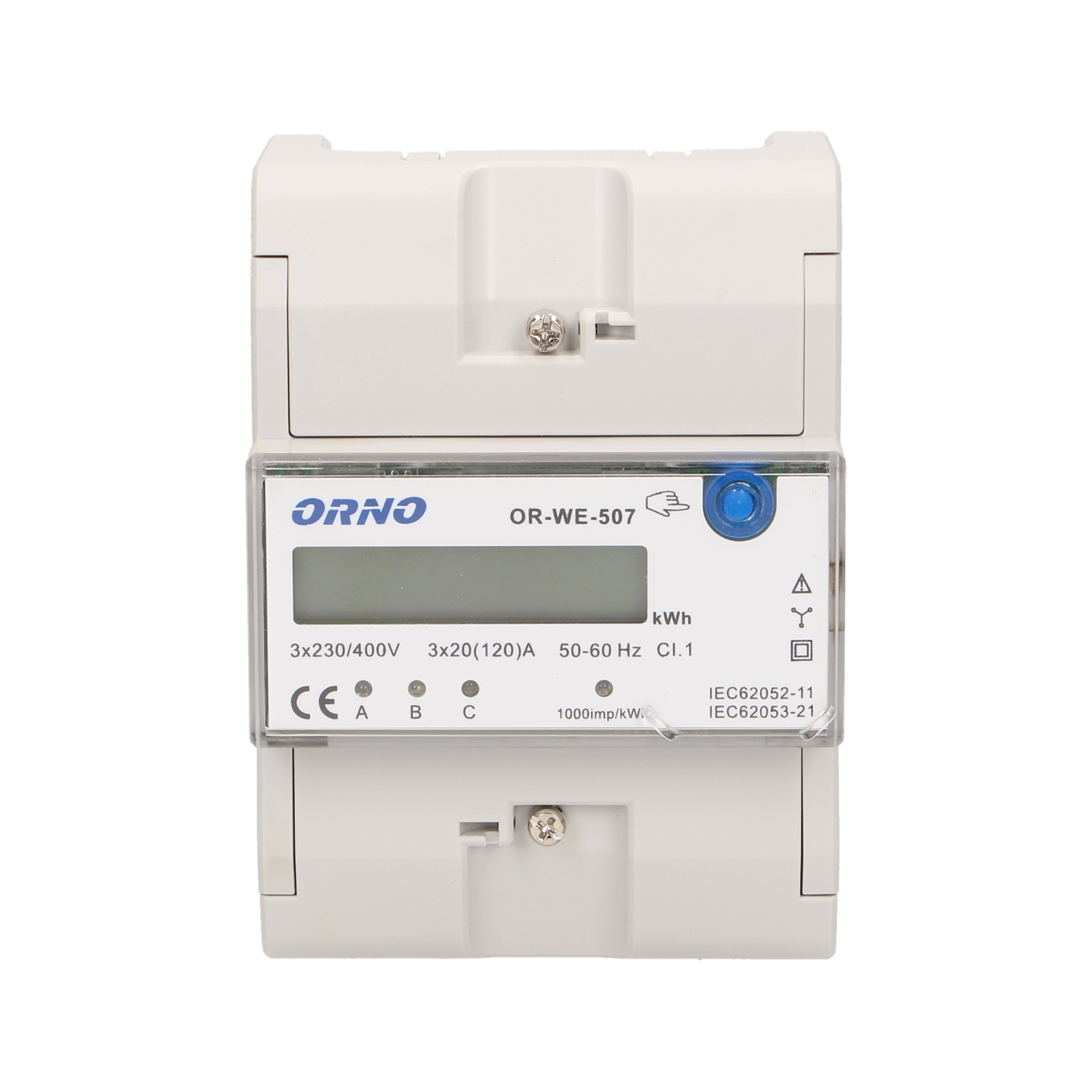

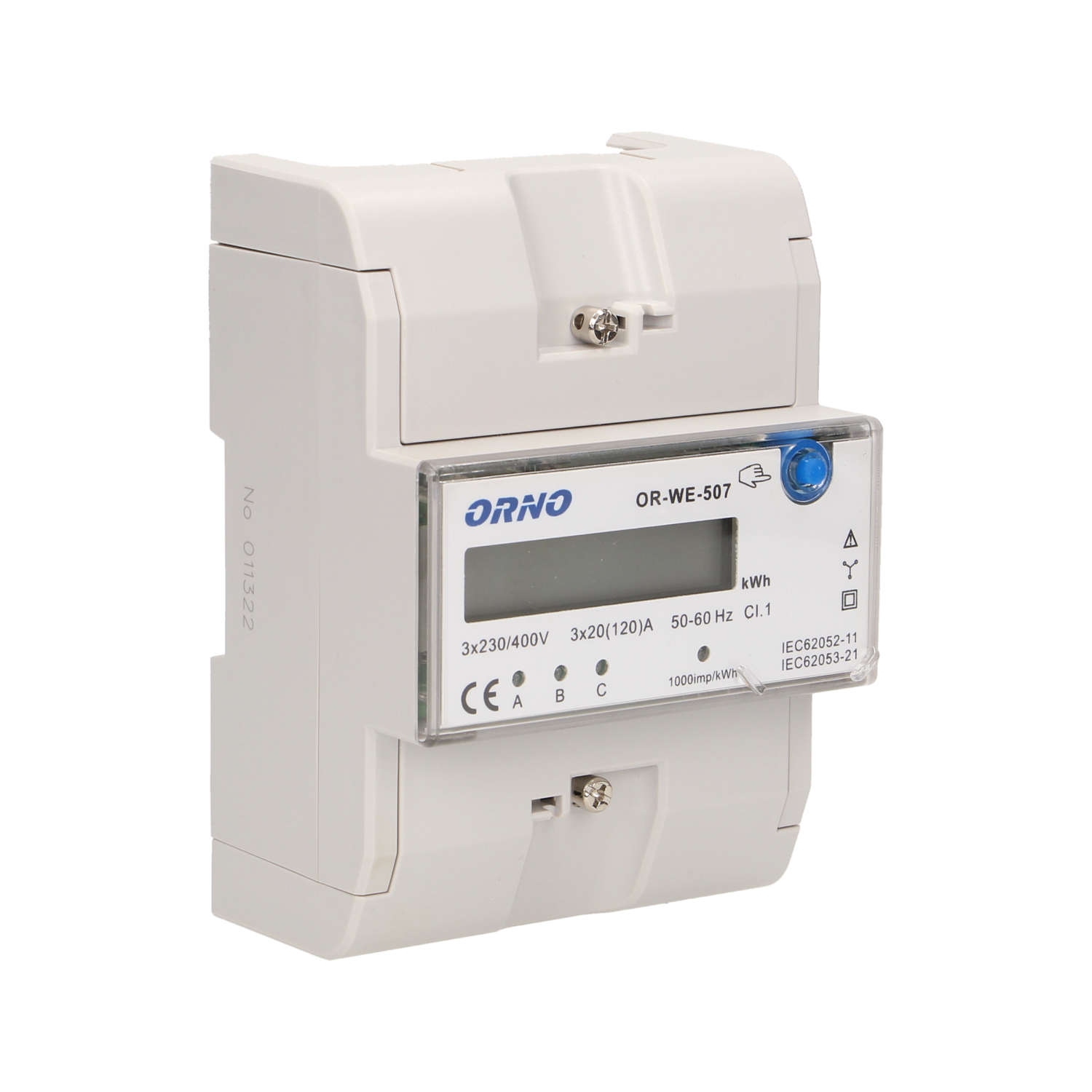

Device for making indications in kWh. A special electronic circuit, by the flow of current and applied voltage generates pulses in proportion to the energy consumed. Phase energy consumption is signaled by a flashing LED. The number of pulses is converted into energy input and its value is indicated on the LCD display (6 + 1). The display at low usage is blank It has a blue button to reset the largest peak load of measuring system, within the last 30 minutes after the load has been switched on.
| General information: | |
|---|---|
| Backlight: | Yes |
| Type: | 3-phase |
| Base current (lb): | 20 A |
| Maximum current (lmax): | 120 A |
| Degree of protection (IP): | 20 |
| Pulse frequency: | 1000 imp/kWh |
| Class of measurement accuracy: | 1 |
| Pulse output: | No |
| Multi-tariff: | No |
| Dimensions - depth: | 128 mm |
| Number of modules: | 5 |
| Dimensions - width: | 90 mm |
| Dimensions - height: | 67 mm |
| Compliance with mid certificate (2014/32/eu): | No |
| Communication protocol: | none |
| Display: | 6+1 " |
| Ports: | none |
