External panels
New

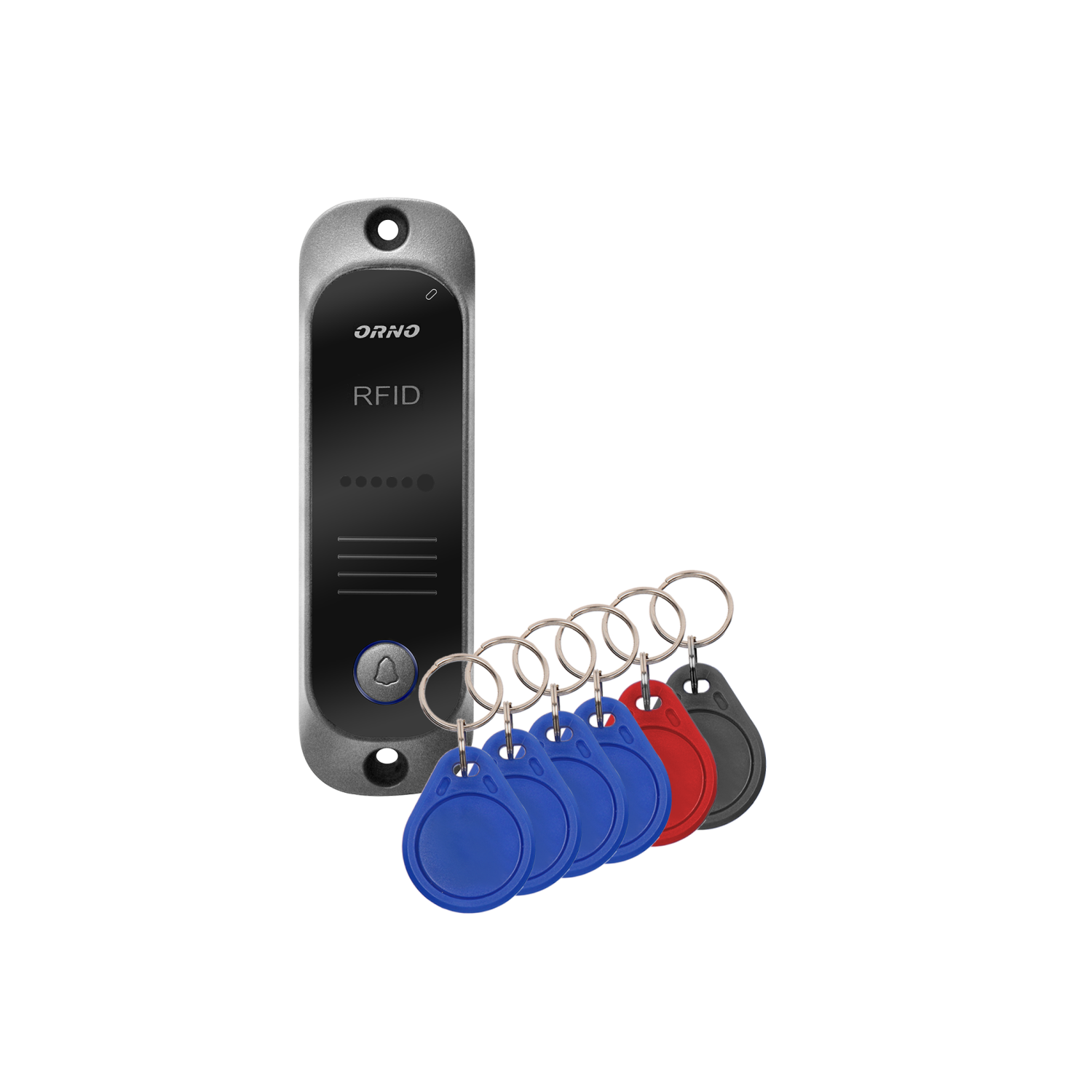

AVIOR compact outdoor panel, is ideal for installation on narrow posts. It forms a part of basic audio doorphone set but it can be also used as an additional expansion for AVIOR series. Intuitive and easy connection allows installation by the user. It is suitable for surface installation. This panel has a built-in RFID reader which enables opening of the electric lock with proximity tags.
| General information: | |
|---|---|
| Installation technique: | Multi-wire system |
| Number of wires: | 3+2 |
| Height: | 140.6 mm |
| Depth: | 29.3 mm |
| Number of call buttons: | 1 |
| Operation mode: | Push button |
| Mounting method: | Surface mounted (plaster) |
| Card and proximity tags reader: | Yes |
| Frequency of proximity cards and tags: | 125 kHz |
| Colour: | Black-silver |
| Width: | 43.2 mm |
