External panels

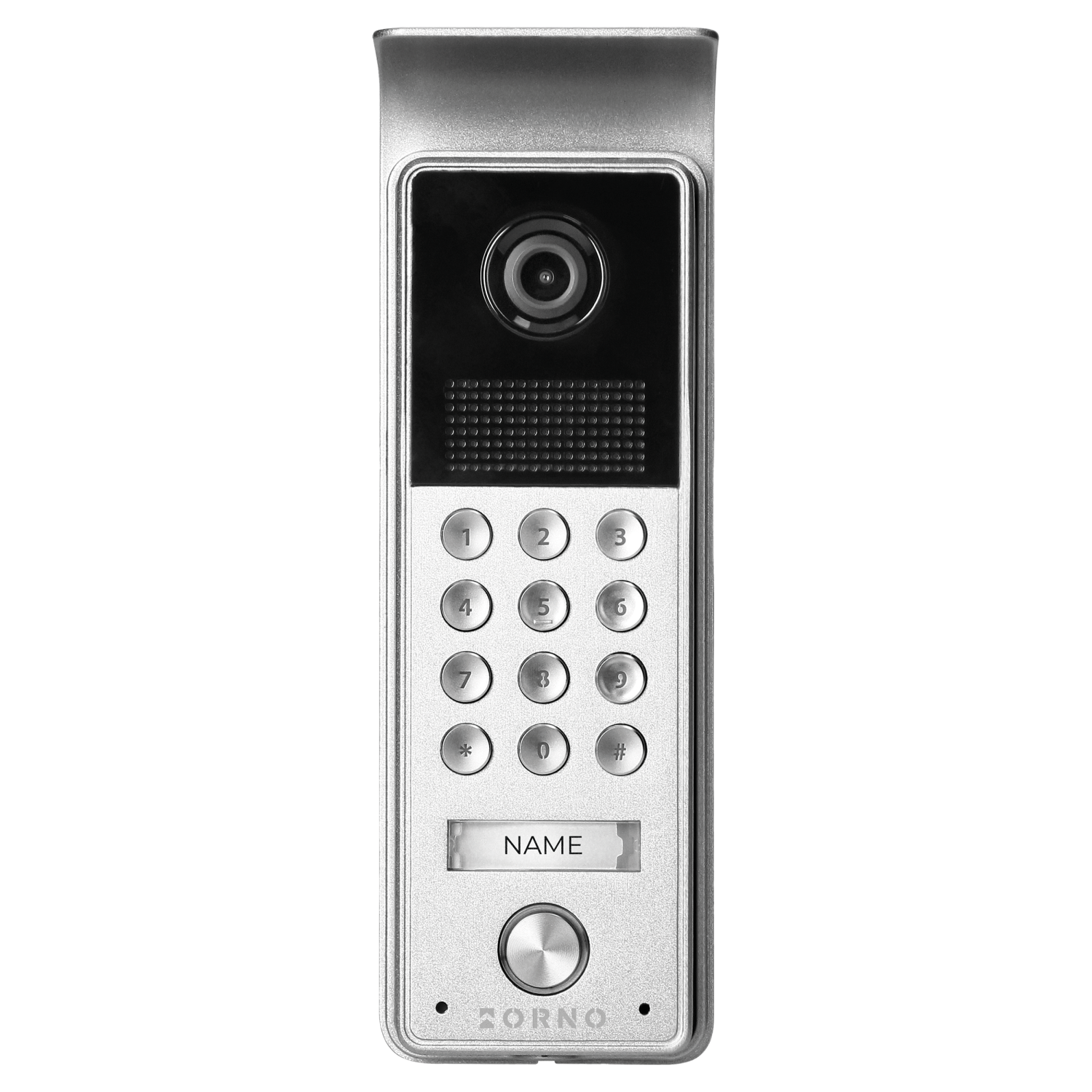

The single-family video outdoor unit for expansion of the CERES Full HD-set allows access to the property for authorised persons using the code lock built into the unit. The outdoor unit also has a space for a name label.
The wide angle 112° horizontal and 54° vertical camera, built into the CERES Full HD outdoor unit, provides a full view in front of the wicket both during a call and monitoring called directly from the monitor.
An outdoor unit equipped with a motion sensor allows video and still images to be recorded when movement is detected in front of the wicket, and the entire event will be saved on a microSD card. The 1920x1080 Mpx Full HD camera captures videos and photos with very clear images. IR night lighting ensures excellent image quality even after dark.
The 50x150 mm device is made of aluminium and has a rainshield cover. The high IP65 protection rating gives peace of mind about durability and weather resistance.
The set can be extended with an additional outdoor unit (max. 2 per set).
| General information: | |
|---|---|
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor unit to electric strike): | 4 (+2)* |
| Mounting method: | Montaż natynkowy |
| Modular construction: | nie |
| Number of call buttons: | 1 |
| Operation mode: | Przycisk |
| With camera: | tak |
| Resolution of the camera: | 1920x1080 |
| View angle (horizontal): | 112° |
| View angle (vertical): | 54° |
| Night lighting: | IR |
| With digital door code: | tak |
| Card and proximity tags reader: | nie |
| Label space/information surface: | tak |
| With cover: | tak |
| Degree of protection (IP): | IP65 |
| Material front: | Aluminium |
| Colour: | Srebrny |
| Width [mm]: | 50 |
| Height [mm]: | 150 |
| Depth [mm]: | 26 |
