External panels

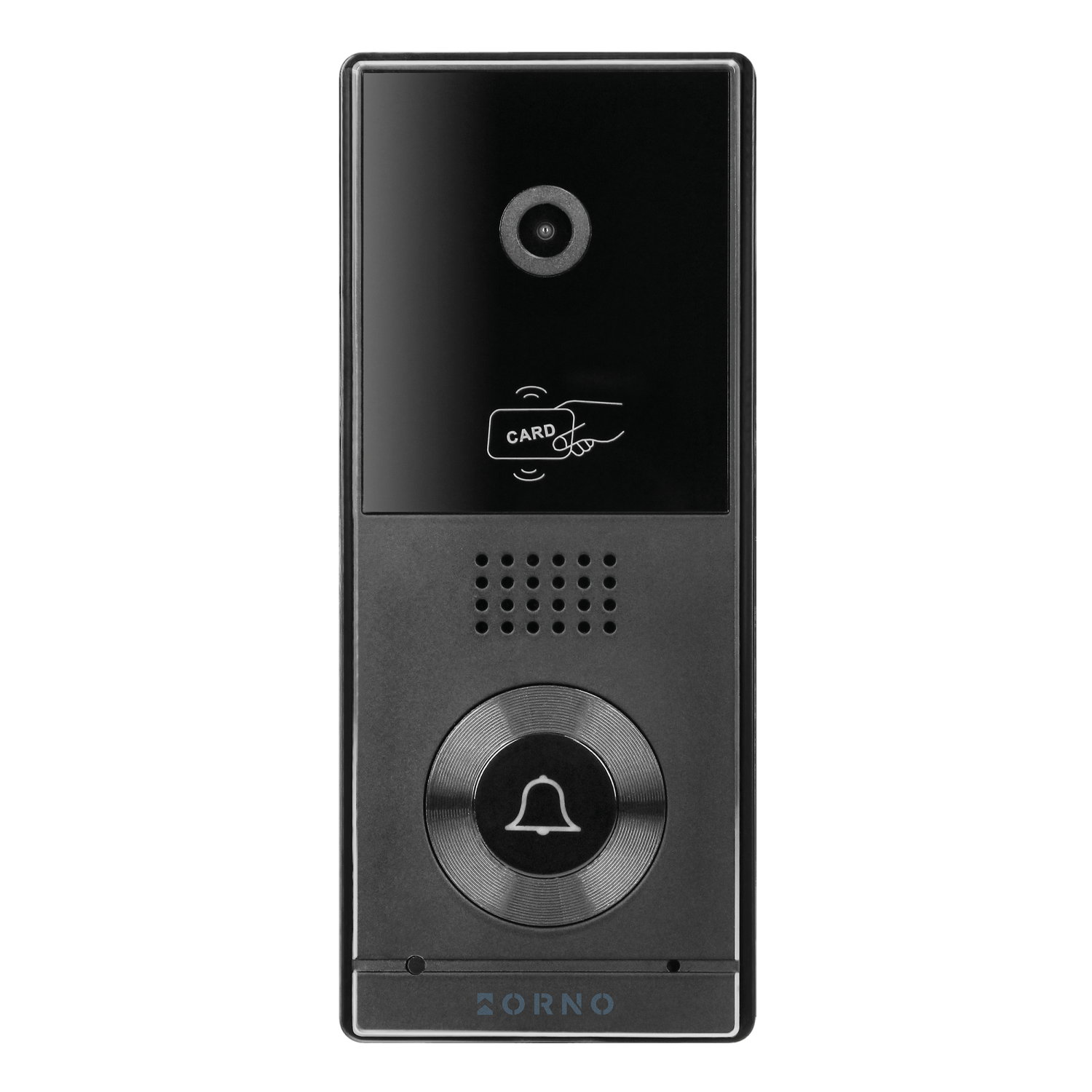

The single-family video outdoor unit to expand XIRAN set is the solution that increases safety of both property and its owners ensuring at the same time comfort and easiness of use.
RFID reader incorporated in the outdoor unit facilitates smooth access to the property for authorised persons. Owners may conveniently enter the premises using Mifare proximity cards and tags; thus, eliminating the risk of unauthorised entry.
High IP65 ingress protection rate and aluminium from which it is manufactured guarantee resistance to severe weather conditions and protect the device from external factors.
The device features manual and automatic photography and video Full HD recording (on microSD card), as well as, thanks to the built-in motion sensor, it alarms if a person is walking around the house. Both functions provide additional sense of security.
You do not need to run additional wires to the wicket as the electric strike with the max. current consumption of 300mA is supplied directly from the screen’s power supply, which is a convenient solution. This facilitates installation of the device.
The outdoor panel measures 68x159 mm. Thanks to slim body construction it may be mounted even on a narrow fence post.
Max. 2 outdoor units may expand the XIRAN set.
| General information: | |
|---|---|
| Installation technique: | Dwużyłowe |
| Number of wires (*from outdoor unit to electric strike): | 2 (+2)* |
| Mounting method: | Montaż natynkowy |
| Modular construction: | nie |
| Number of call buttons: | 1 |
| Operation mode: | Przycisk |
| With camera: | tak |
| Resolution of the camera: | 1920x1080 |
| View angle (horizontal): | 108° |
| View angle (vertical): | 54° |
| Night lighting: | IR |
| With digital door code: | nie |
| Card and proximity tags reader: | tak |
| RFID tags frequency: | 13,56MHz |
| Label space/information surface: | nie |
| With cover: | nie |
| Degree of protection (IP): | IP65 |
| Material front: | Aluminium |
| Colour: | Czarny |
| Width [mm]: | 67 |
| Height [mm]: | 159 |
| Depth [mm]: | 31 |
| Other features: | RFID - max. 200 użytkowników (breloki w zestawie: 5 użytkownika + 2 administracyjne) |
