External panels

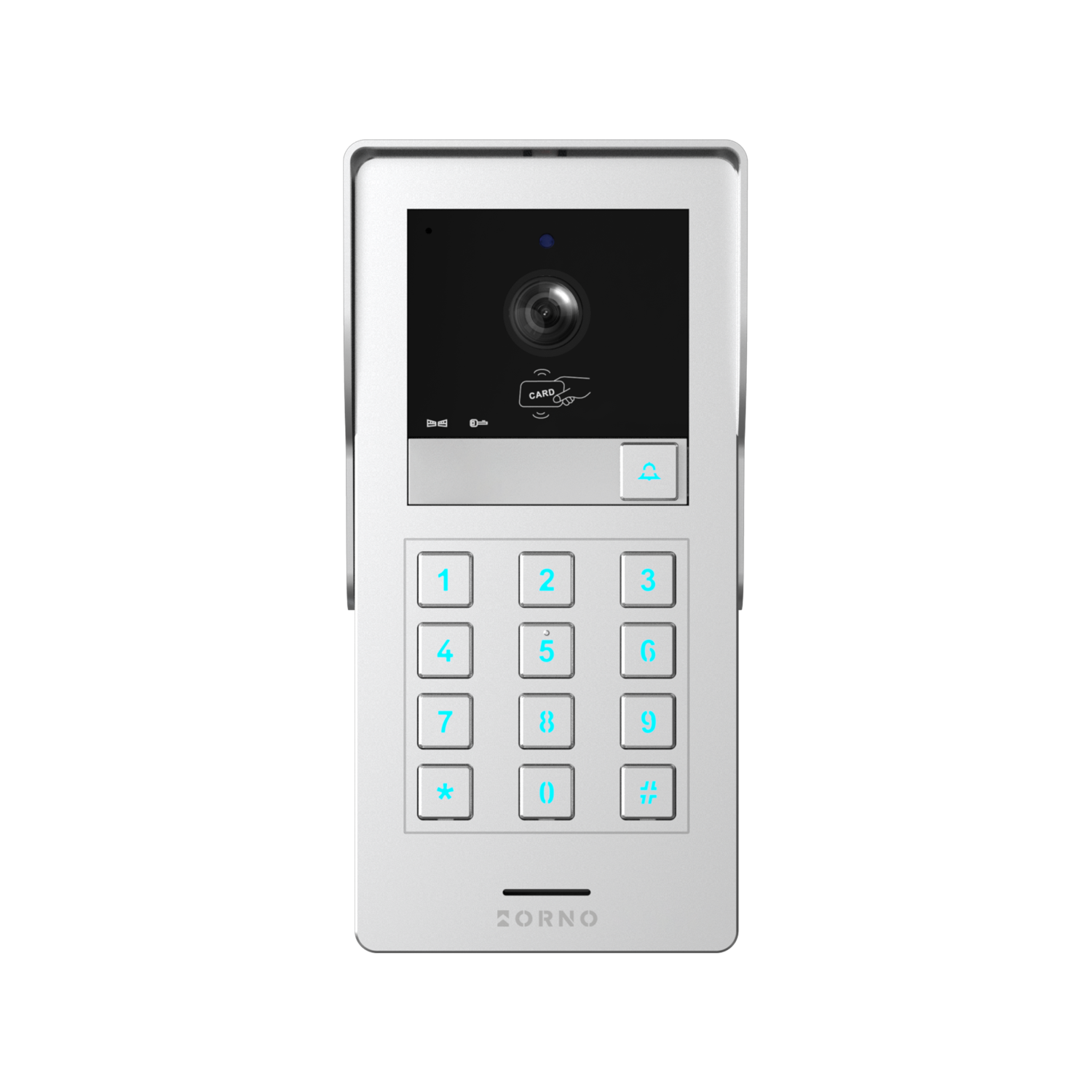

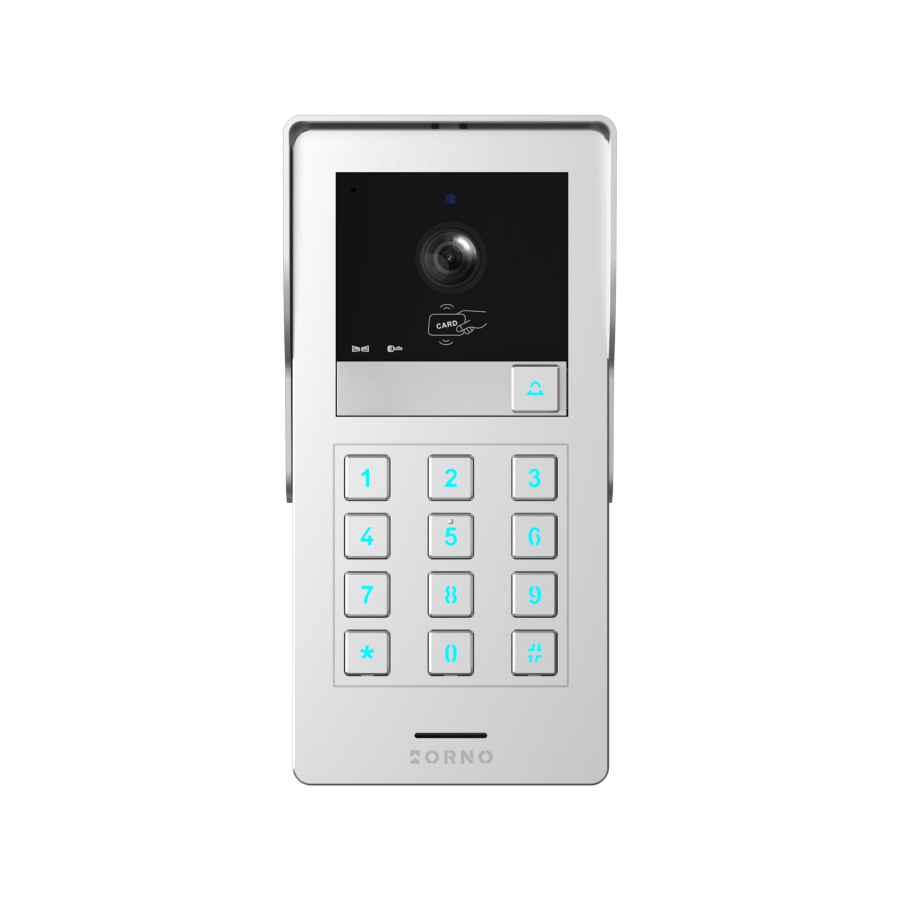

Single family video outdoor unit to expand GAYD set, which ensures full control over entrances to a property.
The GAYD outdoor unit is equipped with a 2MP camera, which takes pictures and records video footage in a very good Full HD quality. A wide viewing angle of 52° vertically and 105° horizontally provides a full picture from in front of the wicket. In addition, IR lighting guarantees visibility at night without blinding the visitor (range up to 1m).
The built-in motion sensor records photos and videos after detecting movement near the wicket (detects an intruder and alerts about it). The incidents are recorded on a microSD card installed in the monitor.
The outdoor unit is made of aluminium and is IP65 rated. It has a protective rain cover which provides peace of mind about its durability. A built-in code lock and RFID 125kHz proximity card and tag reader facilitate easy entrance for authorized persons, and a name tag allows visitors to easily find the correct property without the risk of confusion.
The outdoor unit is silver with dimensions of 91x184 mm. The installation is universal as it may be surface- or flush-mounted.
The possibility of expanding the GAYD set with additional outdoor unit (max. 2 per set) and additional IP camera (max. 2 per set) enhances the feeling of security, thus providing a comprehensive entry control over a property.
| General information: | |
|---|---|
| Installation technique: | Dwużyłowe |
| Number of wires (*from outdoor unit to electric strike): | 2 (+2)* |
| Mounting method: | Montaż natynkowy lub podtynkowy |
| Number of call buttons: | 1 |
| Operation mode: | Przycisk |
| With camera: | tak |
| Resolution of the camera: | 2MP, 1920x1080, 1080p |
| View angle (horizontal) [°]: | 105 |
| View angle (vertical) [°]: | 52 |
| Night lighting: | IR |
| With digital door code: | tak |
| Card and proximity tags reader: | tak |
| RFID tags frequency: | 125kHz |
| Label space/information surface: | tak |
| With cover: | tak |
| Degree of protection (IP): | IP65 |
| Material front: | Aluminium |
| Colour: | Srebrny |
| Width [mm]: | 91 |
| Height [mm]: | 184 |
| Depth [mm]: | 43 |
| Built-in width [mm]: | 83 |
| Built-in height [mm]: | 183 |
| Built-in depth [mm]: | 35 |
