OR-VID-MO-1076KV/S

Description

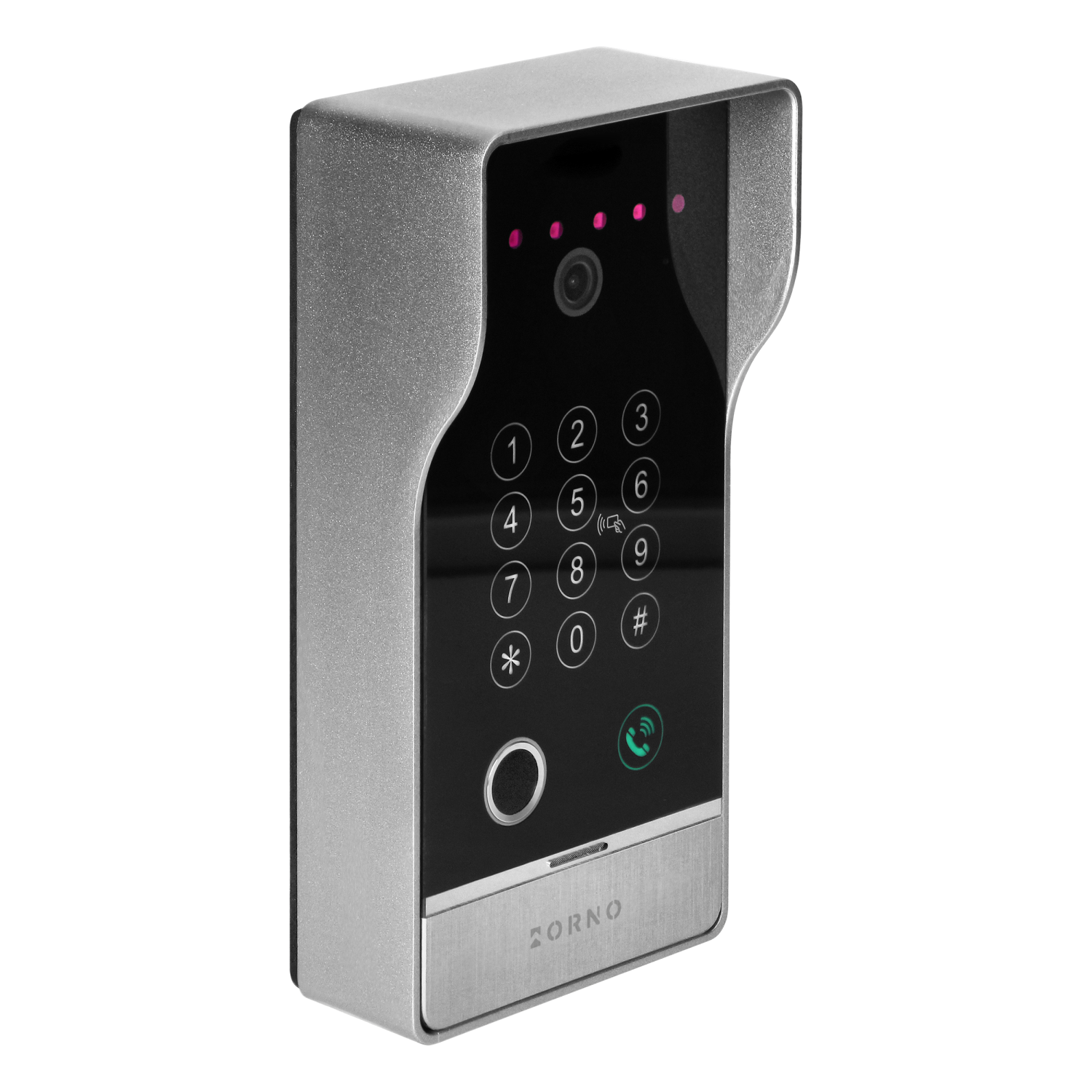

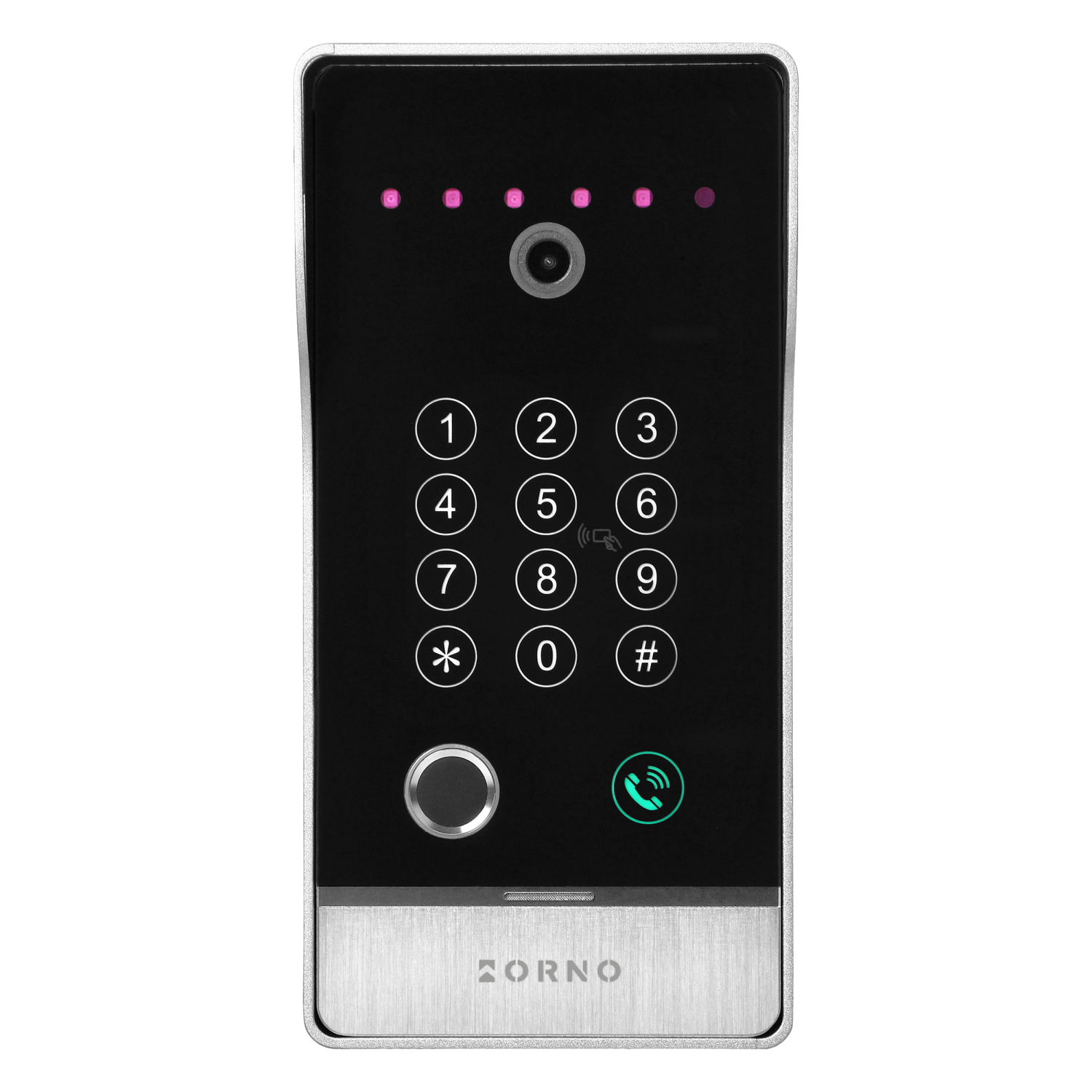

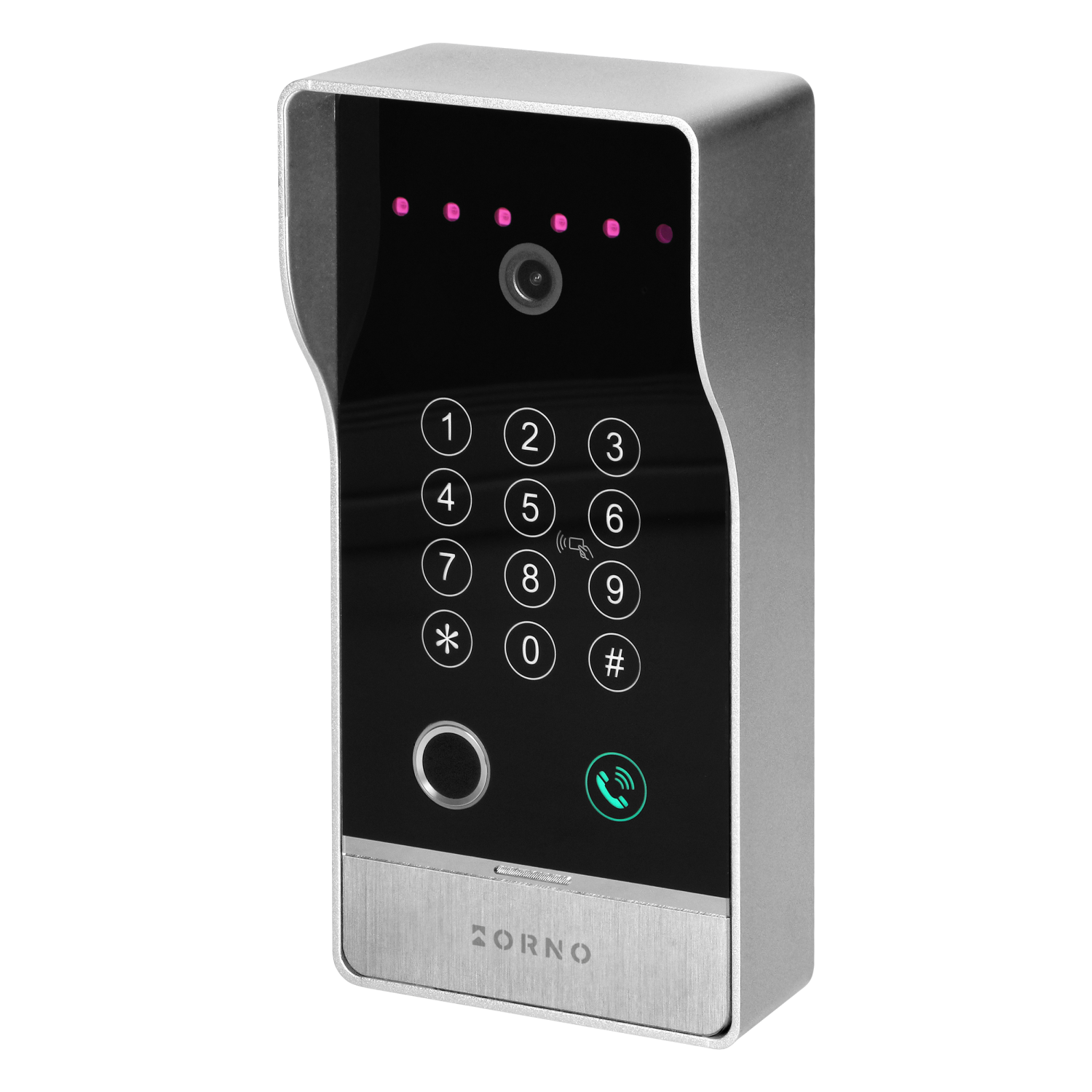

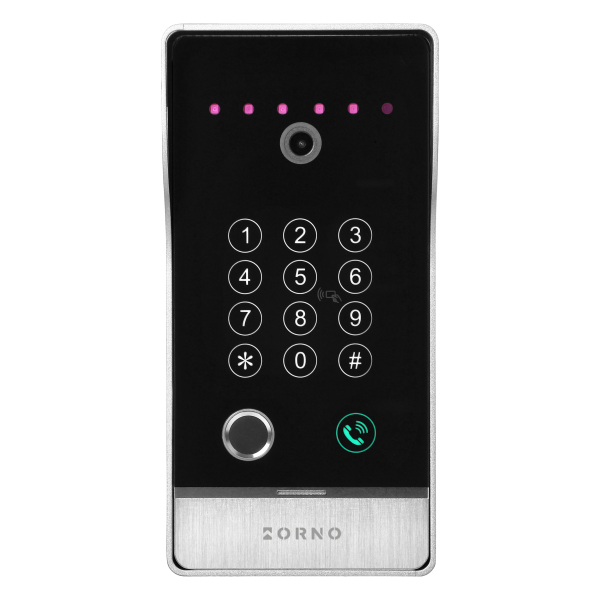

An outdoor panel with Full HD 1080p camera for GUARDO set extension. For a single family. Surface mounted. Waterproof: IP65 protection means we don't have to worry about the external panel even in heavy, driving rain. Gate control: easily opened with a fingerprint, proximity card or PIN code on the illuminated keypad of the code lock.

General information:
Installation technique: Multi-wire system
Number of wires: 4
Height: 200 mm
Depth: 55 mm
Number of call buttons: 1
With camera: Yes
Mounting method: Surface mounted (plaster)
Horizontal field of view: 107 °
Vertical field of view: 54 °
With digital door code: Yes
Card and proximity tags reader: Yes
Frequency of proximity cards and tags: 125 kHz
Colour: Black-silver
With cover: Yes
Degree of protection (IP): IP65
Width: 100 mm

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:47Download
Product data sheetENpdf2024-07-17 10:22:31Download
User manualPLpdf2024-03-14 10:39:51Download
User manualENpdf2024-03-14 10:39:51Download
User manualDEpdf2024-03-14 10:39:51Download
