OR-ZL-1652

Description

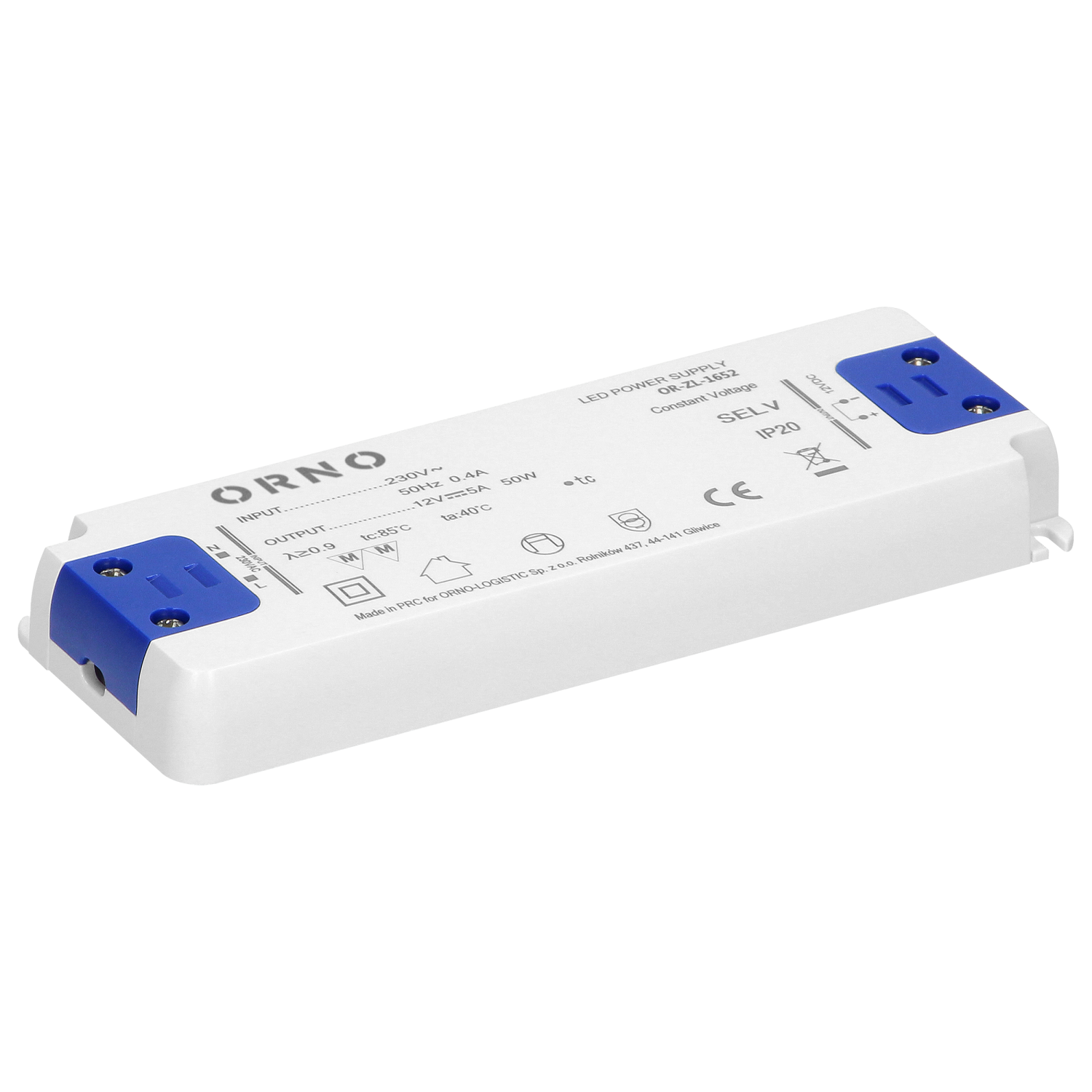

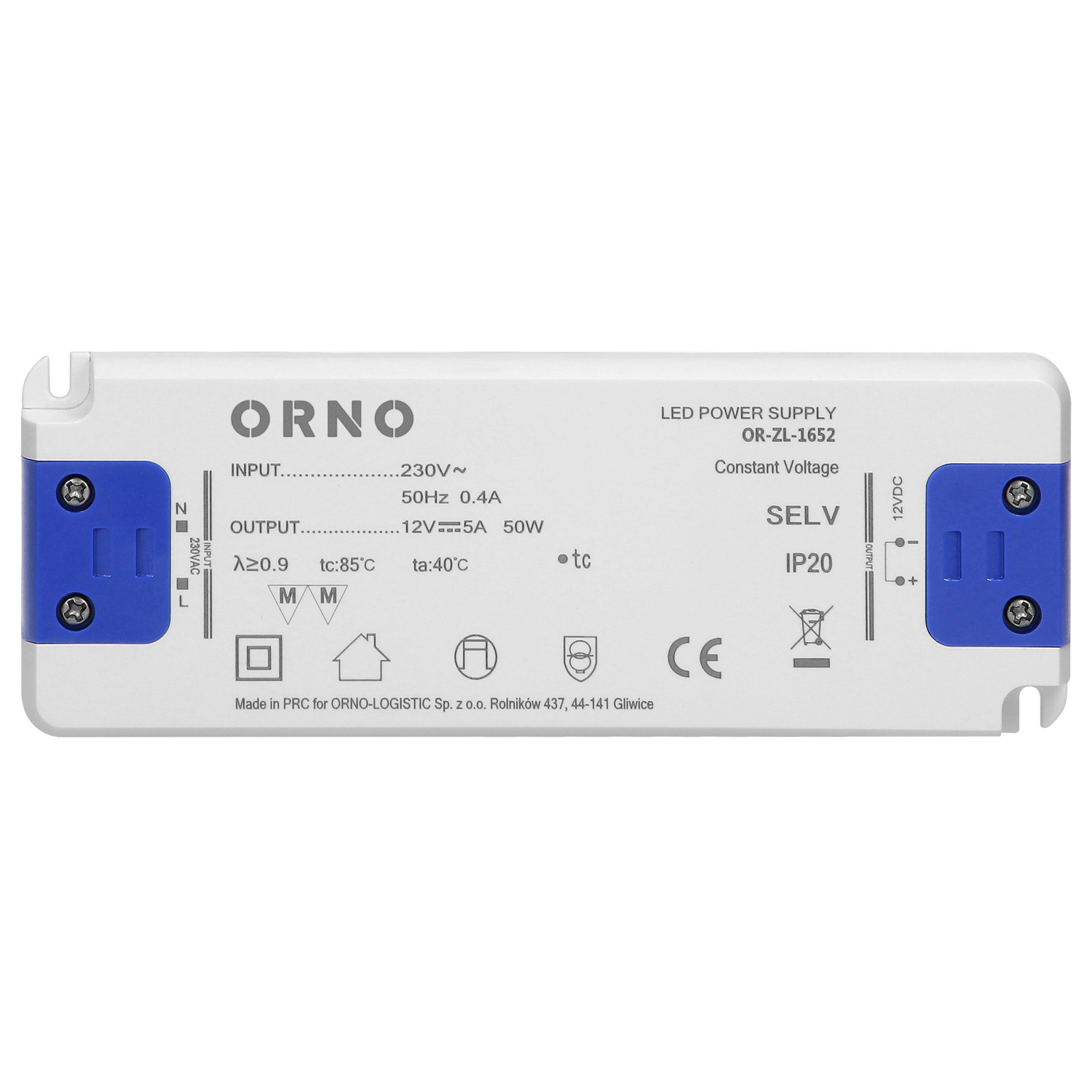

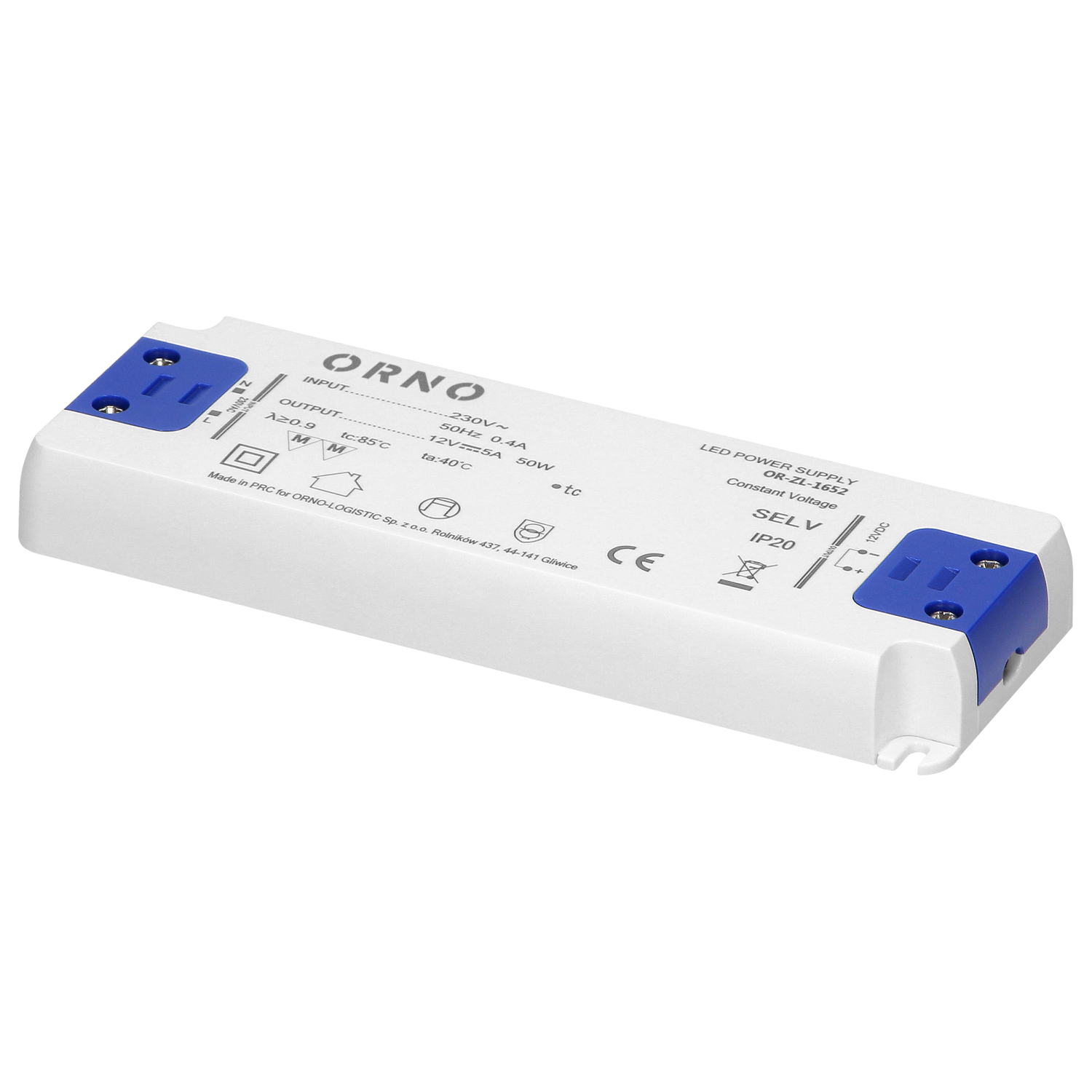

Flat power adaptor of 12V DC output voltage and 50W max. load. It supplies power to LED lighting in a dry environment. Its insulated housing is made of plastic. This power adaptor has got both input and output connection terminals. Wires are not included. Height: 18mm.

General information:
Rated power: 50 W
Output voltage: 12V DC V
Input voltage: 230V ~
Degree of protection (IP): 20
Output current: 5 A
Installation: surface /in a furniture board
Dimensions - depth: 18 mm
Dimensions - width: 160 mm
Dimensions - height: 58 mm

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:15:00Download
Product data sheetENpdf2024-07-17 10:22:45Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
User manualHRpdf2024-03-14 10:39:51Download
