Flush-mounted sockets

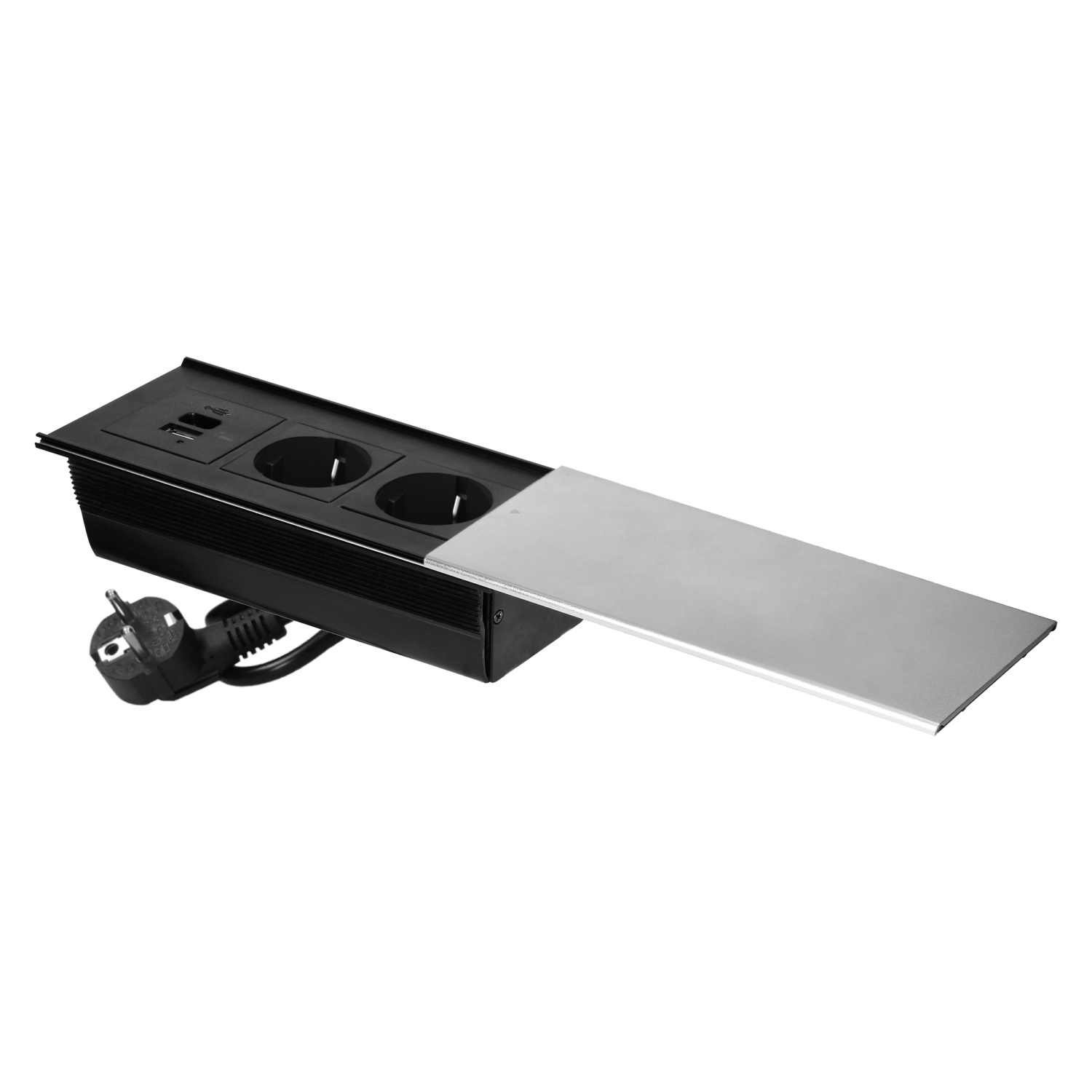

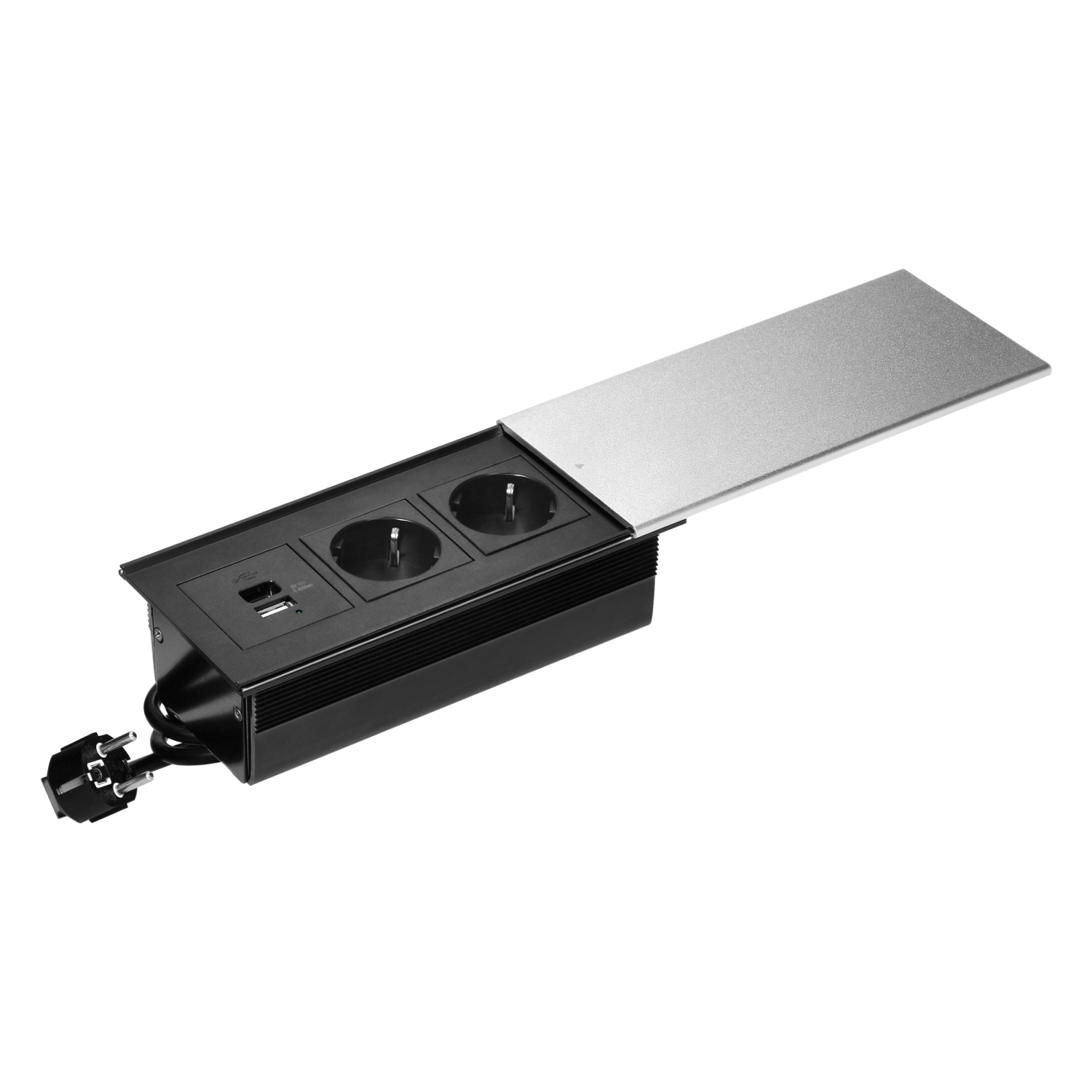

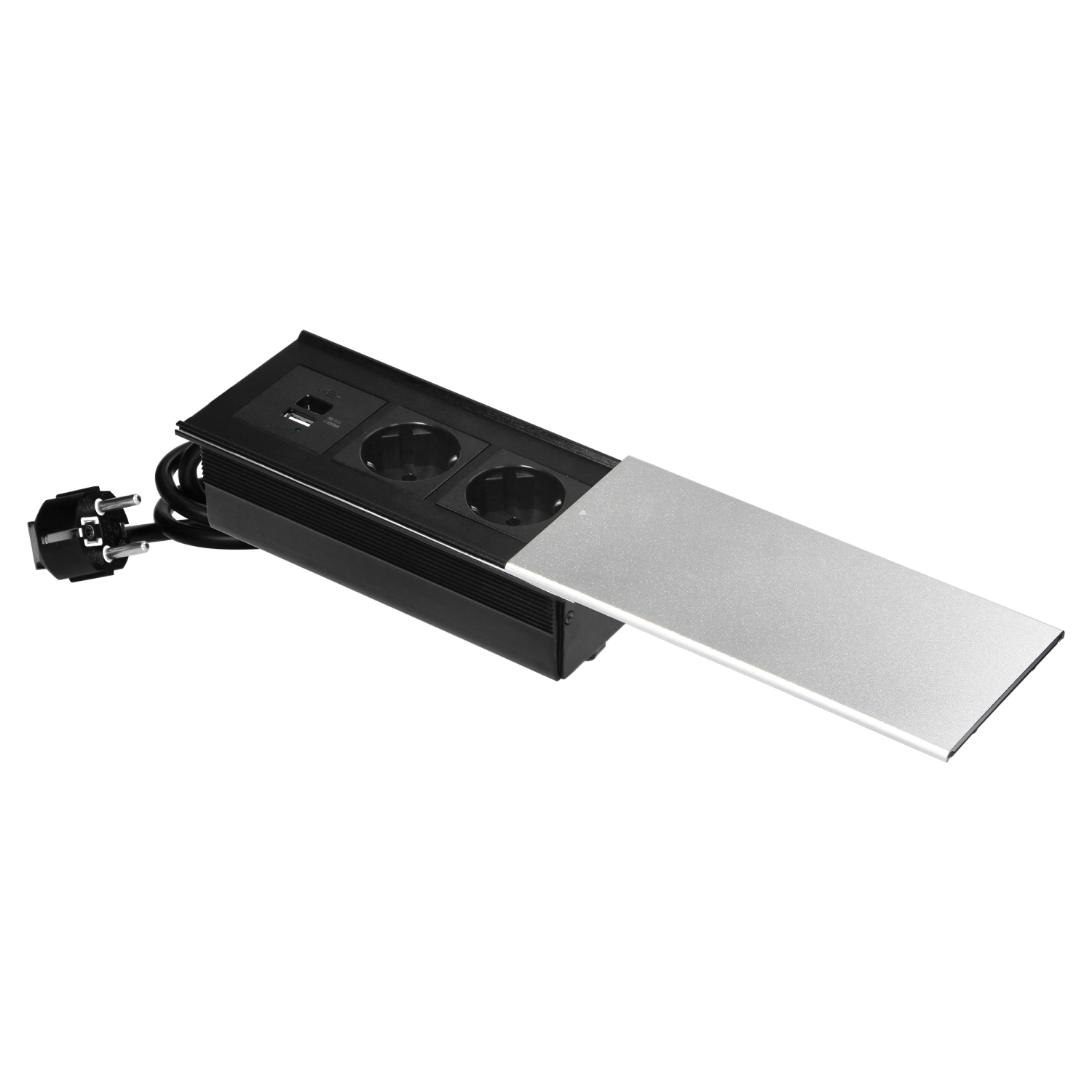

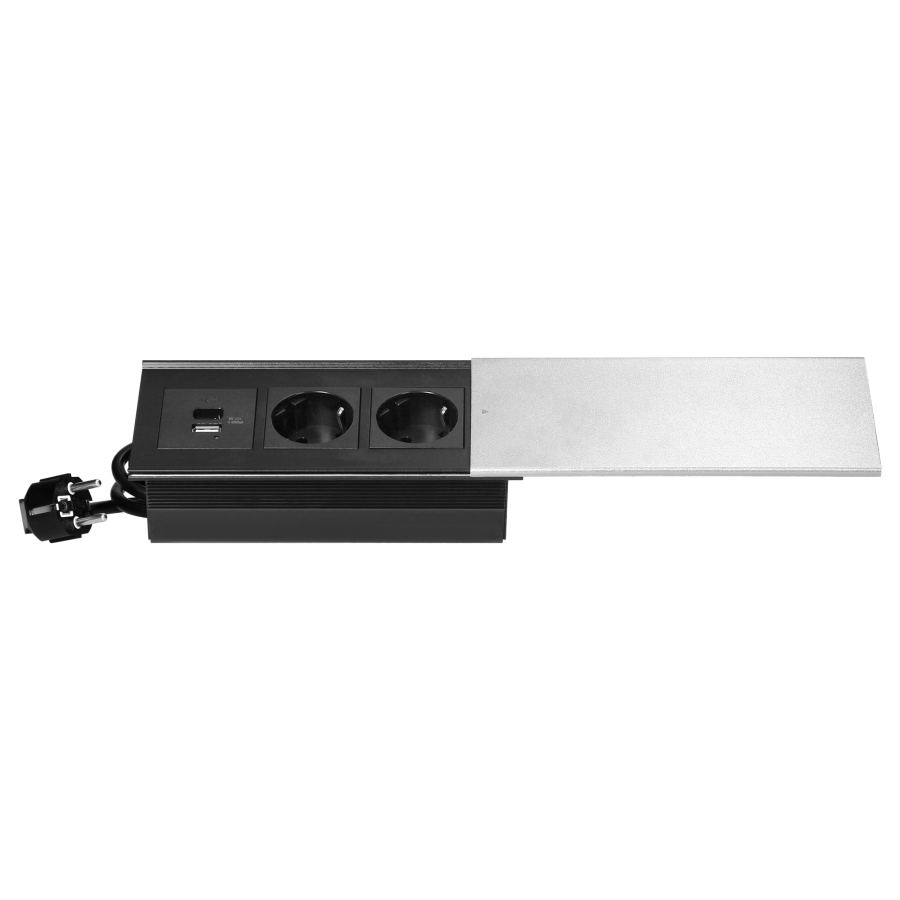

The furniture socket with a sliding cover is a modern solution for charging mobile devices. Closed in a minimalistic silver body if facilitates the user a comfortable access to electricity blending simultaneously with modern interiors.

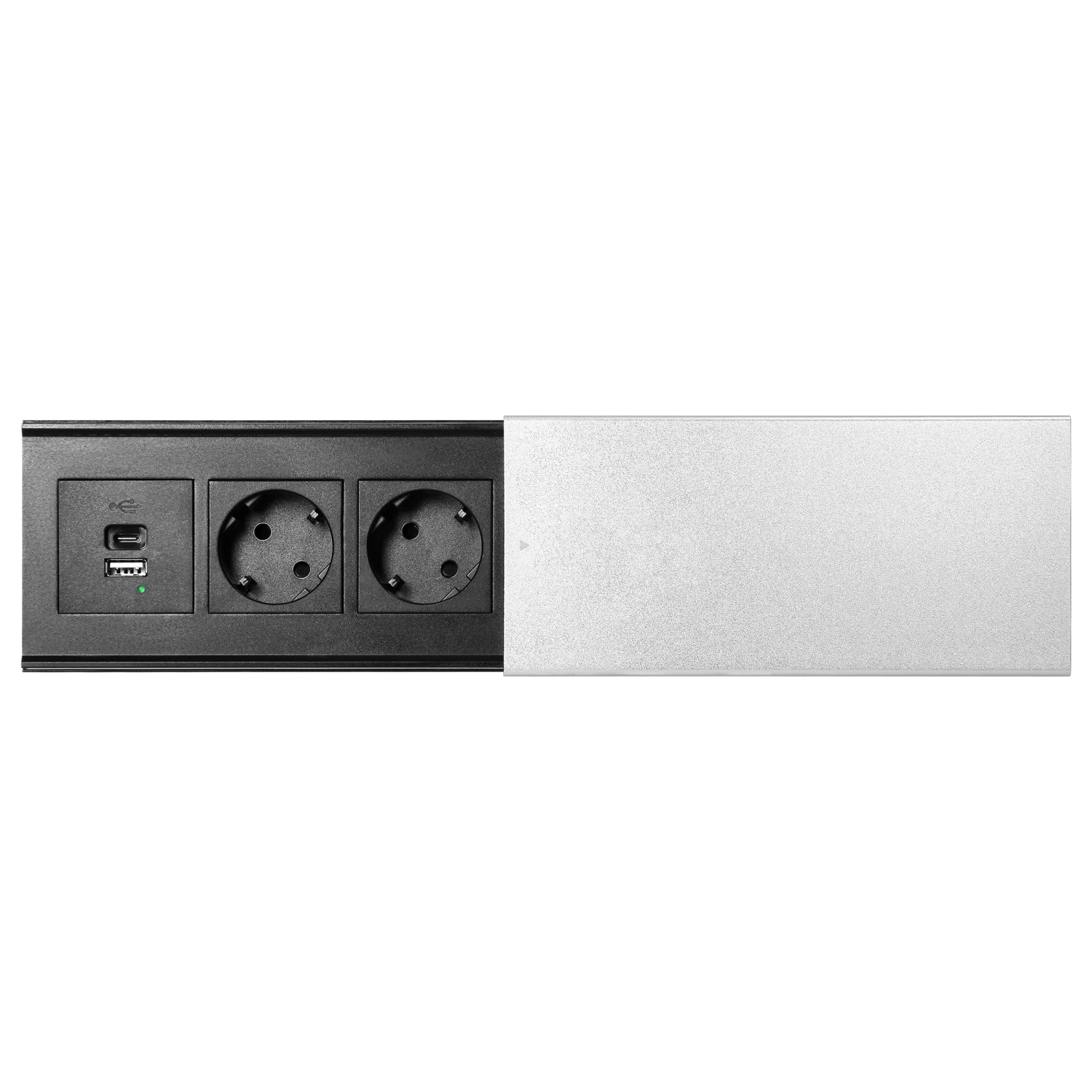

The two Schuko-type sockets (2x2P+E) ensure smooth connecting of various electrical appliances with max. load of 3680W. Additionally, two USB ports (1xUSB-A, 1xUSB-C) enable quick and effective charging of smartphones, tablets and other devices using the ports.
The USB charger output of 5V/4,2A ensures stable and quick charging, being at the same time safe for connected appliances. The 1,8m length cable facilitates to place the socket according to one’s own preferences. The wire’s cross section is 3x1,5mm2.

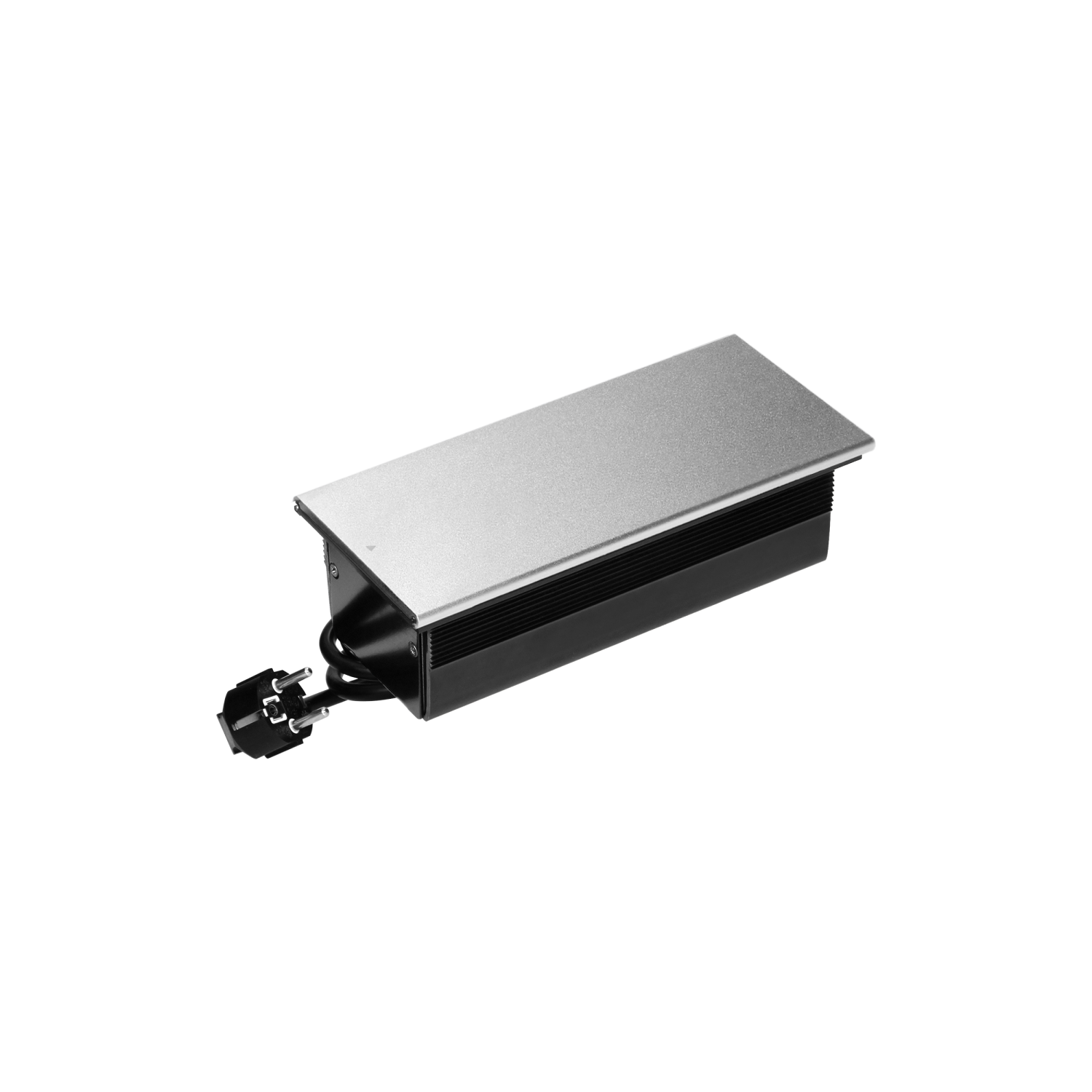

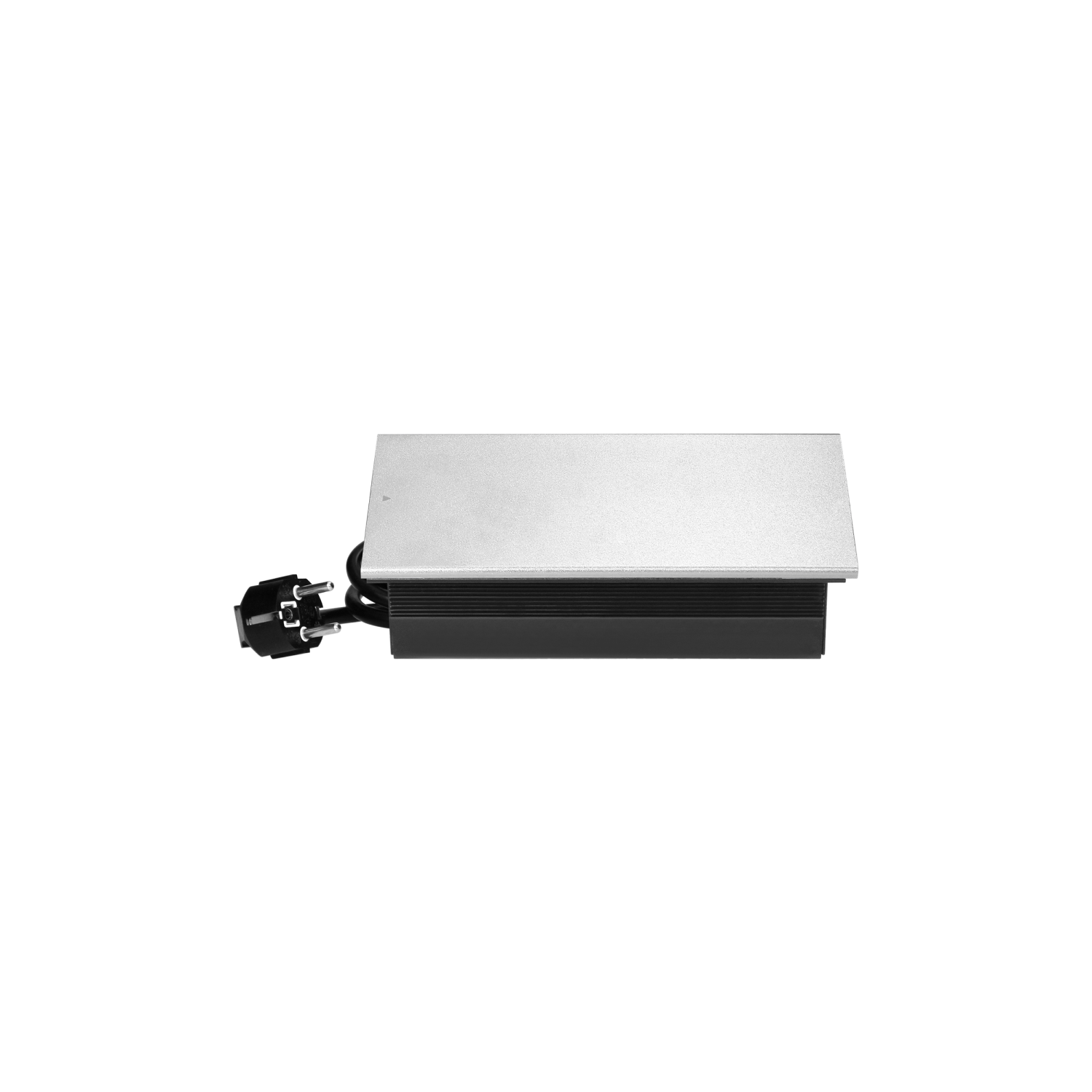

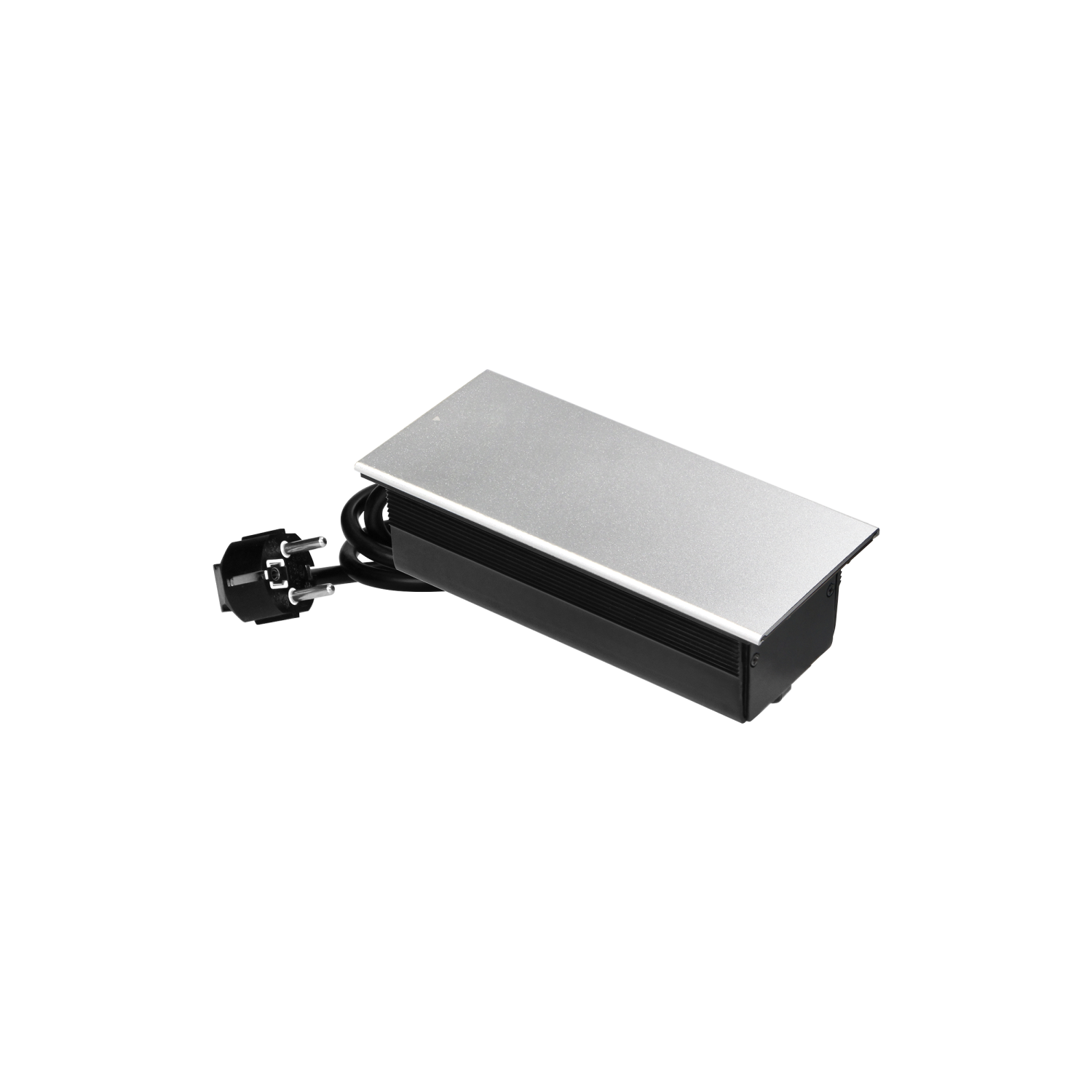

The presented socket is rectangular and measures 86x190 mm. The thickness of the edge is 7 mm, thanks to which the sockets may be discreetly built into, e. g. a desk or kitchen countertop, and the sliding cover aesthetically closes the appliance.
The socket is made of high-quality plastic and durable aluminium, therefore, is damage resistant. The dimensions of the mounting hole measure 175x70mm.
The socket available also in French-type version.
| General information: | |
|---|---|
| Model: | Do wbudowania |
| Extendable: | tak |
| Nominal voltage [V]: | 230 |
| Frequency [Hz]: | 50 |
| Max. Load [W]: | 3680 |
| Standard of the socket: | Schuko (typ F) |
| Number of socket outlets with protective contact (SCHUKO): | 2 |
| Number of USB connections: | 2 |
| USB port type: | 1xUSB-A, 1x USB-C |
| With built-in USB power supply: | tak |
| Output voltage of the USB charger: | 5V/4,2A |
| Degree of protection (IP): | IP20 |
| Shape: | Prostokątny |
| Length [mm]: | 190 |
| Width [mm]: | 86 |
| Height [mm]: | 65 |
| Edge thickness [mm]: | 7 |
| Dimensions of the mounting hole -length [mm]: | 175 |
| Dimensions of the mounting hole - width [mm]: | 70 |
| Material: | Tworzywo sztuczne + Aluminium |
| Color: | Srebrny |
| Wire length [m]: | 1.8 |
| Wire cross section: | 3x1,5mm2 |
