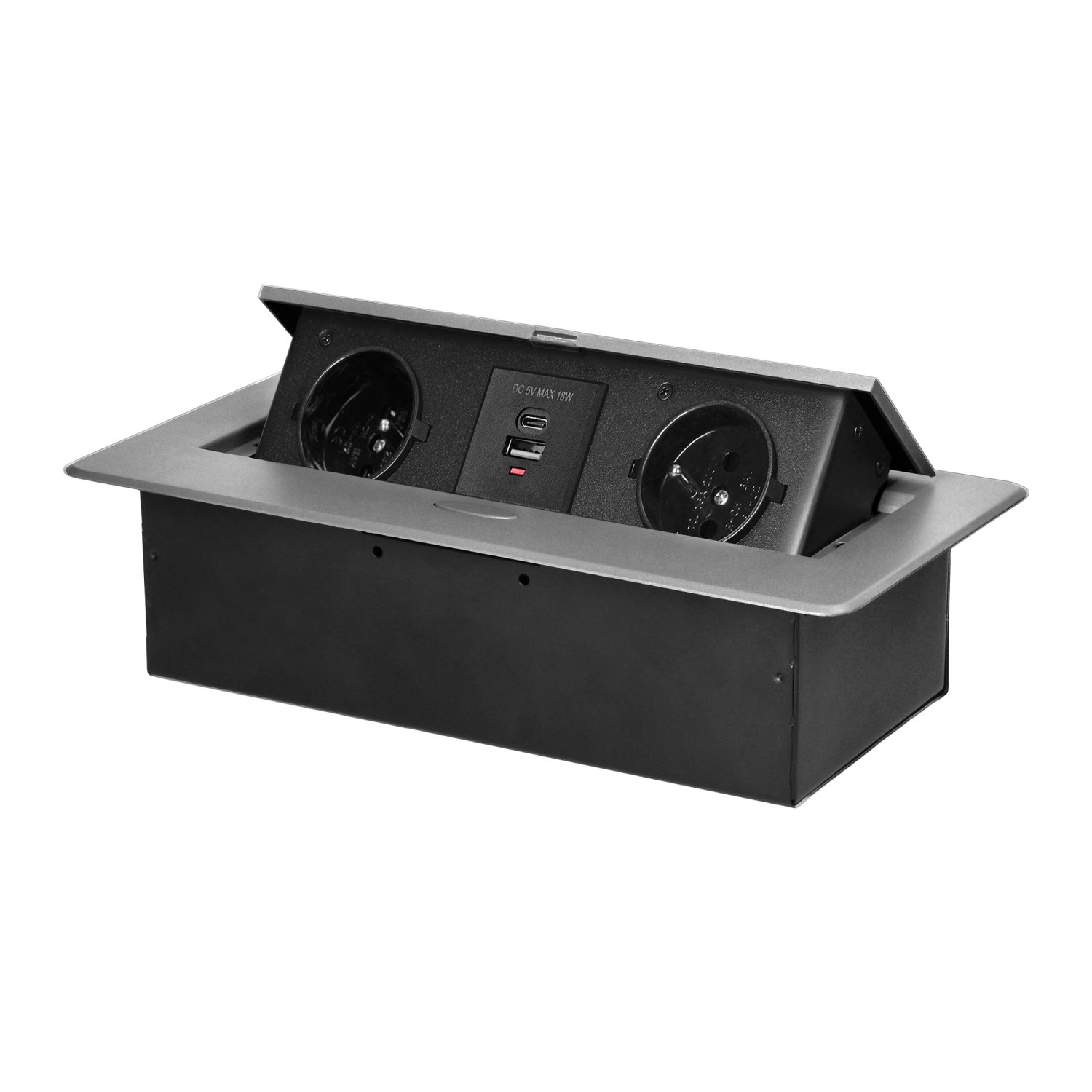

The recessed furniture socket with a flat, milled edge is characterised not only by its minimalist design, but also by its functionality. The milled edge allows to install the socket cassette esthetically, so that mounting hole and cut lines remain covered.
A distinguishing feature of the new powerbox model is the complete bottom housing, which facilitates installation and improves safety. No access to the mains sockets and an additionally covered cable gland with a rubber seal protects against unwanted ingress and mechanical damage. The socket also has safety shutters, and the whole housing enables closing the hinged cover and hiding the unused device flat in the countertop.
The silver, powder-coated socket match well with the finish of most furniture and will colourfully blend in with most arrangements. The refined shape makes the use of a furniture recessed socket a stylish alternative to the usual extension cords or power strip, and effectively avoids tangled cables.
The use of high quality materials, zinc and steel alloys, guarantees safe and comfortable use for many years and resistance to damage.
The device has an IP20 protection level and is ideal for use in the home, office, reception, conference room, school study, dry zones of the kitchen or in a hotel.
The closing, recessed furniture socket allows connecting two devices at the same time, as it is equipped with two earthed French-type sockets (2x2P+E) and another two, powered from two USB ports (type A and C).
The maximum load of the device is 3680W. You can easily plug in, for example, a home office in the form of a monitor and laptop, charge a phone or powerbank, and close the socket when finished working. We recommend a 3 x 1.5mm2 cable for the socket.
General information: | |
---|---|
Model: | Do wbudowania |
Folding: | tak |
Extendable: | nie |
Nominal voltage: | 230V AC |
Frequency: | 50Hz |
Max. load: | 3680W |
Standard of the socket: | French (typ E) |
Number of socket outlets French standard (Type E): | 2 |
Number of USB connections: | 2 |
USB port type: | 1xUSB-A, 1x USB-C |
With built-in USB power supply: | tak |
Output voltage of the USB charger: | 5V/3,6A |
Wireless charger: | nie |
Degree of protection (IP): | IP20 |
Shape: | Prostokątny |
Length: | 132mm |
Width: | 265mm |
Height: | 67,5mm |
Edge thickness: | 2,5mm |
Dimensions of the mounting hole -length: | 112mm |
Dimensions of the mounting hole - width: | 226mm |
Built-in depth: | 65mm |
Material: | stop cynku i stal |
Color: | Srebrny |
Other: | pełna dolna zabudowa |
