Recessed furniture socket with flat milled edge and opening mechanism, 3x2P+E (Schuko),2xNET,1xHDMI
Recessed furniture socket with flat milled edge and opening mechanism, 3x2P+E (Schuko),2xNET,1xHDMI

Recessed furniture socket with flat milled edge and opening mechanism, 3x2P+E (Schuko),2xNET,1xHDMI

OR-GM-9038(GS)

Description

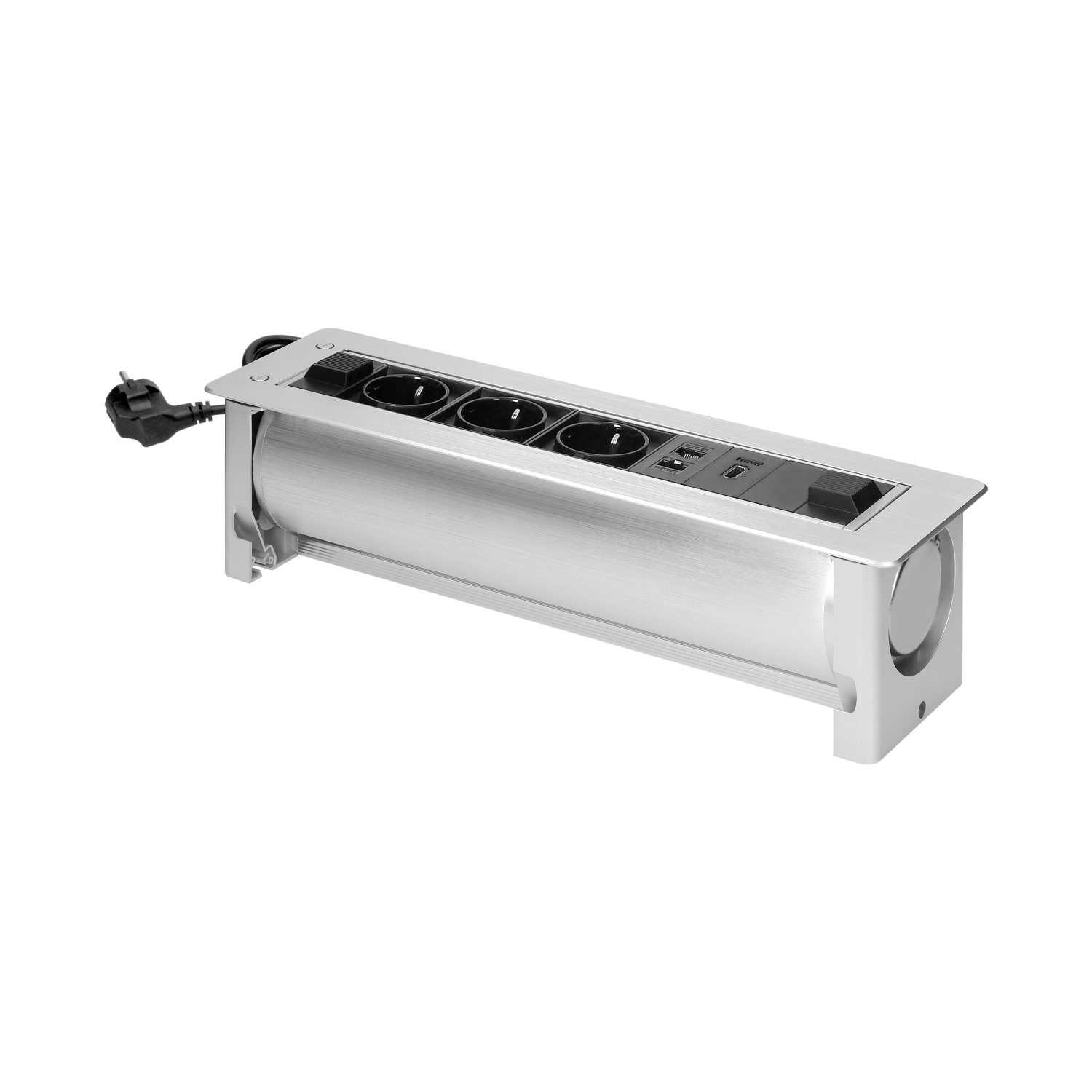

A flush-mounted furniture socket with a flat milled edge and opening mechanism, containing three Schuko-type (F-type) sockets with earthing and safety shutters, two RJ45 CAT 5E network sockets and one HDMI 2.0 socket. This configuration makes the socket versatile and ideal for use in the office, conference room, study or even at home.

The socket has a flat milled edge that creates a harmonious composition with the countertop surface. The device features an innovative opening & closing mechanism (180° rotation) and photo electric protection against closing.

The socket can be mounted both vertically and horizontally. The product is made of high-quality plastic and aluminium and comes in an elegant silver colour. The universal and classic design facilitates everyday use and also looks great.

The socket is also fitted with a standard 1.50 m power cable.

General information:
Model: Do wbudowania
Folding: tak
Extendable: nie
Nominal voltage [V]: AC 230
Frequency [Hz]: 50
Max. load [W]: 3680
Standard of the socket: Schuko (typ F)
Number of socket outlets with protective contact (SCHUKO): 3
Number of HDMI-connections: 1
Standard of the HDMI port: 2.0
Number of RJ45 CAT 5E connections: 2
Degree of protection (IP): IP20
Shape: Prostokątny
Length: 120
Width: 369
Height: 103
Dimensions of the mounting hole -length: 108
Dimensions of the mounting hole - width: 358
Built-in depth: 101
Material: aluminium i tworzywo sztuczne
Color: Srebrny
Wire length: 1.5
Wire cross section: 1.5
Others: mechanizm elektrycznego otwierania i zamykania

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:13:12Download
Product data sheetENpdf2024-07-17 10:21:06Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
