For junction box

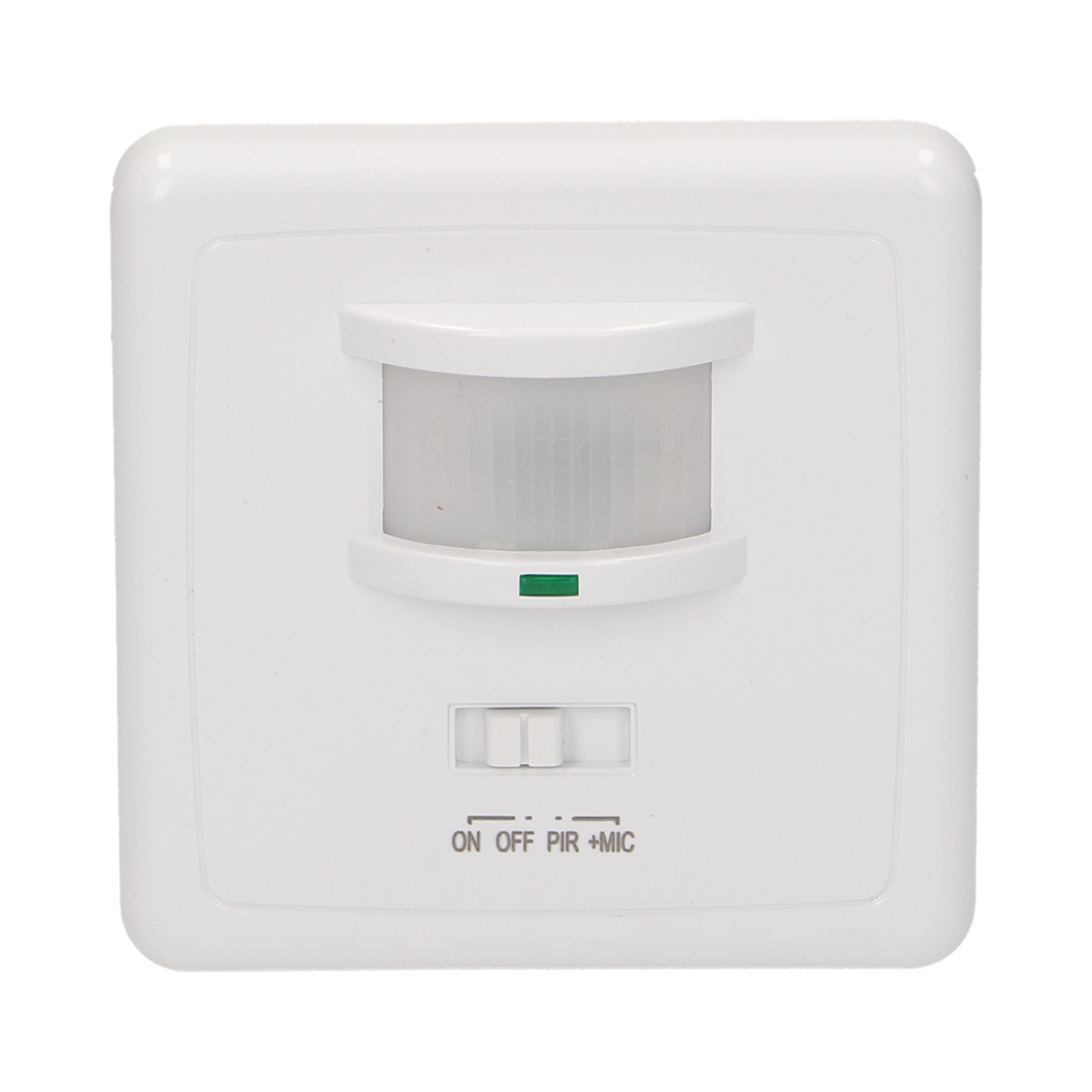

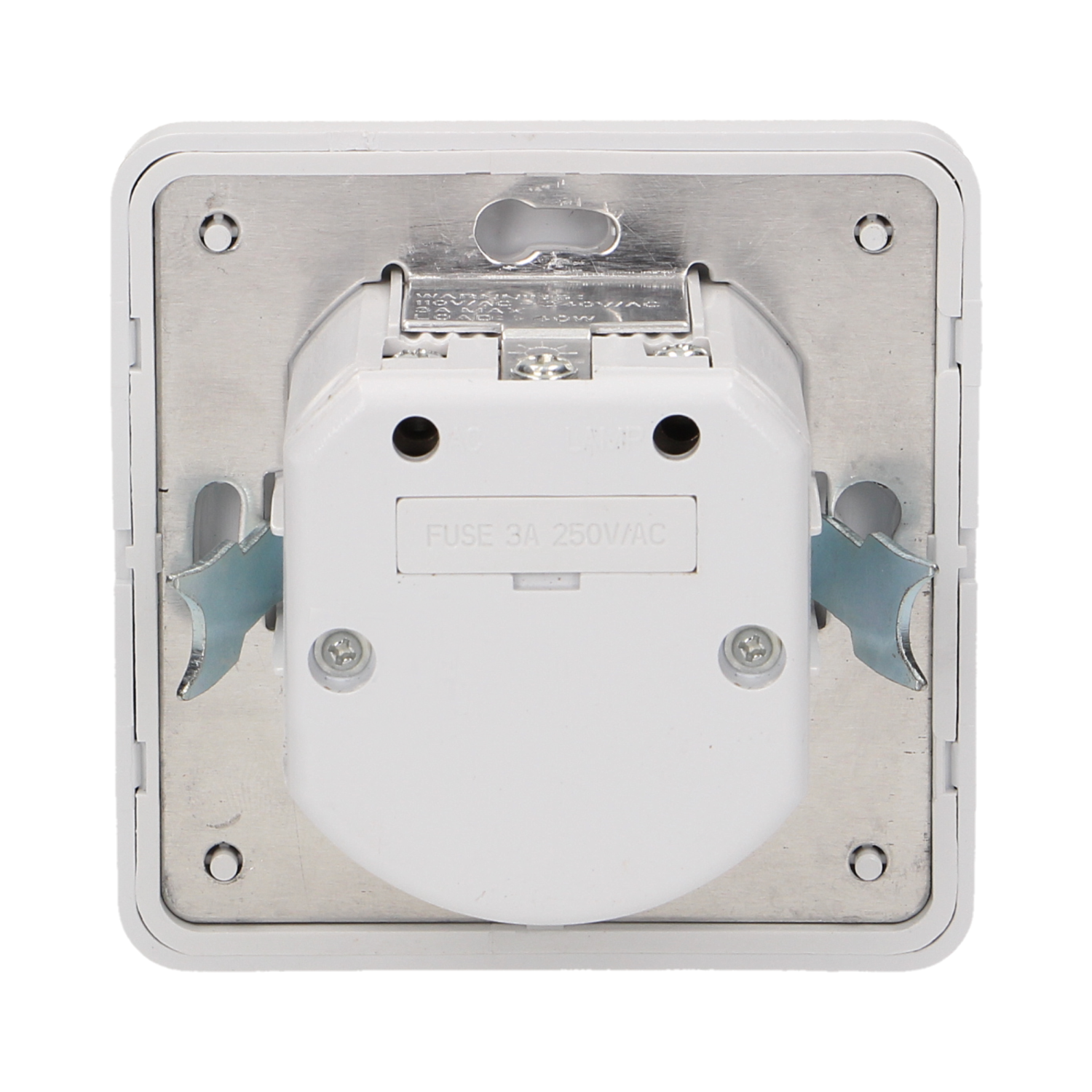

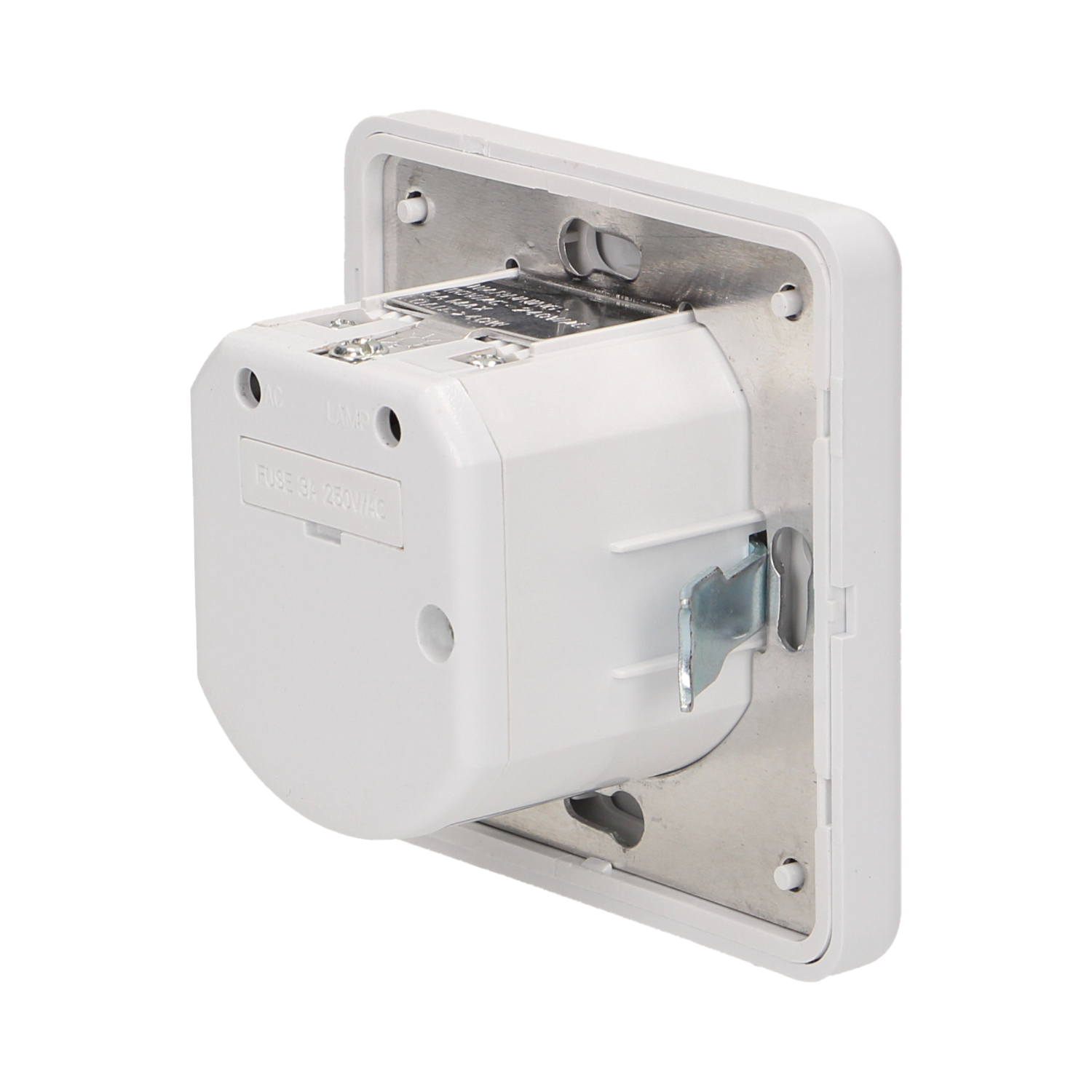

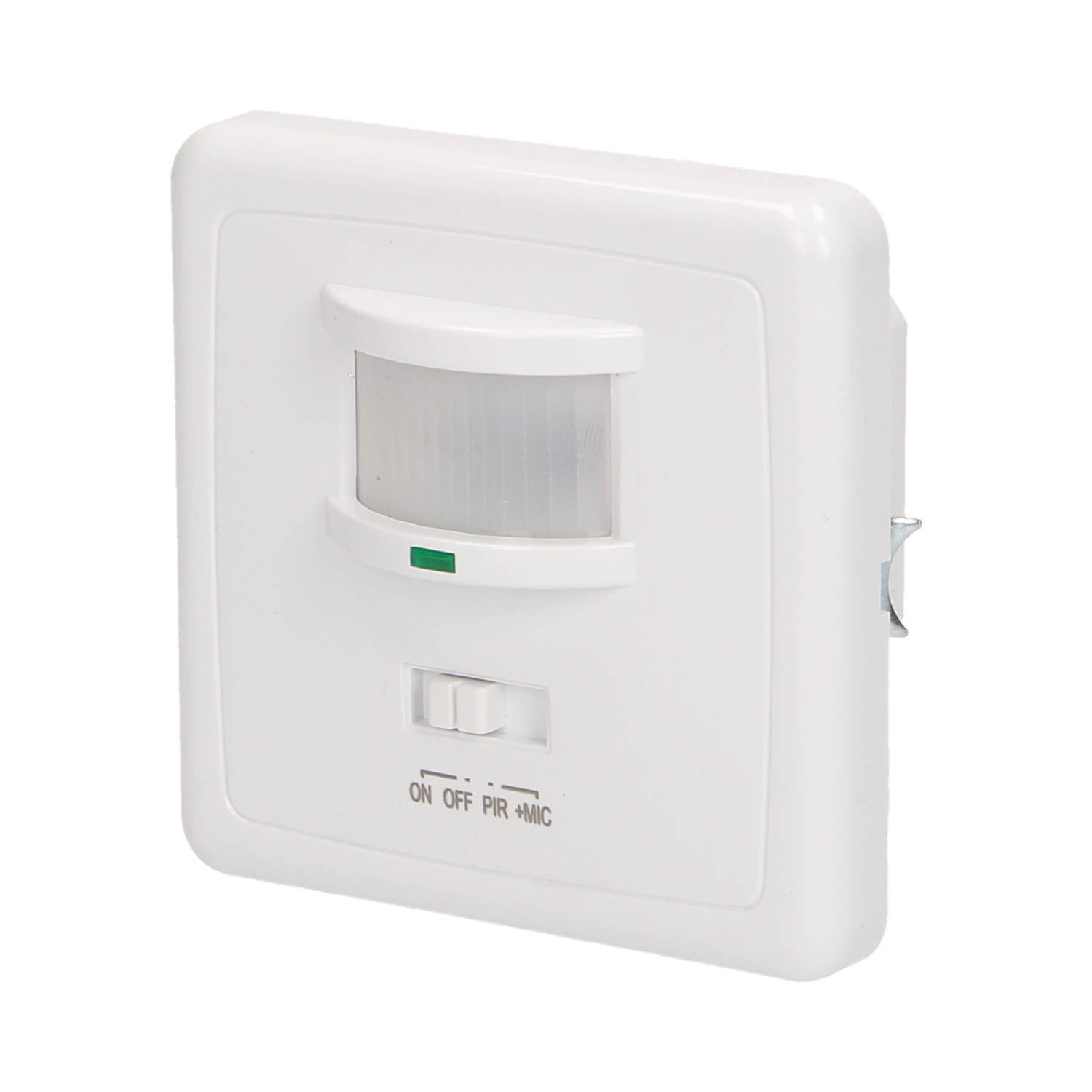

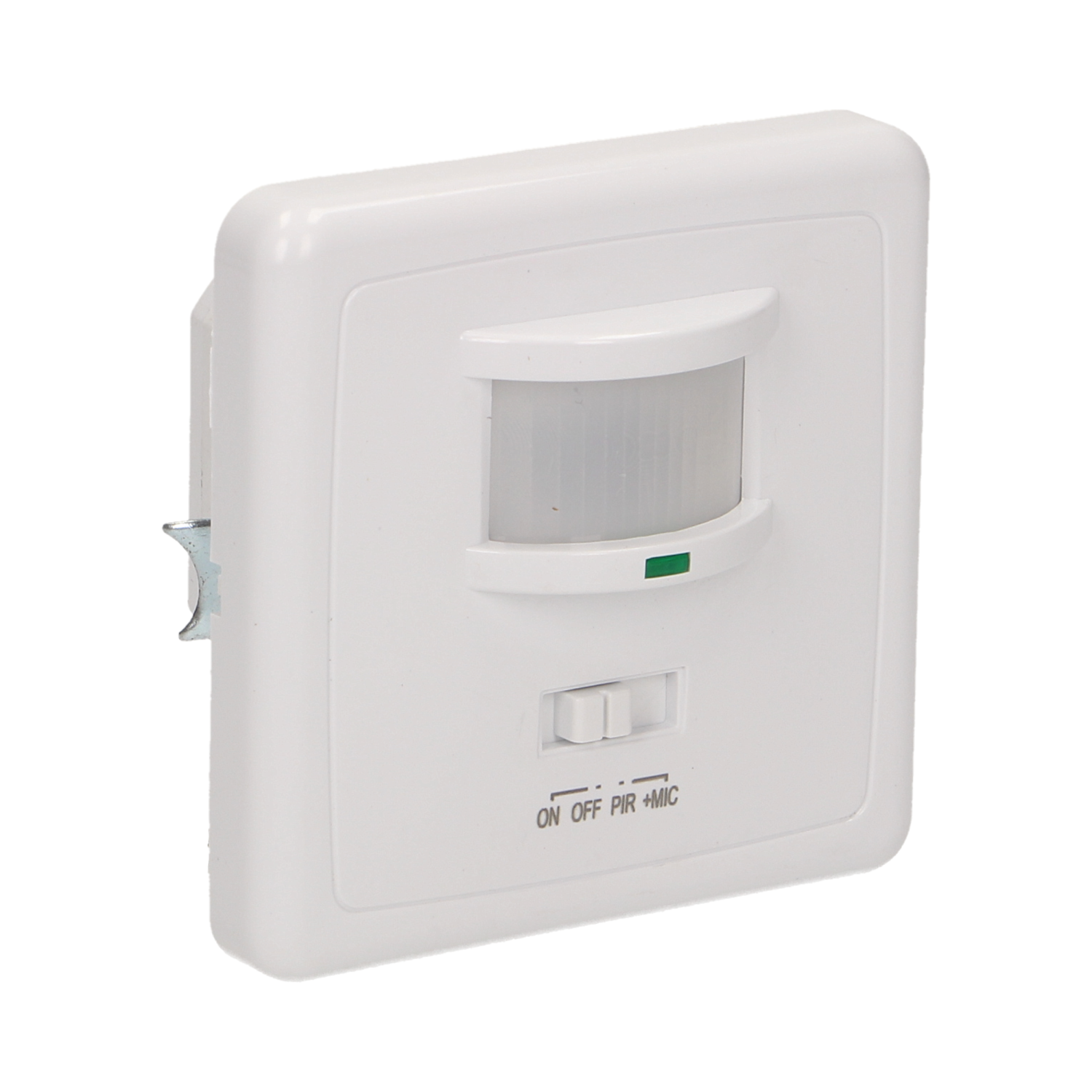

Passive infrared sensor Operates in the two-wire system For indoor usage Regulation: lighting time (TIME), the sensitivity of the light intensity (LUX) and range of motion detection (SENS) Can be installed in the junction box of |srednica|60 mm.
| General information: | |
|---|---|
| Max. load: | 40-500 |
| Degree of protection (IP): | 20 |
| Relay output: | No |
| Nominal voltage: | 230V~, 50Hz |
| Presence detector: | No |
| Colour: | white |
| Installation: | flush mounting |
| Dimensions of the sensor - width (mm): | 75 mm |
| Dimensions of the sensor - height (mm): | 75 mm |
| Dimensions of the sensor - depth (mm): | 45 mm |
| Working temperature: | -20℃~+40℃ |
| Detection angle: | 160° |
| Dimensions of the mounting hole: | Ø60 mm |
| Type of sensor: | Infrared |
| Detection range: | 4-9m m |
| Adjustable daylight sensor (LUX): | Yes |
| Daylight sensor adjustment range (LUX): | <3—2000lux |
| Adjustable time setting (TIME): | Yes |
| Lighting time adjustment range (TIME): | min: 10 sek. ± 3 sek.; max: 7 min. ± 2 min. |
| Adjustment of motion detection range (SENS): | No |
