For junction box
Passive infrared sensor Operates in three-wire system For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX) Can be installed in the junction box of |srednica|60 mm.
| General information: | |
|---|---|
| Model: | Czujnik ruchu |
| Sensor type: | Podczerwień pasywna |
| Scan angle [°]: | 160 |
| Optimum mounting height [m]: | 1-1,8 |
| Max. reach sideways [m]: | 9 |
| Max. reach frontally [m]: | 9 |
| Detection moving speed [m/s]: | 0,6-1,5 |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lx]: | <3-2000 |
| Mounting method: | Montaż podtynkowy |
| Suitable for ceiling mounting: | Nie |
| Suitable for wall mounting: | Tak |

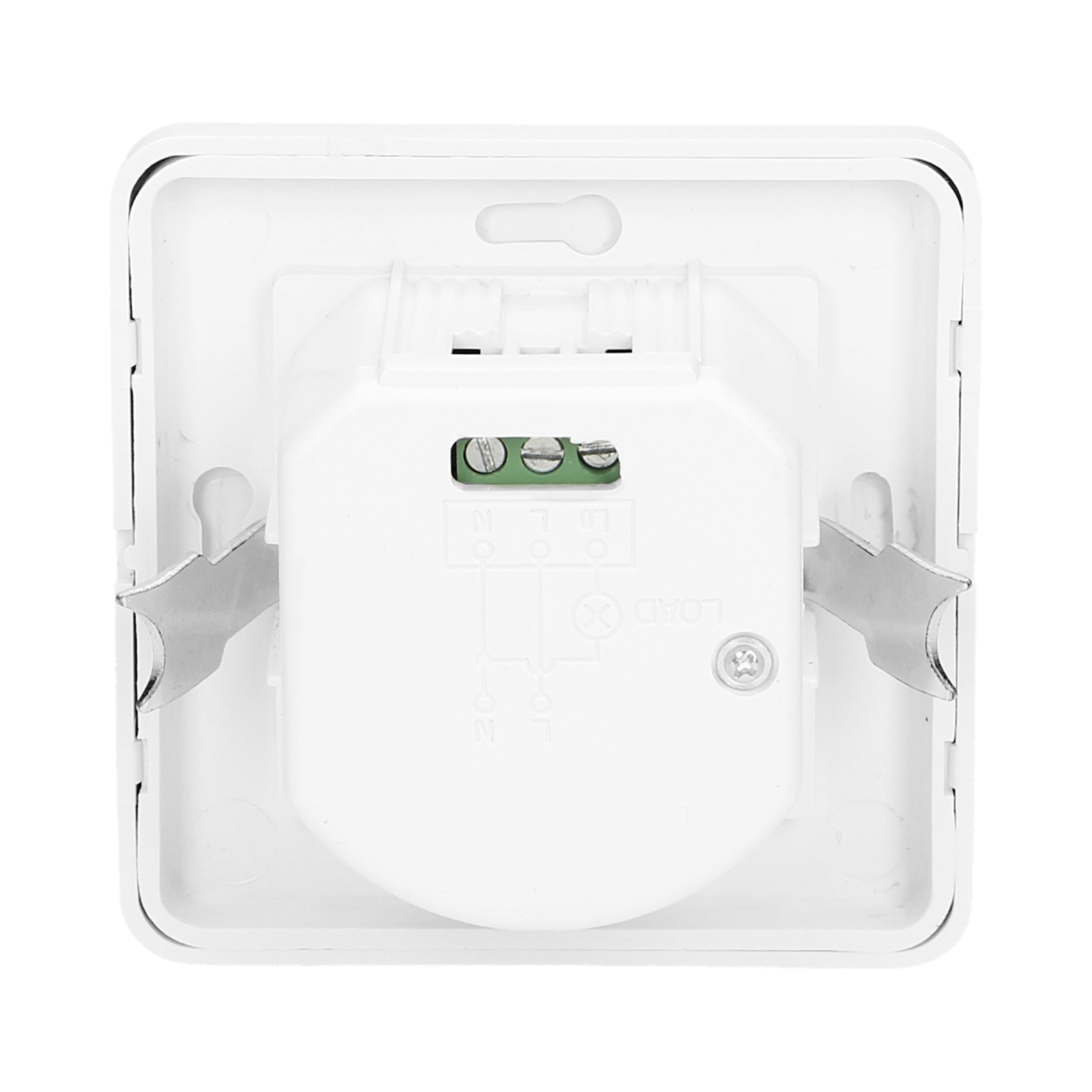

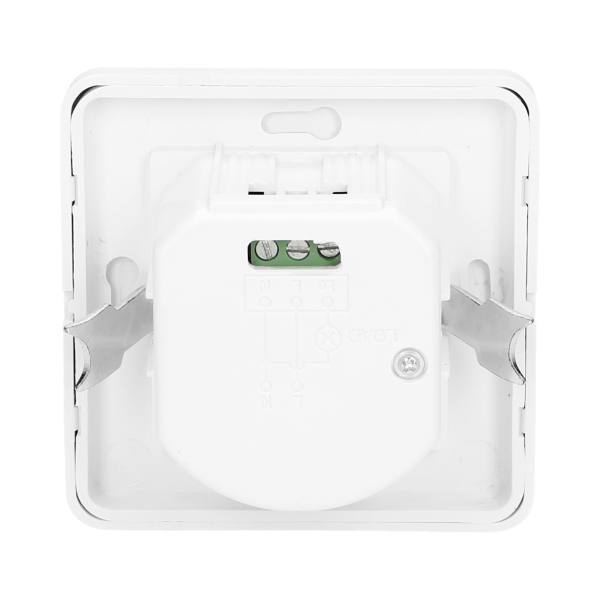

| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection: | IP20 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Min. switch-on time [s]: | 10 |
| Max. duty cycle [min]: | 30 |
| Detection angle horizontal [°]: | 160 |
| Max. switching power [W]: | 1200 |
| Max. switching power LED [W]: | 300 |
| Power consumption [W]: | 0.5 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Width [mm]: | 79 |
| Height [mm]: | 79 |
| Depth [mm]: | 55 |
| Weight [g]: | 100 |
| Built-in depth [mm]: | 40 |
| Built-in diameter [mm]: | 55 |
| Min. depth of built-in installation box [mm]: | 45 |
