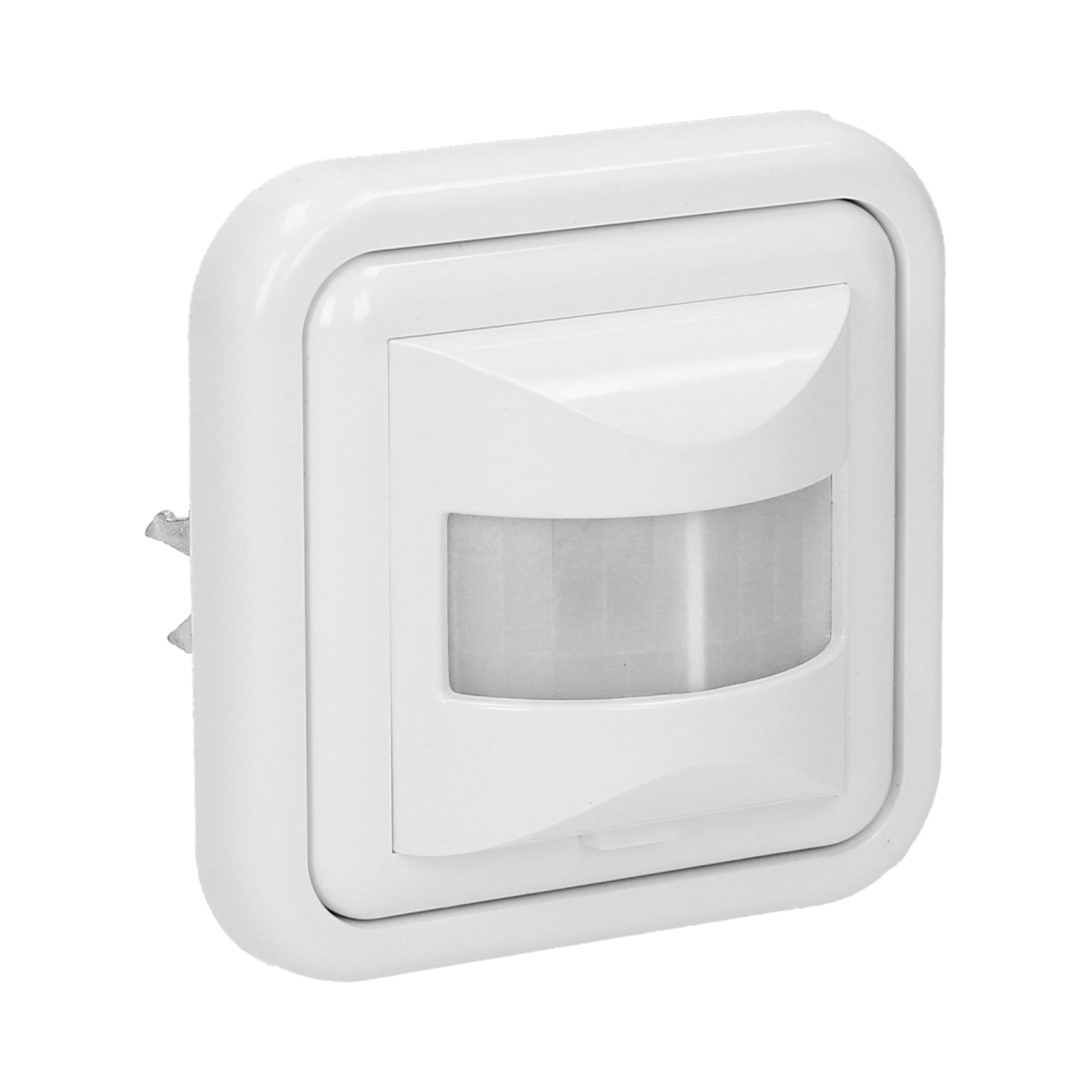

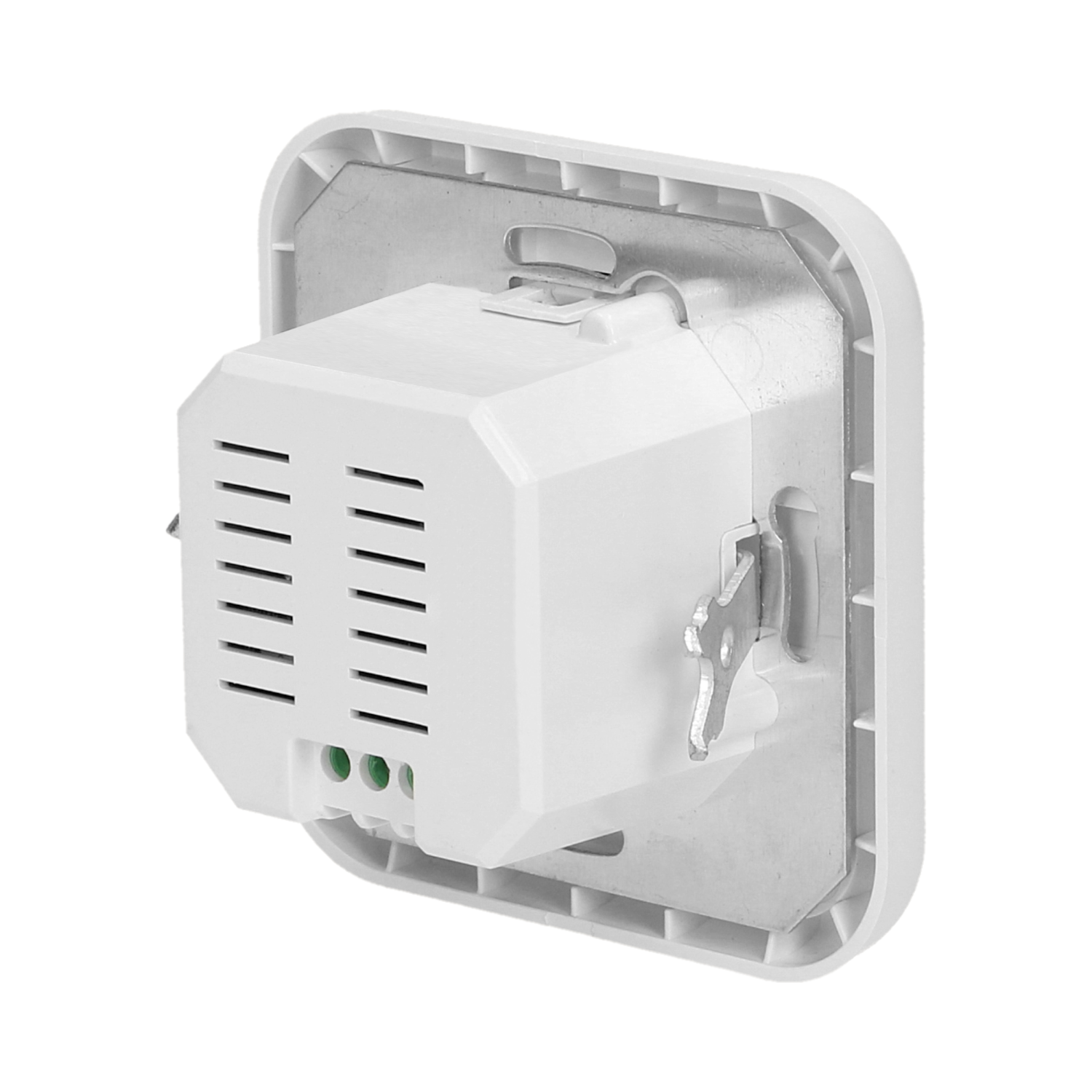

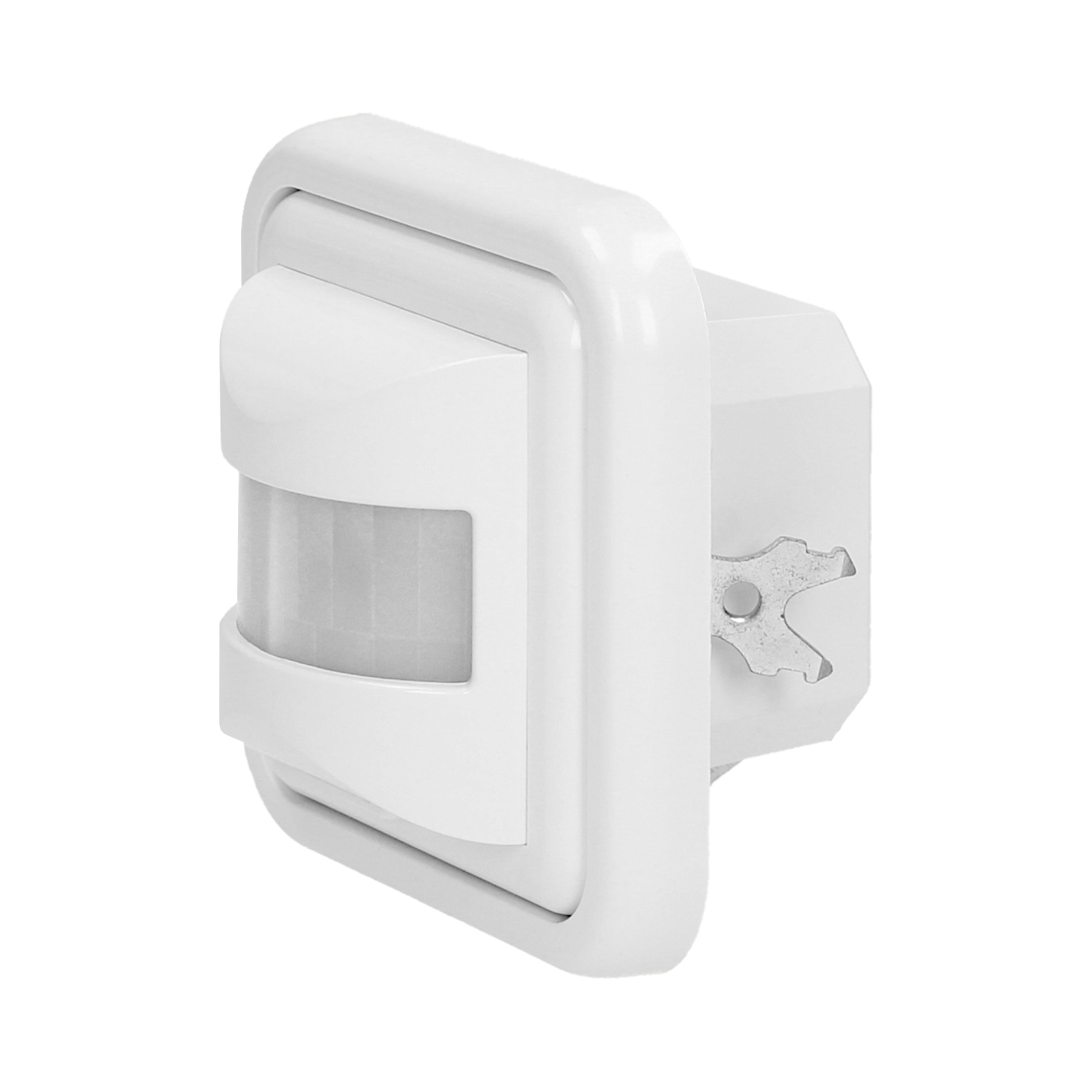

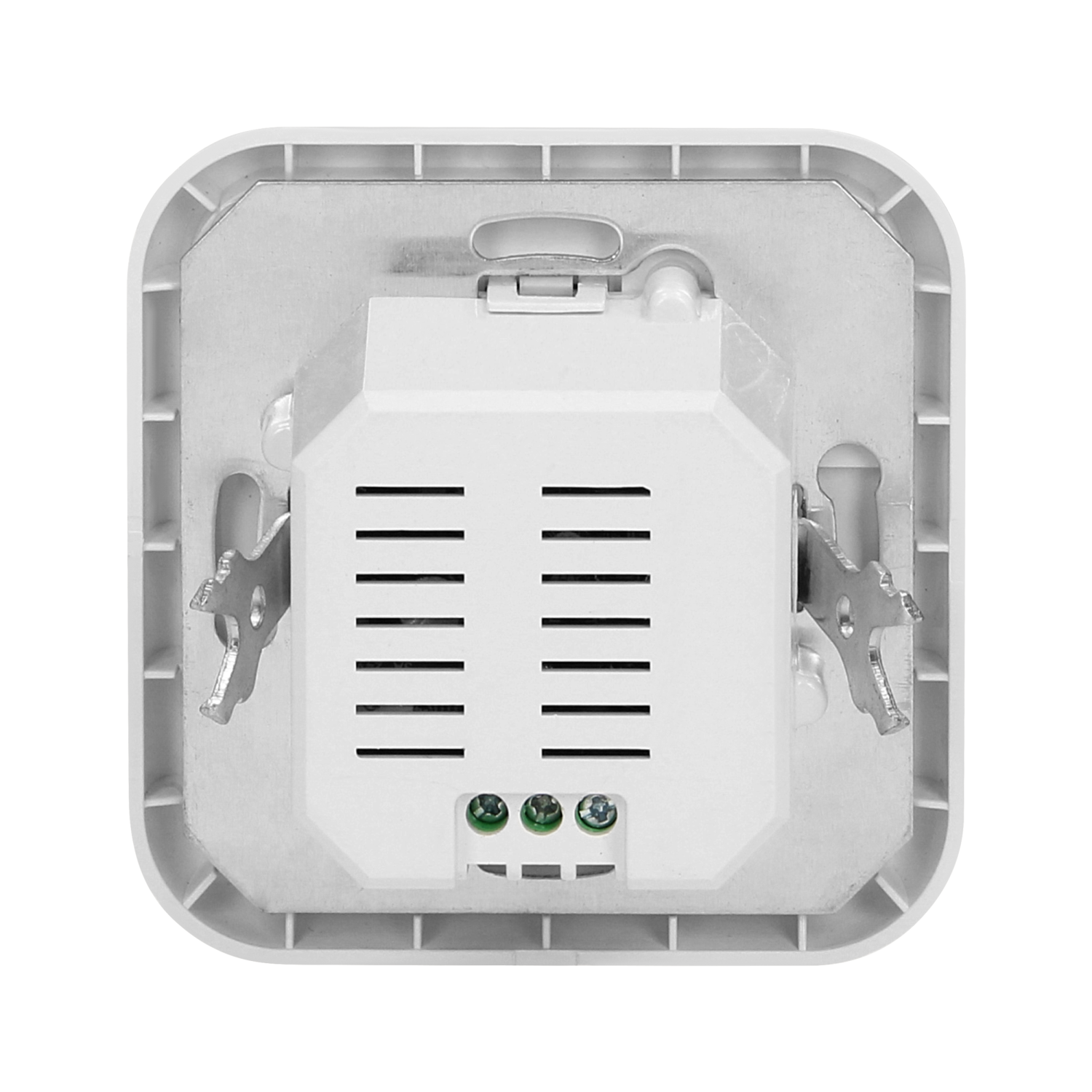

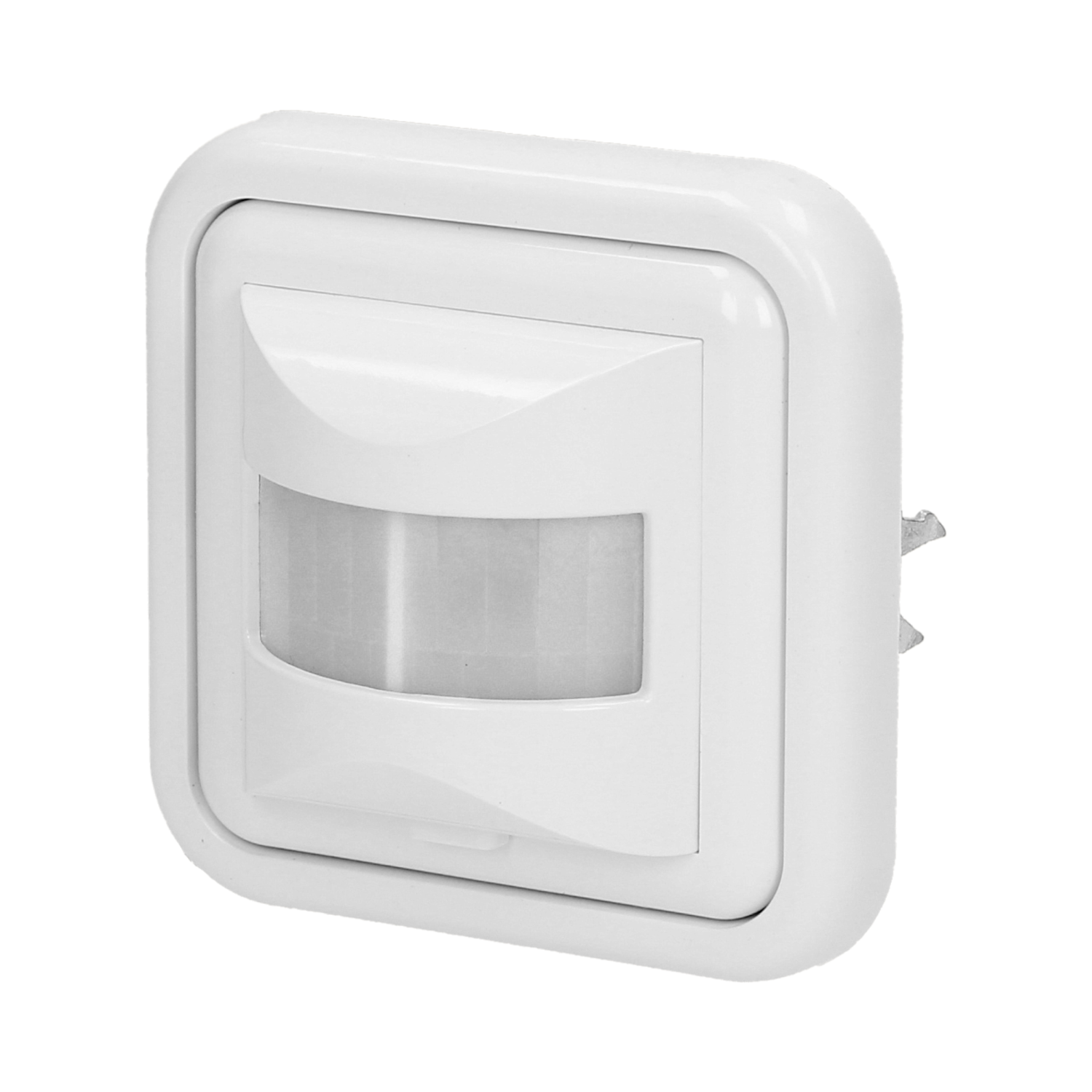

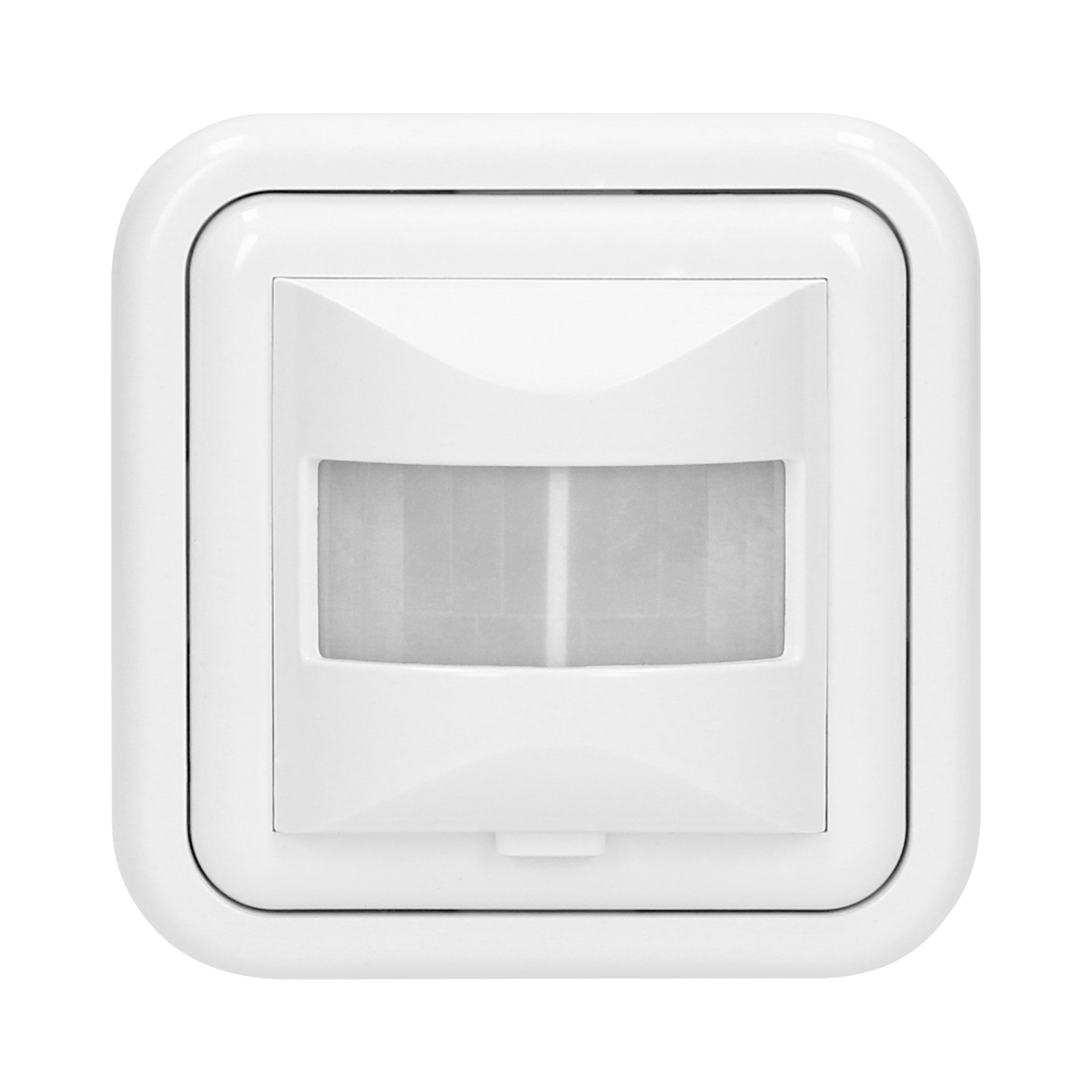

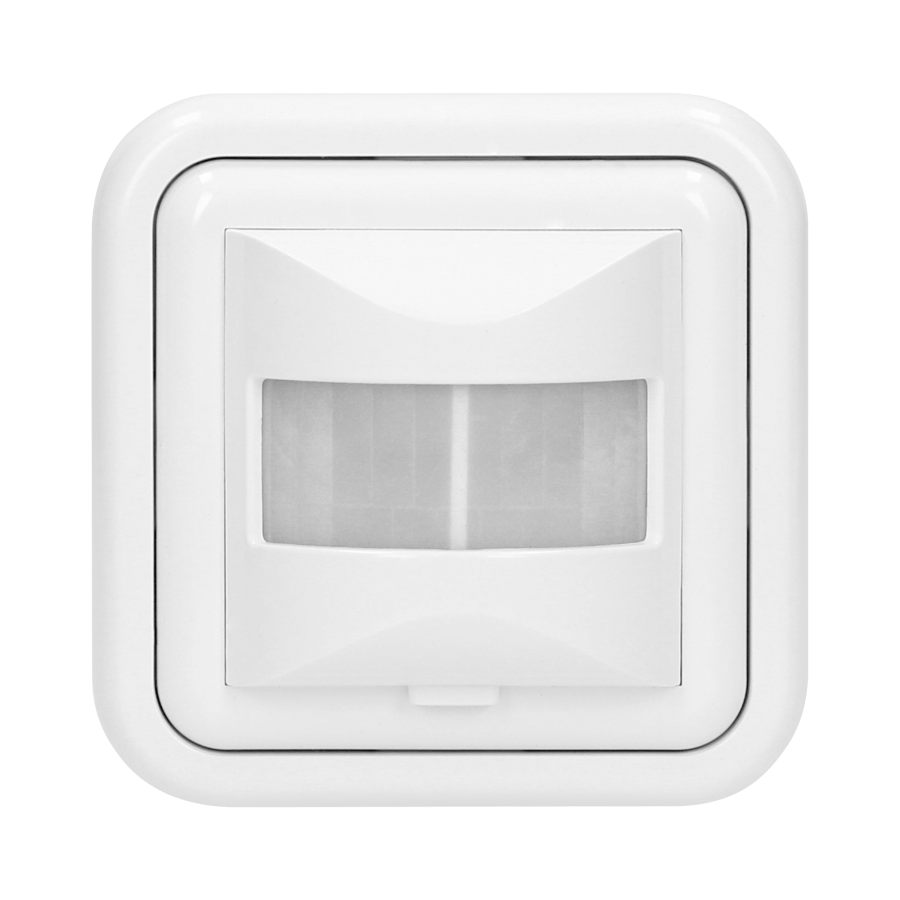

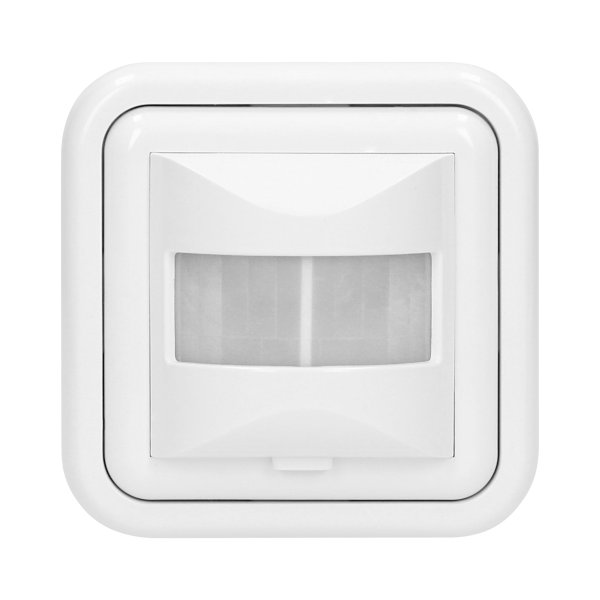

OR-CR-220

Description

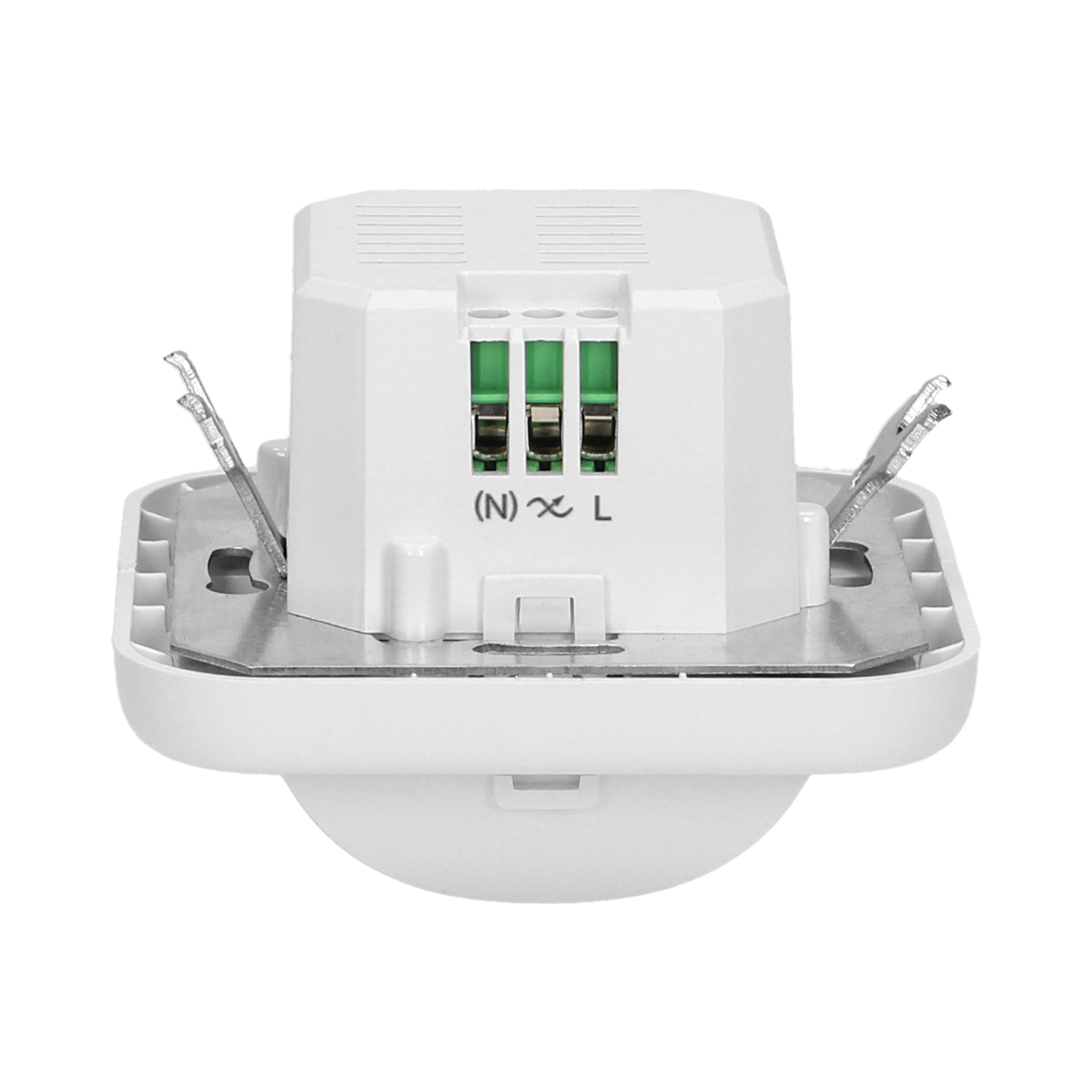

Passive infrared sensor Operates in two or three-wire system For indoor usage Regulation: lighting time (TIME) and the sensitivity of the light intensity (LUX) Can be installed in the junction box of |srednica|60 mm.

General information:
Max. load: 500
Max. load of the LED light source: 125 W
Degree of protection (IP): 20
Relay output: Yes
Nominal voltage: 230V~, 50Hz
Presence detector: No
Colour: white
Installation: flush mounting
Dimensions of the sensor - width (mm): 80,7 mm
Dimensions of the sensor - height (mm): 80,7 mm
Dimensions of the sensor - depth (mm): 65 mm
Detection angle: 160°
Dimensions of the mounting hole: Ø60 mm
Type of sensor: Infrared
Detection range: 9 m
Adjustable daylight sensor (LUX): Yes
Daylight sensor adjustment range (LUX): <3—2000lux
Adjustable time setting (TIME): Yes
Lighting time adjustment range (TIME): min: 10 sek. ± 3 sek.; max: 7 min. ± 2 min.
Adjustment of motion detection range (SENS): No
