OR-SZ-8016/B4

Description

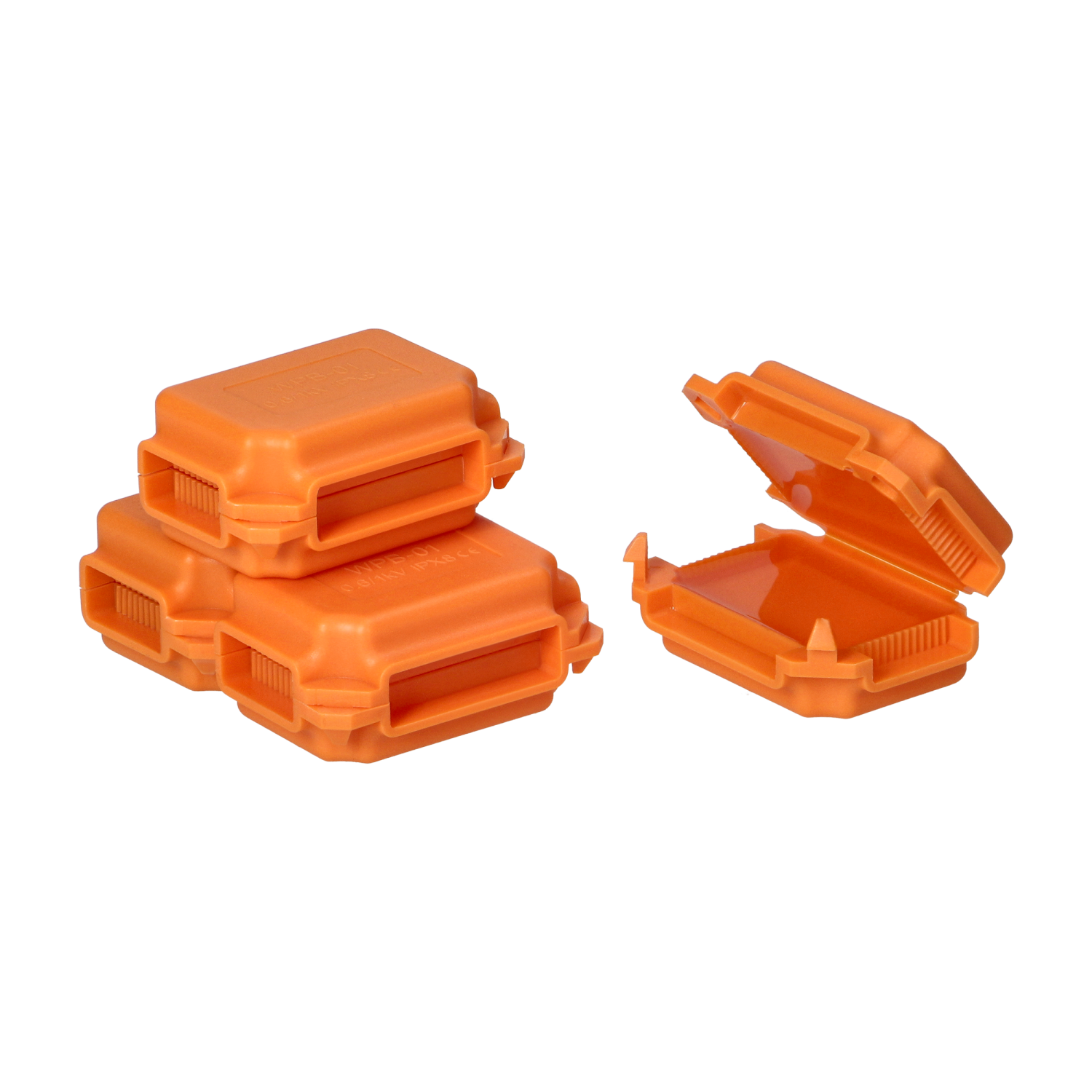

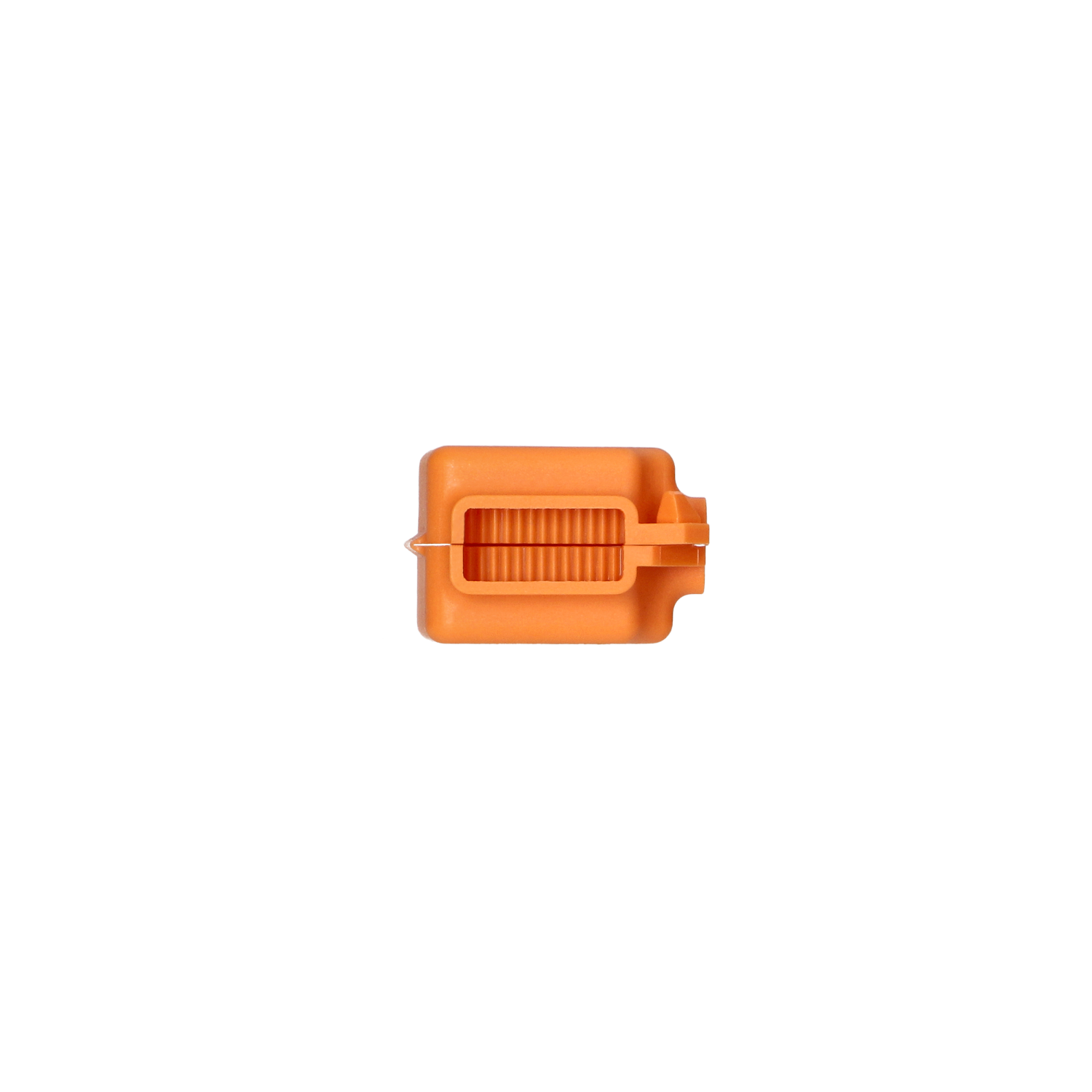

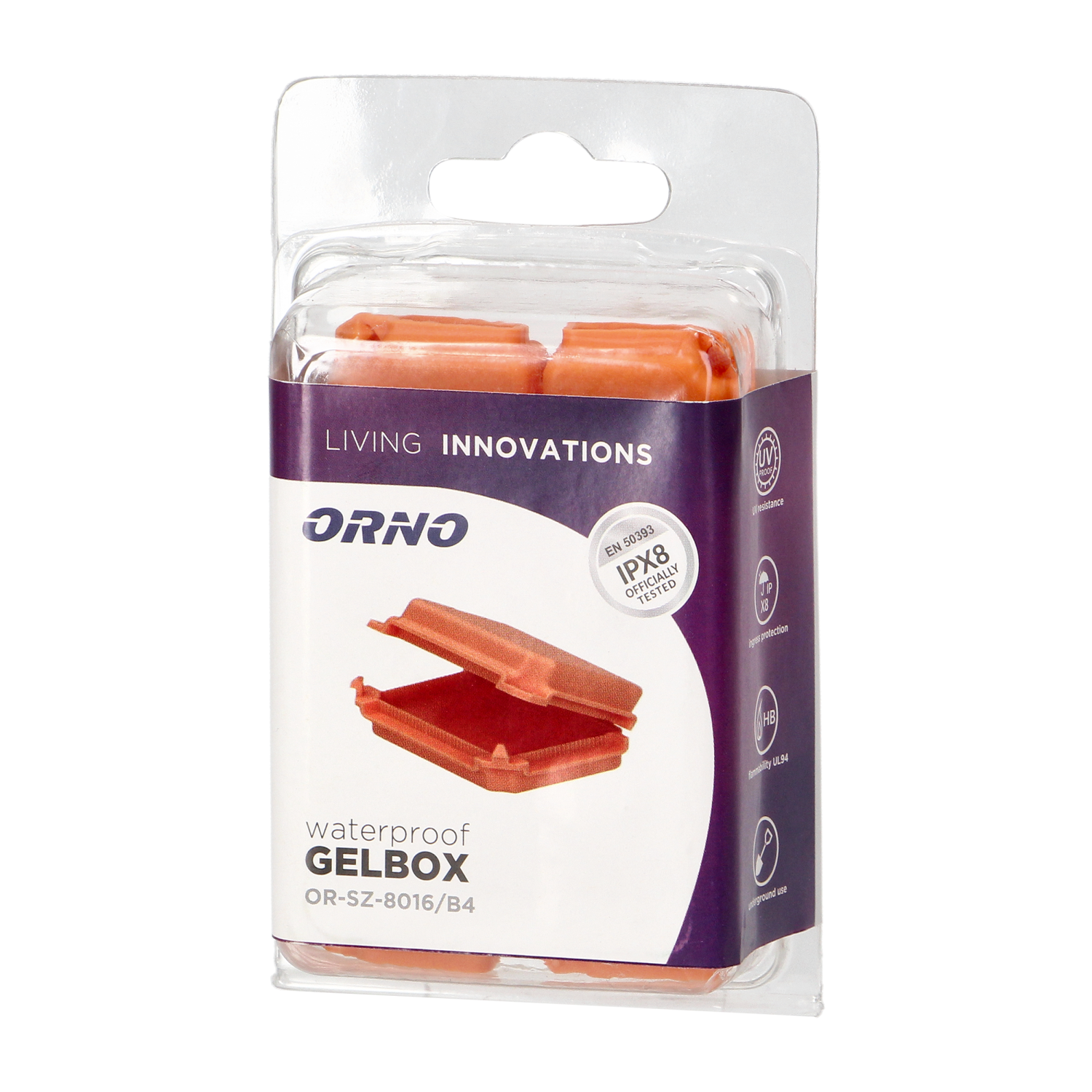

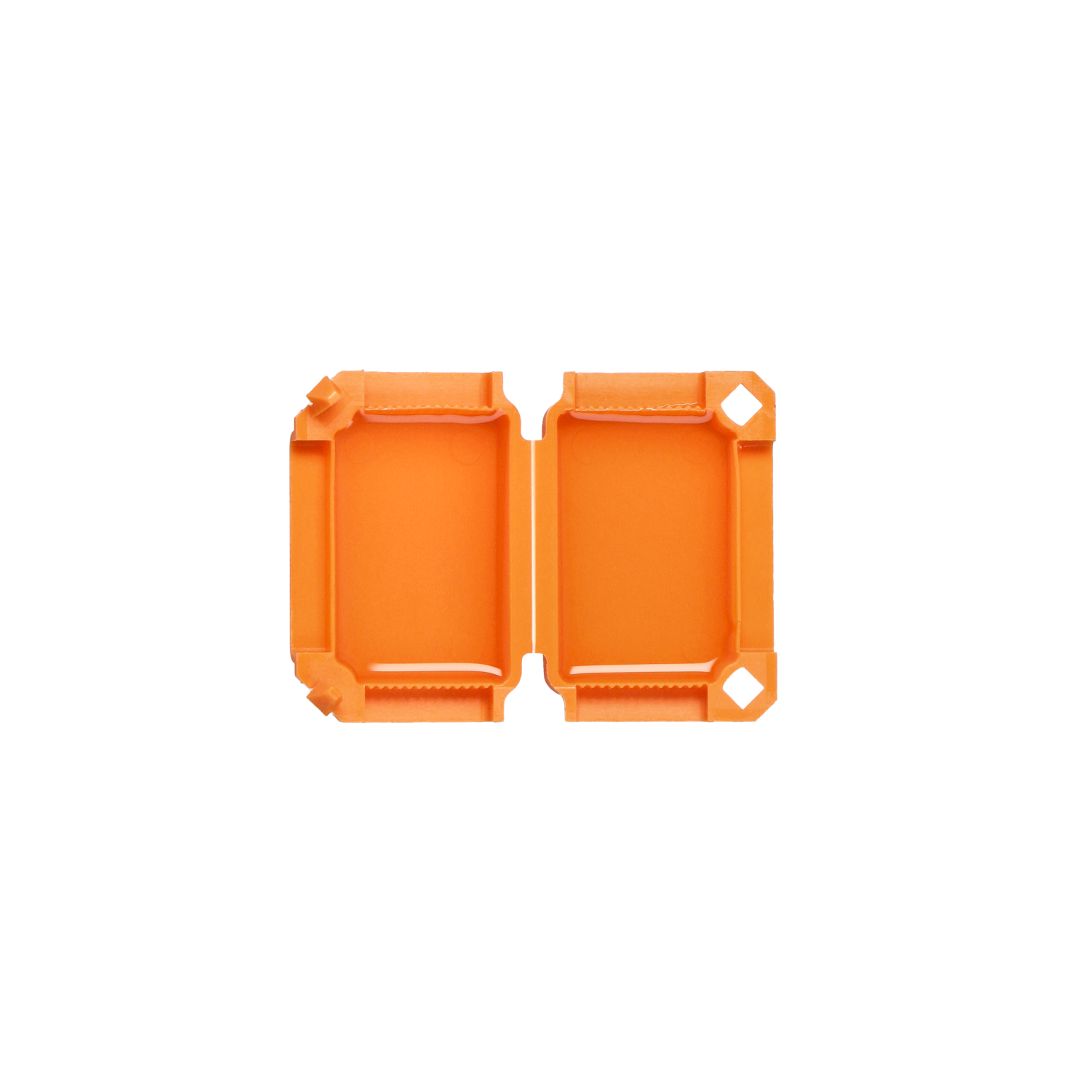

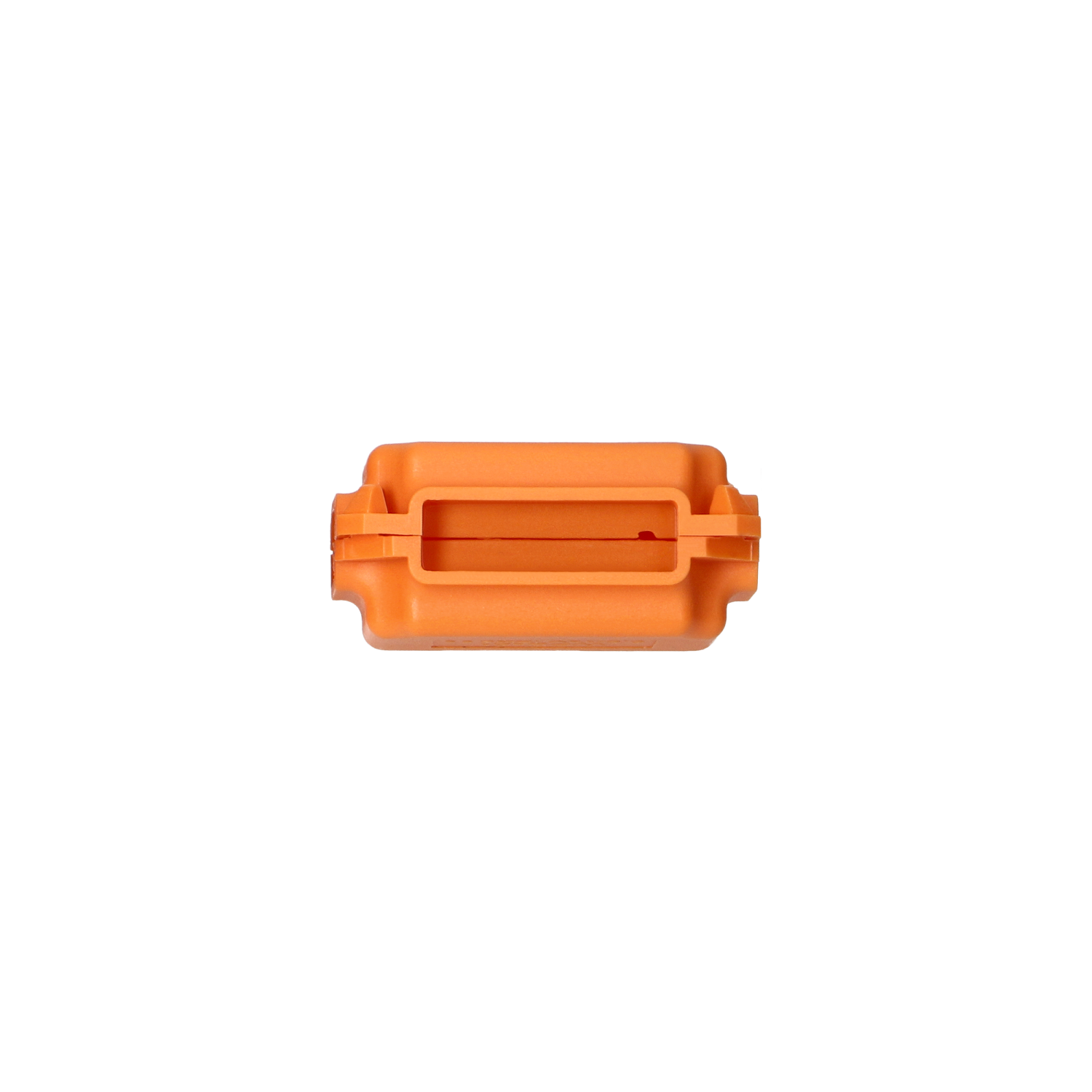

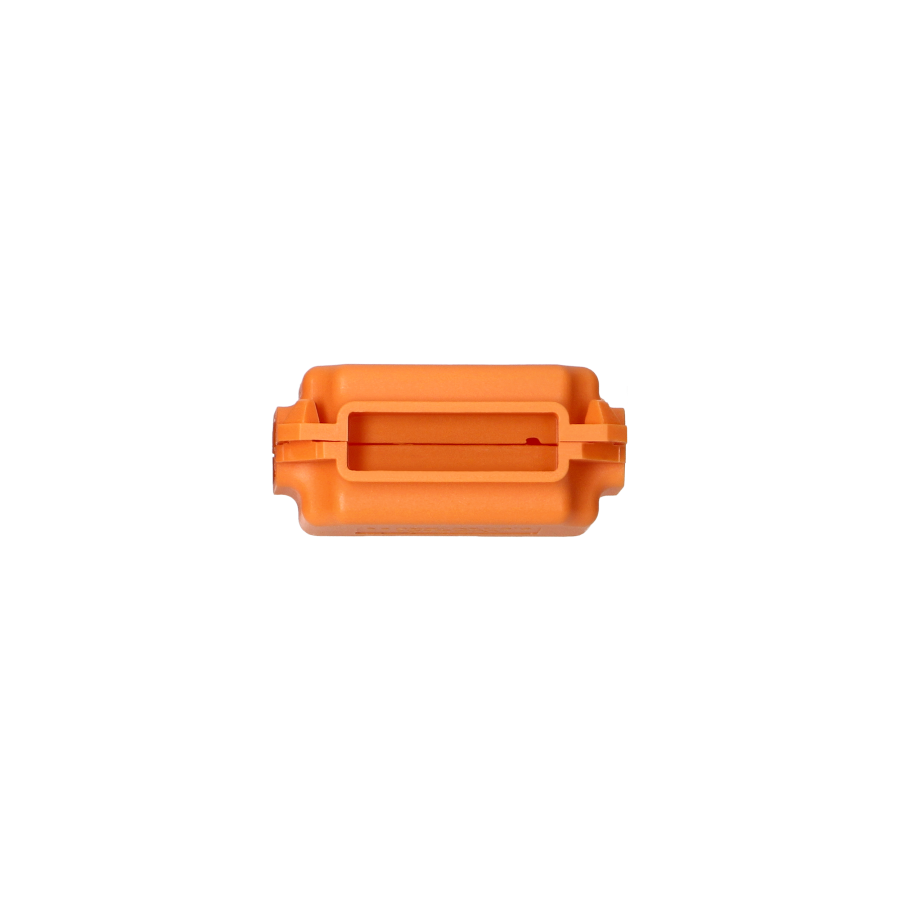

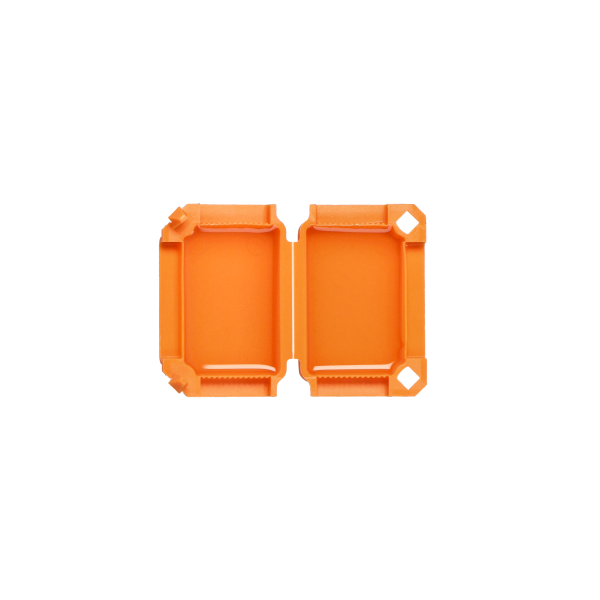

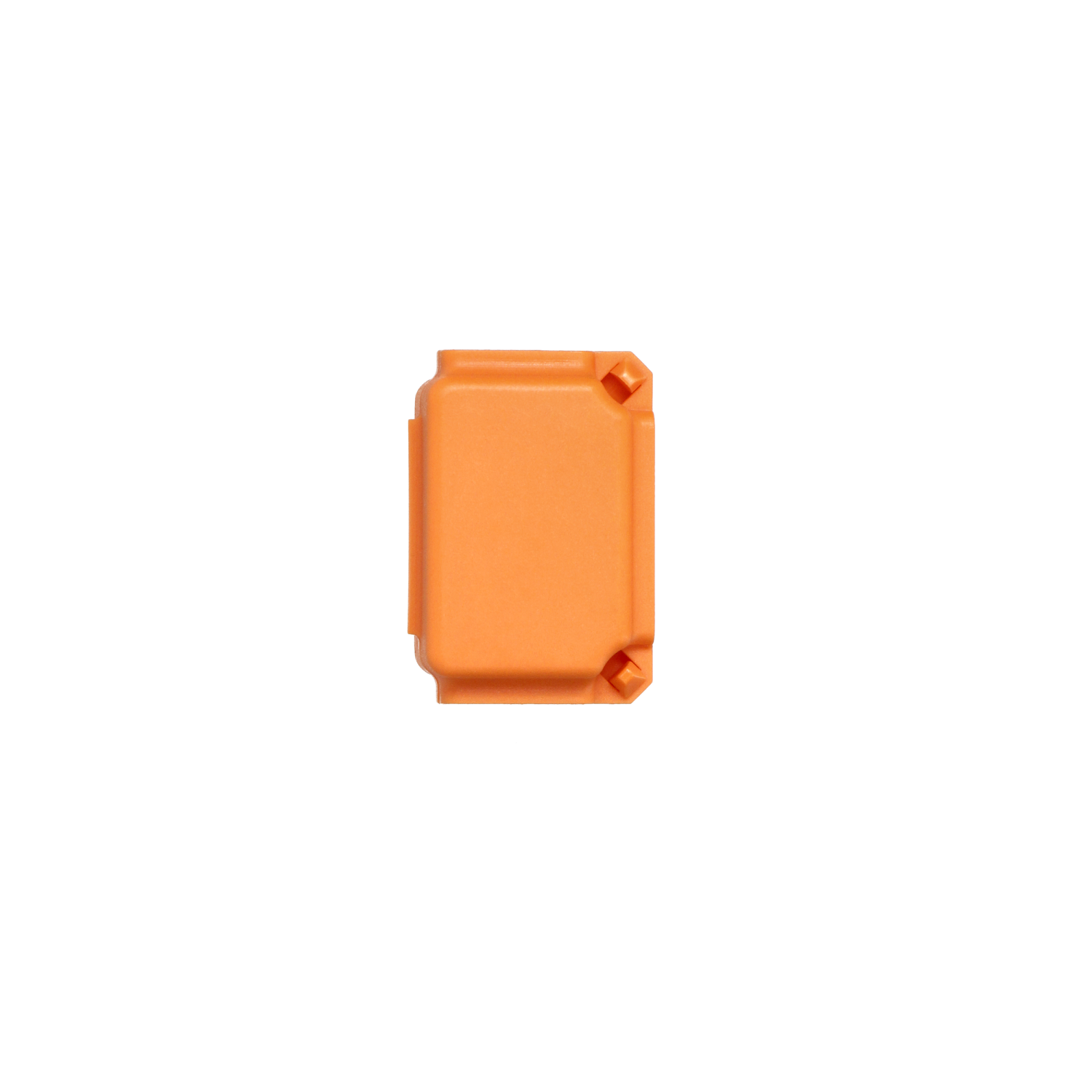

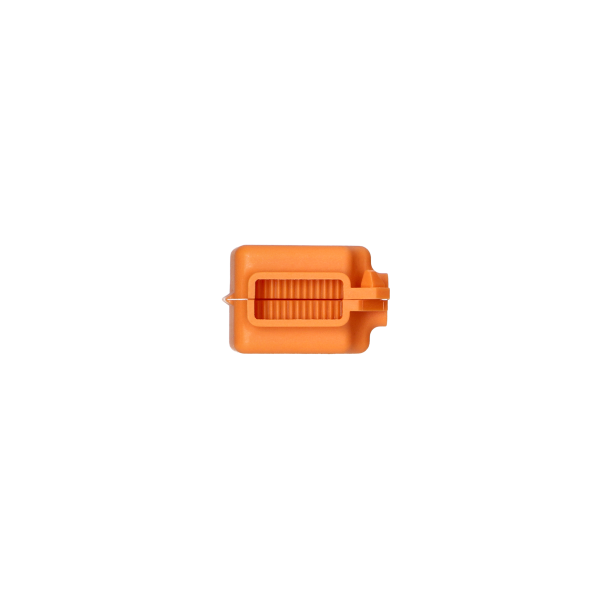

Reusable gel box to secure phase conductor connections up to 1kV. Thanks to the perfect tightness at the IPx8 level, it can be installed in places with high humidity, underground, and even when completely immersed in water up to 1m. The product can be used, for example, in electric garden installations, outdoor lighting systems, irrigation systems, submersible pumps, etc.). The gel used for sealing is harmless to people, safe for the environment and easily removable. It has shape memory which allows it to be reused in case the connection needs to be modified. The product is sold in a blister pack, in the amount of 4 pieces. Size: small. Color: orange.

General information:
Reusable: Yes
Permanent immersion possibility: Yes
Operating temperature: 90 °C
Non-halogen: Yes
Ambient temperature: -40/+50 °C
Wire cross-section: 4 mm²
Underground installation: Yes
Compliance with standards: EN 50393
Degree of protection (IP): x8
Dimensions - depth: 19 mm
Dimensions - width: 45 mm
Case flammability standard UL94: HB
Dimensions - height: 28 mm
Material: PA
External panel:

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:30Download
Product data sheetENpdf2024-07-17 10:22:16Download
