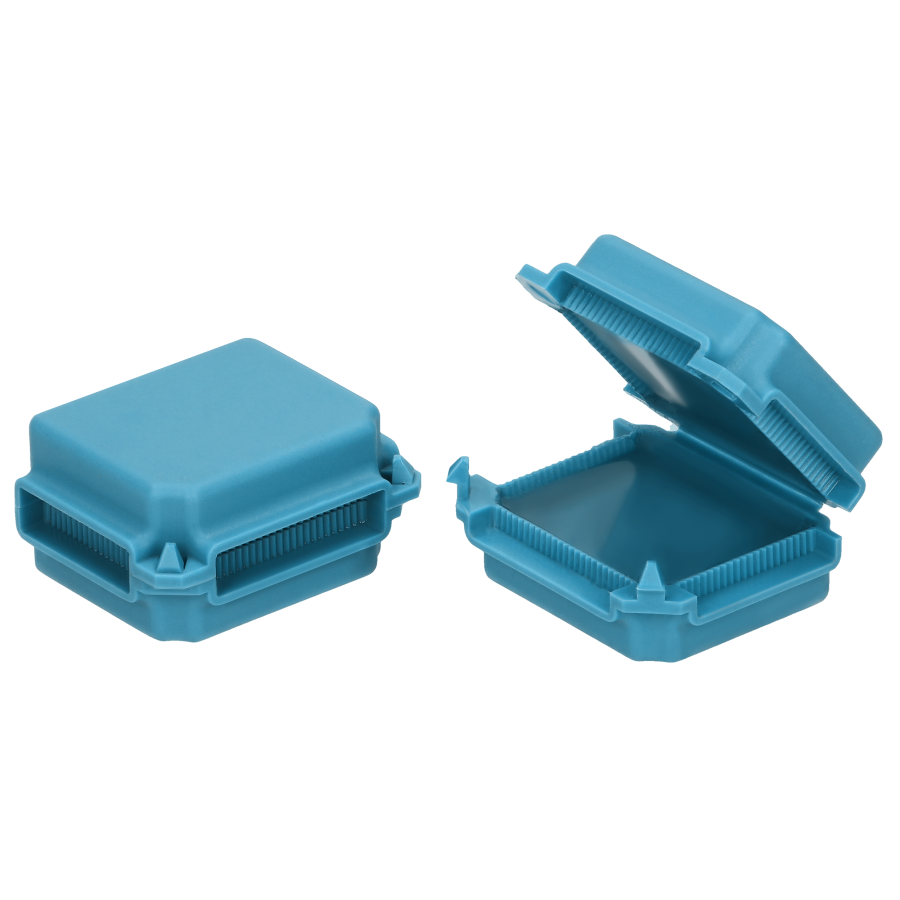

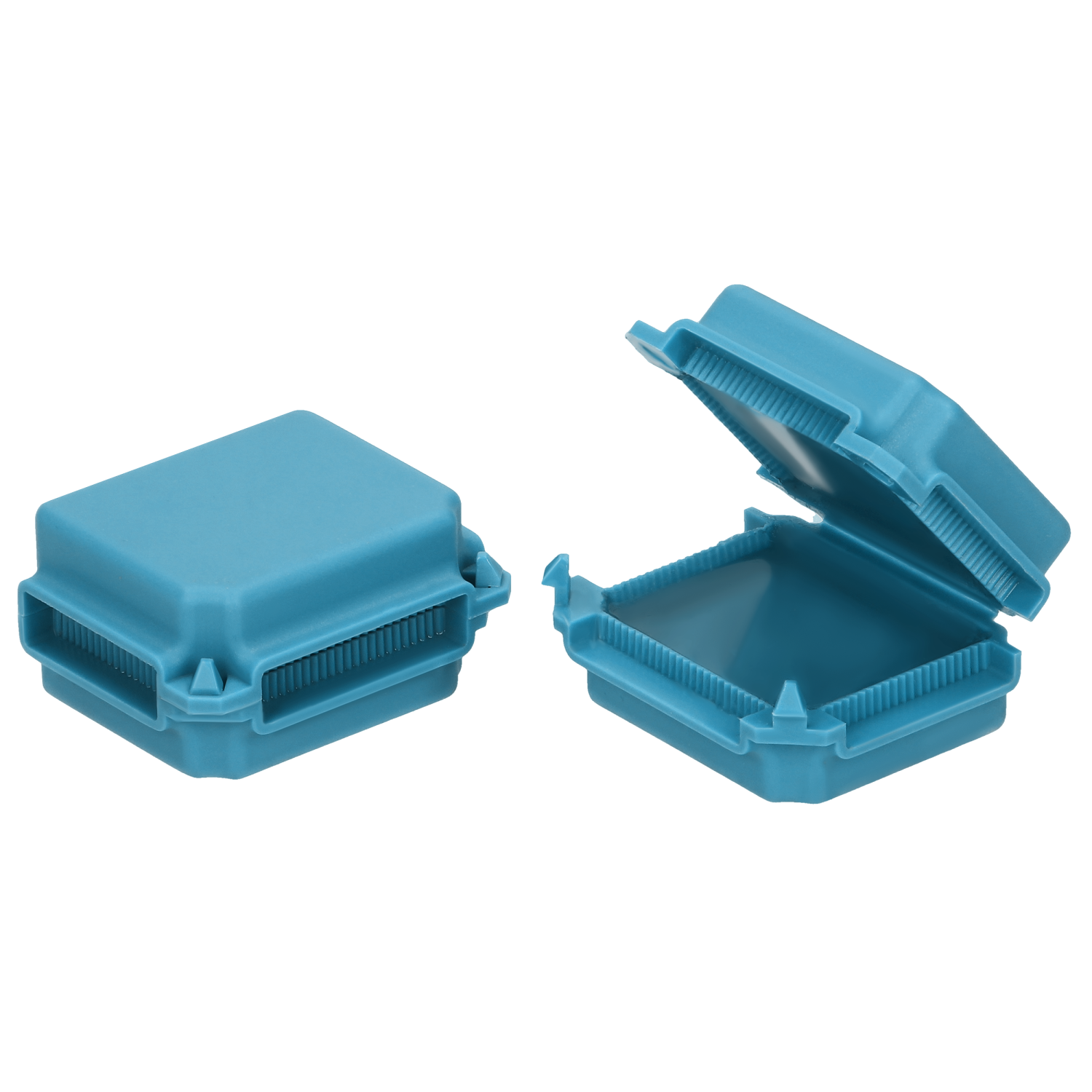

Gel boxes
Reusable gel box to secure phase conductor connections up to 1kV. Thanks to the perfect tightness at the IPx8 level, it can be installed in places with high humidity, underground, and even when completely immersed in water up to 1m. The product can be used, for example, in electric garden installations, outdoor lighting systems, irrigation systems, submersible pumps, etc.). The gel used for sealing is harmless to people, safe for the environment and easily removable, in case the connection needs to be modified. The product is sold in a blister pack, in the amount of 2 pieces. Size: medium. Blue color.
| General information: | |
|---|---|
| Reusable: | Yes |
| Permanent immersion possibility: | Yes |
| Operating temperature: | 90 °C |
| Non-halogen: | Yes |
| Ambient temperature: | -40/+50 °C |
| Wire cross-section: | 4 mm² |
| Underground installation: | Yes |
| Compliance with standards: | EN 50393 |
| Degree of protection (IP): | x8 |
| Dimensions - depth: | 24 mm |
| Dimensions - width: | 45 mm |
| Case flammability standard UL94: | HB |
| Dimensions - height: | 37 mm |
| Material: | PA |
