Hermetic cable connectors

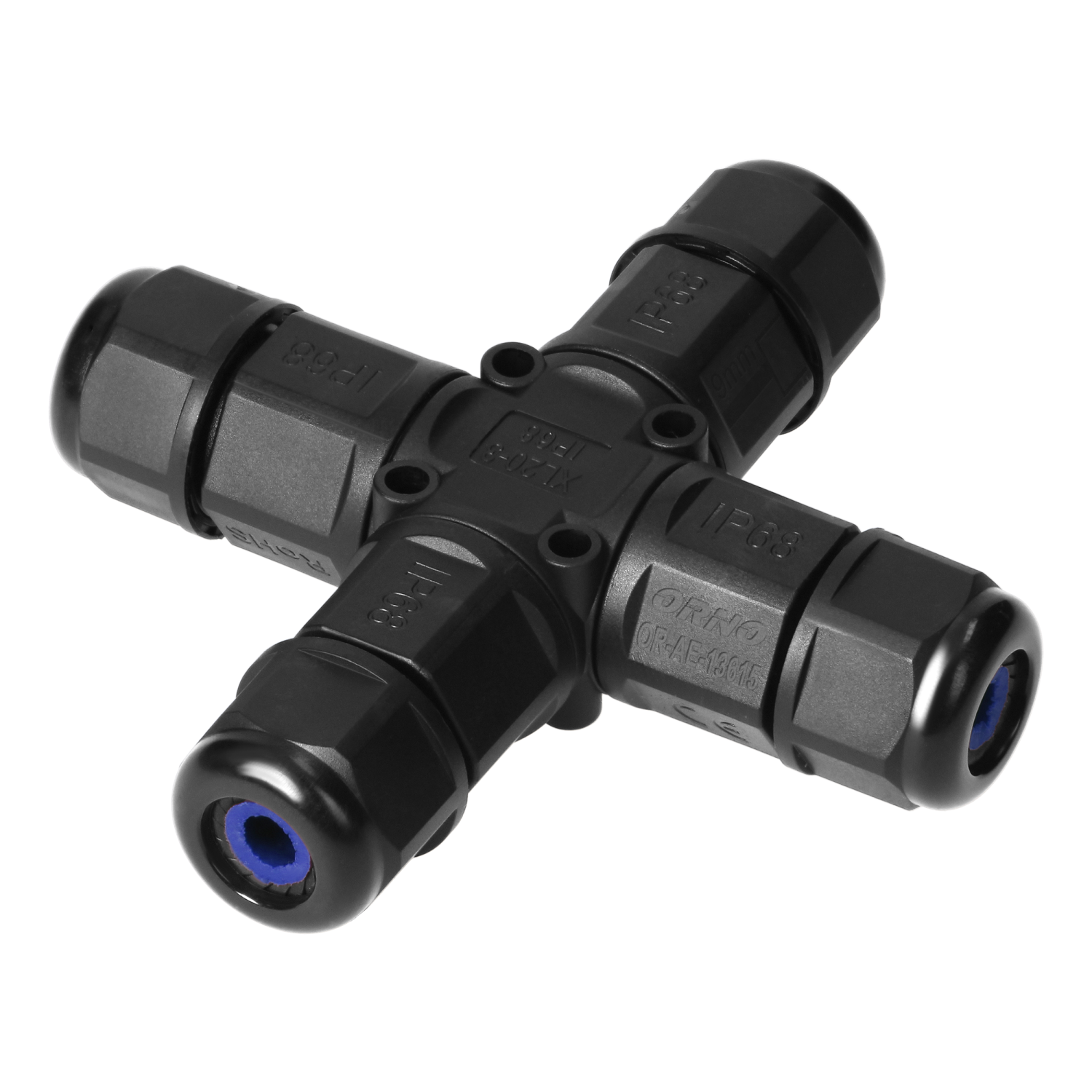

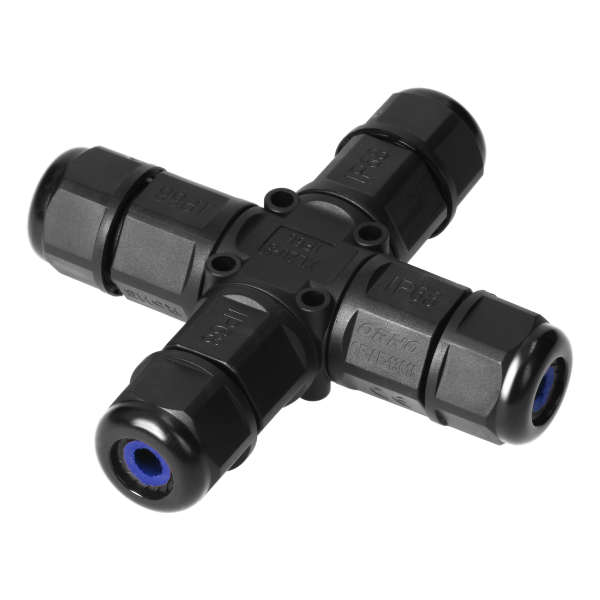

This small-sized X-type cable connector is suitable for cables with a maximum cross-section of 4mm2. High degree of tightness IP68 guarantees resistance against external factors, and the innovative O-Ring seal does not expose the seal to damaging external, chemical and mechanical conditions. The material used for the production of the connector is resistant to UV rays and is suitable for outdoor use. Its rigid, compact form and innovative sealing enable installation in the ground. The contacts are made of brass, additionally protected against oxidation with a layer of nickel. The cable gland is equipped with a thick gasket that tightly seals all inserted wires.
| General information: | |
|---|---|
| Connector type: | Type X 4-way |
| Wire cross-section: | 4 mm² |
| Number of wires: | 3 |
| Power supply: | 450V |
| Current: | 25 A |
| Cable gauge: | 6-12 mm |
| Degree of protection (IP): | 68 |
| Contacts material: | nickel-plated brass |
| Flame-resistant casing: | yes |
| UV radiation resistance: | Yes |
| Dimensions - width: | 100 mm |
| Case flammability standard UL94: | V1 |
| Dimensions - length (mm): | 100 mm |
| Type of connection: | screw clamp |
| Underground installation: | Yes |
| Material housing: | PA6 |
