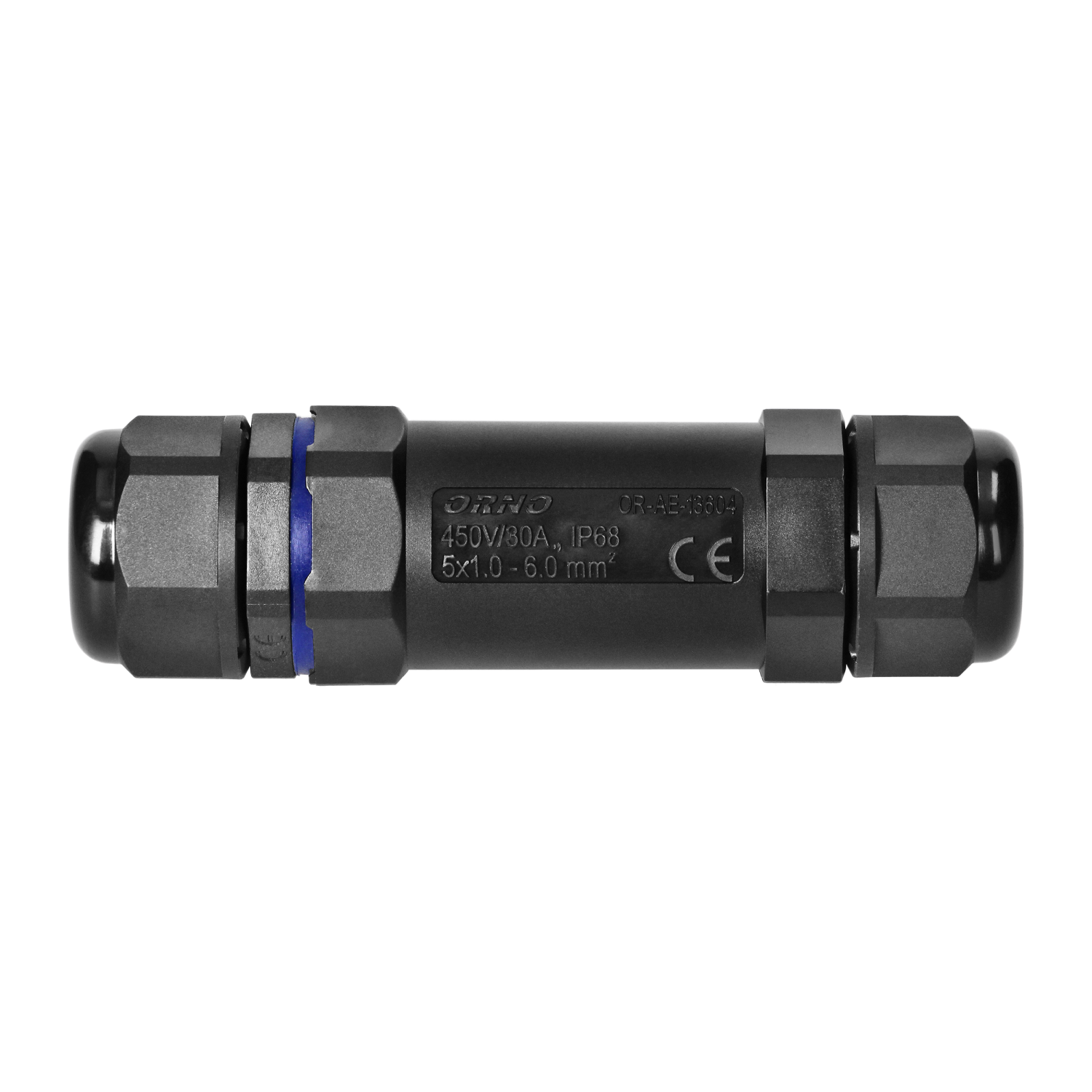

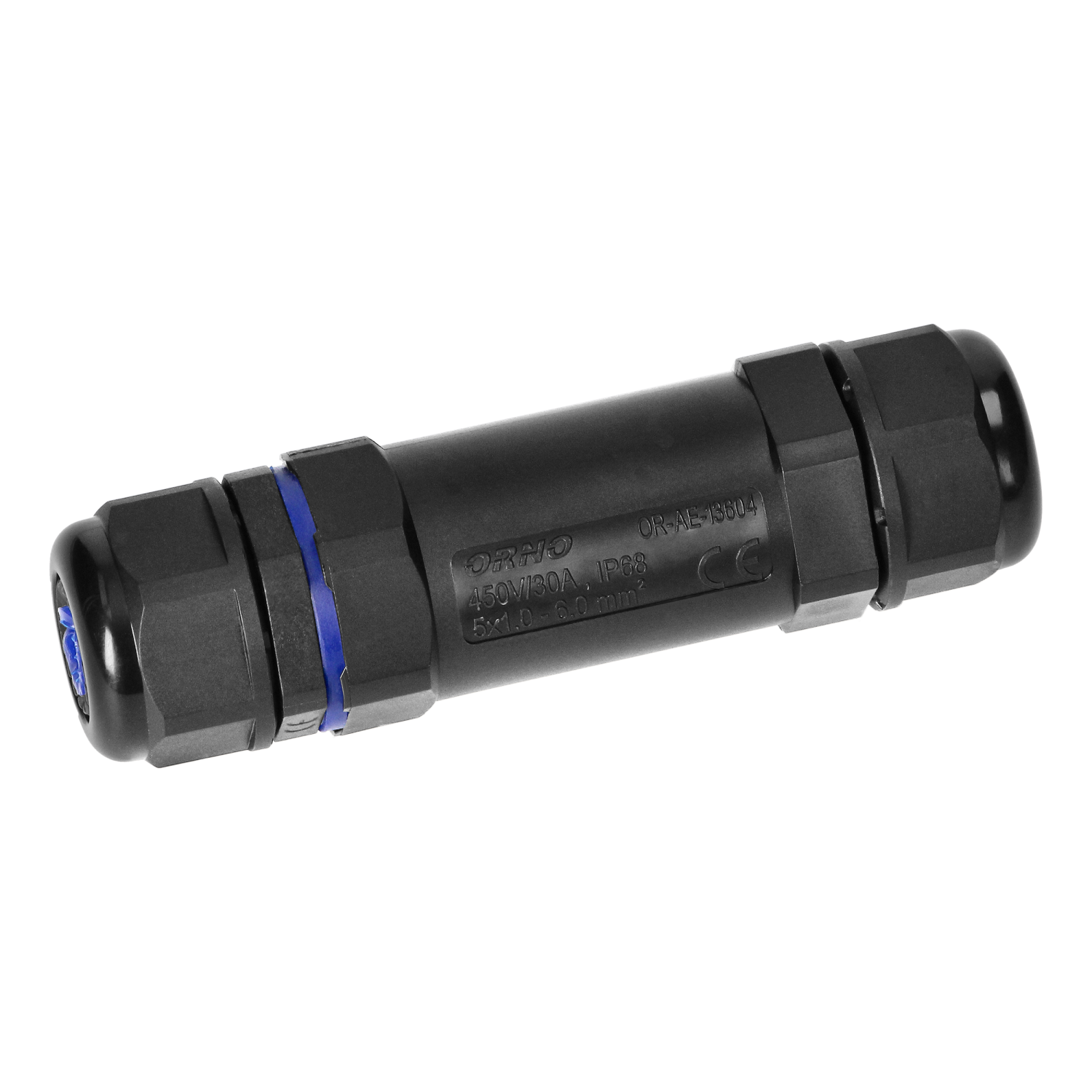

Cable Connector, Straight, 5x6mm², 450V/30A
Cable Connector, Straight, 5x6mm², 450V/30A
Cable Connector, Straight, 5x6mm², 450V/30A
Cable Connector, Straight, 5x6mm², 450V/30A
Cable Connector, Straight, 5x6mm², 450V/30A
Cable Connector, Straight, 5x6mm², 450V/30A
Cable Connector, Straight, 5x6mm², 450V/30A
Cable Connector, Straight, 5x6mm², 450V/30A

Cable Connector, Straight, 5x6mm², 450V/30A

OR-AE-13604

Description

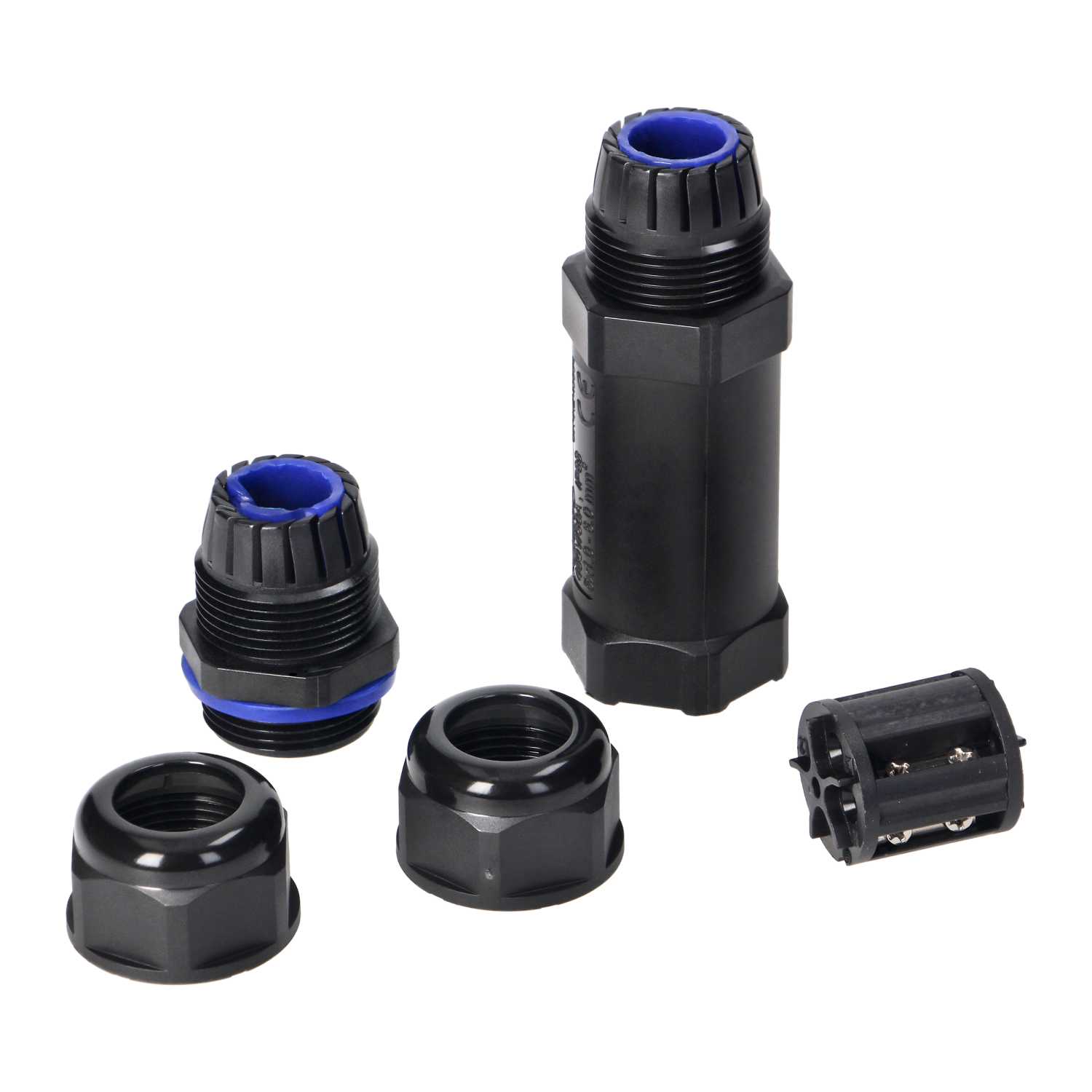

Cable connector simple in shape with high ingress protection level (IP68) which guarantees resistance against harsh outside conditions. The connection block has been equipped with a tight gasket and a thick rubber gasket for cable gland which perfectly seals all the cables inside. The material used for connector's production is resistant to UV rays and is suitable for outdoor use. Its contacts are made of brass with additional nickel layer to secure them against oxidation.

General information:
Connector type: straight
Wire cross-section: 6 mm²
Number of wires: 5
Power supply: 450V
Current: 30 A
Cable gauge: 10-16 mm
Degree of protection (IP): 68
Contacts material: nickel-plated brass
Flame-resistant casing: yes
UV radiation resistance: Yes
Case flammability standard UL94: V1
Dimensions - length (mm): 118 mm
Type of connection: screw clamp
Underground installation: No
Material housing: PA6

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:12:14Download
Product data sheetENpdf2024-07-17 10:20:20Download
