OR-ZL-1607

Description

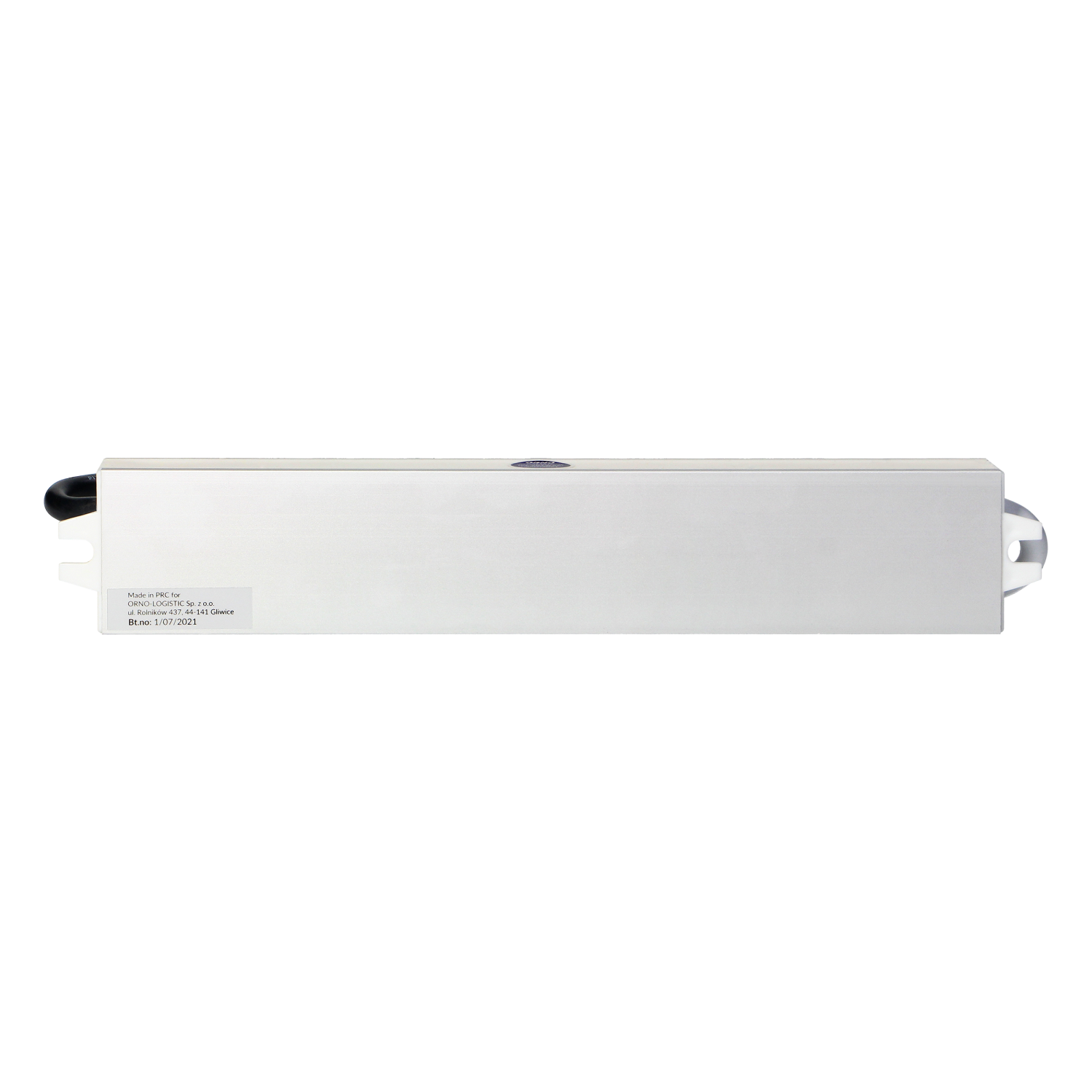

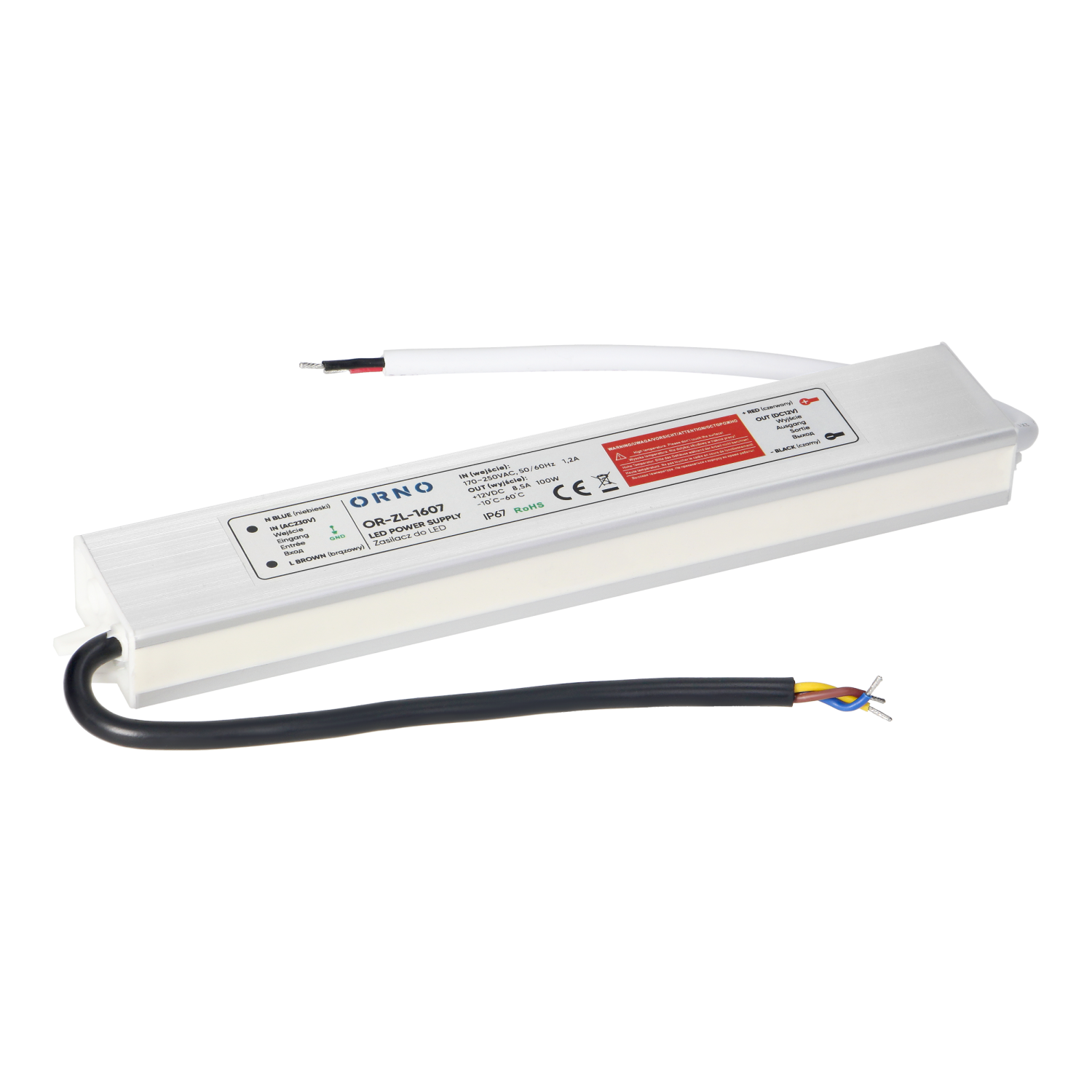

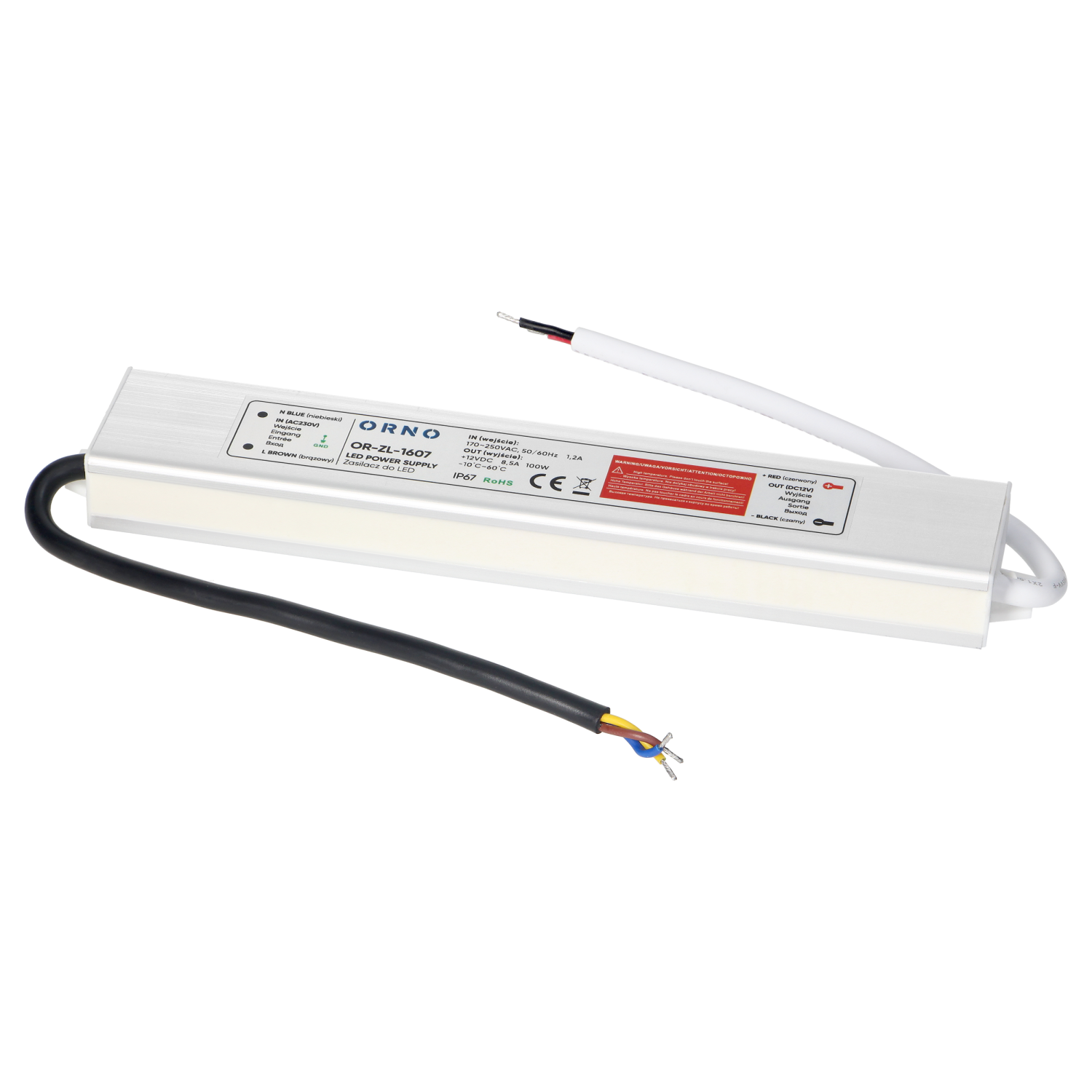

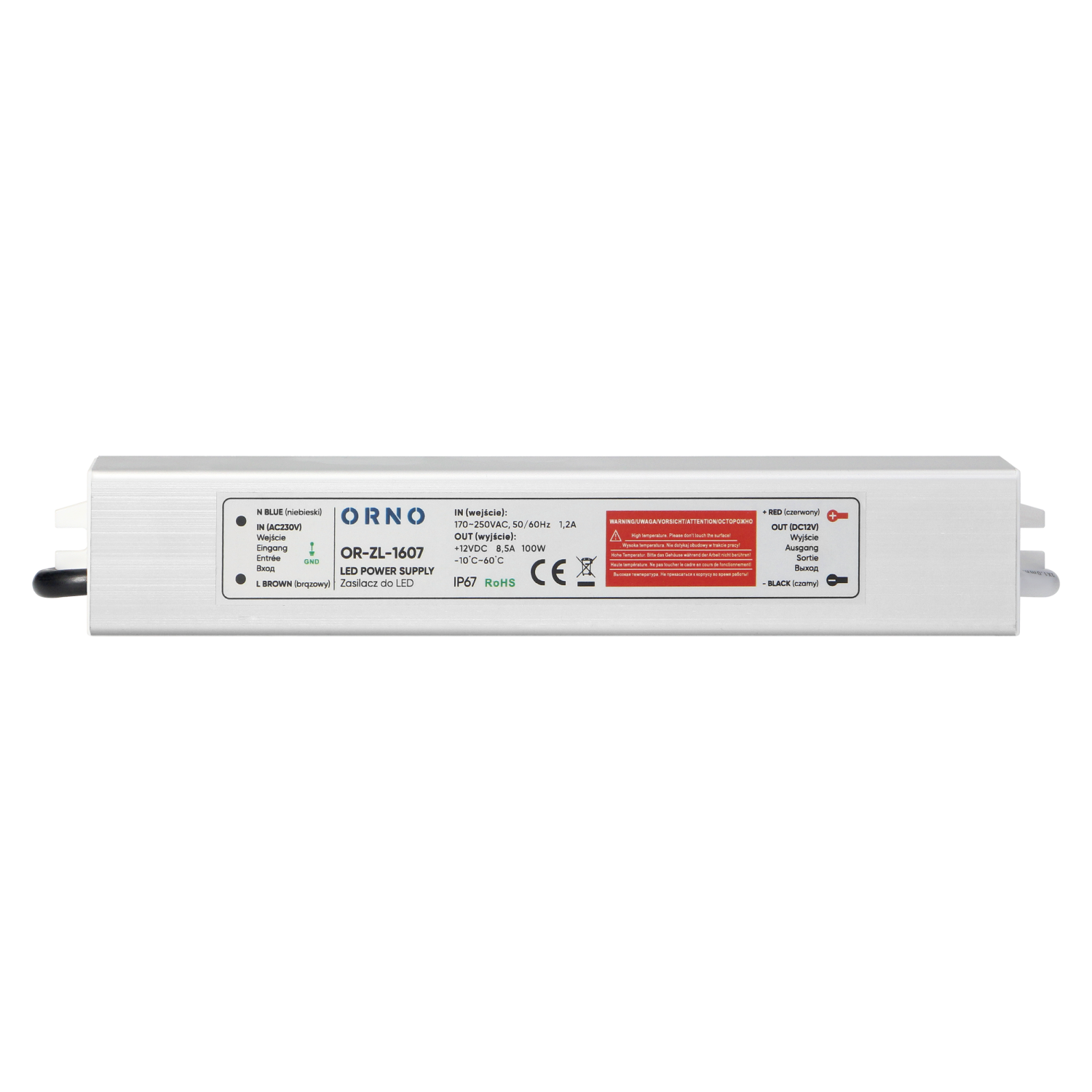

The power supply for LED lighting, including diodes, strips, LED strips, bulbs, modules, hoses or neon signs Equipped with handles that allow you to attach it to the wall or ceiling Characterized by a waterproof, airtight, metal housing which allows the use in conditions of high humidity for e.g. on the outside of the building Characterized by a constant output voltage independent of the allowable load Equipped with the following protections: short circuit, overload, voltage.

General information:
Rated power: 100 W
Output voltage: 12V DC V
Input voltage: 170–250V ~
Degree of protection (IP): 67
Output current: 8.5 A
Installation: surface mounting
Dimensions - depth: 45 mm
Dimensions - width: 185 mm
Dimensions - height: 70 mm
Other features: metal housing

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:58Download
Product data sheetENpdf2024-07-17 10:22:43Download
User manualPL, DEpdf2024-03-14 10:39:51Download
User manualSLpdf2024-03-14 10:39:51Download
