OR-PSU-1658

Description

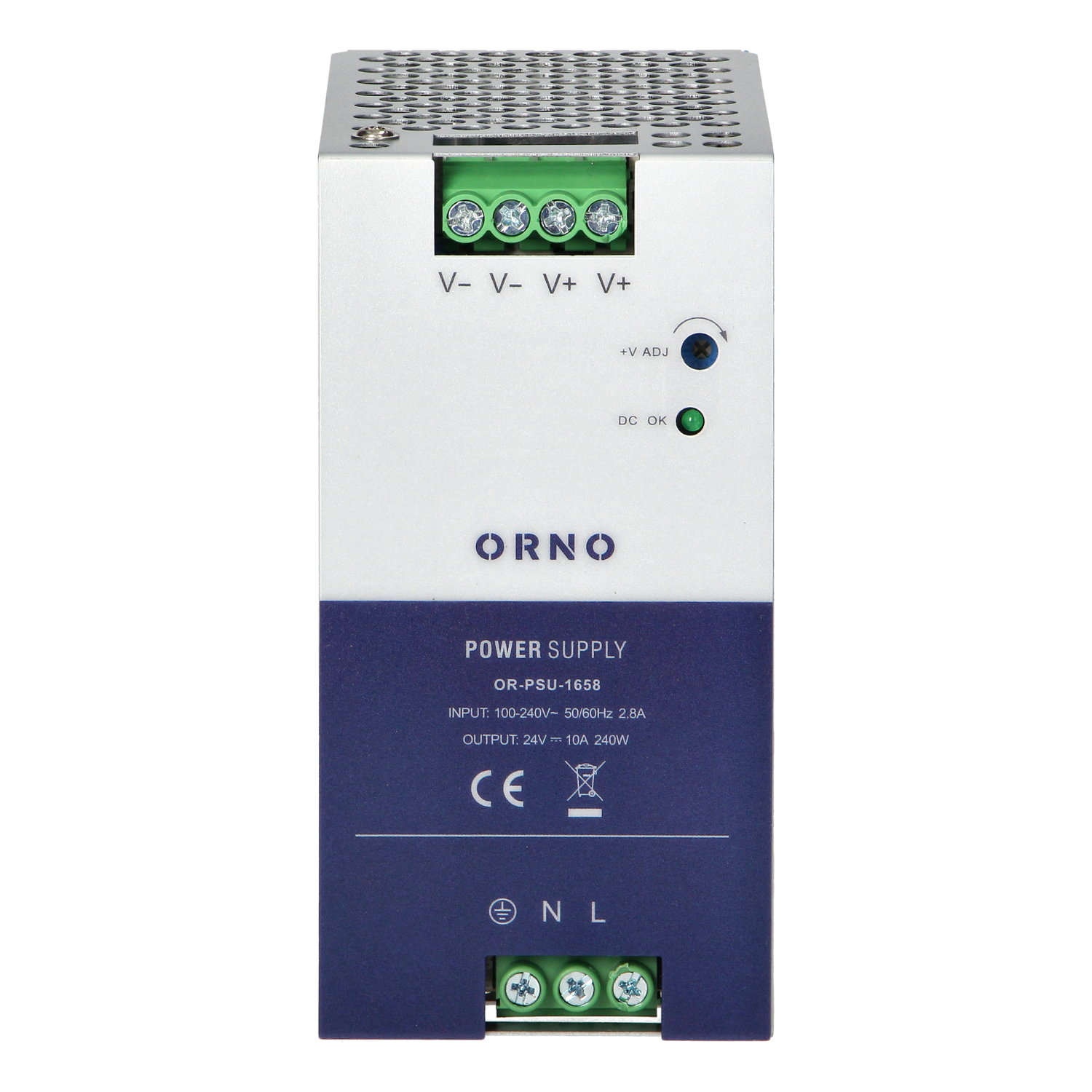

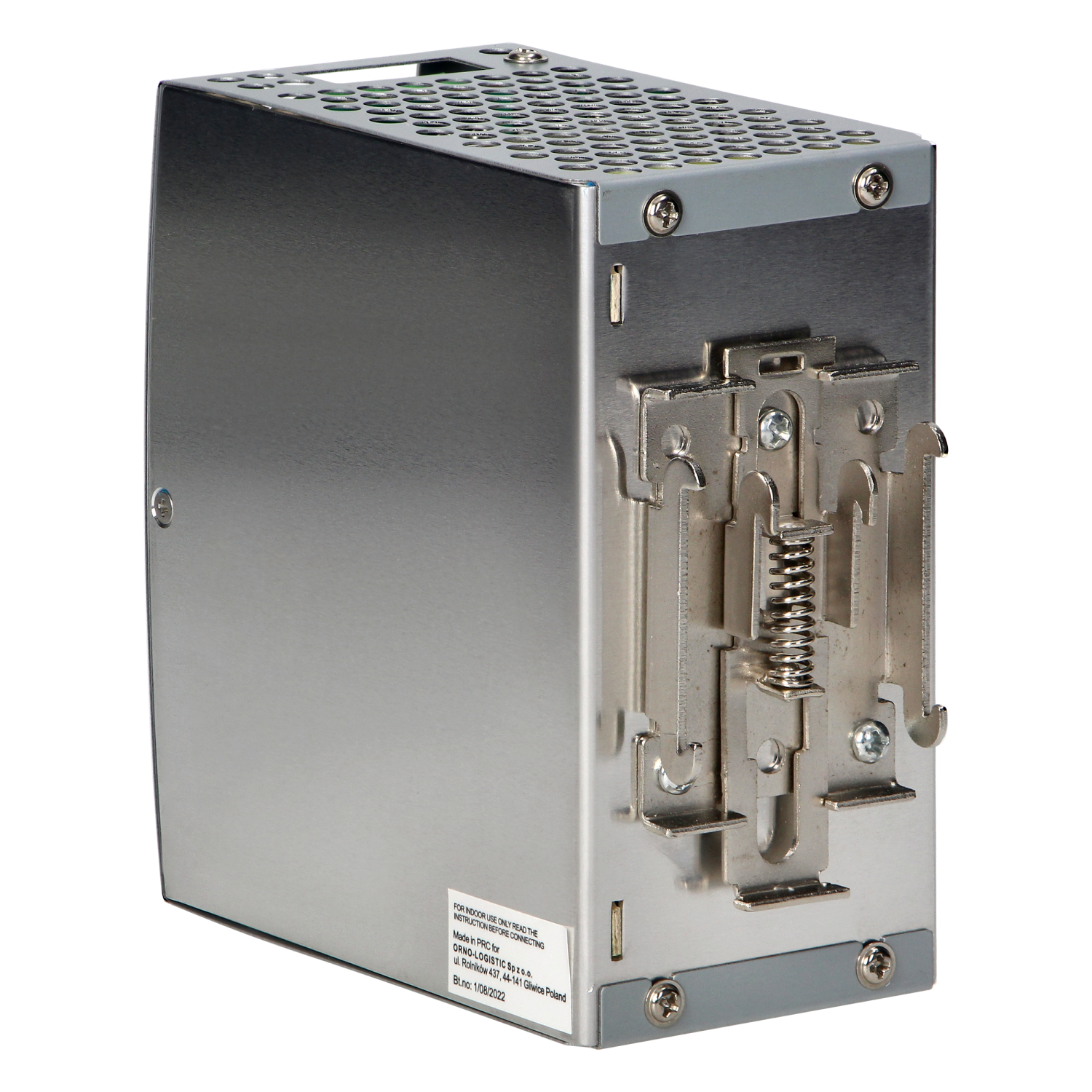

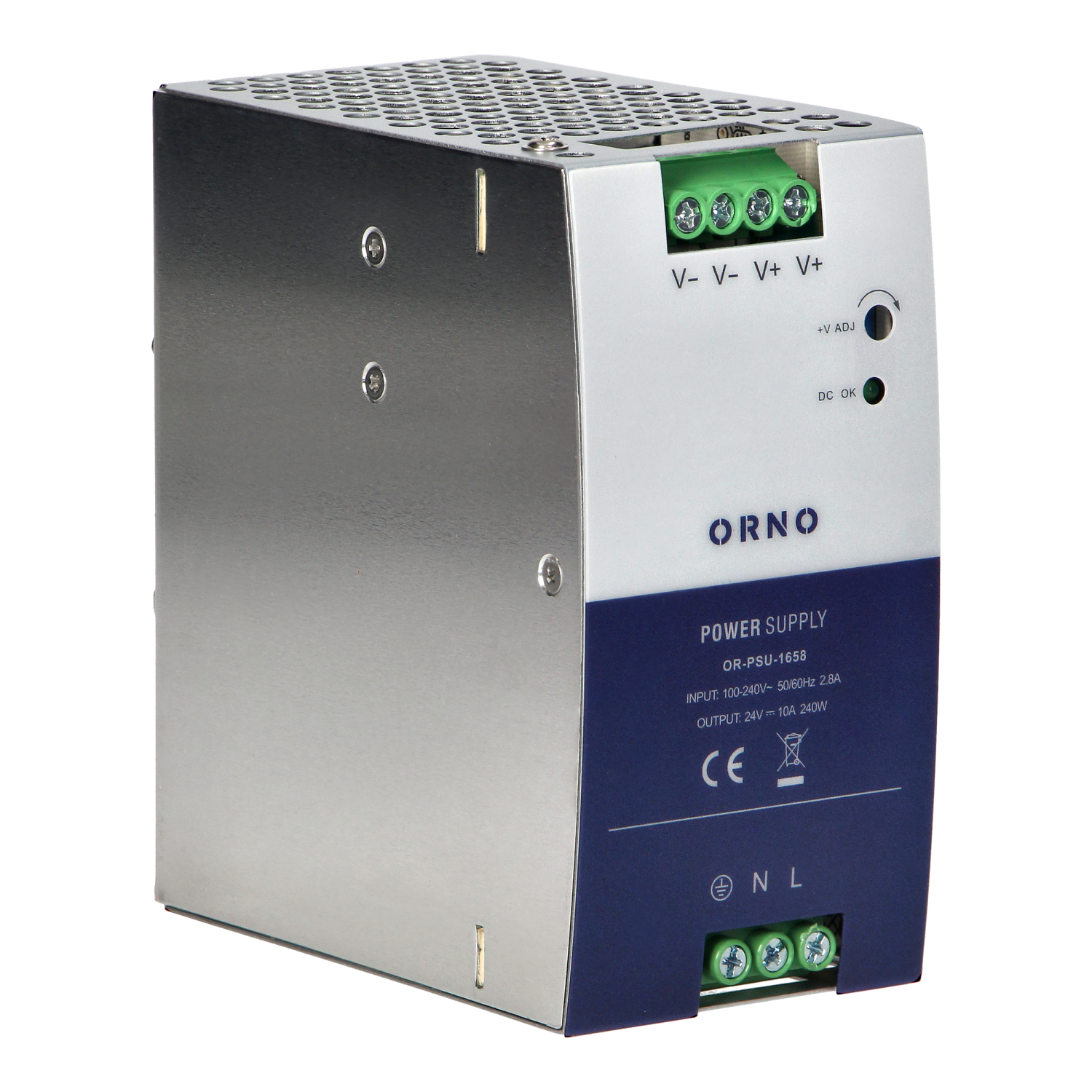

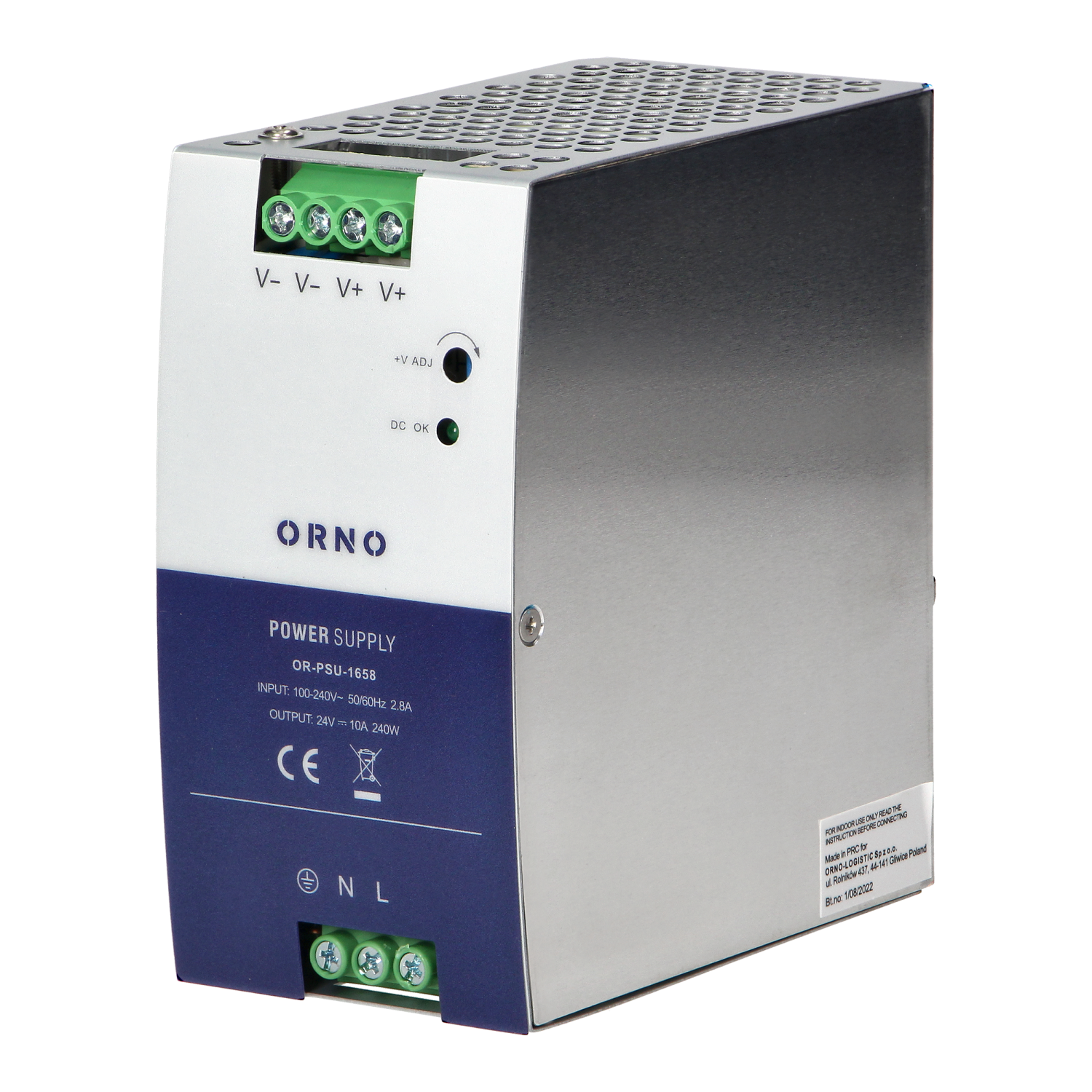

An industrial power supply unit suitable for mounting on a DIN TS-35/7.5 or 15 rail. The product is housed in a metal enclosure that provides resistance to low and high temperatures. The device is suitable for use in harsh industrial environments. It is primarily used to supply power to industrial automation, machine control and is responsible for the failure-free operation of industrial systems. It is characterised by class III voltage protection and additional current and short-circuit protection. Openings in the power supply housing allow air to flow freely so that the device is constantly cooled. This is particularly important for continuous operation of the device and significantly increases its service life.

General information:
Rated power: 240 W
Output voltage: DC 24 V
Input voltage: 100-240V AC
Degree of protection (IP): 22
Output current: 10 A
Installation: a DIN rail
Dimensions - depth: 113.5 mm
Dimensions - width: 63 mm
Dimensions - height: 125.2 mm

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:20Download
Product data sheetENpdf2024-07-17 10:22:06Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
