Installation relays

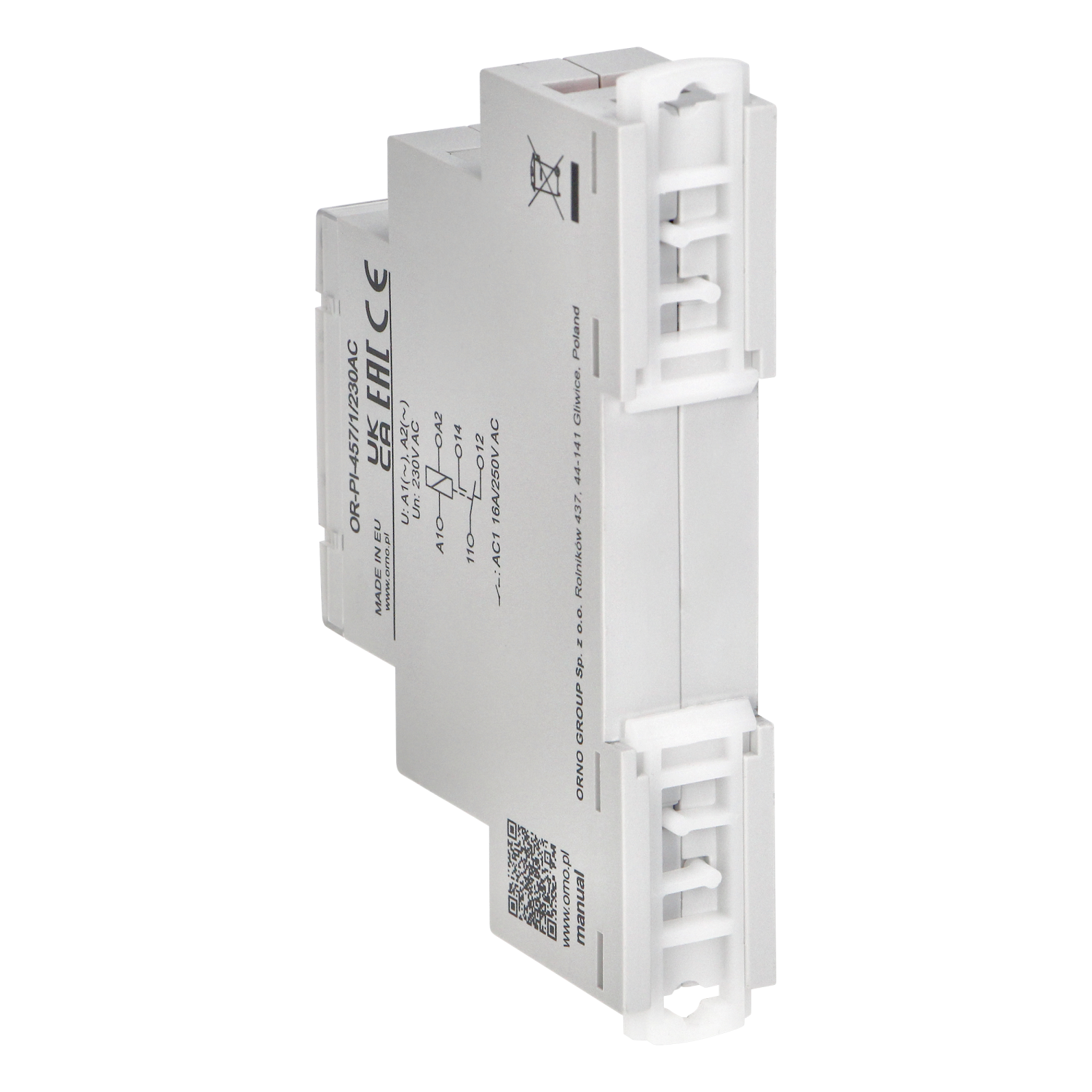

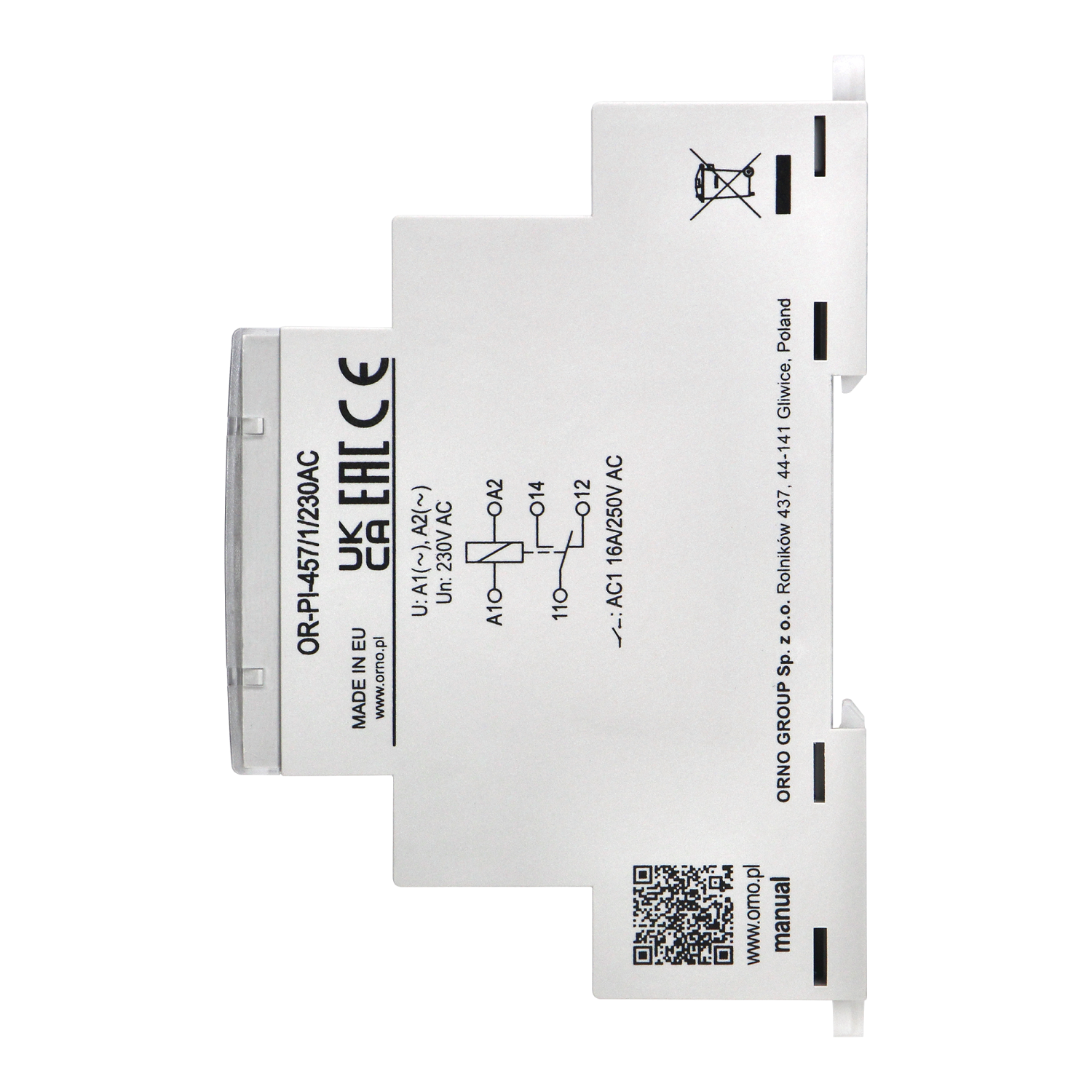

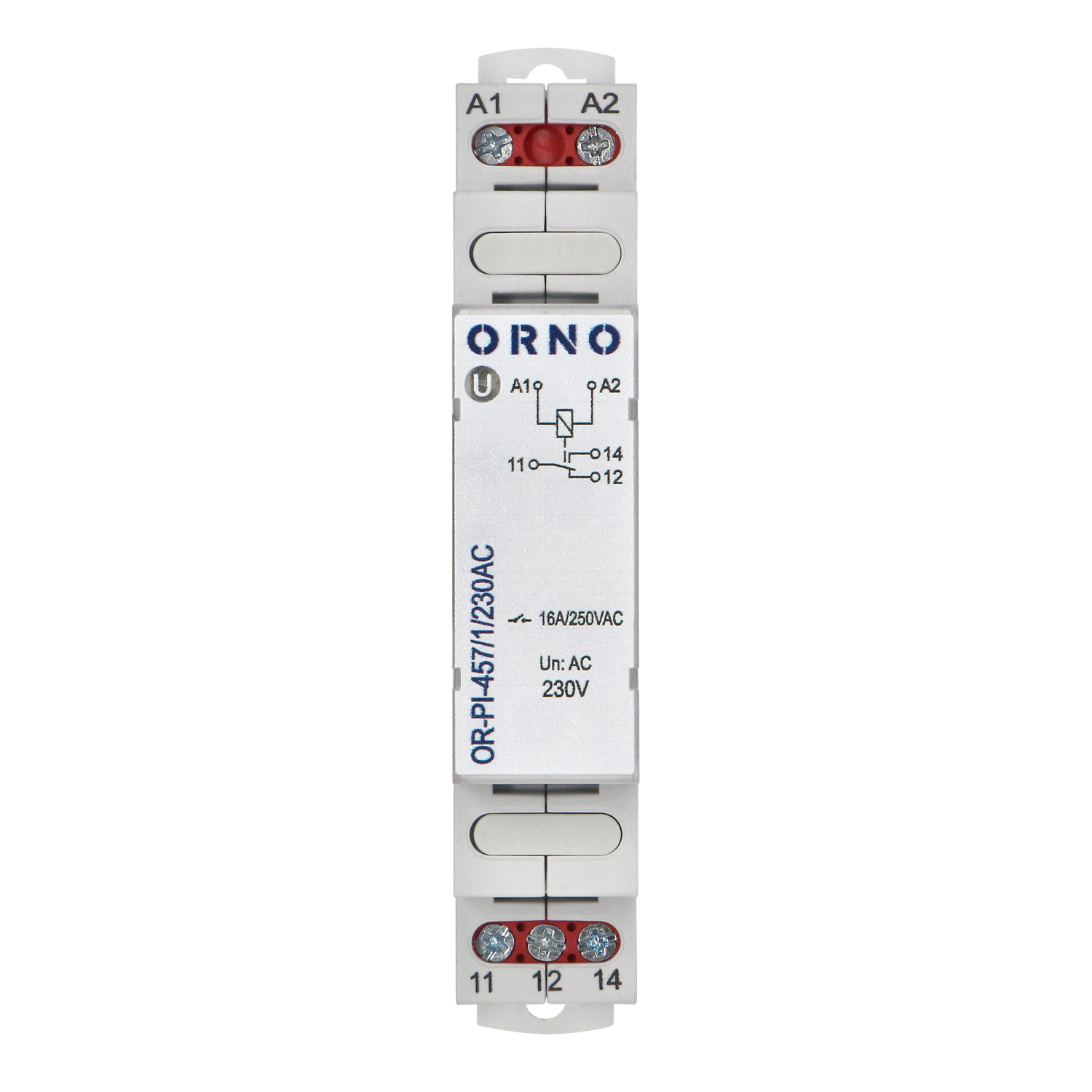

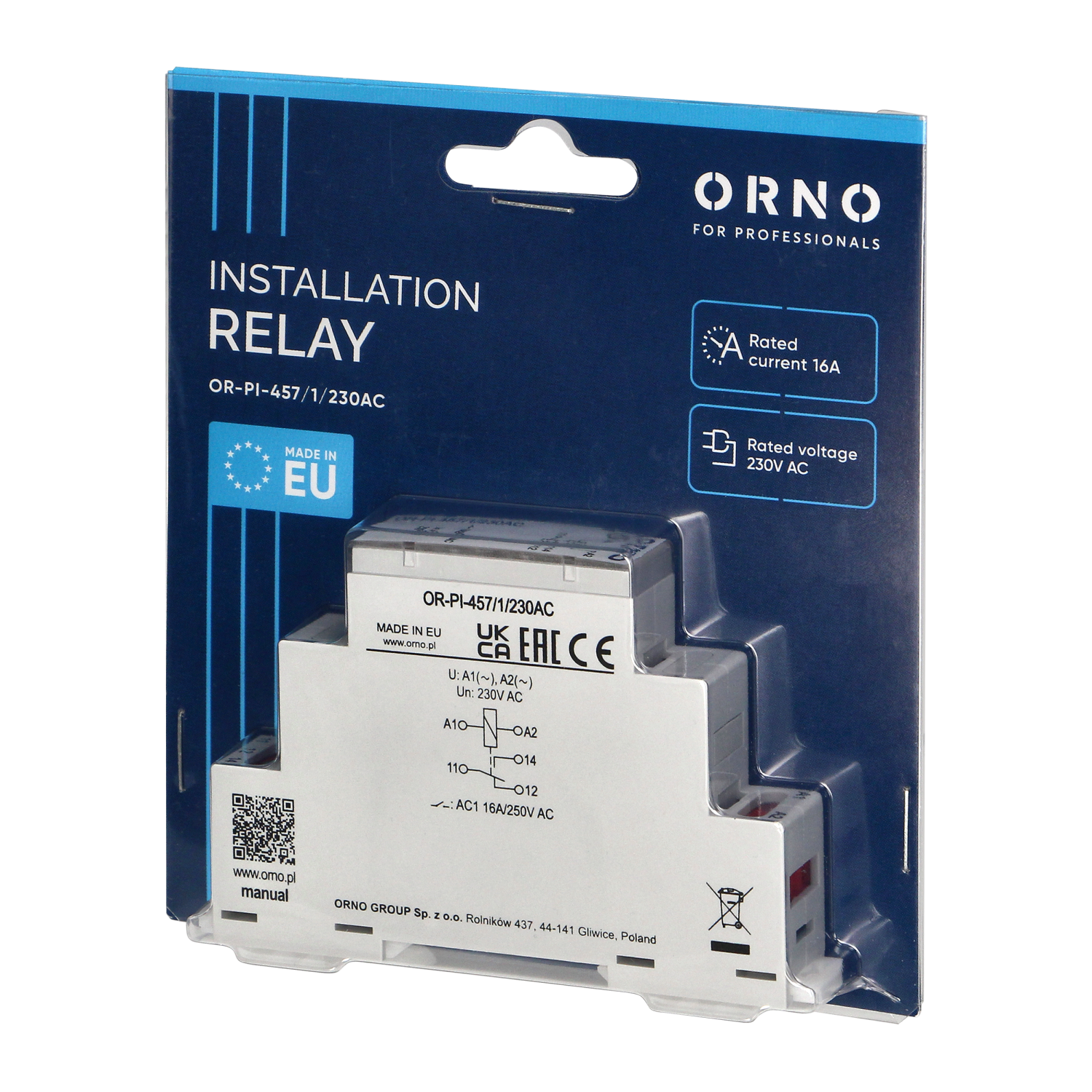

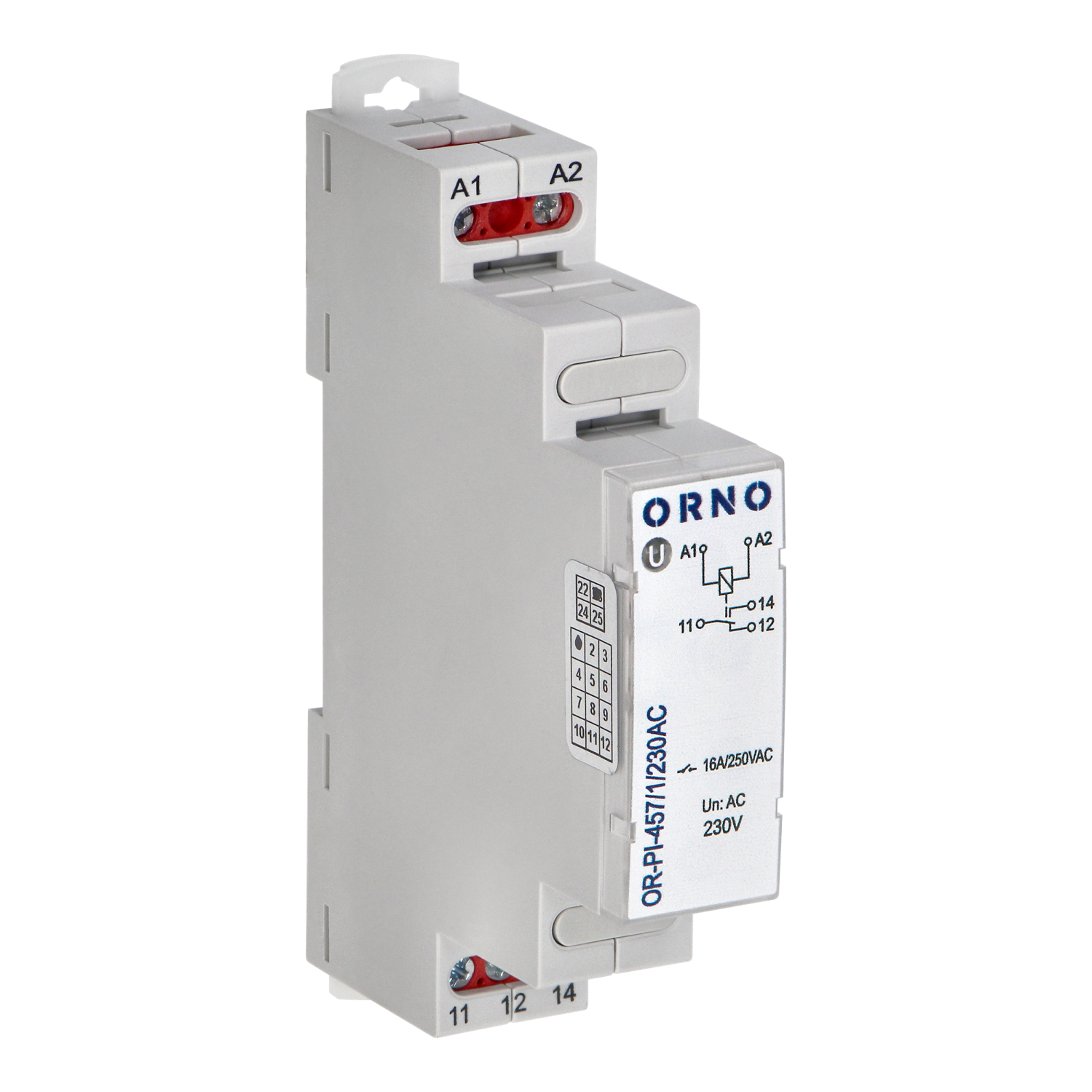

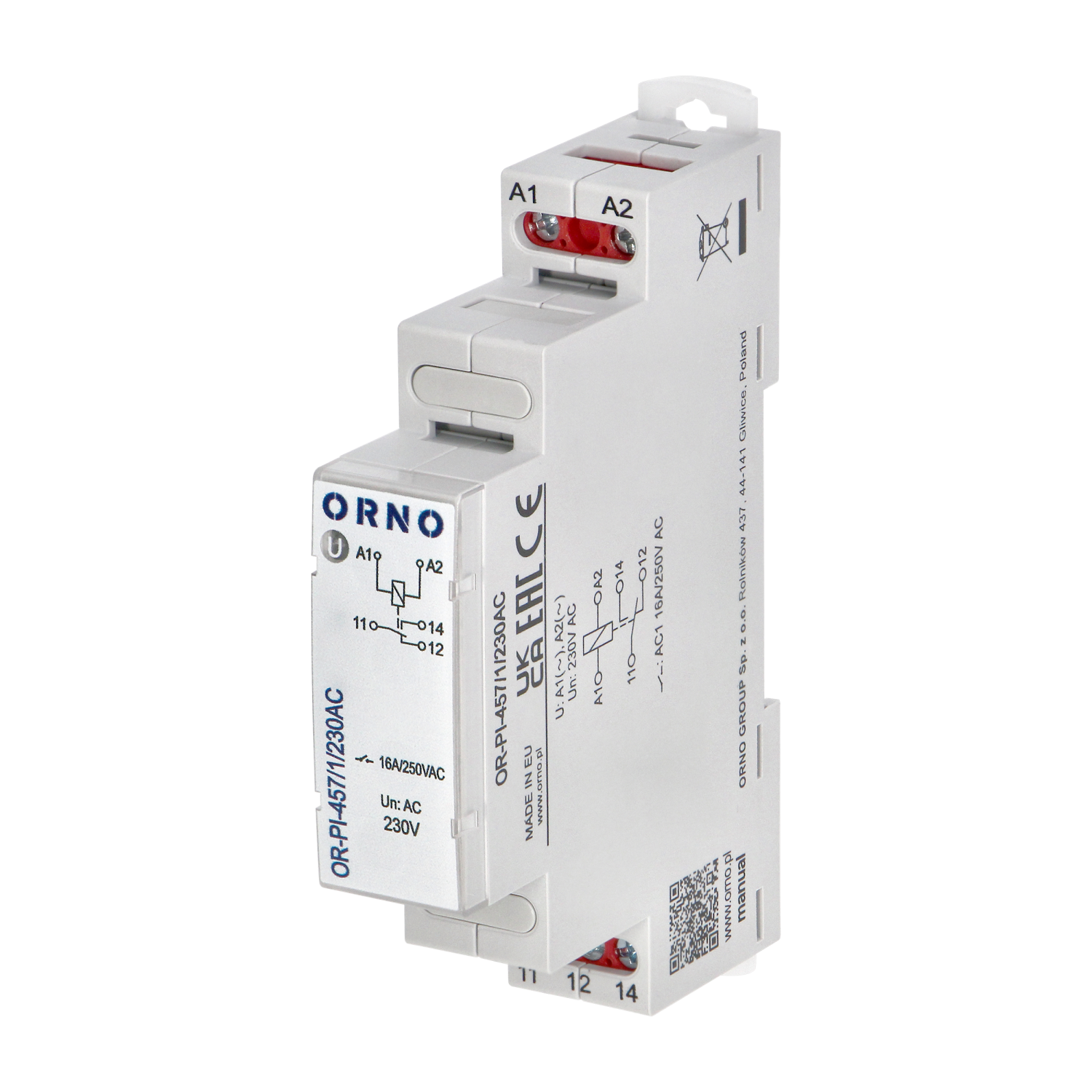

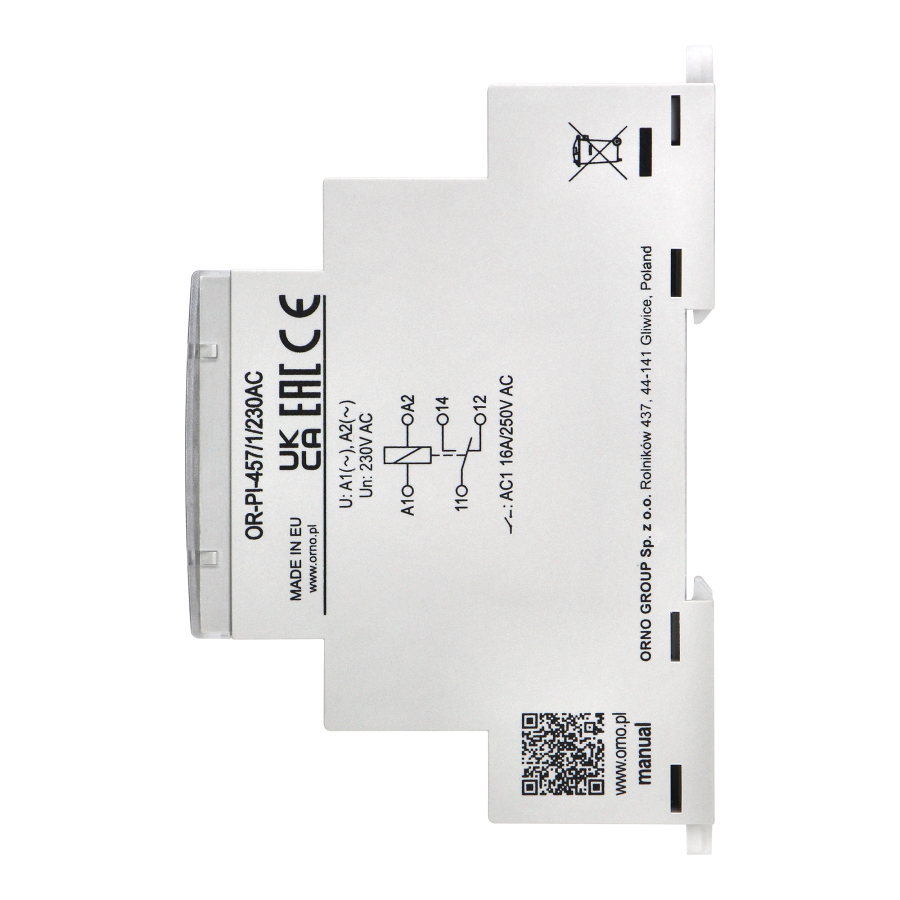

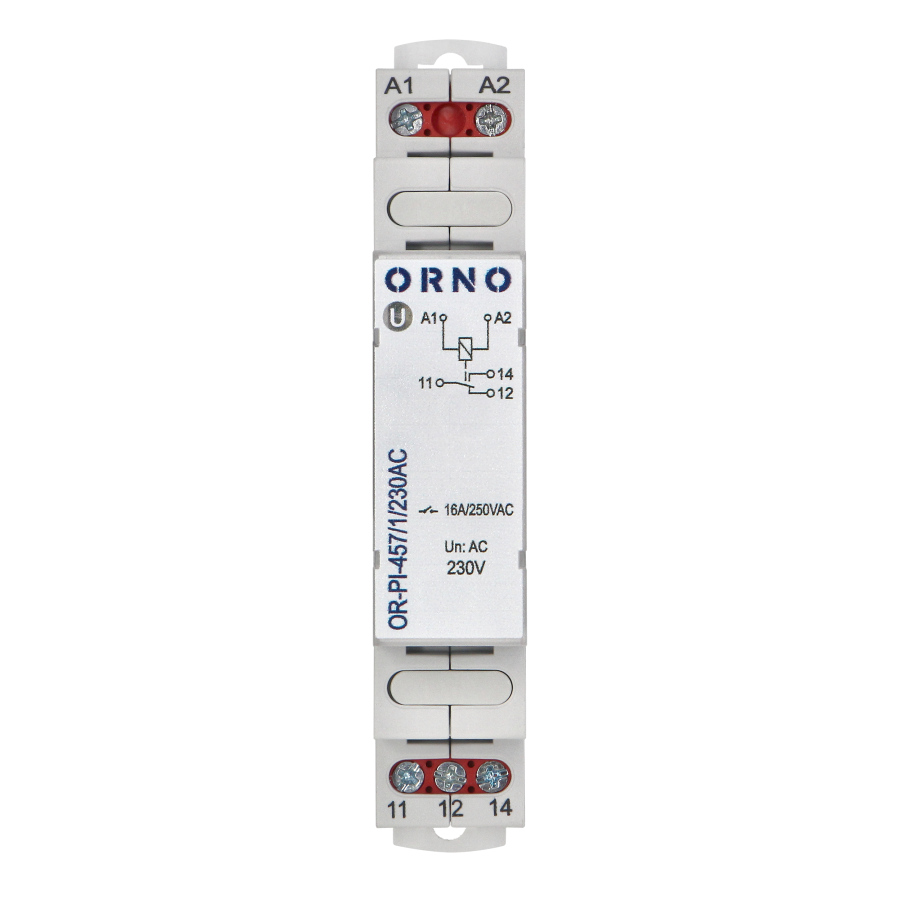

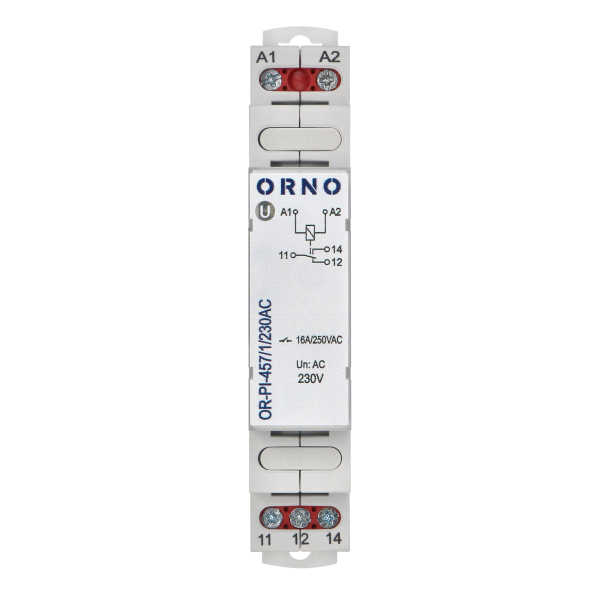

Installation relay, 1P 230 VAC 16A.
| General information: | |
|---|---|
| Storage temperature: | from -40°C to +70°C |
| Number and type of contacts: | 1P |
| Contacts material: | AgSnO2 |
| Rated load AC1: | 16 A / 250 V AC |
| Rated load DC1: | 16 A / 24 V DC |
| Degree of protection (IP): | 20 |
| Maximum switching capacity in category AC1: | 4000 VA |
| Contact resistance: | ≤ 100 mΩ |
| Maximum switching frequency: | 600 cykli/h |
| Nominal voltage: | 230 V |
| Operating voltage range: | 0,85 - 1,1 Un |
| Overvoltage category: | III |
| Dimensions - depth: | 90 mm |
| Dimensions - width: | 17.5 mm |
| Case flammability standard UL94: | V0 |
| Switching life AC1: | 10^4 |
| Dimensions - height: | 64.6 mm |
| Working temperature: | -20℃~+50℃ |
| Relative humidity: | do 85% |
| imapct resistance: | 15 g |
| vibration resistance: | 9g / 5g |
| Net weight: | 60 g |
