OR-SZ-8014/100

Description

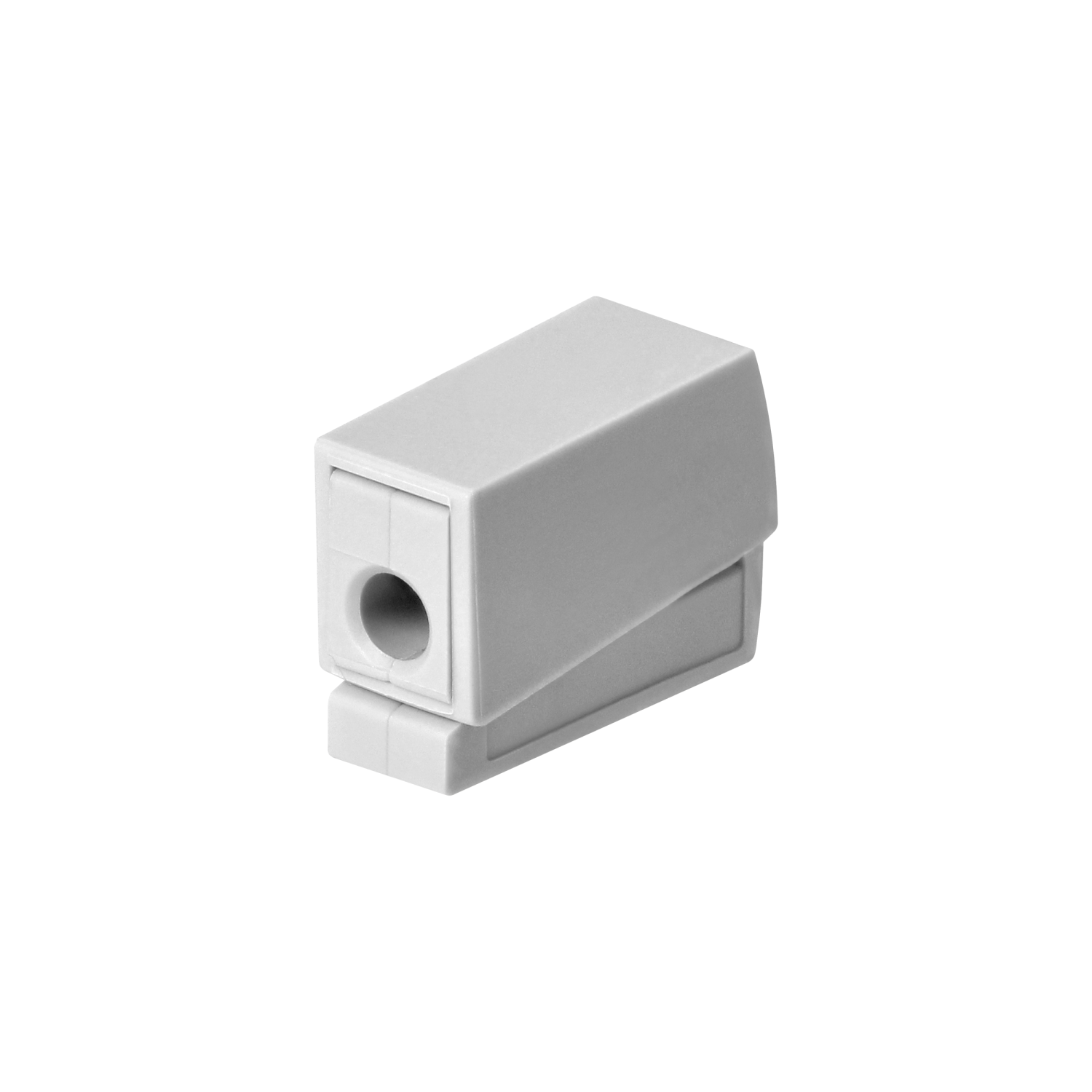

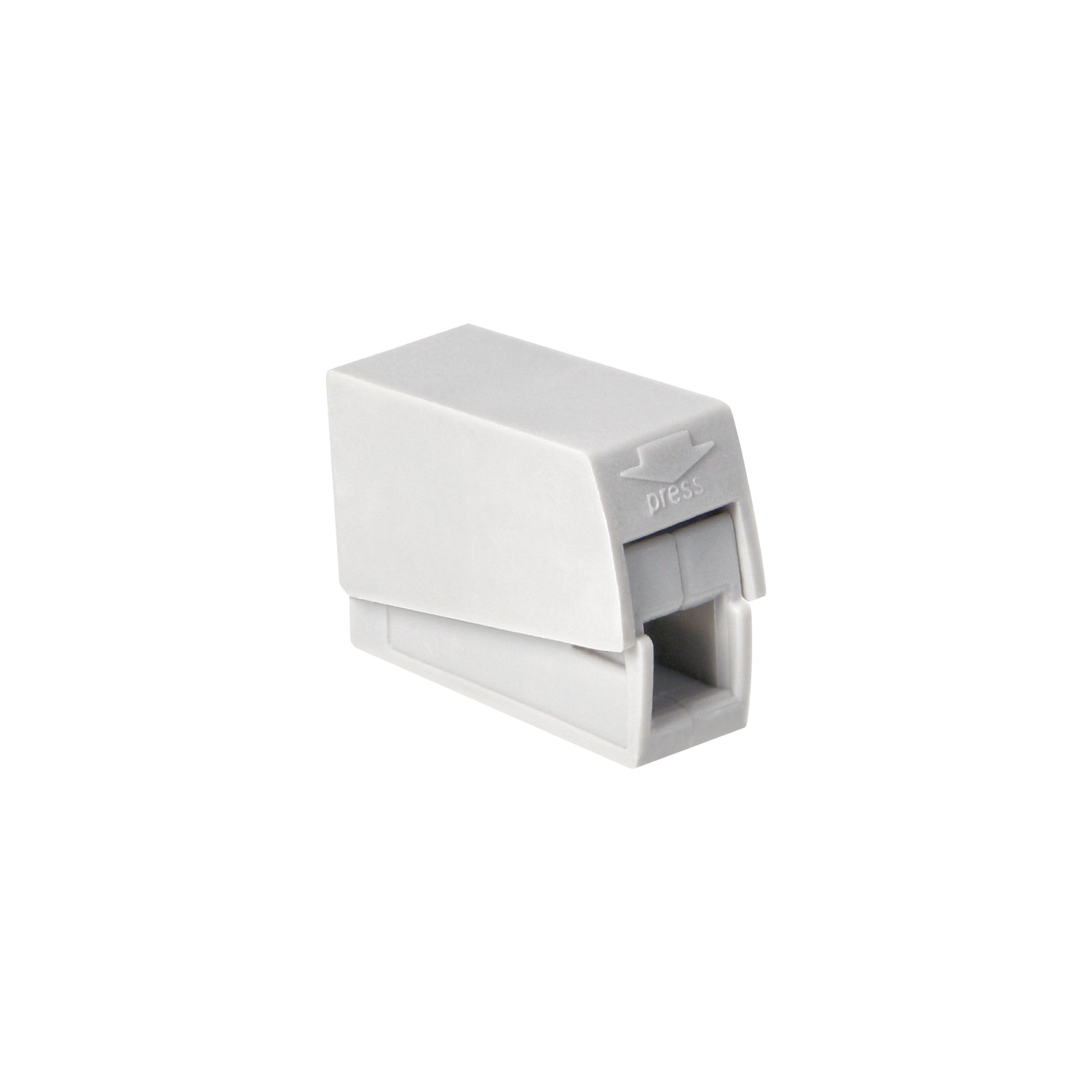

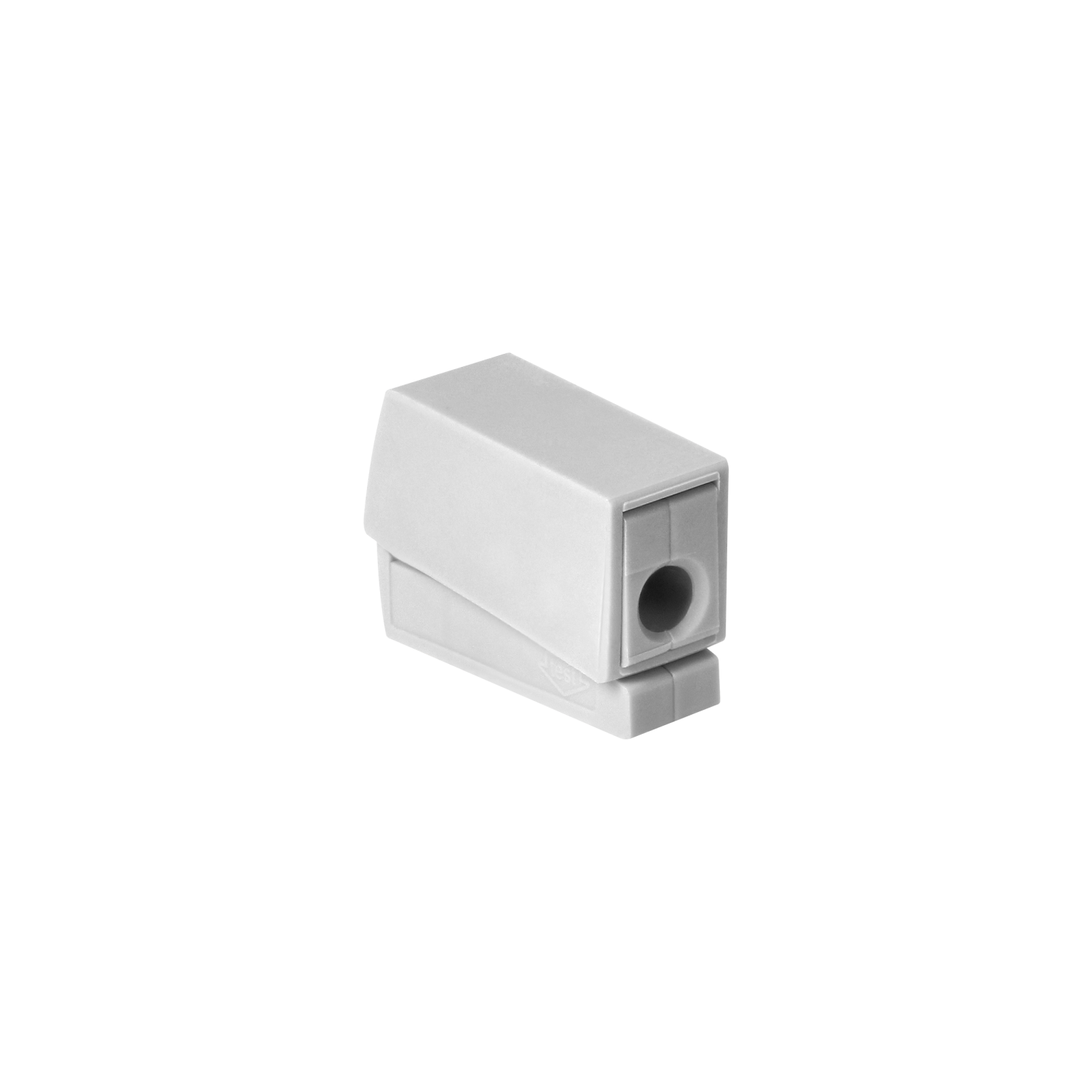

1-conductor lighting connector is a perfect way to connect rigid and stranded wires. You will save a lot of time and effort thanks to the quick and direct connection. All you need to do is insert the wires and press the fitting together. Thanks to a special testing hole, you can quickly and easily check if the wires are live after connection. Thanks to the connector, you will gain safety thanks to the use of a reliable clamping technique adapted to different types of wires. This will eliminate the need to use tools, which is a significant advantage, especially when installation takes place in hard-to-reach places. Typical areas of application - connection of rigid and stranded conductors, e.g. lighting fittings. The set includes 100 pieces.

General information:
Nominal voltage: 400
Wire cross-section: 2,5 mm²
Number of wires: 1
Current: 24 A

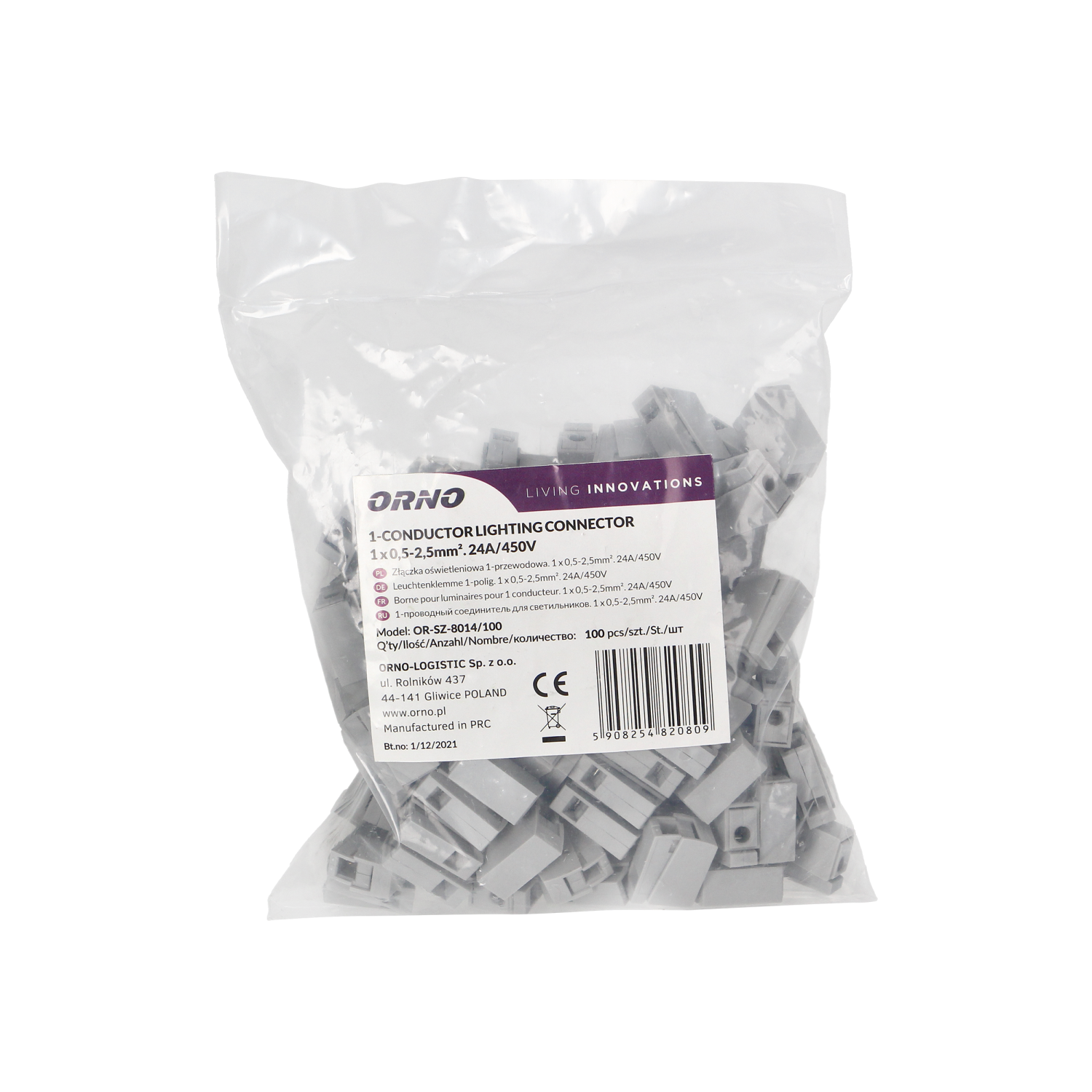

Number of items in a collective packaging: 100 pcs
Colour: grey
Installation: Push-in splicing/ Clamp splicing
Dimensions - depth: 20 mm
Dimensions - width: 12 mm
Dimensions - height: 15 mm
Other features: firm grip
Material housing: PA

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:30Download
Product data sheetENpdf2024-07-17 10:22:15Download
