Lighting connectors

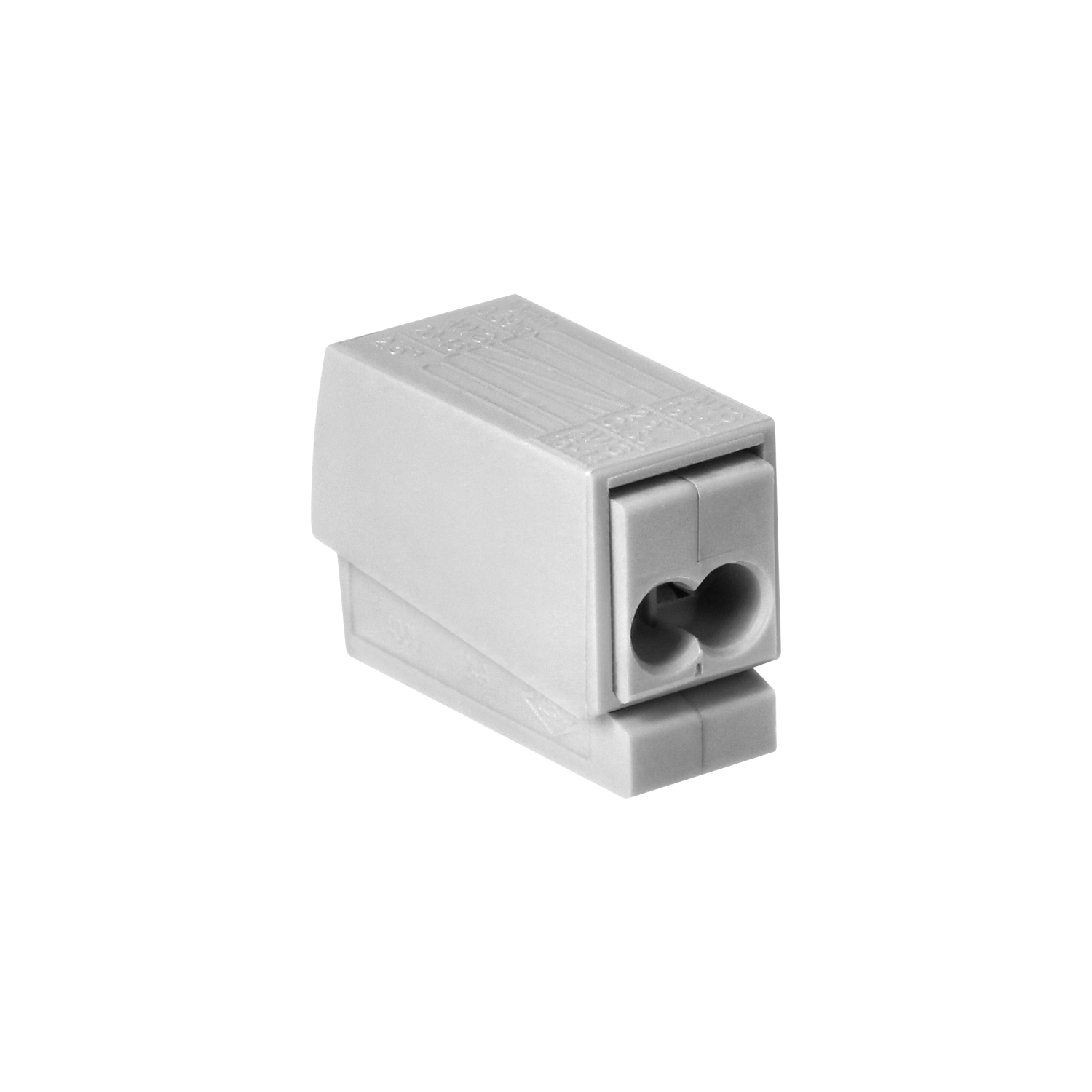

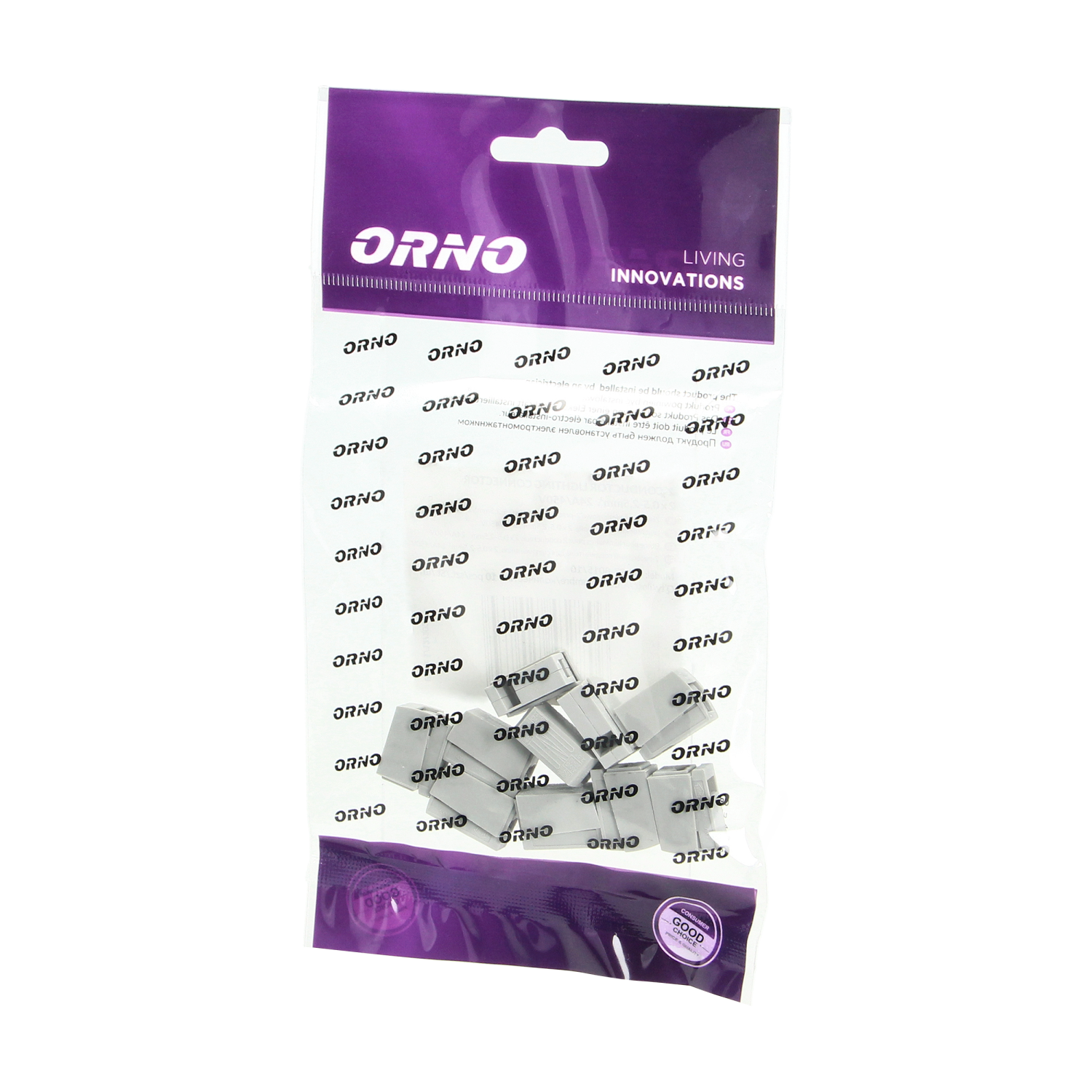

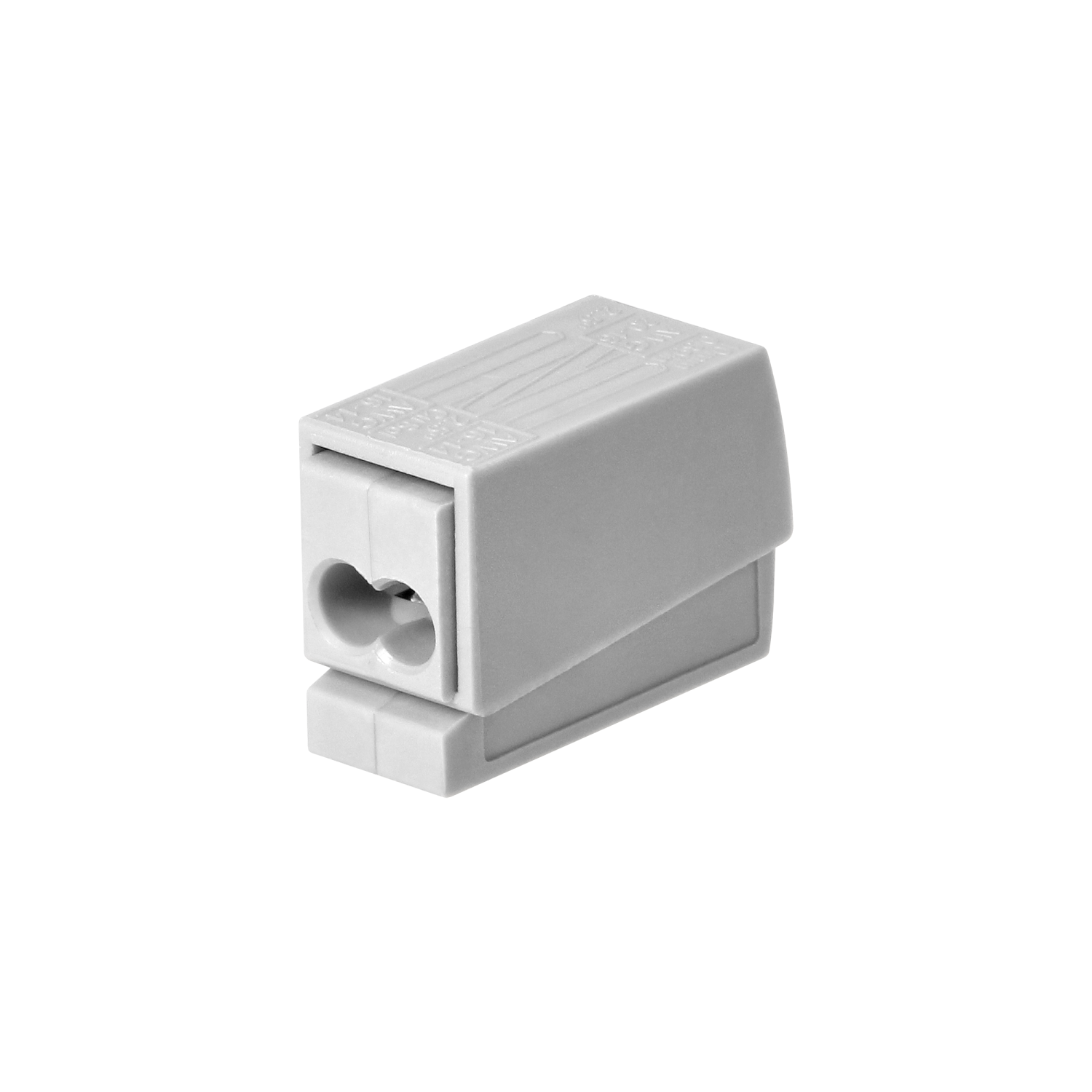

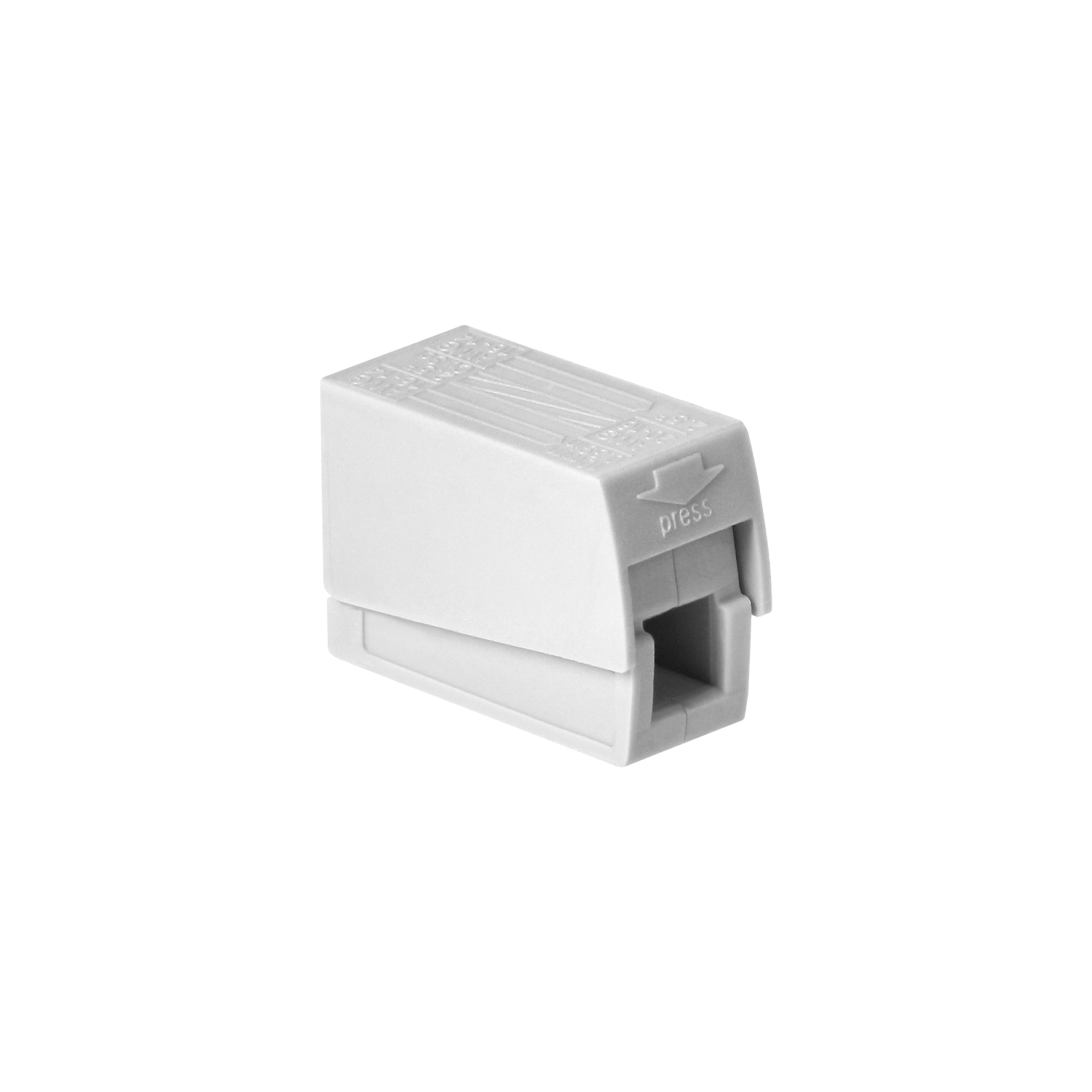

2-conductor lighting connector is a perfect way to connect rigid and stranded wires. You will save a lot of time and effort thanks to the quick and direct connection. All you need to do is insert the wires and press the fitting together. Thanks to a special testing hole, you can quickly and easily check if the wires are live after connection. Thanks to the connector, you will gain safety thanks to the use of a reliable clamping technique adapted to different types of wires. This will eliminate the need to use tools, which is a significant advantage, especially when installation takes place in hard-to-reach places. Typical areas of application - connection of rigid and stranded conductors, e.g. lighting fittings. The set includes 10 pieces
| General information: | |
|---|---|
| Nominal voltage: | 400 |
| Wire cross-section: | 2,5 mm² |
| Number of wires: | 2 |
| Current: | 24 A |
| Number of items in a collective packaging: | 10 pcs |
| Colour: | grey |
| Installation: | Push-in splicing/ Clamp splicing |
| Dimensions - depth: | 20 mm |
| Dimensions - width: | 12 mm |
| Dimensions - height: | 15 mm |
| Other features: | firm grip |
| Material housing: | PA |
