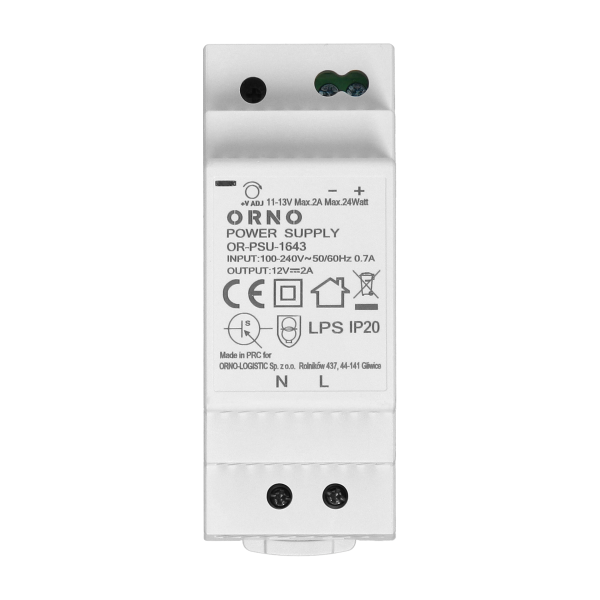

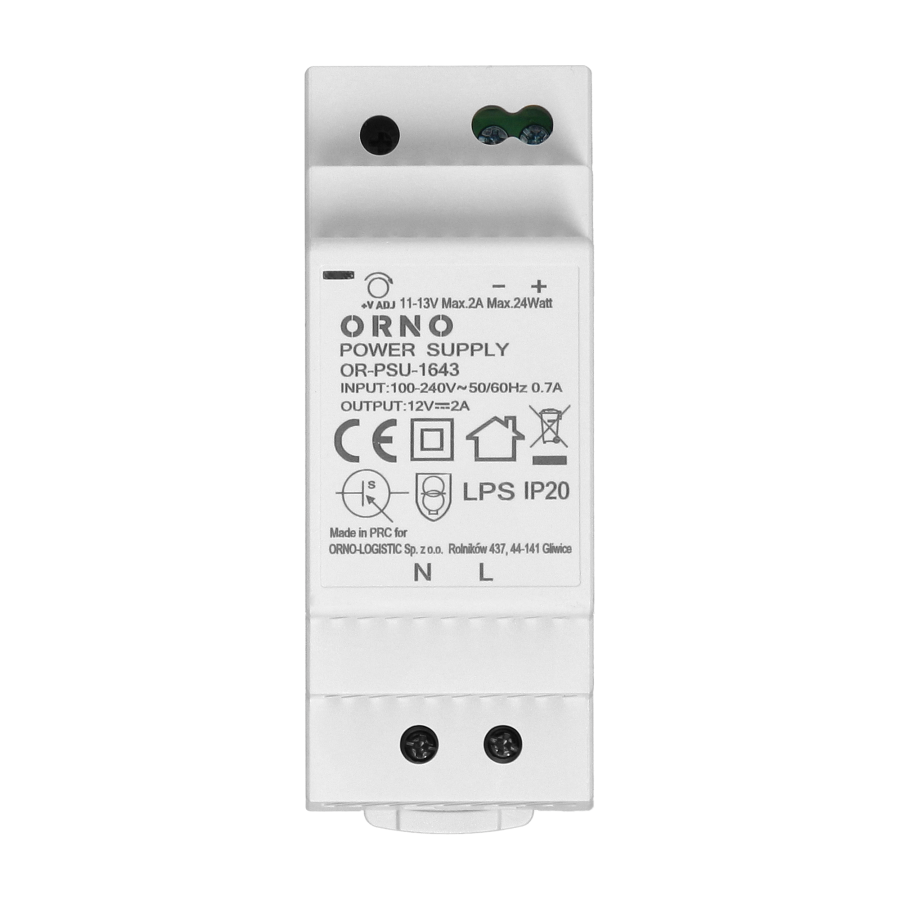

DIN rail power adaptor 12V DC 2A, 24W, width: 2 units
DIN rail power adaptor 12V DC 2A, 24W, width: 2 units
DIN rail power adaptor 12V DC 2A, 24W, width: 2 units
DIN rail power adaptor 12V DC 2A, 24W, width: 2 units
DIN rail power adaptor 12V DC 2A, 24W, width: 2 units
DIN rail power adaptor 12V DC 2A, 24W, width: 2 units
DIN rail power adaptor 12V DC 2A, 24W, width: 2 units
DIN rail power adaptor 12V DC 2A, 24W, width: 2 units
DIN rail power adaptor 12V DC 2A, 24W, width: 2 units
DIN rail power adaptor 12V DC 2A, 24W, width: 2 units
DIN rail power adaptor 12V DC 2A, 24W, width: 2 units
DIN rail power adaptor 12V DC 2A, 24W, width: 2 units

DIN rail power adaptor 12V DC 2A, 24W, width: 2 units

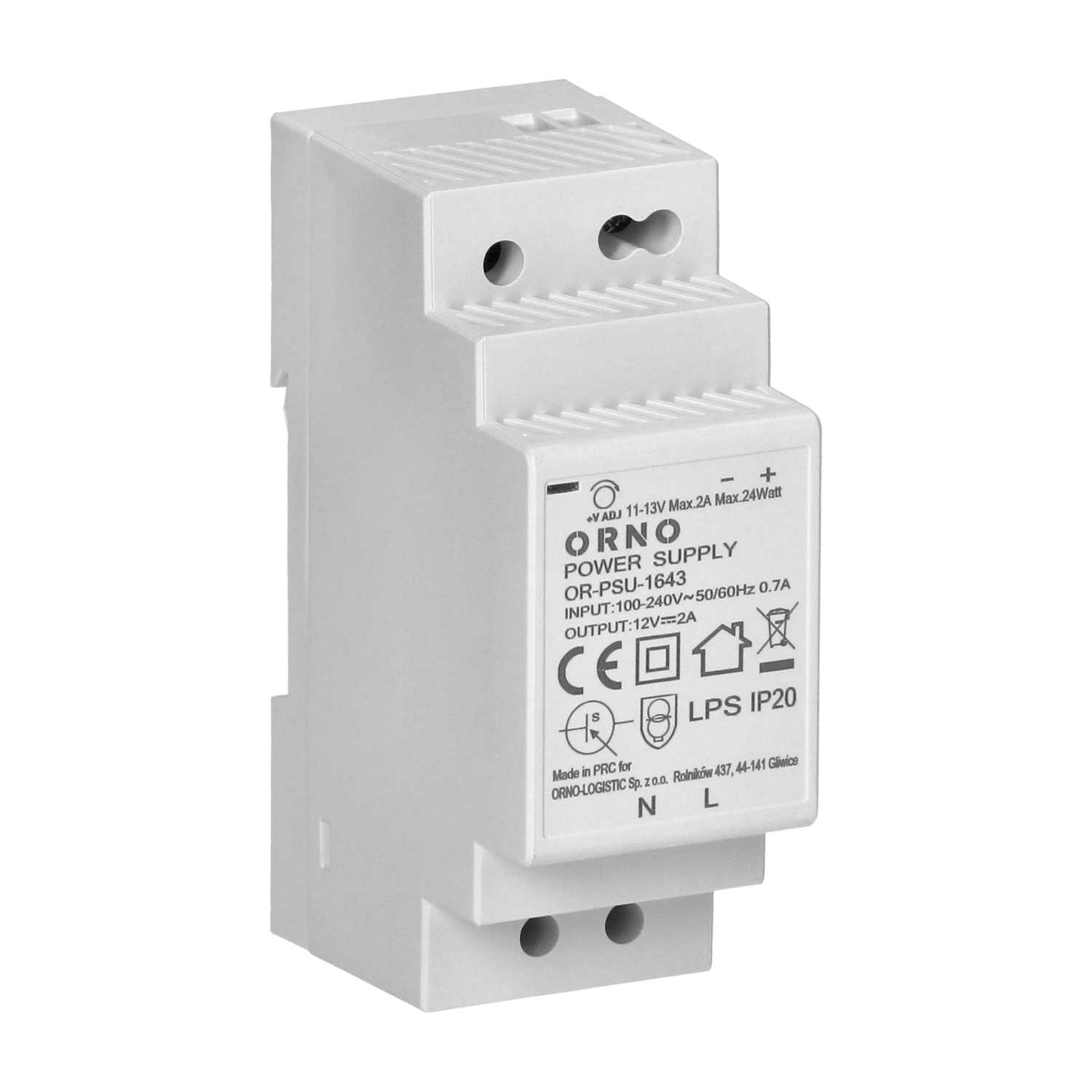

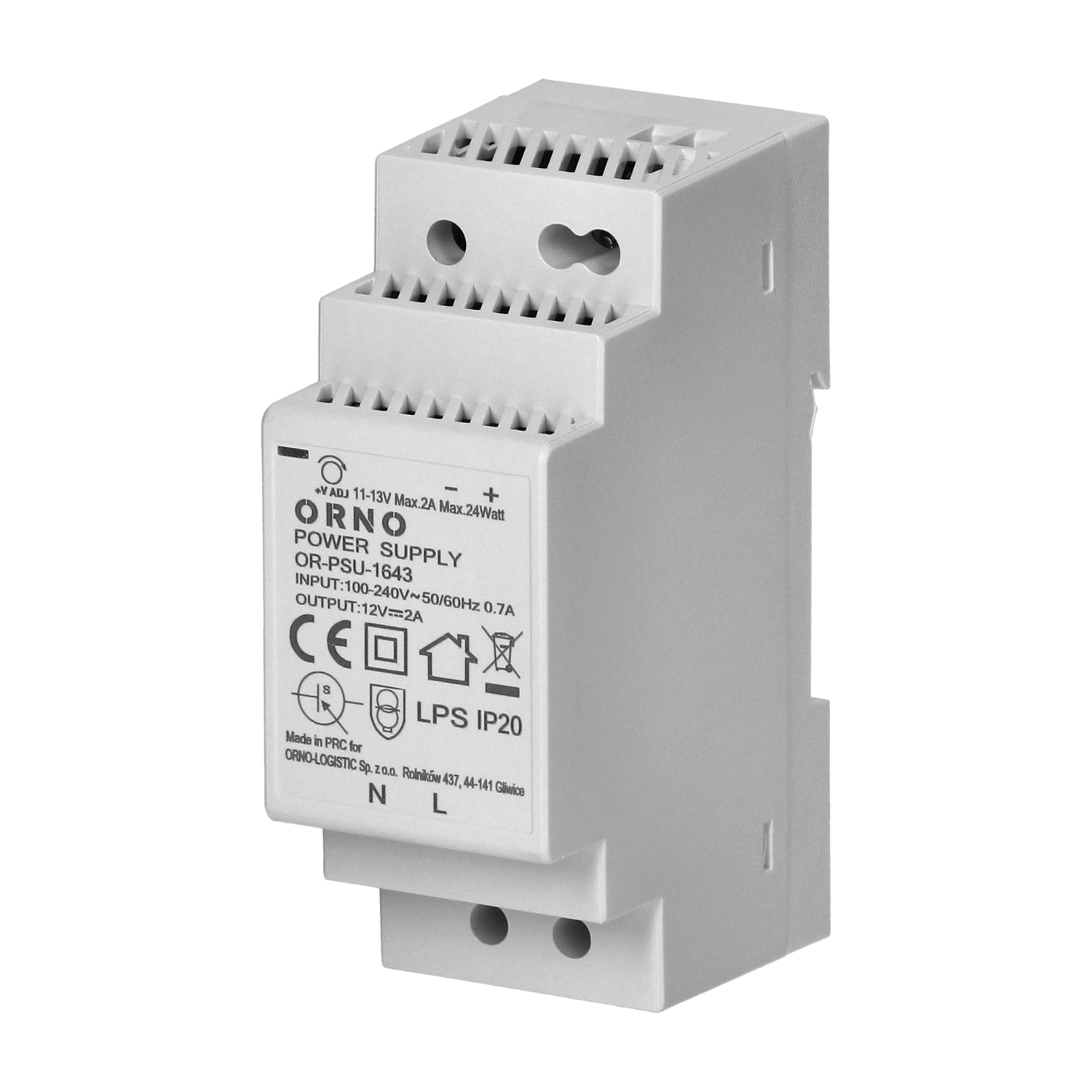

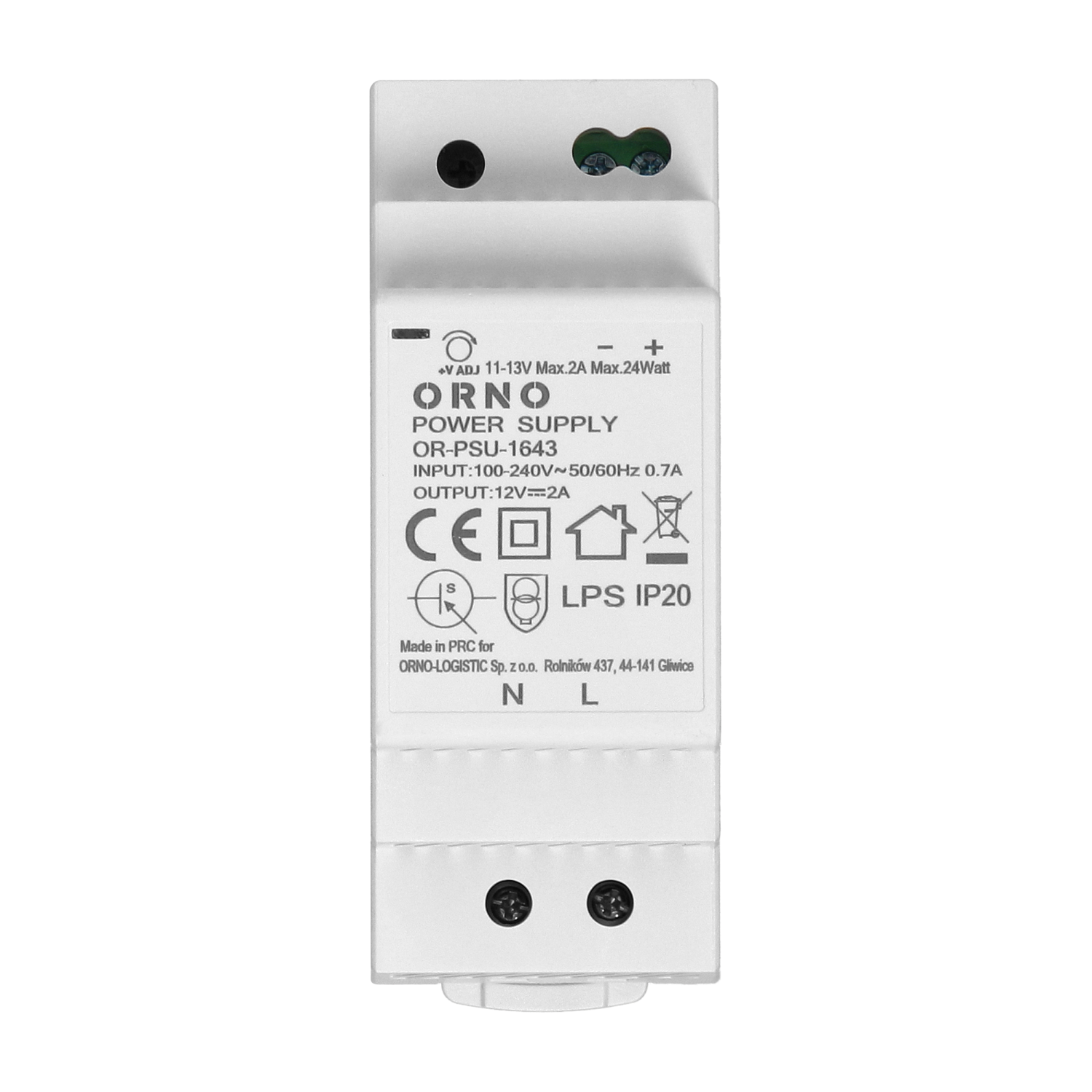

OR-PSU-1643

Description

Highly efficient and reliable DIN rail power adaptor of 24W max. load and 12V DC output voltage, which can be adjusted. It has been developed for DIN rail installation and can be used in vast number of applications, e.g. industrial applications, low voltage installations, such as CCTV or alarm systems. This power adaptor includes: overload protection, anti-surge protection and overvoltage protection. An integrated diode indicates activation of the device.

General information:
Over voltage category: III
Rated power: 24 W
Output voltage: 12V DC V
Input voltage: 100-230V 50-60Hz
Degree of protection (IP): 20
Output current: 2 A
Max. short time current rating: 2,1A
Standby power consumption: 0.3 W
No. of modules (width): 2
Installation: a DIN rail
Short-circuit protection: Yes
Dimensions - depth: 35 mm
Dimensions - width: 90 mm
Current protection: Yes
Voltage protection: Yes
Dimensions - height: 58 mm

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:14:19Download
Product data sheetENpdf2024-07-17 10:22:05Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
